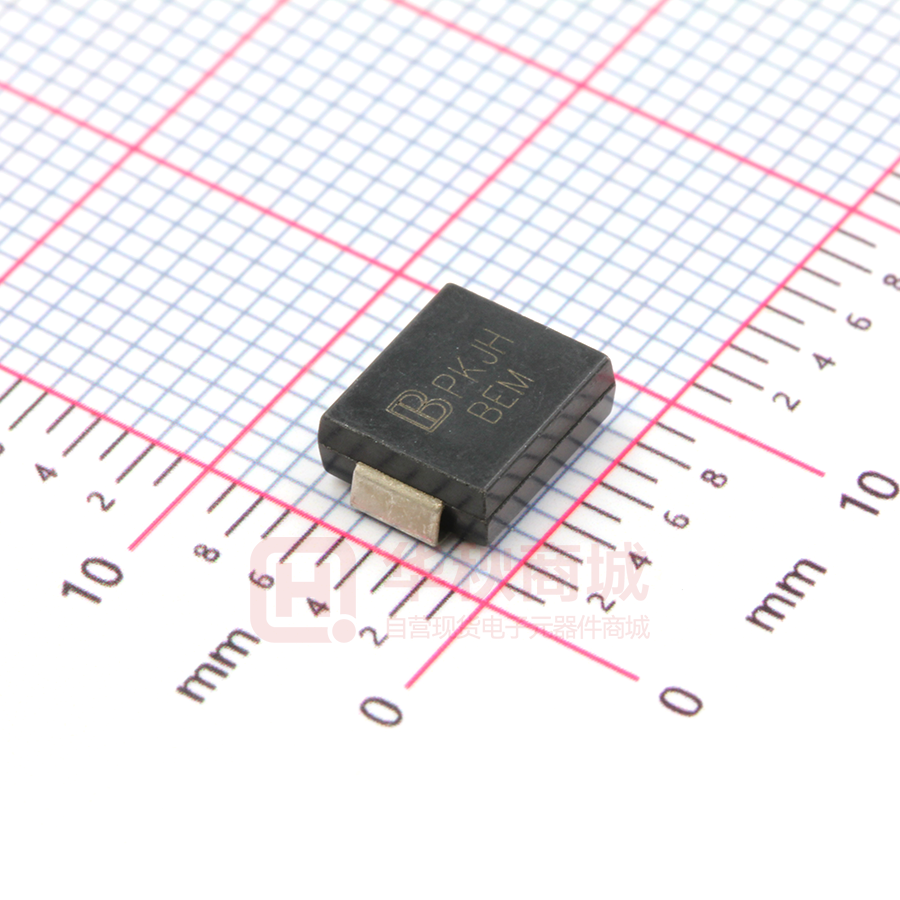

SMCJ15CA-ATNV

SMBJ-AT SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V High Temperature soldering: 260℃/10 seconds at terminals Plastic package has underwriters laboratory flammability 94V-0 Meets MSL level 1, per J-STD-020 Safety certification: UL: E244458 AEC-Q101 qualified Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-214AA. Molded plastic over glass passivated junction Terminal: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Standard Packaging: 12mm tape (EIA STD RS-481) Weight: 0.10g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Note2, Fig.1) PPPM Minimum 600 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 5.0 Watts IFSM 100 Amps TJ,TSTG -55 to +150 ℃ RθJL 20 ℃/W Steady state power dissipation at TA=50℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note3, Fig.6) Operating junction and Storage Temperature Range. Typical thermal resistance junction to lead Typical thermal resistance junction to ambient RθJA 100 ℃/W Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal. 3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-SMBJ-AT SERIES-001(A1) 1/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Dimensions (SMB/DO-214AA) Millimeters Cathode Band Inches Symbol D1 D Min. Max. Min. Max. L 4.06 4.57 0.160 0.180 D 3.30 3.94 0.130 0.155 D1 1.95 2.20 0.077 0.086 T 5.21 5.59 0.205 0.220 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.15 2.65 0.085 0.104 H1 2.13 2.47 0.084 0.097 L H1 H d T1 T Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMBJ5.0A-AT SMBJ5.0CA-AT KE AE 5.0 6.40~7.00 10 9.2 65.3 800 SMBJ6.0A-AT SMBJ6.0CA-AT KG AG 6.0 6.67~7.37 10 10.3 58.3 800 SMBJ6.5A-AT SMBJ6.5CA-AT KK AK 6.5 7.22~7.98 10 11.2 53.6 500 SMBJ7.0A-AT SMBJ7.0CA-AT KM AM 7.0 7.78~8.60 10 12.0 50.0 200 SMBJ7.5A-AT SMBJ7.5CA-AT KP AP 7.5 8.33~9.21 1 12.9 46.6 100 SMBJ8.0A-AT SMBJ8.0CA-AT KR AR 8.0 8.89~9.83 1 13.6 44.2 50 SMBJ8.5A-AT SMBJ8.5CA-AT KT AT 8.5 9.44~10.40 1 14.4 41.7 20 SMBJ9.0A-AT SMBJ9.0CA-AT KV AV 9.0 10.00~11.10 1 15.4 39.0 10 SMBJ10A-AT SMBJ10CA-AT KX AX 10.0 11.10~12.30 1 17.0 35.3 5 SMBJ11A-AT SMBJ11CA-AT KZ AZ 11.0 12.20~13.50 1 18.2 33.0 1 SMBJ12A-AT SMBJ12CA-AT LE BE 12.0 13.30~14.70 1 19.9 30.2 1 SMBJ13A-AT SMBJ13CA-AT LG BG 13.0 14.40~15.90 1 21.5 28.0 1 SMBJ14A-AT SMBJ14CA-AT LK BK 14.0 15.60~17.20 1 23.2 25.9 1 SMBJ15A-AT SMBJ15CA-AT LM BM 15.0 16.70~18.50 1 24.4 24.6 1 SMBJ16A-AT SMBJ16CA-AT LP BP 16.0 17.80~19.70 1 26.0 23.1 1 SMBJ17A-AT SMBJ17CA-AT LR BR 17.0 18.90~20.90 1 27.6 21.8 1 SMBJ18A-AT SMBJ18CA-AT LT BT 18.0 20.00~22.10 1 29.2 20.6 1 SMBJ20A-AT SMBJ20CA-AT LV BV 20.0 22.20~24.50 1 32.4 18.6 1 SMBJ22A-AT SMBJ22CA-AT LX BX 22.0 24.40~26.90 1 35.5 16.9 1 Revision:TVS-SMBJ-AT SERIES-001(A1) 2/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMBJ24A-AT SMBJ24CA-AT LZ BZ 24.0 26.70~29.50 1 38.9 15.5 1 SMBJ26A-AT SMBJ26CA-AT ME CE 26.0 28.90~31.90 1 42.1 14.3 1 SMBJ28A-AT SMBJ28CA-AT MG CG 28.0 31.10~34.40 1 45.4 13.3 1 SMBJ30A-AT SMBJ30CA-AT MK CK 30.0 33.30~36.80 1 48.4 12.4 1 SMBJ33A-AT SMBJ33CA-AT MM CM 33.0 36.70~40.60 1 53.3 11.3 1 SMBJ36A-AT SMBJ36CA-AT MP CP 36.0 40.00~44.20 1 58.1 10.4 1 SMBJ40A-AT SMBJ40CA-AT MR CR 40.0 44.40~49.10 1 64.5 9.3 1 SMBJ43A-AT SMBJ43CA-AT MT CT 43.0 47.80~52.80 1 69.4 8.7 1 SMBJ45A-AT SMBJ45CA-AT MV CV 45.0 50.00~55.30 1 72.7 8.3 1 SMBJ48A-AT SMBJ48CA-AT MX CX 48.0 53.30~58.90 1 77.4 7.8 1 SMBJ51A-AT SMBJ51CA-AT MZ CZ 51.0 56.70~62.70 1 82.4 7.3 1 SMBJ54A-AT SMBJ54CA-AT NE DE 54.0 60.00~66.30 1 87.1 6.9 1 SMBJ58A-AT SMBJ58CA-AT NG DG 58.0 64.40~71.20 1 93.6 6.5 1 SMBJ60A-AT SMBJ60CA-AT NK DK 60.0 66.70~73.70 1 96.8 6.2 1 SMBJ64A-AT SMBJ64CA-AT NM DM 64.0 71.10~78.60 1 103.0 5.9 1 SMBJ70A-AT SMBJ70CA-AT NP DP 70.0 77.80~86.00 1 113.0 5.3 1 SMBJ75A-AT SMBJ75CA-AT NR DR 75.0 83.30~92.10 1 121.0 5.0 1 SMBJ78A-AT SMBJ78CA-AT NT DT 78.0 86.70~95.80 1 126.0 4.8 1 SMBJ85A-AT SMBJ85CA-AT NV DV 85.0 94.40~104.00 1 137.0 4.4 1 SMBJ90A-AT SMBJ90CA-AT NX DX 90.0 100.00~111.00 1 146.0 4.1 1 SMBJ100A-AT SMBJ100CA-AT NZ DZ 100.0 111.00~123.00 1 162.0 3.7 1 SMBJ110A-AT SMBJ110CA-AT PE EE 110.0 122.00~135.00 1 177.0 3.4 1 SMBJ120A-AT SMBJ120CA-AT PG EG 120.0 133.00~147.00 1 193.0 3.1 1 SMBJ130A-AT SMBJ130CA-AT PK EK 130.0 144.00~159.00 1 209.0 2.9 1 SMBJ150A-AT SMBJ150CA-AT PM EM 150.0 167.00~185.00 1 243.0 2.5 1 SMBJ160A-AT SMBJ160CA-AT PP EP 160.0 178.00~197.00 1 259.0 2.3 1 SMBJ170A-AT SMBJ170CA-AT PR ER 170.0 189.00~209.00 1 275.0 2.2 1 SMBJ180A-AT SMBJ180CA-AT PT ET 180.0 201.00~222.00 1 292.0 2.1 1 SMBJ190A-AT SMBJ190CA-AT PA EC 190.0 211.00~233.00 1 308.0 2.0 1 SMBJ200A-AT SMBJ200CA-AT PV EV 200.0 224.00~247.00 1 324.0 1.9 1 SMBJ210A-AT SMBJ210CA-AT PB ED 210.0 237.00~263.00 1 340.0 1.8 1 SMBJ220A-AT SMBJ220CA-AT PX EX 220.0 246.00~272.00 1 356.0 1.7 1 SMBJ250A-AT SMBJ250CA-AT PZ EZ 250.0 279.00~309.00 1 405.0 1.5 1 Revision:TVS-SMBJ-AT SERIES-001(A1) 3/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Device Marking Code Part Number Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) SMBJ300A-AT SMBJ300CA-AT QE FE 300.0 335.00~371.00 1 486.0 1.3 1 SMBJ350A-AT SMBJ350CA-AT QG FG 350.0 391.00~432.00 1 567.0 1.1 1 SMBJ400A-AT SMBJ400CA-AT QK FK 400.0 447.00~494.00 1 648.0 0.9 1 SMBJ440A-AT SMBJ440CA-AT QM FM 440.0 492.00~543.00 1 713.0 0.9 1 Notes: For bidirectional type having VRWM of 10V and less, the IR limit is double. Marking Code Cathode Band YXXX YXXX KE AE Logo Date Code Logo Marking Code Date Code Marking Code Part Number Code SMBJ XXX C A AT Internal Control Code 5% VBR Voltage Tolerance Bidirectional VRWM Voltage Series Code Revision:TVS-SMBJ-AT SERIES-001(A1) 4/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 100 10 1 0.2×0.2″(5.0×5.0mm) Copper Pad Area 0.1 1 100 10 100 80 60 40 20 0 1000 0 td-Pulse Width (µs) td 100 1 2.0 3.0 Bi-directional @VR 4.0 TJ=25℃ f=1.0MHz Vsig=50mVp-p 1 6 5 4 3 2 1 0 50 75 100 125 150 175 1000 120 100 80 60 40 20 0 1 10 100 Number of Cycles at 60Hz TA-Ambient Temperature (℃) Revision:TVS-SMBJ-AT SERIES-001(A1) 100 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only IFSM - Peak Forward Surve Current (A) PM(AV), Steady State Power Dissipation (W) Figure 5. Steady State Power Dissipation Derating Curve 25 10 VBR-Reverse Breakdown Voltage (V) t-Time (ms) 0 175 Uni-directional V=0V 10 10/1000µs Waveform as defined by R.E.A 1.0 150 Uni-directional @VR Cj (pF) IPPM - Peak Pulse Current, %IRSM 1000 50 0 125 Bi-directional V=0V Half Value IPPM (IPPM/2) 0 100 10000 Peak Value IPPM 100 75 Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 50 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform 150 25 5/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:TVS-SMBJ-AT SERIES-001(A1) 20-40 seconds 8 minutes max. 6/7 http://brightking.pulseelectronics.com SMBJ-AT SERIES Packaging Tape P0 P1 P2 D0 B T E F W B0 D1 A A K0 B SECTION B-B Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.5±0.10 E 1.75±0.10 F 5.50±0.10 A0 3.86±0.15 B0 5.65±0.10 K0 2.75±0.15 T 0.25±0.05 D2 Φ178.0±2.0 D3 Φ50.0Min. D4 Φ13.0±0.5 W1 16.0±2.0 A0 SECTION A-A 7” Reel D4 D3 D2 W1 Quantity: 500PCS 13” Reel D5 Φ330.0±2.0 D6 Φ13.5±0.5 H 2.5±1.0 W2 16.0±2.0 Quantity: 3000PCS Revision:TVS-SMBJ-AT SERIES-001(A1) 7/7 http://brightking.pulseelectronics.com
