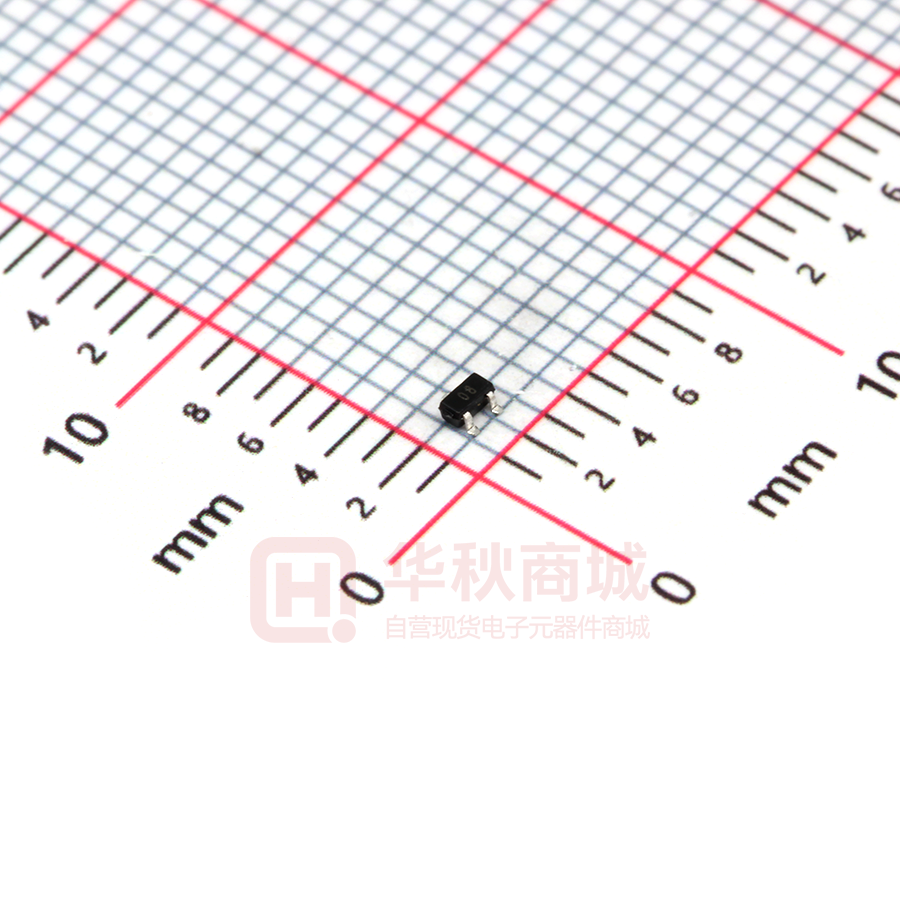

DTC144EE

Digital Transistors (Built-in Resistors) DTC144EE/DTC144EUA DTC144EKA /DTC144ECA ·Equivalent Circuit DIGITAL TRANSISTOR (NPN) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTC144EE SOT-523 3 DTC144EUA 3 1. IN 1. IN 2. GND 2. GND 3. OUT 1 2 MARKING: 26 2 DTC144ECA SOT-23-3L 3 3 MARKING: 26 SOT-23 1. IN 1. IN 2. GND 2. GND 3. OUT 1 3. OUT 1 MARKING: 26 DTC144EKA SOT-323 1 2 MARKING: 26 1 3. OUT 2 G,Jul,2016 A,Jun,2014 MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTC144E□) Parameter VCC Supply Voltage VIN Input Voltage IO E Unit CA UA KA 50 V -10～+40 V Output Current 30 mA ICM Peak Collector Current 100 mA PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 150 200 mW 200 200 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions Min Typ Max VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V,IO=2mA 3 V VO(on) IO/II=10mA/0.5mA 0.3 V VI=5V 0.18 mA 0.5 μA kΩ II V 0.5 Output current IO(off) VCC=50V,VI=0 DC current gain GI VO=5V,IO=5mA Input resistance R1 32.9 47 61.1 Resistance ratio R2/R1 0.8 1 1.2 Transition frequency www.cj-elec.com Unit fT VO=10V,IO=5mA,f=100MHz 2 68 250 MHz G,Jul,2016 A,Jun,2014 Typical Characteristics OFF Characteristics ON Characteristics 100 1 VCC=5V VO=0.3V 30 (mA) (V) 0.3 0.1 OUTPUT CURRENT INPUT VOLTAGE IO VI(ON) 10 3 Ta=25℃ Ta=100℃ 1 0.3 Ta=100℃ 0.03 Ta=25℃ 0.01 3E-3 0.1 0.1 0.3 1 3 OUTPUT CURRENT IO VO(ON) —— 1E-3 0.0 30 10 0.8 1.2 INPUT VOLTAGE VI(OFF) 0.4 (mA) GI IO 1000 1.6 IO —— 1000 IO/II=20 VO=5V Ta=100℃ GI 300 DC CURRENT GAIN VO(ON) (mV) 300 OUTPUT VOLTAGE 2.0 (V) 100 Ta=100℃ Ta=25℃ 30 Ta=25℃ 100 30 10 3 10 0.5 1 OUTPUT CURRENT CO 30 10 3 —— IO 1 0.1 50 1 PD VR 10 3 OUTPUT CURRENT IO 30 100 125 150 (mA) —— Ta 400 8 f=1MHz Ta=25℃ (mW) 350 CO POWER DISSIPATION PD (pF) 6 CAPACITANCE 0.3 (mA) 4 2 300 250 DTC144EUA/CA/KA 200 DTC144EE 150 100 50 0 0 0 5 10 REVERSE BIAS VOLTAGE www.cj-elec.com 15 VR 20 0 (V) 25 50 75 AMBIENT TEMPERATURE 3 100 Ta (℃ ) G,Jul,2016 A,Jun,2014 www.cj-elec.com 4 G,Jul,2016 A,Jun,2014 SOT-323 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ www.cj-elec.com Dimensions In Millimeters Max. Min. 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP. 1.200 1.400 0.525 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP. 0.047 0.055 0.021 REF. 0.010 0.018 0° 8° 5 G,Jul,2016 A,Jun,2014 www.cj-elec.com 6 G,Jul,2016 A,Jun,2014 PACKAGE OUTLINE Plastic surface mounted package; 3 leads www.cj-elec.com SOT-23 7 G,Jul,2016 A,Jun,2014
