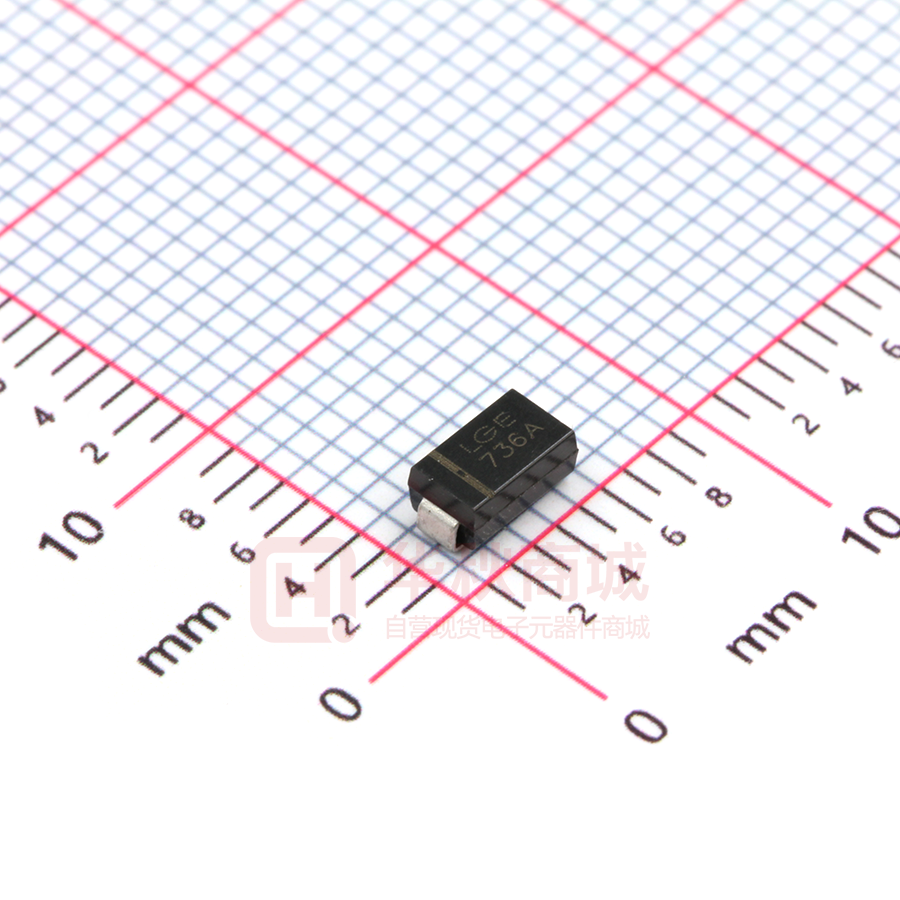

1SMA4736A

1SMA4728ATHRU 1SMA200A 1.0Watts Surface Mount Silicon Zener Diode FEATURE For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Typical IR less than 5.0
A above 11V High temperature soldering guaranteed: 260OC / 10 seconds at terminals Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA Case: Molded plastic over passivated junction Terminals: Plated leads, solderable per MIL-STD 750, method 2025 Polarity: Color band denotes cathode end Standard packaging: 12mm tape (EIA-481) Weight: 0.002 ounce,0.07 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. MDD Catalog Number O Peak Power Dissipation at TA=50 C, Derate above 50 OC (Note 1) Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) (Note 2) Operating and Storage Temperature Range SYMBOLS VALUE UNITS PD 1.0 6.67 Watts mW/ OC IFSM TJ, TSTG 10.0 -55 to + 150 Amps O C Notes: 1. Mounted on 5.0mm2 (0.013mm thick) land areas. 2. Measured on 8.3ms Single Half Sine-wave or Equivalent Square Wave, Duty Cycle=4 Pulses Per Minute Maximum. ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com ELECTRICAL CHARACTERISTICS (TA=25OC unless otherwise noted) VF=1.2V max, IF=200mA for all types. Maximum Zener Impedance V Z @ IZT Part Number ZZT @ IZT Nom. V Min. V ZZK @ IZK Maximum Leakage Current IR @V R Max. V O mA O mA uA V Package 1.0 Watt ZENER Diodes -- continued 1SMA4728A 3.3 3.1 3.5 10.0 76.0 400 1.00 100 1.0 SMA 1SMA4729A 3.6 3.4 3.8 10.0 69.0 400 1.00 100 1.0 SMA 1SMA4730A 3.9 3.7 4.1 9.0 64.0 400 1.00 50 1.0 SMA 1SMA4731A 4.3 4.1 4.5 9.0 58.0 400 1.00 10 1.0 SMA 1SMA4732A 4.7 4.5 4.9 8.0 53.0 500 1.00 10 1.0 SMA 1SMA4733A 5.1 4.8 5.4 7.0 49.0 550 1.00 10 1.0 SMA 1SMA4734A 5.6 5.3 5.9 5.0 45.0 600 1.00 10 2.0 SMA 1SMA4735A 6.2 5.9 6.5 2.0 41.0 700 1.00 10 3.0 SMA 1SMA4736A 6.8 6.5 7.1 3.5 37.0 700 1.00 10 4.0 SMA 1SMA4737A 7.5 7.1 7.9 4.0 34.0 700 0.50 10 5.0 SMA 1SMA4738A 8.2 7.8 8.6 4.5 31.0 700 0.50 10 6.0 SMA 1SAM4739A 9.1 8.6 9.6 5.0 28.0 700 0.50 10 7.0 SMA 1SMA4740A 10.0 9.5 10.5 7.0 25.0 700 0.25 10 7.6 SMA 1SMA4741A 11.0 10.5 11.6 8.0 23.0 700 0.25 5.0 8.4 SMA 1SMA4742A 12.0 11.4 12.6 9.0 21.0 700 0.25 5.0 9.1 SMA 1SMA4743A 13.0 12.4 13.7 10.0 19.0 700 0.25 5.0 9.9 SMA 1SMA4744A 15.0 14.3 15.8 14.0 17.0 700 0.25 5.0 11.4 SMA 1SMA4745A 16.0 15.2 16.8 16.0 15.5 700 0.25 5.0 12.2 SMA 1SMA4746A 18.0 17.1 18.9 20.0 14.0 750 0.25 5.0 13.7 SMA 1SMA4747A 20.0 19.0 21.0 22.0 12.5 750 0.25 5.0 15.2 SMA 1SMA4748A 22.0 20.9 23.1 23.0 11.5 750 0.25 5.0 16.7 SMA 1SMA4749A 24.0 22.8 25.2 25.0 10.5 750 0.25 5.0 18.2 SMA 1SMA4750A 27.0 25.7 28.4 35.0 9.5 750 0.25 5.0 20.6 SMA 1SMA4751A 30.0 28.5 31.5 40.0 8.5 1000 0.25 5.0 22.8 SMA 1SMA4752A 33.0 31.4 34.7 45.0 7.5 1000 0.25 5.0 25.1 SMA 1SMA4753A 36.0 34.2 37.8 50.0 7.0 1000 0.25 5.0 27.4 SMA 1SMA4754A 39.0 37.1 41 60.0 6.5 1000 0.25 5.0 29.7 SMA 1SMA4755A 43.0 40.9 45.2 70.0 6.0 1500 0.25 5.0 32.7 SMA 1SMA4756A 47.0 44.7 49.4 80.0 5.5 1500 0.25 5.0 35.8 SMA 1SMA4757A 51.0 48.5 53.6 95.0 5.0 1500 0.25 5.0 38.8 SMA 1SMA4758A 56.0 53.2 58.8 110 4.5 2000 0.25 5.0 42.6 SMA 1SMA4759A 62.0 58.9 65.1 125 4.0 2000 0.25 5.0 47.1 SMA 1SMA4760A 68.0 64.6 71.4 150 3.7 2000 0.25 5.0 51.7 SMA 1SMA4761A 75.0 71.3 78.8 175 3.3 2000 0.25 5.0 56.0 SMA 1SMA4762A 82.0 77.9 86.1 200 3.0 3000 0.25 5.0 62.2 SMA 1SMA4763A 91.0 86.5 95.6 250 2.8 3000 0.25 5.0 69.2 SMA 1SMA4764A 100 95.0 105 350 2.5 3000 0.25 5.0 76.0 SMA 1SMA110A 110 104.5 115.5 450 2.3 4000 0.25 5.0 83.6 SMA 1SMA120A 120 114 126 550 2.0 0.25 5.0 91.2 SMA 1SMA130A 130 123.5 136.5 700 1.9 4500 5000 0.25 5.0 98.8 SMA 1SMA150A 150 142.5 157.5 1000 1.7 6000 0.25 5.0 114.0 SMA 1SMA160A 160 152 168 1100 1.6 6500 0.25 5.0 121.6 SMA 1SMA180A 180 171 189 1200 1.4 7000 0.25 5.0 136.8 SMA 1SMA200A 200 190 210 1500 1.2 8000 0.25 5.0 152.0 SMA Notes : (1) The type number listed have a standard tolerance on the nominal zener voltage of ± 5%. (2) The revese surge current is a non-repetitive, 8.3ms pulse width square wave or equivalent sine-wave superimposed on IZT per JEDEC Method 1SMA4728A THRU 1SMA200A 1.0Watts Surface Mount Silicon Zener Diode RATINGS AND CHARACTERISTIC CURVES( 1SMA472 8 THRU 1SMA200A) FIG.1- POWER TEMPERATURE DERATING CURVE FIG.2- TYPICAL FORWARD CHARACTERISTICS 1000 MINIMUM MAXIMUM 500 IF, FORWARD CURRENT (mA) PD, MAXIMUM POWER DISSIPATION (WATTS) 1.25 1.0 0.75 0.50 0.25 200 100 50 20 10 5.0 70 oC 150 oC 25 oC 2.0 0 20 40 60 80 100 120 140 160 180 0 oC 1.0 0.4 200 0.5 o AMBIENT TEMPERATURE( C) 10000 7000 5000 TJ = 25 oC IZ(rms)= 0.1 IZ(dc) f = 1KHz ZZ, DYNAMIC IMPEDANCE (OHMS) 47V 100 1000 700 500 27V 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 100 IZ, ZENER CURRENT (mA) FIG.4- EFFECT OF ZENER VOLTAGE ON ZENER IMPEDANCE 1000 700 500 IR, LEAKAGE CURRENT ( A) 2.0 1.0 ZZ, DYNAMIC IMPEDANCE (OHMS) 1.1 100 70 50 5.0 20 10 7.0 5.0 2.0 1.0 0.7 0.5 +125 oC 0.2 TJ = 25 oC IZ(rms)= 0.1 IZ(dc) f = 1KHz IZ = 1.0mA 200 100 70 50 5.0mA 20 20mA 0.1 0.07 0.05 0.02 0.01 0.007 0.005 10 7.0 5.0 +25 oC 0.002 2.0 1.0 1.0 200 0.8V 10 0.9 TYPICAL LEAKAGE CURRENT AT 80% OF NOMINAL BREAKDOWN VOLTAGE 2000 50 20 0.8 FIG.5- TYPICAL LEAKAGE CURRENT 1000 200 0.7 VF, FORWARD VOLTAGE (VOLTS) FIG.3- EFFECT OF ZENER CURRENT ON ZENER IMPEDANCE 500 0.6 0.001 3.0 1.0 2.0 3.0 5.0 7.0 10 20 30 50 70 4.0 5.0 6.0 7.0 8.0 9.0 10 11 12 13 14 15 VZ, NOMINAL ZENER VOLTAGE (VOLTS) 100 IZ, ZENER CURRENT (mA) FIG.6- TYPICAL CAPACITANCE versus Vz FIG.7- TEMPERATURE COEFFICIENTS 400 300 C, CAPACITANCE (pF) 0V BIAS 1.0V BIAS 100 10 8 50% OF BREAKDOWN BIAS 4 1.0 10 100 VZ, FORWARD VOLTAGE (VOLTS) OVZ, TEMPERAYURE COEFFICIENT (mV/oC) a-RANGE FOR UNITS TO 12 VOLTS 200 +12 +10 +8.0 +6.0 +4.0 +2.0 RANGE 0 VZ @ IZT -2.0 -4.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 11 12 VZ, ZENER VOLTAGE (VOLTS) ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com 1SMA4728A THRU 1SMA200A 1.0Watts Surface Mount Silicon Zener Diode RATINGS AND CHARACTERISTIC CURVES( 1SMA4728 THRU 1SMA200A) FIG.7- TEMPERATURE COEFFICIENTS FIG.8- EFFECT OF ZENER CURRENT OVZ, TEMPERAYURE COEFFICIENT (mV/oC) OVZ, TEMPERAYURE COEFFICIENT (mV/oC) b-RANGE FOR UNITS 12 TO 100 VOLTS 100 70 50 30 20 VZ @ IZT RANGE 10 7.0 5.0 3.0 2.0 1.0 10 20 30 70 50 +6.0 VZ @ IZT TA25 oC +4.0 +2.0 20mA 0 0.01mA 1.0mA -2.0 -4.0 100 NOTE: BELOW 3 VOLTS AND ABOVE a VOLTS CHANGES IN ZENER CURRENT OO NOT AFFECT TEMPERATURE COEFFICIENTS 3.0 4.0 5.0 6.0 7.0 8.0 VZ, ZENER VOLTAGE (VOLTS) VZ, ZENER VOLTAGE (VOLTS) Ppk, PEAK SURGE POWER IWATTSO FIG.9- MAXIMUM SURGE POWER 100 70 50 30 0.8V-10V NON-REPETITIVE 20 10 7.0 5.0 3.0 RECTANGULAR WAVEFORM o TJ = 25 C PRIOR TO INITIAL PULSE 11V-91V NON-REPETITIVE 5% DUTY CYCLE 10% DUTY CYCLE 20% DUTY CYCLE 2.0 1.0 0.01 0.02 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 100 200 500 1000 PW, PULSE WIDTH (ms) PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SMA 5000/REEL 80000 36X30.6X31 12.00 11.00 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
