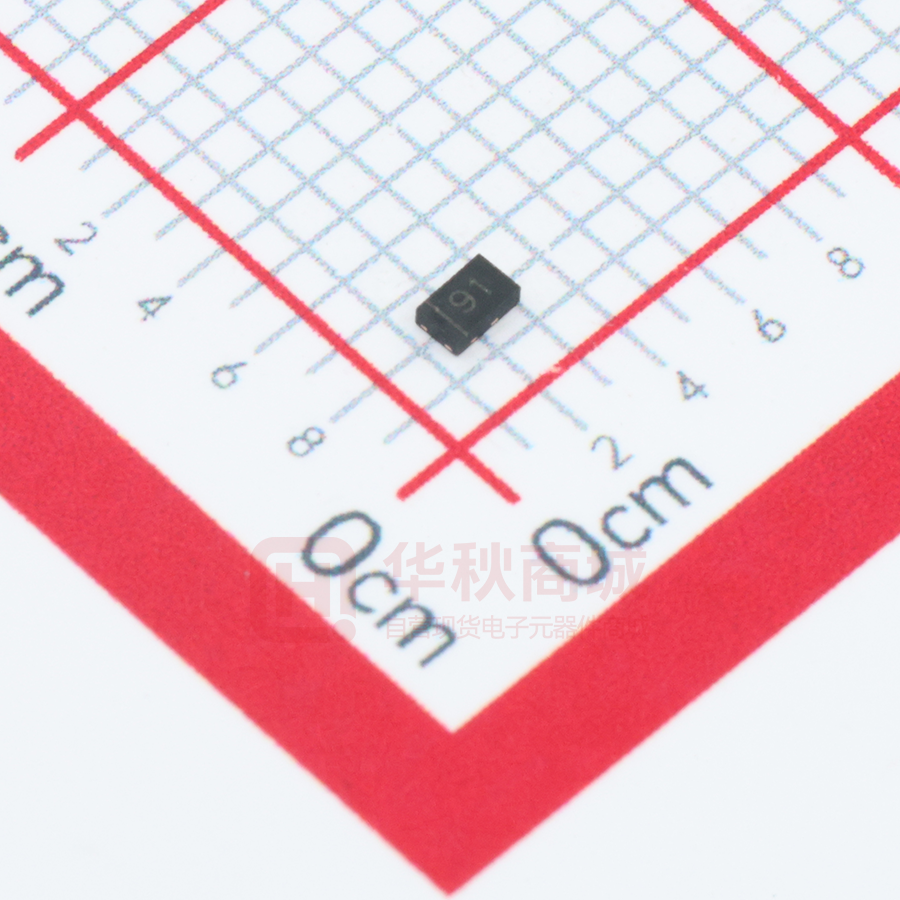

SD0571P6W

SD057 1P6W 1-Line Uni-directional TVS Diode Features ● ● ●    Ultra low leakage: nA level Operating voltage: 5V Low clamping voltage 2-pin leadless package Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 80A (5/50ns) – IEC61000-4-5 (Lightning)80A (8/20 μs) RoHS Compliant Dimensions DFN1610-2 Pin Configuration Applications      Mobile Phones and Accessories Battery Protection USB VBus Power Line Protection Hand Held Portable Applications Mechanical Characteristics      ● ● Package: DFN1610-2 Lead Finish: NiPdAu Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Quantity Per Reel:3,000pcs Reel Size:7 inch Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol Ppp VESD Value 1280 ±30 Unit W Kv ±30 Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2014 1/3 www.leiditech.com SD057 1P6W Electrical Characteristics(TA=25°C unless otherwise specified) Vc Part Number Device Marking VRWM (V) VBR (V) IT (mA) VC @10A 91 5 6 1 9 SD0571P6W (Max) (@A) 16 80 IR μA (Max) C (Pf) (Typ.) 1 650 Characteristic Curves 100 70 Clamping Voltage_VR (V) Peak Pulse Power - PPP (kW) TA = 25 OC 10 1 60 50 40 30 20 10 0 0.1 0.1 1 10 100 0 1000 40 60 80 100 Peak Pulse Current_Ipp (A) Pulse Duration - tp (µs) Clamping Voltage vs. Peak Pulse Current Junction Capacitance vs. Reverse Voltage 120 100 90 100 80 % of Rated Power % of Peak Pulse Current 20 70 60 50 40 30 20 80 60 40 20 10 0 0 0 20 40 Time_t(uS) 60 80 25 50 75 100 125 Ambient Temperature_Ta(℃) 150 Power Derating Curve 8 X 20uS Pulse Waveform Rev : 01.06.2014 0 2/3 www.leiditech.com SD057 1P6W DFN1610-2 Package Outline Drawing e D h h SYM - b E - A L A Bottom View DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.75 0.80 0.85 0.030 0.032 0.034 c 0.10 0.15 0.20 0.004 0.006 0.008 D 1.55 1.60 1.65 0.062 0.064 0.066 A1 c e 1.10 BSC 0.044 BSC E 0.95 1.00 1.05 0.038 0.040 0.042 L 0.35 0.40 0.45 0.014 0.016 0.018 h 0.15 0.20 0.25 0.006 0.008 0.010 Suggested Land Pattern SYM ╋ Y3 Y2 MILLIMETERS INCHES X 1.00 0.040 Y1 0.62 0.025 Y2 0.60 0.024 Y3 1.22 0.049 Z 1.85 0.074 Y1 Z ╋ DIMENSIONS X Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2014 3/3 www.leiditech.com
