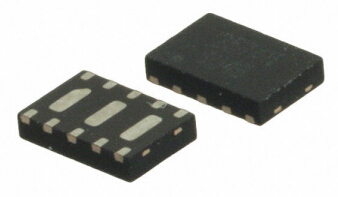

LC3374N

LC3374N

  • 厂商:

    LEIDITECH(雷卯电子)

  • 封装:

    DFN10_3X2MM_EP

  • 描述:

    ESD保护 VRWM=3.3 V VBR(Min)=3.5 V VC=25 V IPP=30 A Ppp=1 KW DFN10_3X2MM_EP

  • 详情介绍
  • 数据手册
  • 价格&库存
LC3374N 数据手册
LC3374N 4-Line TVS for Ethernet Interfaces Features ● ● ● ● Ultra low leakage: nA level Operating voltage: 3.3V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lighning) 30A (8/20μs) RoHS Compliant Dimensions DFN3020-10 Applications ● Digital Visual Interface (DVI) ● 10/100/1000 Ethernet ● USB 1.1/2.0/OTG ● IEEE 1394 Firewire Ports ● Projection TV Monitors and Flat Panel Displays ● Notebook Computers ● Set Top Box ● Projection TV Pin Configuration Package: DFN3020-10 ● Lead Finish: Lead Free ● UL Flammability Classification Rating 94V-0 ● Quantity Per Reel:3,000pcs ● Reel Size:7 inch Line 3_in Line 4_in GND Line 1_out Mechanical Characteristics ● Line 2_in Line 1_in Line 2_out Line 4_out Line 3_out Absolute Maximum Ratings(Tamb=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Symbol Ppp VESD Value 1000 ±30 Unit W Kv ±30 Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range TSTJ -55 to +150 ℃ Rev : 01.06.2018 1/4 www.leiditech.com LC3374N Electrical Characteristics(TA=25°C unless otherwise specified) Vc Device Marking Part Number 3374N LC3374N VBR (V) VRWM (V) 3.3 3.5 IT (mA) VC @1A 1 5.2 (Max) (@A) IR μA (Max) C (Pf) (Typ.) 2.5 25 30 0.5 1 10 100 Characteristic Curves 10 Waveform Parameters: tr=8us td=20us Peak Pulse Power-PPK(KW) PP 110 100 90 80 70 60 50 40 30 20 10 0 td=IPP/2 0 5 10 15 20 25 1 0.1 0.01 0.1 30 1000 Pulse Duration-tp(us) Time (us) Non-Repetitive Peak Pulse Power vs. Pulse Time Pulse Waveform 110 100 90 80 70 60 50 40 30 20 10 0 2 -1.9718 dB 1.7GHZ Insertion Loss (dB) % of Rated Power or Ipp 1 -0.7540 dB 900MHZ 0 3 -2.8512 dB 2.5GHZ 3 1 -6 2 4 4 -4.3316 dB 2.7GHZ -12 -18 -24 -30 -36 0 25 50 75 100 125 -42 150 1 MHZ 10 MHZ 1 GHZ 3 GHZ Ambient Temperature-TA Power Derating Curve Rev : 01.06.2018 Insertion Loss S21 2/4 www.leiditech.com LC3374N Typical Application Electronic equipment is susceptible to damage caused by a variety of sources, including Electrostatic Discharge (ESD), Electrical Fast Transients (EFT) and Lightning strikes. The LC3374N is designed to protect the sensitive equipment from damage which may be induced by such transient events. This product can be configured in different connections to meet the requirement of common-mode and differential-mode as follows: Gigabit Ethernet Application Rev : 01.06.2018 3/4 www.leiditech.com LC3374N DFN3020-10 Package Outline Drawing Suggested Land Pattern Shanghai Leiditech Electronic Co.,Ltd Email: sale1@leiditech.com Tel : +86- 021 50828806 Fax : +86- 021 50477059 Rev : 01.06.2018 4/4 www.leiditech.com
LC3374N
物料型号:LC3374N

器件简介:该器件具有超低漏电(纳安级别)、3.3V工作电压、低钳位电压,并且符合RoHS标准。它符合多种国际标准,包括IEC 61000-4-2(ESD)空气放电和接触放电、IEC61000-4-4(EFT)和IEC61000-4-5(Lightning)。

引脚分配:文档提供了详细的引脚配置图,包括4个数据线输入输出和地线。

参数特性:包括封装尺寸DFN3020-10、无铅引脚、UL阻燃等级94V-0、每卷3000片、卷径7英寸等机械特性。绝对最大额定值包括峰值脉冲功率、ESD耐压、工作温度范围等。

功能详解:LC3374N设计用于保护电子设备免受ESD、EFT和雷击等瞬态事件引起的损害。它可以配置为共模和差模以满足不同需求。

应用信息:适用于数字视觉接口(DVI)、10/100/1000以太网、USB 1.1/2.0/OTG、IEEE 1394火线端口、投影电视、监视器、平板显示器、笔记本电脑、机顶盒和投影电视。

封装信息:提供了DFN3020-10封装的详细尺寸图和建议的焊盘图案。

电气特性:包括工作电压、最大钳位电压、漏电流、导通电压等参数。特性曲线展示了不同脉冲时间和频率下的插入损耗。

典型应用:展示了LC3374N在千兆以太网应用中的配置示例。

联系信息:提供了Leiditech公司的电子邮件、电话和传真信息。
