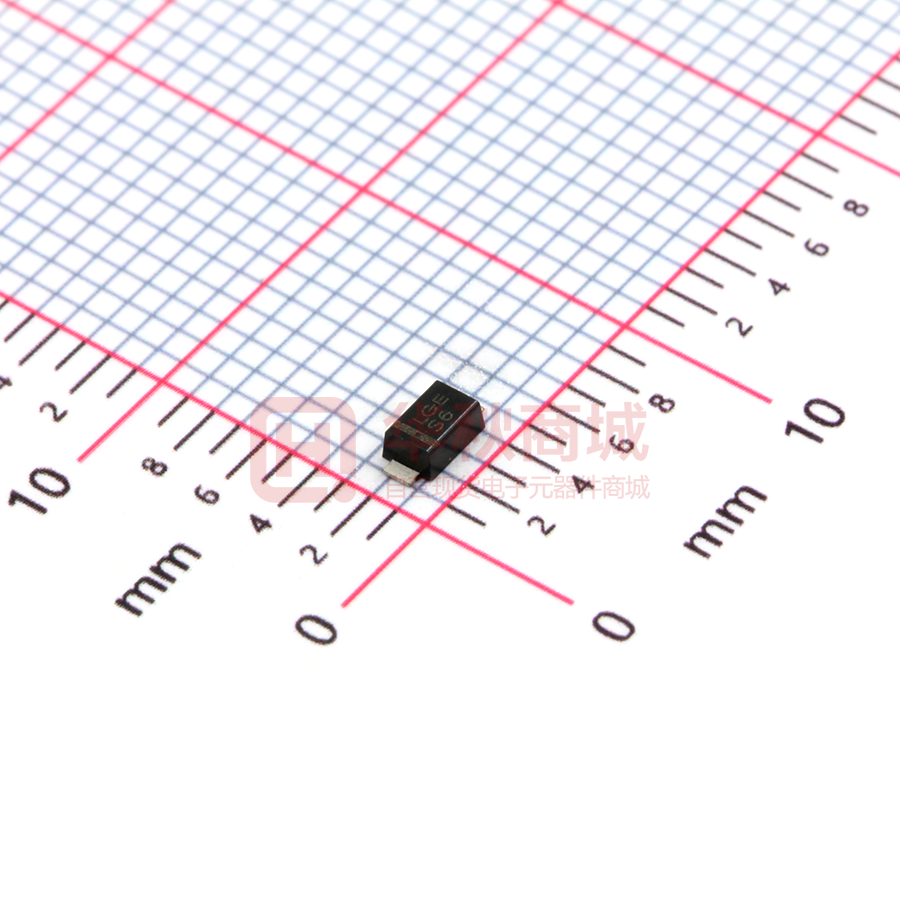

MBRX160

MBRX120-MBRX1200 Surface Mount Schottky Barrier Rectifiers REVERSE VOLTAGE: 20 - 100 V CURRENT: 1.0 A SOD-123FL Features


Low forward surge current Ideal for surface mouted applications Low leakage current 0.114(2.9) 0.098(2.5)
Case:JEDEC SOD-123FL,molded plastic over passivated chip
Polarity: Color band denotes cathode end Weight: 0.0008 ounces, 0.022 gram Mounting position: Any
0.008(0.20) 0.004(0.10) 0.047(1.19) 0.043(1.09) Mechanical Data
0.043(1.09) 0.035(0.89) 0.075(1.90) 0.067(1.70) 0.030(0.76) 0.018(0.45) 0.154(3.9) 0.138(3.5) Dimensions in inches and(millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified. Single hase,half wave,60Hz,resistive or inductive load.For capactive load,derate current by 20%. ELECTRICAL CHARACTERISTICS MBRX MBRX MBRX MBRX MBRX MBRX MBRX 120 130 140 160 180 1100 1200 S2 S3 S4 S6 S8 S11 S12 Device marking code UNITS Maximum recurrent peak reverse voltage VRRM 20 30 40 60 80 100 200 V Maximum RMS voltage VRMS 14 21 28 42 56 70 140 V VDC 20 30 40 60 80 100 200 V Maximum DC blocking voltage Maximum average forword rectified current T J=90℃ I(AV) 1.0 A IFSM 20 A Peak forward surge current 8.3ms single half-sine-wave superimposed on rated load Maximum instantaneous @I FM=1.0A forward voltage VF 0.50 0.72 0.55 0.85 0.95 V Repetitive peak reverse current IR 0.3 mA Typical junction capacitance CJ 30 pF Operating temperature range Tj - 55 --- + 150 ℃ TSTG - 55 --- + 150 ℃ at rated DC blocking voltage Storage temperature range NOTE1.Measured at f=1.0MHz,VR=4.0V ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com MBRX120-MBRX1200 Surface Mount Schottky Barrier Rectifiers Ratings AND Charactieristic Curves FIG.2-- PEAK FORWARD SURGE CURRENT PEAK FORWARD SURGE CURRENT,AMPERES FIG.1 -- FORWARD DERATING CURVE AVERAGE FORWARD CURRENT,AMPERES 1.25 1.0 0.75 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.5 0.25 0 0 25 50 75 100 125 150 175 20 10 0 1 2 JUNCTION TEMPERATURE 8 10 20 40 60 80 100 NUMBER OF CYCLES AT 60Hz FIG.4 -- TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT,MILL AMPERES FIG.3 -- TYPICAL FORWARD CHARACTERISTICS INSTANTANEOUS FORWARD CURRENT,AMPERES 4 MBRX120 MBRX160 MBRX130-MBRX140 MBRX180-MBRX1200 INSTANTANEOUS FORWARD VOLTAGE,VOLTS 100 TJ=125 10 1.0 0.1 TJ=25 .01 20 0 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE, FIG.5--TYPICAL JUNCTION CAPACITANCE 100 JUNCTION CAPACITANCE,pF f = 1 MHz Ta = 25°C 10 1 1 10 100 REVERSE VOLTAGE,VOLTS PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG SOD-123FL 3000/REEL 90000 40X20X22 5.00 4.00 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
