PINNING
1SS400WT
PIN

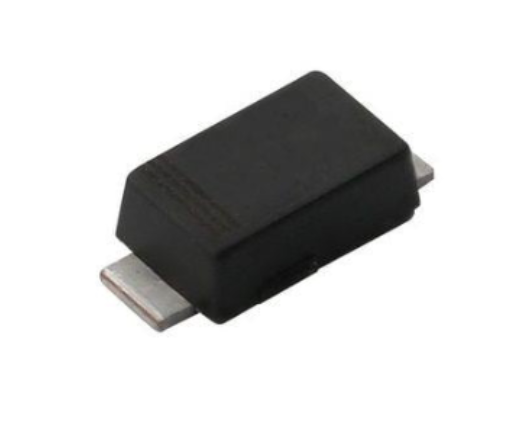

Silicon Epitaxial Planar Switching Diode
for high speed switching application
Features
DESCRIPTION
1
Cathode
2
Anode
2
1
• Extremely small surface mounting type
A
• High reliability
Top View
Marking Code: "A"
Simplified outline SOD-523 and symbol
Absolute Maximum Ratings (Ta = 25 OC)
Parameter
Symbol
Value
Unit
Peak Reverse Voltage
VRM
90
V
Reverse Voltage
VR
80
V
IF(AV)
100
mA
Peak Forward Current
IFM
225
mA
Non-repetitive Peak Forward Surge Current (at t = 1 s)
IFSM
500
mA
Tj
150
O
C
Tstg
- 55 to + 150
O
C
Symbol
Max.
Unit
Forward Voltage
at IF = 100 mA
VF
1.2
V
Reverse Current
at VR = 80 V
IR
0.1
µA
Capacitance Between Terminals
at VR = 0.5 V, f = 1 MHz
CT
3
pF
Reverse Recovery Time
at VR = 6 V, IF = 10 mA, RL = 100 Ω
trr
4
ns
Average Rectified Forward Current
Junction Temperature
Storage Temperature Range
Characteristics at Ta = 25 OC
Parameter
1 of 3
3/28/2012
1SS400WT
2 of 3
3/28/2012
1SS400WT
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
3 of 3
SOD-523
UNIT
A
bp
C
D
E
HE
V
∠
mm
0.70
0.60
0.4
0.3
0.135
0.100
1.25
1.15
0.85
0.75
1.7
1.5
0.1
5
O
3/28/2012
