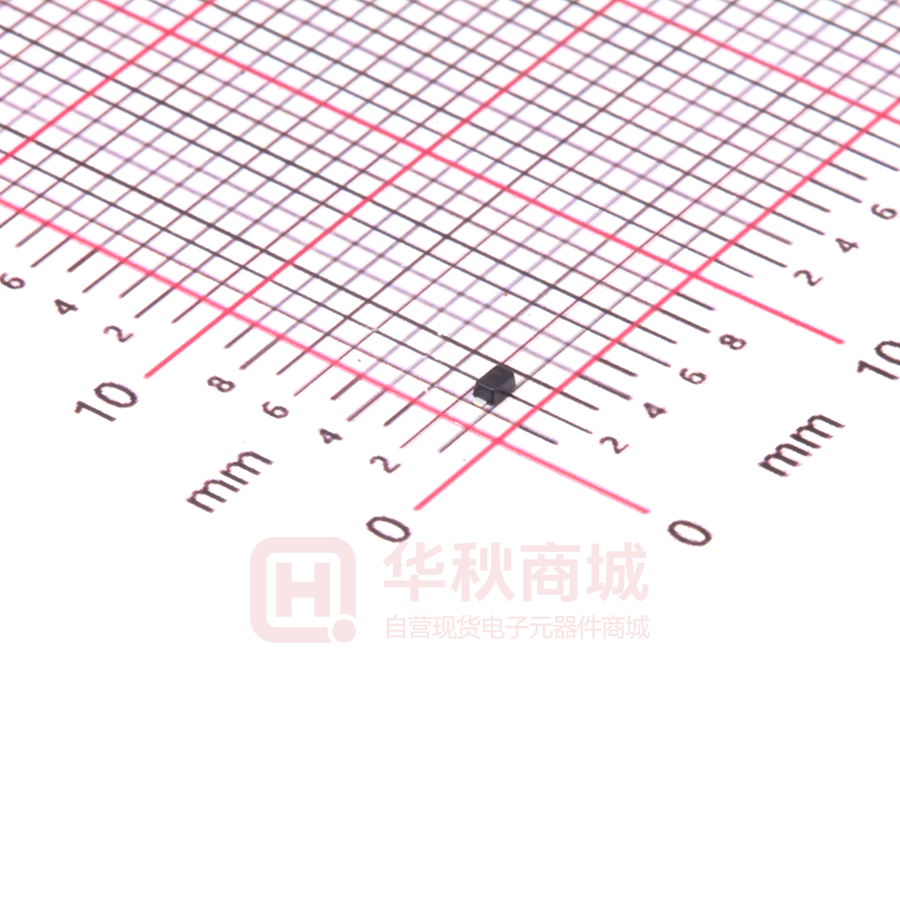

BAT54WT

  SCHOTTKY BARRIER DIODE PINNING Features • Low forward voltage DESCRIPTION PIN Applications • Ultra high-speed switching • Voltage clamping • Protection circuits 1 Cathode 2 Anode 1   3             2 Top View Marking Code: "3 " Simplified outline SOD-523 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Reverse Voltage VR 30 V Forward Current IF 200 mA Repetitive Peak Forward Current IFRM 300 mA Peak Forward Surge Current (tp = 10 ms) IFSM 600 mA Power Dissipation PD 200 mW RthJA 500 K/W Junction Temperature TJ 125 O Storage Temperature Range Tstg - 65 to + 150 O Thermal Resistance from Junction Ambient C C Characteristics at Ta = 25 OC Parameter Symbol Forward Voltage at IF = 0.1 mA at IF = 1 mA at IF = 10 mA at IF = 30 mA at IF = 100 mA Reverse Breakdown Voltage at IR = 10 μA     VF   Reverse Current at VR = 25 V Total Capacitance at VR = 1 V, f = 1 MHz Reverse Recovery Time at IF = 10 mA, VR = 6 V, IR = 10 mA, RL = 100 Ω Min - V(BR)R 30 IR - CT - trr - Max.           0.24 0.32 0.4 0.5 0.8 Unit     V   - V 2 µA 10 pF 6 ns 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.   2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.     PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-523 3 of 3 Copyright © All right reserved Heyuan China Base Electronics Technology Co., Ltd.
