Surface Mount Schottky Barrier Diode
Features
• Low turn-on voltage
• Fast switching
• PN junction guard ring for transient and ESD protection

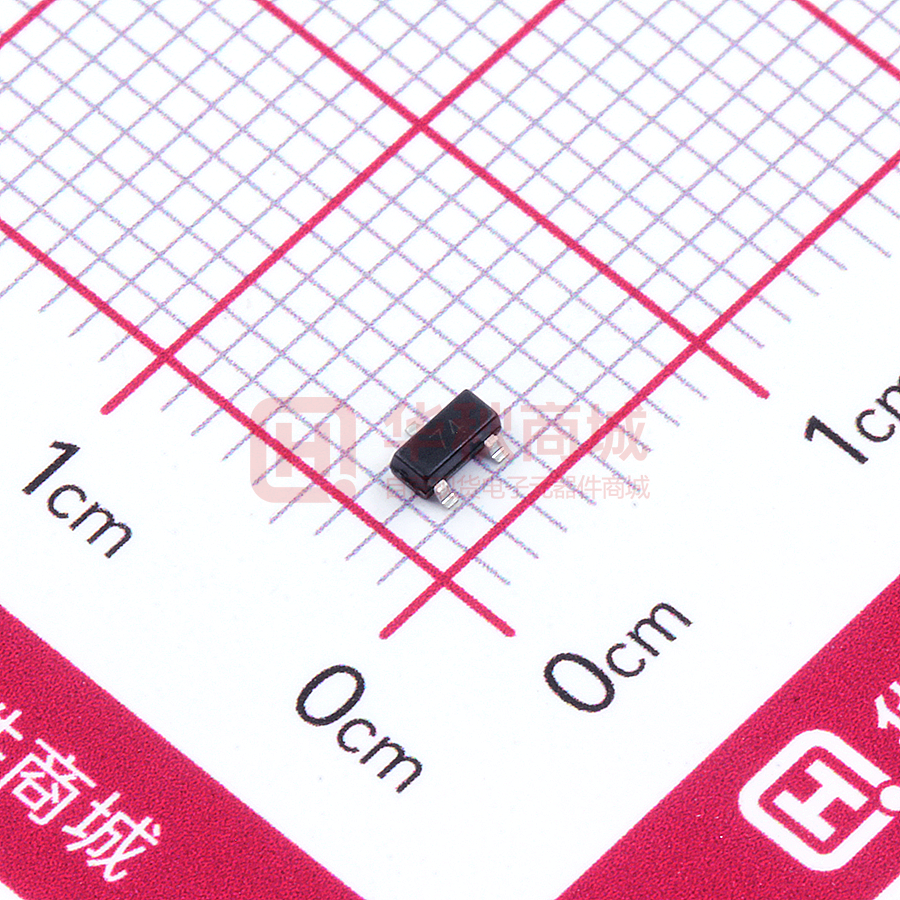

SOT-23 Plastic Package
BAS70
BAS70-04
3
BAS70-05
3
BAS70-06
3
BAS70
Marking Code: 73

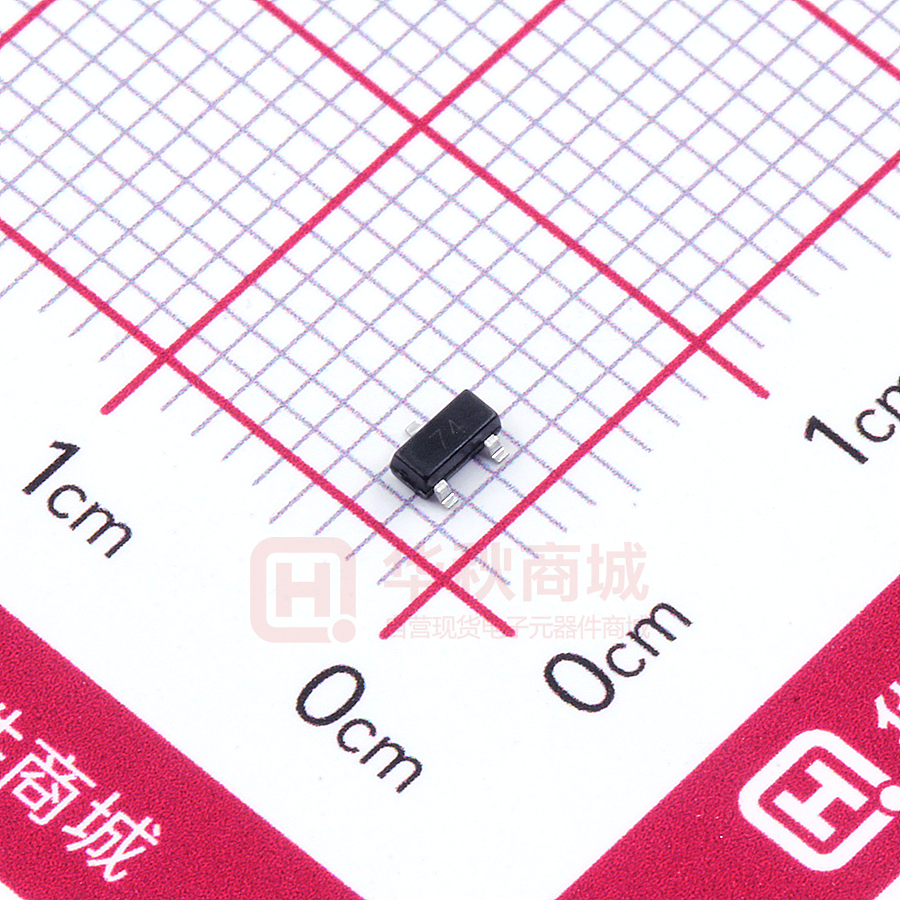

BAS70-04 Marking Code: 74
3
BAS70-05 Marking Code: 75
1
2
1
2
1
2
BAS70-06 Marking Code: 76
2
1
Absolute Maximum Ratings (Ta = 25 C)
O
Parameter
Symbol
Value
Unit
Repetitive Peak Reverse Voltage
VRRM
70
V
Non-Repetitive Peak Reverse Voltage
VRSM
70
V
VR
70
V
Average Forward Rectified Current
IF(AV)
70
mA
Peak Forward Surge Current (t < 10 ms)
IFSM
100
mA
Power Dissipation
PD
200
mW
RθJA
625
Tj
- 55 to + 125
O
Tstg
- 65 to + 150
O
Maximum DC Blocking Voltage
Thermal Resistance Junction to Ambient Air
Operating Junction Temperature Range
Storage Temperature Range
C/W
O
C
C
Characteristics at Ta = 25 C
O
Parameter
Forward Voltage
at IF = 1 mA
at IF = 15 mA
Reverse Breakdown Voltage
at IR = 10 µA
Reverse Current
at VR = 50 V
Total Capacitance
at VR = 0 , f = 1 MHz
Reverse Recovery Time
at IF = IR = 10 mA to IR = 1 mA, RL = 100 Ω
Symbol
Min.
Max.
Unit
VF
-
0.41
1
V
V(BR)R
70
-
V
IR
-
100
nA
CT
-
2
pF
trr
-
5
ns
1 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
2 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
PACKAGE OUTLINE
Plastic surface mounted package; 3 leads
SOT-23
3 of 3
Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
