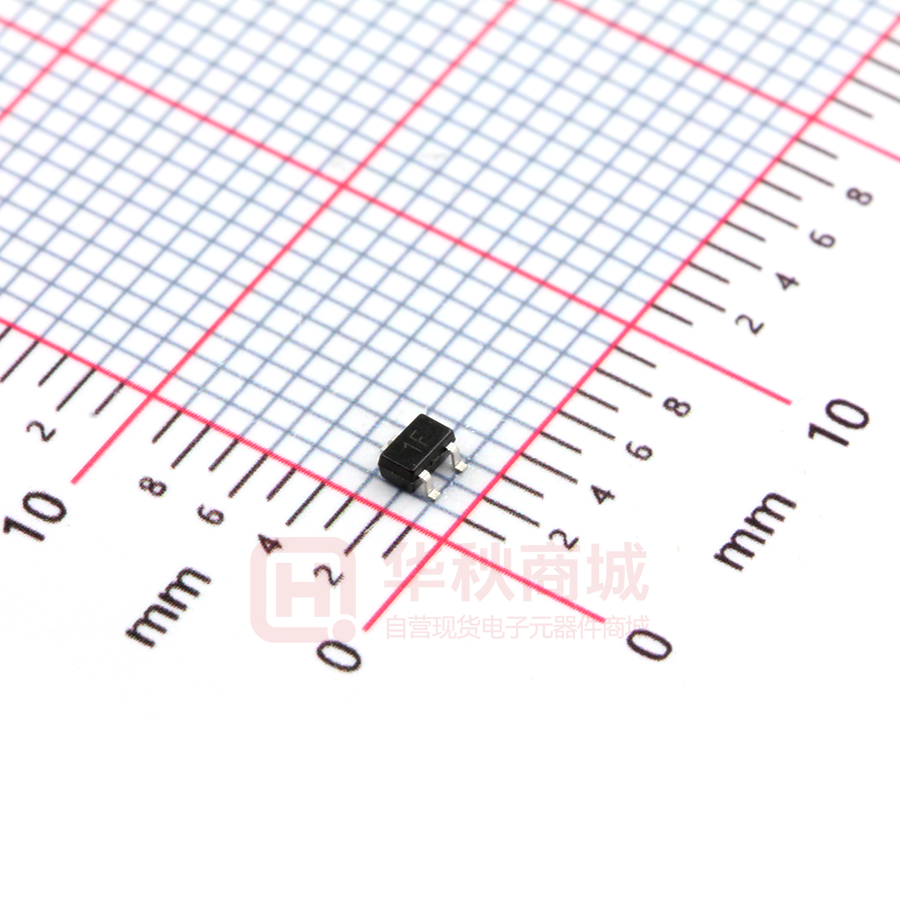

BC847BW

BC846W…BC850W NPN Silicon Epitaxial Planar Transistor for general purpose and switching applications Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Collector Base Voltage BC846W BC847W BC848W BC849W BC850W VCBO 80 50 30 30 50 V Collector Emitter Voltage BC846W BC847W BC848W BC849W BC850W VCEO 65 45 30 30 45 V Emitter Base Voltage BC846W BC847W BC848W BC849W BC850W VEBO 6 6 5 5 5 V Collector Current IC 100 mA Peak Collector Current ICM 200 mA Total Power Dissipation Ptot 200 mW Tj 150 O Tstg - 55 to + 150 O Junction Temperature Storage Temperature Range Page 1 of 5 C C 6/15/2012 BC846W…BC850W Characteristics at Ta = 25 OC Parameter DC Current Gain at VCE = 5 V, IC = 2 mA BC846AW~BC850AW BC846BW~BC850BW BC846CW~BC850CW Symbol Min. Max. Unit hFE hFE hFE 110 200 420 220 450 800 - 80 50 30 30 50 - 65 45 30 30 45 - 6 6 5 5 5 - ICBO - 15 nA IEBO - 100 nA VCE(sat) - 0.25 0.6 V VBE 0.58 - 0.7 0.77 V fT 100 - MHz Cob - 4.5 pF Collector Base Voltage at IC = 10 µA BC846W BC847W BC848W BC849W BC850W VCBO V Collector Emitter Voltage at IC = 10 mA BC846W BC847W BC848W BC849W BC850W VCEO V Emitter Base Voltage at IE = 1 µA BC846W BC847W BC848W BC849W BC850W Collector Base Cutoff Current at VCB = 30 V Emitter Base Cutoff Current at VEB = 5 V Collector Emitter Saturation Voltage at IC = 10 mA, IB = 0.5 mA IC = 100 mA, IB = 5 mA Base Emitter Voltage at VCE = 5 V, IC = 2 mA VCE = 5 V, IC = 10 mA Transition Frequency at VCE = 5 V, IC = 10 mA, f = 100 MHz Collector Output Capacitance at VCB = 10 V, IE = 0, f = 1 MHz VEBO V DEVICE MARKING BC846AW=1A;BC846BW=1B;BC846CW=1C BC847AW=1E;BC847BW=1F;BC847CW=1G BC848AW=1J;BC848BW=1K;BC848CW=1L BC849AW=1E;BC849BW=1F;BC849CW=1G BC850AW=1E;BC850BW=1F;BC850CW=1G Page 2 of 5 6/15/2012 BC846W…BC850W Page 3 of 5 6/15/2012 BC846W…BC850W Page 4 of 5 6/15/2012 SOT-323 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Page 5 of 5 Dimensions In Millimeters Max. Min. 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP. 1.200 1.400 0.525 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP. 0.047 0.055 0.021 REF. 0.010 0.018 0° 8° 6/15/2012
