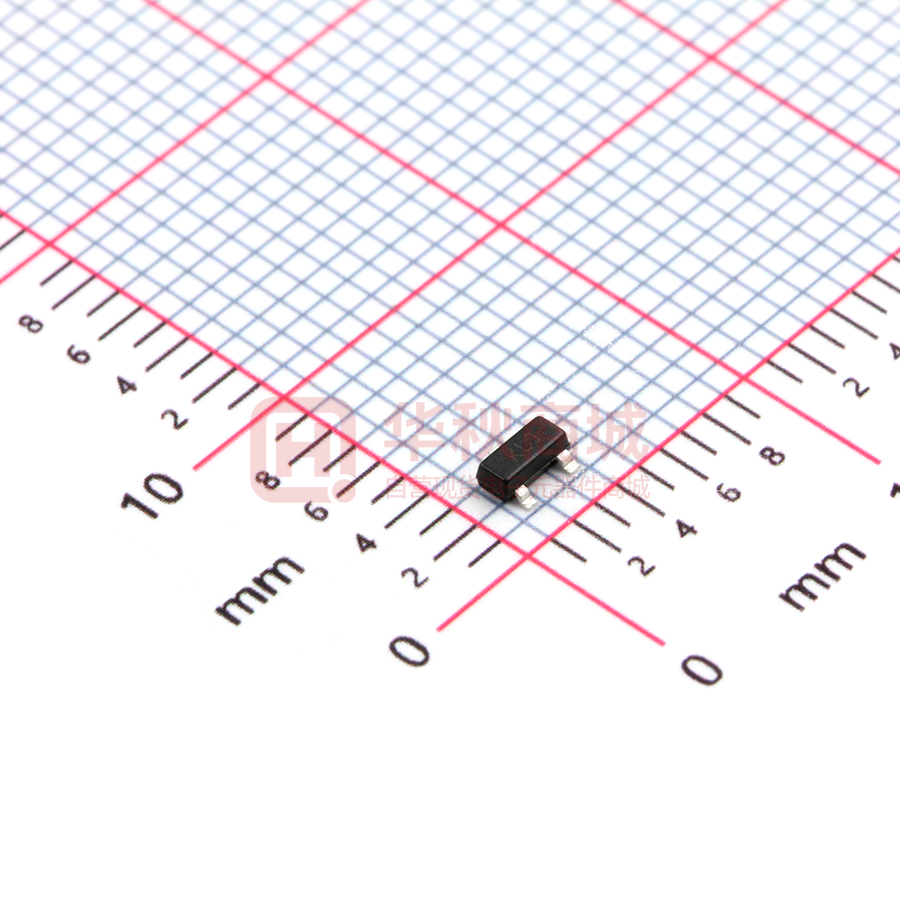

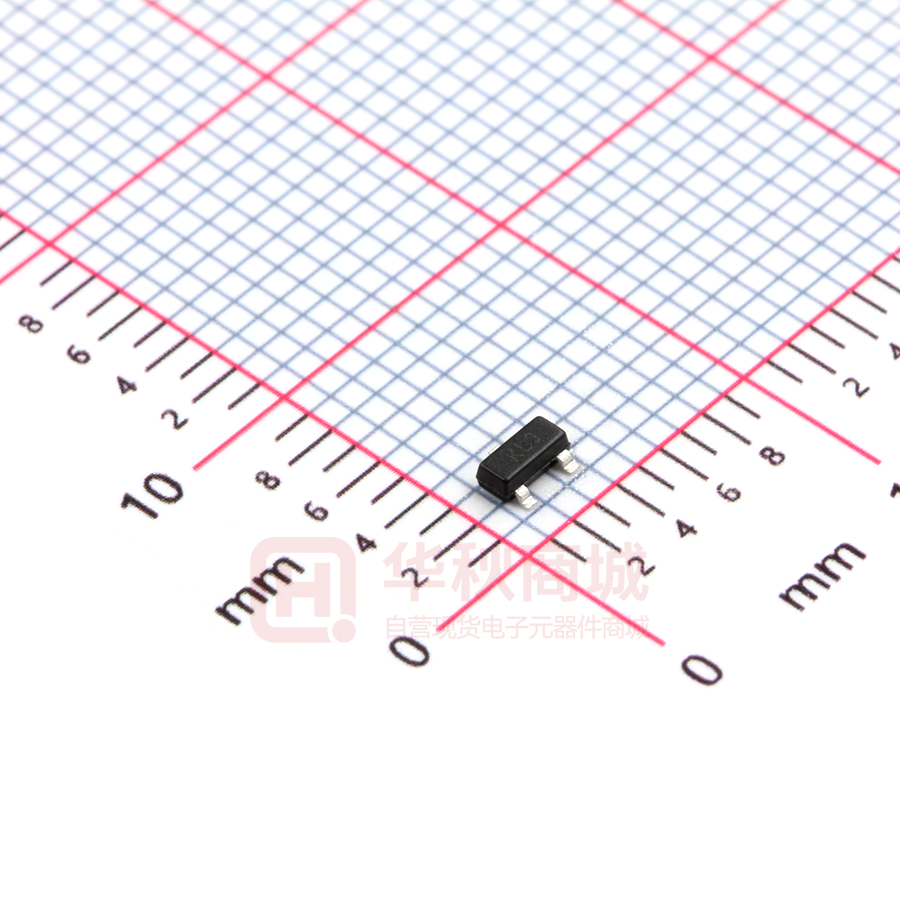

BAT54C

SCHOTTKY DIODES SOT-23 FEATURES Extremely Fast Switching Speed BAT54 MARKING: KL1 BAT54A MARKING: KL2 BAT54C MARKING: KL3 BAT54S MARKING: KL4 Maximum Ratings @TA=25℃ Parameter Symbol Peak Repetitive Peak reverse voltage VRRM Working Peak Reverse Voltage VRWM Limits Unit 30 V VR DC Bl ki V lt Forward Continuous Current IFM 200 mA Power Dissipation PD 200 mW TSTG -55-150 ℃ Storage temperature Electrical Characteristics @TA=25℃ Parameter Reverse Breakdown Voltage Symbol Min. V (BR)R 30 Typ. Max. Unit Conditions V IR=100μA VF1 0.24 V IF=0.1mA VF2 0.32 V IF=1mA VF3 0.40 V IF=10mA VF4 0.50 V IF=30mA VF5 1 V IF=100mA Reverse current IR 2 μA VR=25V Diode Capacitance CD 10 pF VR=1V,f=1MHz Reverse Recovery Time trr 5 nS Forward voltage IF=IR=10mA Irr=0.1XIR,RL=100Ω 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT-23 3 of 3 Copyright © All right reserved Heyuan China Base Electronics Technology Co., Ltd.
