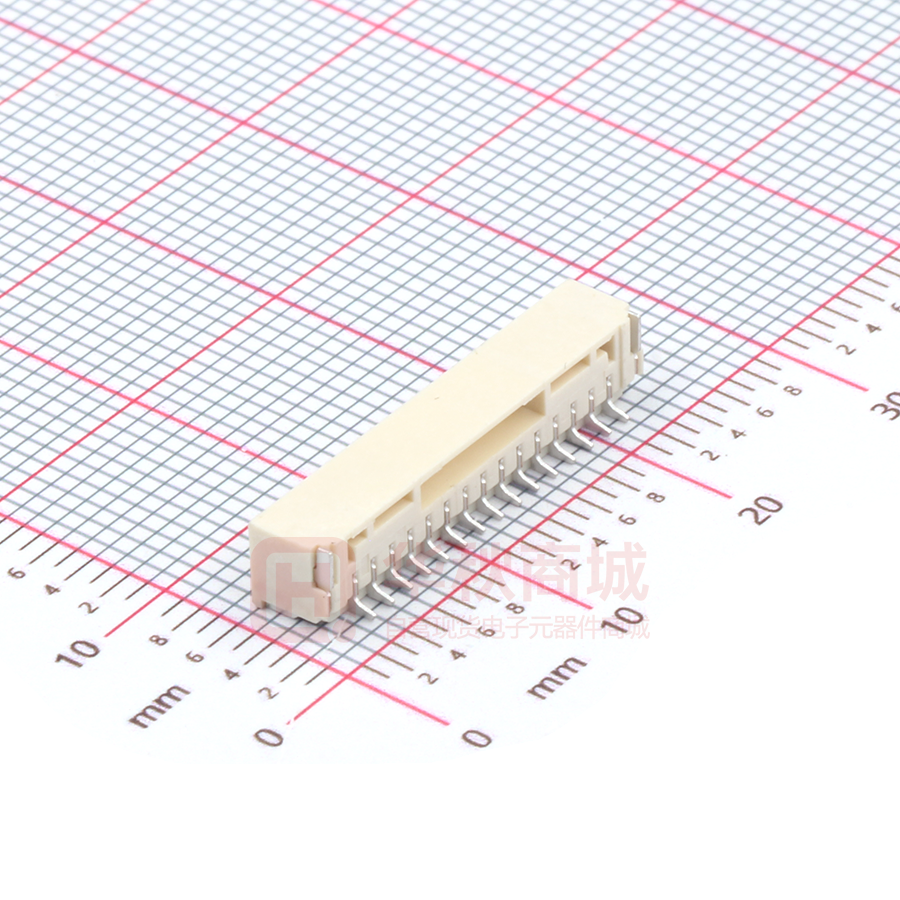

X1251WRS-15HF-LPSW

Specifications A±0.3 1.25 [0.049] : Voltage rating: 50 V AC / DC Current rating: 1A AC / DC Withstanding voltage: 500V AC/minute Temperature range: -25°C~+85°C Insulation resistance: ≥100MΩ Contact resistance: ≤30mΩ After environmental testing ：≤50mΩ 0.20 [0.008] X1251 W R S-XX HF-XX-SN 2 1 1 B±0.3 2 4.10 [0.161] 3 4 C±0.2 5 4.30 [0.169] 6 7 8 3 4 5 6 7 8 Series No. Category ：W-WAF ER Welding Board Angle ：R-Straight 90° Welding Way:S-SMT Row No.-Pin No.: XX-02P~15P Plug the Pin & Special N0.:HF-Halogen free Material : 9T-PA9T;46-PA46;LP-LCP 94V-0 Planting Categotry: V01:All Gold Flash;SW-Matte Tin Plating 0.80 [0.031] Poles 02 03 04 05 06 08 09 10 11 12 13 14 15 A 1.25 [0.049] 1.70 [0.067] 2.70 [0.106] 3.70 [0.146] 0.60 [0.024] Conn.Line 1.00 [0.039] 1.05 [0.041] Recommended P.C.B Layout General Tolerance±0.05 X1251WRS-XX-46SW PA46 UL 94V-0 X1251WRS-XXHF-LPSW LCP UL 94V-0 Halogen Free X1251WRS-XX-9TSW PART N0 X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn Dimensions(mm) A B C 1.25 5.75 3.75 2.50 7.00 5.00 3.75 8.25 6.25 5.00 9.50 7.50 6.25 10.75 8.75 7.50 12.00 10.00 8.75 13.25 11.25 10.00 14.50 12.50 11.25 15.75 13.75 12.50 17.00 15.00 15.00 19.50 17.50 16.25 20.75 18.75 17.50 22.00 20.00 www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
