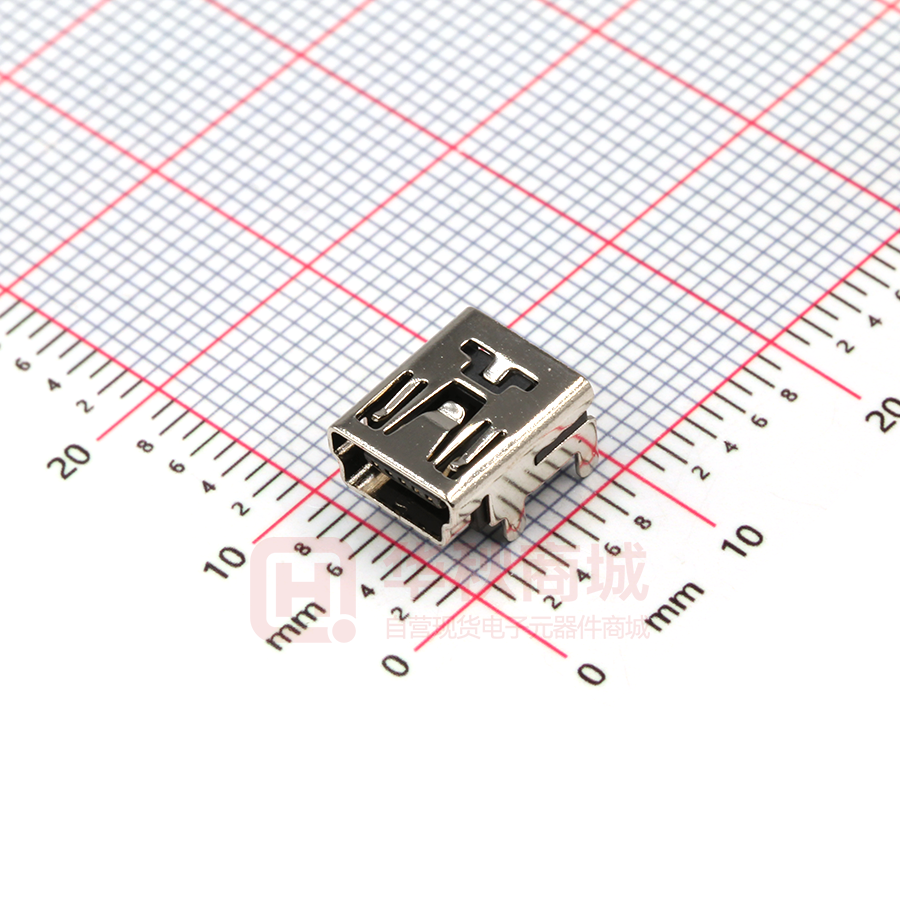

U214-051N-4BR84

3.20 [0.126] Ø0.70 [Ø0.028] 0.90 [0.035] 3 9.70 [0.382] 6.90 [0.272] 1 6.20 [0.244] 6.20 [0.244] 3.10 [0.122] 1.25 [0.049] 4.75 [0.187] 0.80 [0.032] 7.40 [0.291] Material Housing Material: LCP, UL94V-0, black Contact Terminal: Phosphor bronze, T=0.25mm Metallic Shell: Brass, T=0.4mm Plating Contact Terminal Underplating: Nickel all over Contact Plating: 1µ" gold Solder Tail: Bright Tin Metallic Shell Underplating: Nickel 50µ" all over Metallic Shell: Matte Tin 50µ" all over Electrical Voltage Rating: 30VDC Current Rating: 1A Contact Resistance: 50mΩ Max Insulation resistance: 100MΩ Min (Apply 100 VDC) Dielectric withstanding voltage: No discharge or flash (100V AC is applied for 1 minute) Mechanical Durability: 5,000 cycles Mating Force: 35N (3.57Kgf) Max Unmating Force: Initial - 7N (0.71KgF) Min., 5001st cycle - 3N (0.31KgF) Min. Environmental and Processing Operating Temperature: -50°C to +85°C 8.10 [0.319] 3.85 [0.152] U214-05XN-4BR84 9.20 [0.362] 1:Au 1U" 6:Au 30U" X X X DATE DESCRIPTION REVISIONS www.xk-dg.cn 0.80 [0.032] 5.86 [0.231] 9.50 [0.374] MARK 1.60 [0.063] R0.40 0.80 [0.032] 5 5 4 RECOMMENDED PCB LAYOUT 1.20 [0.047] 0.40 [0.016] 1.90 [0.075] 1.20 [0.047] 2 4.75 [0.187] 1 www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
