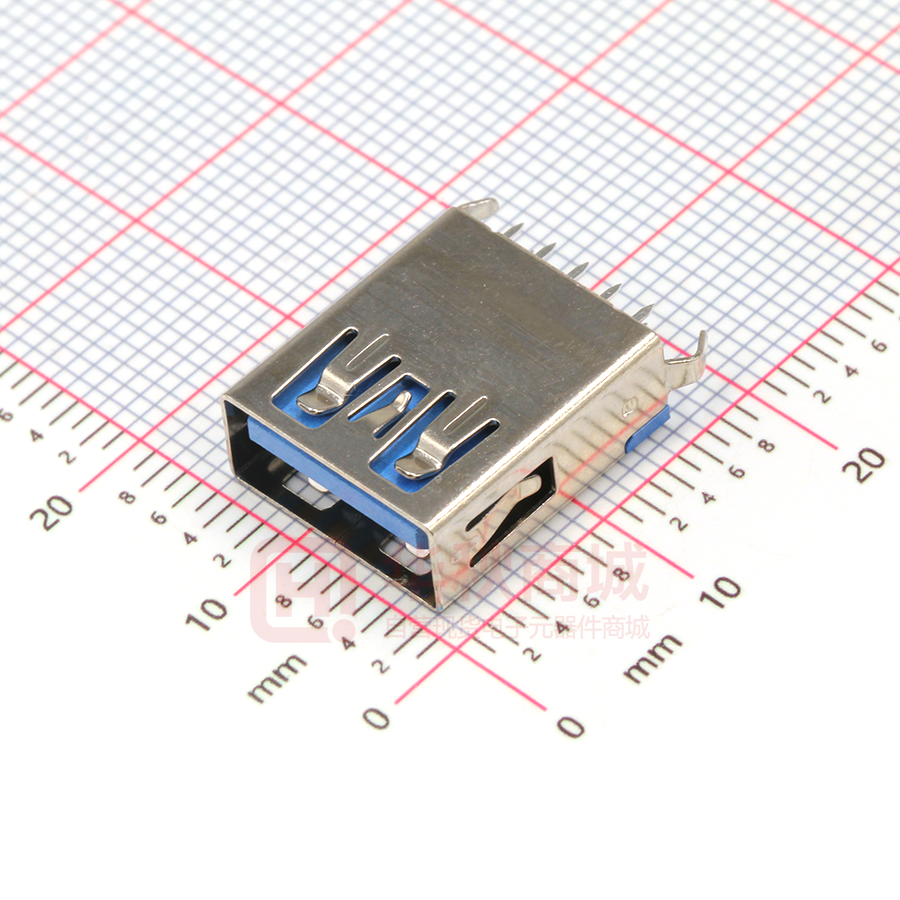

U233-091N-1BLPC15-F2

15.20 [0.598] 15.20 [0.598] 9-0.45 [0.018] 3.30 [0.130] 9-0.45 [0.018] 15.00 [0.591] 15.00 [0.591] 2.20 [0.087] 2.20 [0.087] 3.30 [0.130] 3D VIEW 13.10 [0.516] Scrolls（S） 14.50 [0.571] 13.10 [0.516] Flat（F） 8 6 7 2 3 5 4 1.55 [0.061] 1 5.70 [0.224] 9 7.10 [0.280] 4.00 [0.157] 2.00 [0.079] Material Housing Material: LCP, UL94V-0, blue Contact Terminal: Brass Metallic Shell:Brass Plating Underplating: Nickel Contact Plating: 1µ" Gold Solder Tail: 100µ" Min. Tin Metallic Shell: Nickel Electrical Voltage Rating: 100 V AC Current Rating: 0.25A (Signal pins 2,3,5,6,7,8,9) 1.5A (Power Pins 1,4) Contact Resistance: 30mΩ Max. Insulation resistance: 1000MΩ Min. Dielectric withstanding voltage: 100V AC/Minute Mechanical Durability: 1500 cycles Mating Force: 35N (3.57Kgf) Max Unmating Force: 10N (1.02Kgf) Min. initial, 8N min after test Environmental and Processing Operating Temperature: -40°C to +85°C 1.45 [0.057] 1.00 [0.040] 3.50 [0.138] 8.00 [0.315] 1.55 [0.061] 1.45 [0.057] 2.00 [0.079] 6.00 [0.236] 4.00 [0.157] 9 1 8 6 7 2 3 5 9*Ø0.70 [Ø0.028] 4 2*Ø2.30 [Ø0.091] 2.50 [0.098] 4.50 [0.177] 7.00 [0.276] 13.15 [0.518] SIGNAL NAME DESCRIPTION MATING SEQUENCE 1 Pin # VBUS POWER SECOND 2 DD+ USB 2.0 DIFFERENTIAL PAIR THIRD 3 4 GND GROUND FOR POWER RETURN SECOND 5 StdA_SSRXStdA_SSRX+ SUPERSPEED RECEIVER DIFFERENTIAL PAIR LAST 6 7 GND_DRAIN GROUND FOR SIGNAL RETURN 8 StdA_SSTX- 9 StdA_SSTX+ SUPERSPEED TRANSMITTER DIFFERENTIAL PAIR Shell Shield CONNECTOR METAL SHELL RECOMMENDER P.C.B.LAYOUT TOP VIEW (COMPONENT SIDE TOLERANCE±0.05) U233-09XN-1BLPC15-X 2 1:Au 1U" 5:Au 15U" 6:Au 30U" FRIST X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
