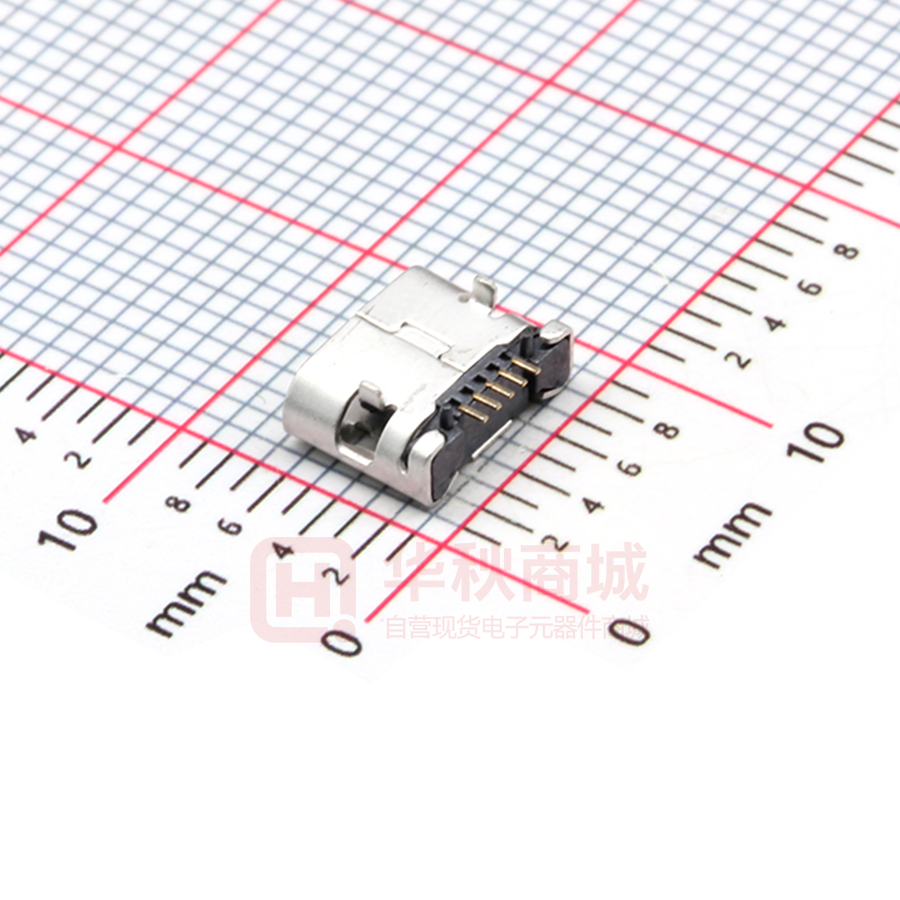

U255-051T-4BH82-F1S

5.55 [0.219] 4.75 [0.187] Material Housing Material: LCP, UL94V-0, black Contact Terminal: Copper Alloy Metallic Shell: Sus Electrical 7.40 [0.291] Voltage Rating: 30 V AC Current Rating: Signal (Pins 2,3,4): 1.0A, Power (Pins 1,5): 1.8A PIN1 Contact Resistance: 30mΩ Max 5.55 [0.219] 2.35 [0.093] 1.25 [0.049] 3.45 [0.136] 1.10 [0.043] 1.85 [0.073] 6.90 [0.272] Insulation resistance: 1000MΩ Min Dielectric withstanding voltage: 250V AC/Minute Mechanical Durability: 10,000 cycles PIN5 0.65 [0.026] 0.90 [0.035] Mating Force: 35N (3.57Kgf) Max 0.40 [0.015] 2.60 [0.102] Unmating Force: 8N (0.82Kgf) Min. 2.70 [0.106] 5.41 [0.213] OPERATING TEMPERATURE:-20 ~+85 8.30 [0.326] 5.65 [0.222] 4.10 [0.161] 4.00 [0.157] R0.20 3.35[0.131] U255-05XX-4BH82-XXS PCB LEG 0.65 [0.026] 0.5 [0.019] 1:AU 1U'' 6:AU 30U'' 1:With 2:Without S:Scrolls F:Flat T:TIN N:NICKEL 4.3 [0.168] 2.60 [0.102] 有柱/无柱两款 RECOMMENDED P.C.B LAYOUT TOP VIEW (TOLRANCE:±0.05) X X X MARK 0.40 [0.015] 1.00 [0.039] 1.10 [0.043] 0.25 [0.010] 0.65 [0.25] 1.45[0.056] 0.40 [0.016] PIN 5 2.60 [0.102] 1.90[0.074] 0.70 [0.028] 1.35[0.053] 1.70[0.066] 1.20[0.047] 1.60[0.062] PIN 1 DATE DESCRIPTION REVISIONS www.helloxkb.com www.helloxkb.cn www.xk-dg.cn REVISED APPROVED ANGLAR L≤ 4 4
