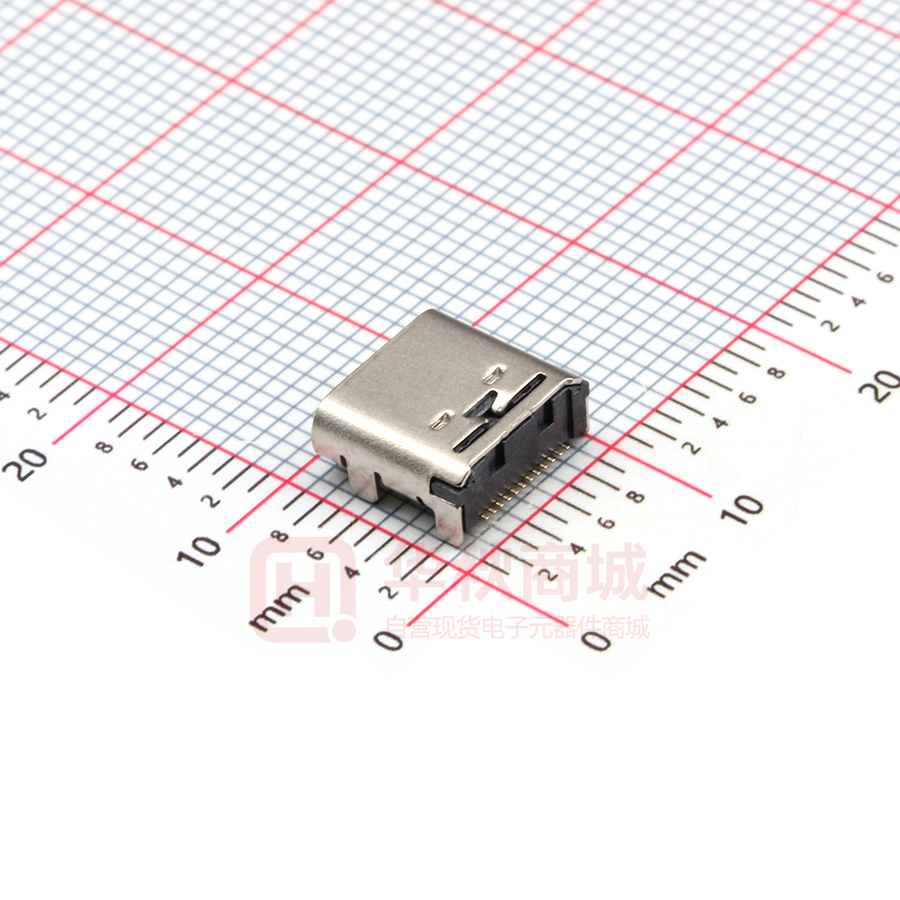

U262-241N-4BV64

Material Housing Material: High temperature thermoplastic Contact Terminal: High Grade Copper Alloy Metallic Shell: Stainless Steel Inner Ground Cover Shell: Stainless Steel Mid Plate: Stainless Steel Plating Data Contact Underplating: 50µ" Min. Nickel Contact Plating: 1µ" Gold Solder Area: 80µ" Matte Tin Shell Metallic Shell: 50µ" Min. Nickel Cover Shell Metallic Shell: 80µ" Min. Nickel Inner Ground Cover Shell Metallic Shell: 50µ" Min. Nickel Electrical Voltage Rating: 20V DC Current Rating: Vbus pins collectively 5.00A, GND pins collectively 6.25A, B5 pin 1.25A, Other pins 0.25A per pin. Contact Resistance: 40mΩ Max. Insulation resistance: 100 MΩ MIN. Dielectric withstanding voltage: 100V AC/Minute Mechanical Durability: 10,000 cycles Mating Force: 5 to 20N Unmating Force: 8 to 20N (post test) 8.94 [0.352] 0.60 [0.024] 0.10 3.16 [0.124] 7.90 [0.311] 7.55 [0.297] 1.20 [0.047] B1 1.50 [0.059] 1.30 [0.051] 2.70 [0.106] 0.50 [0.020] 8.64 [0.340] 4.55 [0.179] 0.60 [0.023] 8.64 [0.340] 1.60 [0.063] 8.10 [0.319] 2.25 [0.089] 0.95 [0.037] 0.30 [0.012] 0.60 [0.024] 0.50 [0.020] 0.60 [0.024] 0.25 [0.010] 1.22 [0.048] 5.50 [0.217] 1.90 [0.075] 6.80 [0.268] 8.64 [0.340] 5.50 [0.217] RECOMMENDED P.C.B. LAYOUT TOLERANCE UNSPECIFIED ±0.05mm 6.80 [0.268] X X X DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L≤4 4
