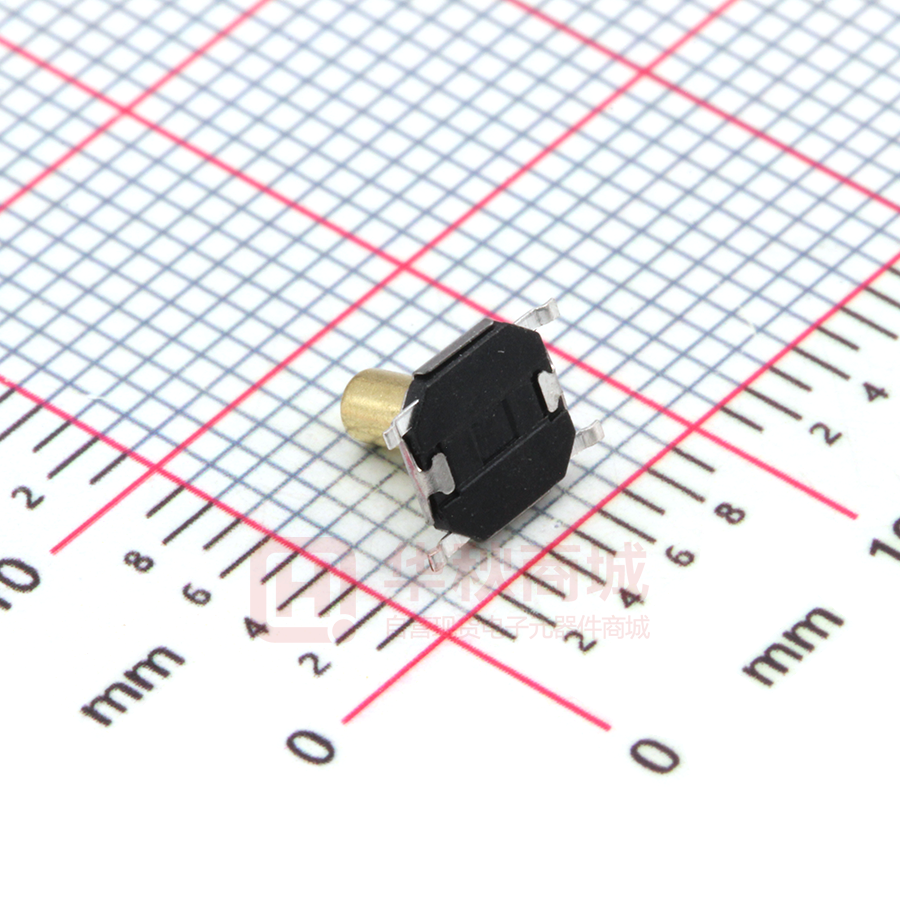

TS-1187A-C-J-B

Code-x H A 1.5 B 1.6 7[0.28] C 1.7 5[0.2] D 2.0 E 2.5 F 3.0 G 3.5 H 4.0 I 4.5 J 5.0 PCB LATOUT TOP VIEW Ø2.0[0.08] TRAVEL 0.2±0.1 4.5[0.18] 3[0.12] H±0.05 4 1.2 [0.047] 3 0.9[0.04] 1 5.1[0.2]±0.05 5 B C D A 5.1[0.2]±0.05 2 3.7[0.15]±0.05 0.5 [0.020] A B PAPT NO TS-1187A-X-X-X Operating Force C D Code-x Height Fixed column 6.5[0.26]±0.25 SPECIFICATION Contact Rating： Contact Resistance： Insulation Resistance： Dielectric Strength： Travel： Operating Temp： Storage Temp： X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED 50mA,12V DC 100mΩ max 100mΩ min.500V DC 250V AC/1minute 0.25mm -30℃~+85℃ -30℃~+80℃ units: tolerance: X.X X.XX X.XXX 4 1 1 1 1 QTY A:PA46 B:Brass Brass（0.30t） Plating silvering F.ag/Sus Lcp Sus Natural Plating Nickel Pa46/Brass MATERIAL FINISHING REMARK DSND DATE SCALE: N/A MODEL TYPE: mm DWN DATE VIEW: ±0.2mm ±0.1mm ±0.05mm CHKD DATE UNIT: mm/in APPD DATE UNSPECIFIED TOLERANCES www.helloxkb.cn Terminal 5 Contact 4 Base 3 Cover 2 Keystake 1 PAPT NAMF TER‚NO ITEM A:100gf B:160gf C:260gf TACT SWITCH PART NO.: DWG NO.: SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED WEIGHT 1.0g TS-1187A-X-X-X SHEET 1/1 REVISION A0
