PESD3V3L1BA
ESD Protection Diode
RoHS Device
Halogen Free
Features

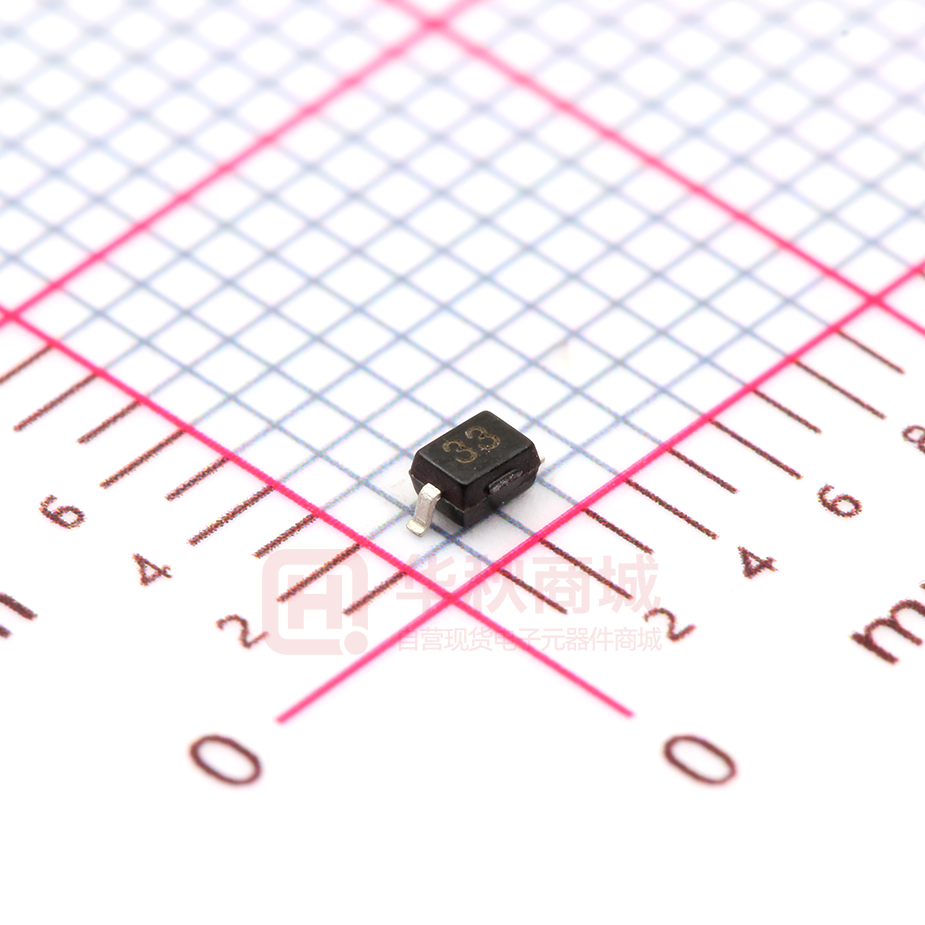

SOD-323
● IEC61000-4-2 ESD 30KV Air, 30KV contact compliance
● SOD-323 surface mount package
● Protects bi-directional line
● Working voltage: 3.3V
● Low leakage current
● Low clamping voltage
● Solid-state silicon avalanche technology
Pin Configuration
● Solder reflow temperature: Pure Tin-Sn, 260~270℃
● Flammability rating UL 94V-0
● Meets MSL level 1, per J-STD-020
Applications
● Cellular handsets & Accessories
● Cordless phones
● Personal digital assistants (PDAs)
● Notebooks & Handhelds
● Portable instrumentation
● Digital cameras
● Peripherals
● MP3 players
Maximum Ratings
Rating
Symbol
Value
Unit
Peak pulse power (tp=8/20μ s waveform)
PPP
500
W
Peak pulse current (tp=8/20μs waveform)
IPP
25
A
ESD voltage (Contact discharge)
VESD
ESD voltage (Air discharge)
T STG ,TJ
Storage & operating temperature range
1
±30
±30
-55~+150
kV
℃
PESD3V3L1BA
Parameter
Reverse stand-off voltage
Reverse breakdown voltage
Symbol
Condition
Min.
Typ.
VRWM
VBR
IBR=1mA
Max.
Unit
3.3
V
4
V
Reverse leakage current
IR
VR= 3.3V
1
μA
Clamping voltage (tp=8/20μs)
VC
IPP=1A
9.8
V
Clamping voltage (tp=8/20μs)
VC
IPP= 25A
10
V
Off state junction capacitance
CJ
0Vdc,f=1MHz
100
pF
Typical Characteristics Curves
Figure 1. Power Derating Curve
Figure 2. Pulse Waveform
110
100
tr
Peak value Ipp
Waveform
Parameters:
tr=8µs
td=20µs
90
80
70
60
50
40
td=t|PP/2
30
20
10
0
0
5
10
15
t-Time (μs)
Junction Capacitance (pF)
Figure 3. Capacitance vs. Reverse Voltage
2
20
25
30
PESD3V3L1BA
Recommended Soldering Conditions
Reflow Soldering
Recommended Condition
Profile Feature
Pb-Free Assembly
Average ramp-up rate (TL to TP)
3℃/second max.
Preheat
-Temperature Min (TS min)
-Temperature Max (TS max)
-Time (min to max) (ts)
150℃
200℃
60-180 seconds
TS max to TL
-Ramp-up Rate
3℃/second max.
Time maintained above:
-Temperature (TL)
-Time (tL)
217℃
60-150 seconds
Peak Temperature (TP)
260℃
Time within 5℃ of actual Peak Temperature (tP)
Ramp-down Rate
20-40 seconds
6℃/second max.
Time 25℃ to Peak Temperature
8 minutes max.
3
PESD3V3L1BA
Dimensions (SOD-323)
G
E
Dimension
Symbol
X
H
1
2
F
A
D
B
C
detail X
Millimeters
Inches
Min.
Max.
Min.
Max.
A
0.80
1.10
0.031
0.043
B
-
0.10
-
0.004
C
0.20
-
0.008
-
D
0.11
0.20
0.004
0.008
E
1.15
1.35
0.045
0.053
F
-
0.35
-
0.014
G
1.60
1.80
0.063
0.071
H
2.40
2.60
0.094
0.102
Packaging
F
B0
B
Reel
W
E
Tape
Symbol
Dimension (mm)
W
8.00±0.30
P0
4.00±0.10
P1
4.00±0.10
P2
2.00±0.10
D0
Φ1.55±0.10
D1
Φ1.00±0.05
E
1.75±0.10
F
3.50±0.10
A
1.48±0.10
A0
0.80±0.10
B
3.00±0.10
B0
1.80±0.10
K
1.05±0.10
t
0.25±0.05
D
Φ178.0±2.0
D2
Φ13.0
W1
9.5
Quantity: 3000PCS
4
