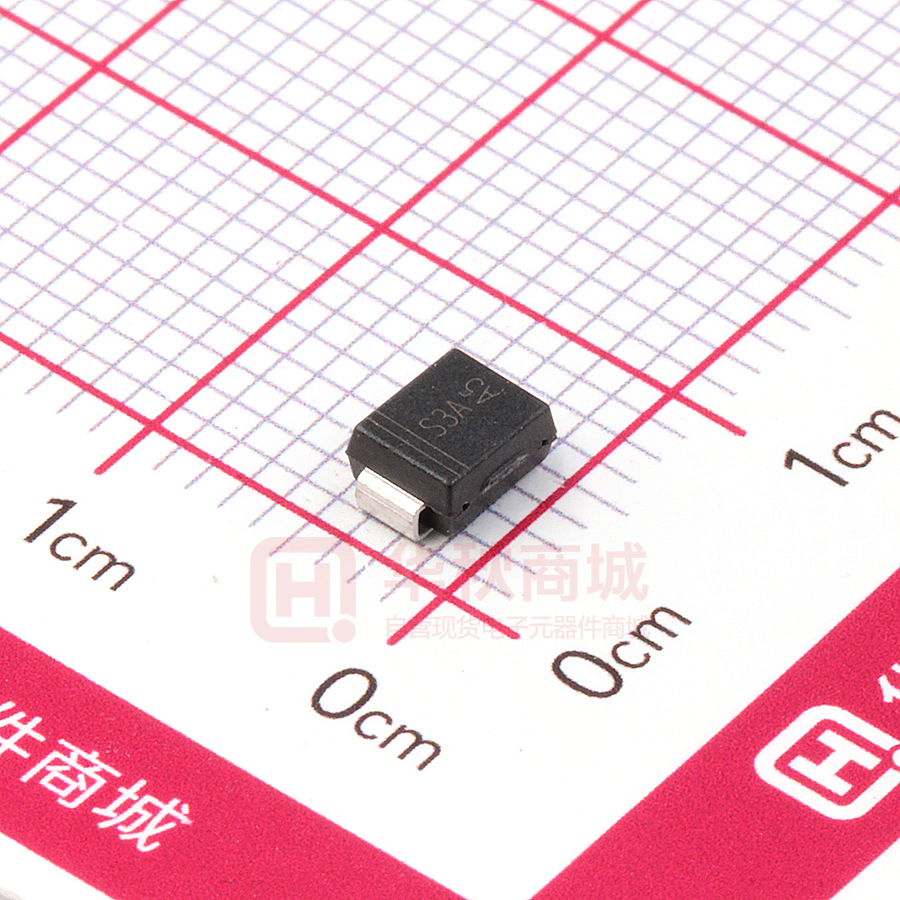

S3ABG THRU S3MBG
Surface Mount General Purpose Silicon Rectifiers
Reverse Voltage - 50 to 1000 V Forward Current - 3 A
PINNING
PIN
FEATURES
• For surface mounted applications
• Low profile package
• Glass Passivated Chip Junction
• Easy to pick and place
• Lead free in comply with EU RoHS 2011/65/EU directives
DESCRIPTION
1
Cathode
2
Anode
2
MECHANICAL DATA
• Case: SMB
• Terminals: Solderable per MIL-STD-750, Method 2026
• A pprox. Weight: 0.055g / 0.002oz
1
Top View
Marking Code: S3A~S3M
Simplified outline SMB and symbol
Maximum Ratings and Electrical characteristics
Ratings at 25 °C ambient temperature unless otherwise specified.
Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.
Symbols
Parameter
S3AB
G
S3BB
G
S3DB
G
S3GB
G
S3JB
G
S3KB
G
S3MB
G
Units
Maximum Repetitive Peak Reverse Voltage
V RRM
50
100
200
400
600
800
1000
V
Maximum RMS voltage
V RMS
35
70
140
280
420
560
700
V
Maximum DC Blocking Voltage
V DC
50
100
200
400
600
800
1000
V
Maximum Average Forward Rectified Current
I F(AV)
3
A
Peak Forward Surge Current 8.3 ms Single Half
Sine Wave Superimposed on Rated Load
I FSM
90
A
Maximum Instantaneous Forward Voltage at 3 A
VF
1.1
V
IR
5
100
μA
Cj
35
pF
RθJA
RθJC
48
16
°C/W
T j , T stg
-55 ~ +150
°C
Maximum DC Reverse Current
T a = 25 °C
at Rated DC Blocking Voltage
T a =125 °C
Typical Junction Capacitance
Typical Thermal Resistance
(1)
(2)
Operating and Storage Temperature Range
(1)Measured at 1 MHz and applied reverse voltage of 4 V D.C
(2)P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.
REV.08
1 of 3
S3ABG THRU S3MBG
Fig.2 Typical Instaneous Reverse
Characteristics
Instaneous Reverse Current ( μ A)
Average Forward Current (A)
Fig.1 Forward Current Derating Curve
5.0
4.0
3.0
2.0
1.0
Single phase half-wave 60 Hz
resistive or inductive load
0.0
25
50
75
100
125
150
175
100
T J =150°C
T J =125°C
10
T J =100°C
1.0
T J =75°C
0.1
T J =25°C
0.01
0
Junction Capacitance ( pF)
Instaneous Forward Current (A)
10
1.0
800
100
T J =25°C
10
T J =25°C
0.1
0.4
1
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.1
Fig.5 Maximum Non-Repetitive Peak
Forward Surage Current
100
80
60
40
20
8.3 ms Single Half Sine Wave
(JEDEC Method)
00
1
10
1.0
10
Reverse Voltage (V)
Instaneous Forward Voltage (V)
Peak Forward Surage Current (A)
600
Fig.4 Typical Junction Capacitance
Fig.3 Typical Forward Characteristic
100
Number of Cycles
REV.08
400
200
Instaneous Reverse Voltage (V)
Case Temperature (°C)
2 of 3
100
S3ABG THRU S3MBG
PACKAGE OUTLINE
SMB
Plastic surface mounted package; 2 leads
L
A
A1
C
A
b
D
E
E1
VM
A
SMB mechanical data
UNIT
mm
mil
A1
L
C
b
5.59
0.20
1.5
0.305
2.2
3.3
5.08
0.05
0.8
0.152
1.9
155
220
7.9
59
12
87
200
2.0
32
6
75
A
E
D
max
2.44
4.70
3.94
min
2.13
4.06
max
96
185
min
84
130
160
Marking
The recommended mounting pad size
2.2
(86)
2.4
(94)
2.8
(110)
2.4
(94)
mm
Unit :
(mil)
REV.08
E1
3 of 3
Type number
Marking code
S3ABG
S3A
S3BBG
S3B
S3DBG
S3D
S3GBG
S3G
S3JBG
S3J
S3KBG
S3K
S3MBG
S3M
