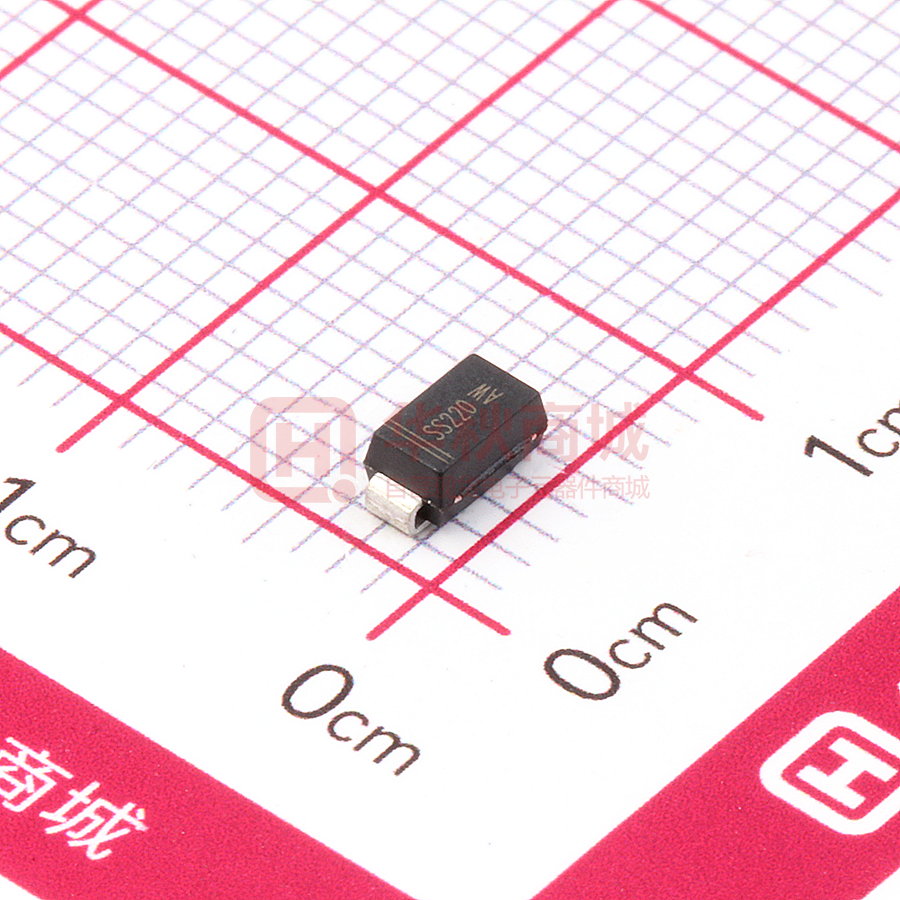

SS220G

SS22G THRU SS220G Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 2.0A PINNING Features • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications PIN DESCRIPTION 1 Cathode 2 Anode 1 MECHANICAL DATA • Case: SMA • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 60mg / 0.0021oz 2 Top View Marking Code: SS22~SS220 Simplified outline SMA and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter SS22G SS24G SS26G SS28G SS210G SS212G SS215G SS220G Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM Max Instantaneous Forward Voltage at 2 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range VF 50 0.55 0.70 0.3 3 80 A 0.95 0.85 220 V mA pF RθJA 80 °C/W Tj -55 ~ +125 °C T stg -55 ~ +150 °C （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. REV.08 40 0.5 5 IR Cj A 2.0 1 of 3 SS22G THRU SS220G Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 T J =75°C 10 2 SS22G /SS24G SS26G -SS220G 10 1 T J =25°C 10 0 0 Case Temperature (°C) 80 100 500 Junction Capacitance ( pF) 20 10 1.0 SS22G /SS24G SS26G /SS28G SS210G /SS212G SS215G /SS220G 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 T J =25°C 200 100 50 SS22G /SS24G 20 SS26G -SS220G 10 1.8 0.1 Transient Thermal Impedance（ °C /W） 60 50 SS22G -SS28G 40 SS210G -SS220G 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 1 10 100 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 60 Fig.4 Typical Junction Capacitance Instaneous Forward Voltage (V) 100 Number of Cycles at 60Hz REV.08 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) T J =100°C 10 3 Fig.6- Typical Transient Thermal Impedance 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 SS22G THRU SS220G PACKAGE OUTLINE Plastic surface mounted package; 2 leads A SMA c VM A HE e E g A D E HE c e g max 2.2 4.83 2.9 5.4 0.31 1.7 1.5 min 1.9 4.32 2.3 4.7 0.12 1.2 0.9 max 87 190 114 213 12 67 59 min 75 170 91 185 5 47 35 UNIT mm mil e g A D The recommended mounting pad size Marking Type number 2.2 (86) 1.8 (71) 1.8 (71) 1.8 (71) mm Unit ： (mil) REV.08 3 of 3 Marking code SS22G SS22 SS24G SS24 SS26G SS26 SS28G SS28 SS210G SS210 SS212G SS212 SS215G SS215 SS220G SS220
