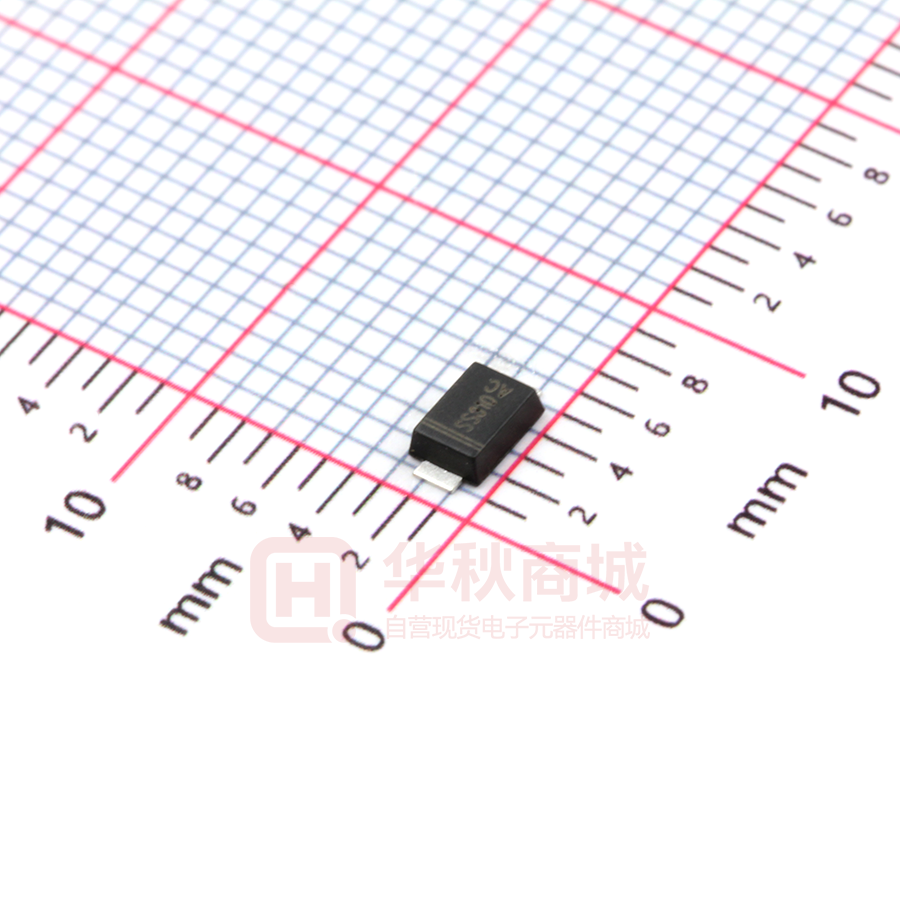

SS310F

SS32F THRU SS320F Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 3.0A FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SMAF 750, Method 2026 • Terminals: Solderable per MIL-STD-750, • Approx. Weight: 27mg 0.00086oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % 1） Measured at 1MHz and applied reverse voltage of 4 V D.C. REV.08 2） P.C.B. mounted with 0.2 X 0.2" (5 X 5 mm) copper pad areas. 1 of 3 SS32F THRU SS320F REV.08 2 of 3 SS32F THRU SS320F PACKAGE OUTLINE Plastic surface mounted package; 2 leads REV.08 SMAF 3 of 3
