SS320

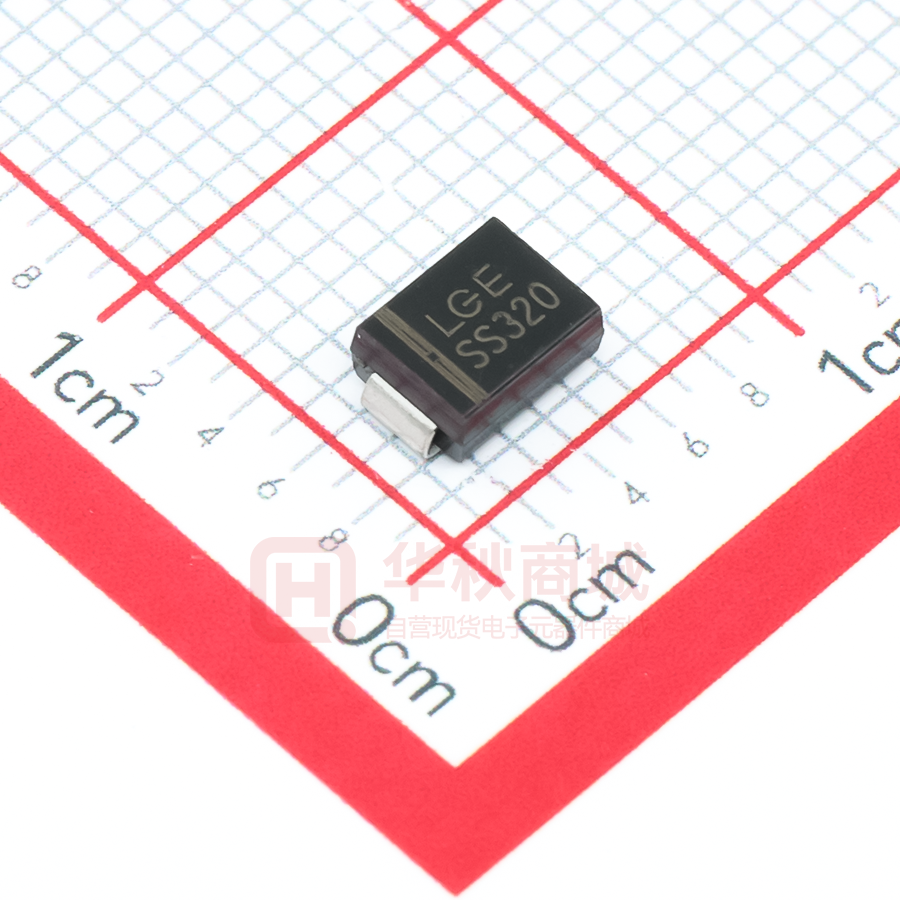

SS315- SS320 Surface Mount Schottky Barrier Rectifier Reverse Voltage - 200 Volts Forward Current - 3.0 Amperes SMC/DO-214AB Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
For surface mounted applications
Metal silicon junction,majority carrier conduction Low
power loss,high efficiency
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed: 250 C/10 seconds at terminals Mechanical Data
Case: JEDEC DO-214ABmolded plastic body
Terminals: leads solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS315 SS320 UNITS VRRM VRMS VDC 150 105 150 200 140 200 VOLTS VOLTS VOLTS I(AV) 3.0 Amps IFSM 100.0 Amps VF 0.84 Volts IR 1.0 10 mA CJ RqJA TJ, TSTG 300 62.0 -65 to +150 -65 to +150 pF C/W C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com SS315-SS320 FIG. 1- FORWARD CURRENT DERATING CURVE 3.0 2.4 Single Phase Half Wave 60Hz Resistive or inductive Load 1.8 1.2 0.6 0 0 25 50 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 £PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CUR VES SS320 75 100 125 150 80 60 40 20 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 100 NUMBER OF CYCLES AT 60 Hz FIG. 4-TYPICAL REVERSE CHARACTERISTICS FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 1,000 INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES TJ=25 C INSTANTANEOUS FORWARD CURRENT,AMPERES 10.0 1 0.1 100 10 TJ=75 C 1 0.1 TJ=25 C 0.01 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 TJ=100 C 0 20 40 60 80 200 PERCENT OF PEAK REVERSE VOLTAGE,% 1.6 INSTANTANEOUS FORWARD VOLEAGE, VOLTS JUNCTION CAPACITANCE, pF 1000 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, C/W FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 TJ=25 C 100 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS Revision:20170701-P1 ht t p : // 200 t,PULSE DURATION,sec. www.lgesem i .c o m mail:lge@lgesemi.com
