ESD5Z5V
ESD5Z5V
1-Line, Uni-directional, Transient Voltage Suppressor
http//:www.sh-willsemi.com
Descriptions
The ESD5Z5V is a Uni-directional TVS (Transient Voltage
Suppressor). It is specifically designed to protect sensitive
electronic components that may be subjected to ESD
(Electrostatic Discharge), EFT (Electrical Fast Transients)
and Lightning. It is particularly well-suited for cellular phones,

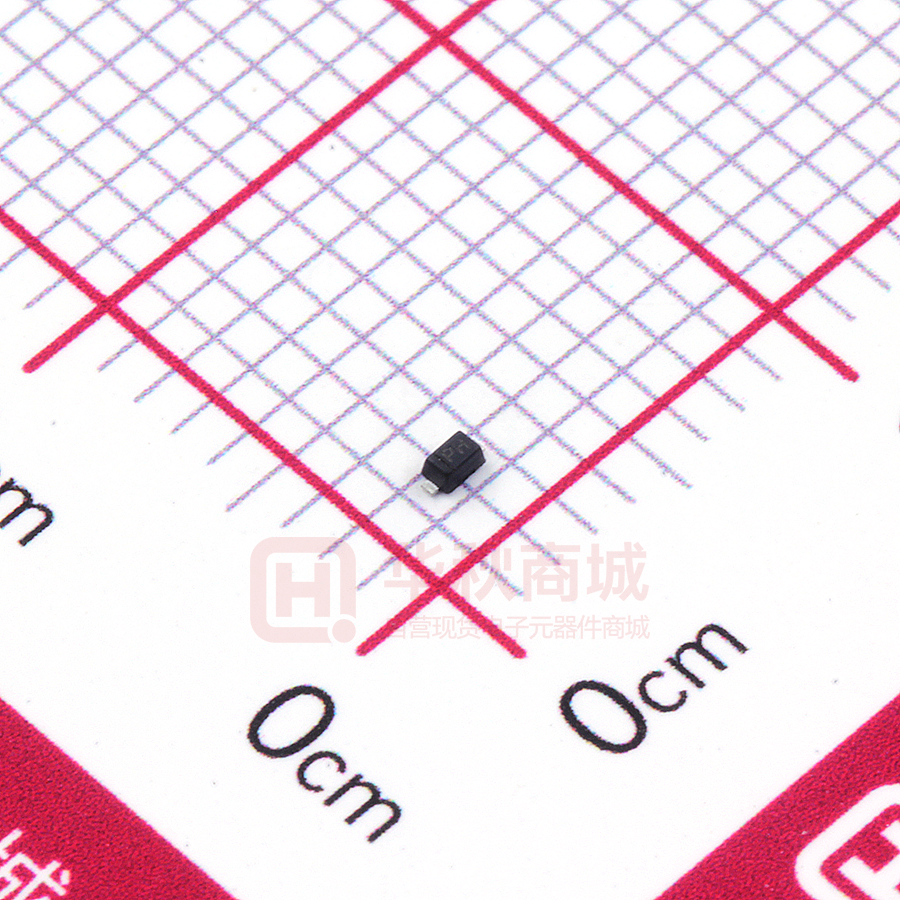

SOD-523
portable device, digital cameras, power supplies and many
other portable applications because of its small package and
low weight.
The ESD5Z5V may be used to provide ESD protection up to
Pin1
±30kV (contact discharge) according to IEC61000-4-2, and
Pin2
withstand peak pulse current up to 8 A (8/20μs) according to
IEC61000-4-5.
Circuit diagram
The ESD5Z5V is available in SOD-523 package. Standard
products are Pb-free and Halogen-free.
*H
Pin1
Features
Stand-off voltage: 5V Max.
Transient protection for each line according to
* = Date code ( A~Z)
IEC61000-4-2 (ESD): ±30kV (contact discharge)
H = Device code
IEC61000-4-4 (EFT): 40A (5/50ns)
Pin2
Marking (Top View)
IEC61000-4-5 (surge): 8A (8/20μs)
Capacitance: CJ = 60pF typ.
Solid-state silicon technology
Order information
Applications
Cell phone handsets and accessories
Personal Digital Assistants (PDAs)
Notebooks, Desktops, and Servers
Portable Instrumentation
Digital Cameras
Will Semiconductor Ltd.
1
Device
Package
Shipping
ESD5Z5V-2/TR
SOD-523
3000/Tape&Reel
Revision 2.5, 2021/09/24
ESD5Z5V
Absolute maximum ratings
Parameter
Symbol
Rating
Unit
Peak pulse power (tp = 8/20μs)
Ppk
120
W
Peak pulse current (tp = 8/20μs)
IPP
8
A
ESD according to IEC61000-4-2 air discharge
±30
VESD
ESD according to IEC61000-4-2 contact discharge
±30
kV
TJ
125
oC
Operating temperature
TOP
-40~85
oC
Lead temperature
TL
260
oC
TSTG
-55~150
oC
Junction temperature
Storage temperature
Electrical characteristics (TA = 25oC, unless otherwise noted)
I
IPP
VF
Forward voltage
VRWM Reverse stand-off voltage
IF
Forward current
IR
Reverse leakage current
VFC
Forward clamping voltage
VBR
Reverse breakdown voltage
IPP
Peak pulse current
VCL
Clamping voltage
IPP
Peak pulse current
VFC VF
IBR
IR
VRWM VBR VCL
V
IF
IPP
Definitions of electrical characteristics
Will Semiconductor Ltd.
2
Revision 2.5, 2021/09/24
ESD5Z5V
Electrical characteristics (TA=25 oC, unless otherwise noted)
Parameter
Symbol
Reverse stand-off voltage
VRWM
Reverse leakage current
IR
Condition
Min.
Typ.
VRWM = 5V
Max.
Unit
5
V
1
μA
8.0
V
1.2
V
Reverse breakdown voltage
VBR
IT = 1mA
6.0
Forward voltage
VF
IF = 10mA
0.5
Clamping voltage 1)
VCL
IPP = 16A, tp = 100ns
11
V
Clamping voltage 2)
VCL
VESD = 8kV
11
V
Clamping voltage 3)
VC
Dynamic resistance 1)
RDYN
Junction capacitance
CJ
0.8
Ipp=1A tp=8/20μs
10
V
Ipp=8A tp=8/20μs
15
V
Ω
0.25
VR = 0V, f = 1MHz
60
80
pF
VR =5V, f = 1MHz
30
45
pF
Notes:
1) TLP parameter: Z0 = 50Ω, tp = 100ns, tr = 2ns, averaging window from 60ns to 80ns. RDYN is calculated from 4A to
16A.
2)
Contact discharge mode, according to IEC61000-4-2.
3)
Non-repetitive current pulse, according to IEC61000-4-5.
Will Semiconductor Ltd.
3
Revision 2.5, 2021/09/24
ESD5Z5V
100
90
Front time: T1= 1.25 T = 8μs
100
90
Time to half-value: T2= 20μs
Current (%)
Peak pulse current (%)
Typical characteristics (TA=25oC, unless otherwise noted)
50
T2
10
0
0
10
T
5
10
T1
15
Time (μs)
20
25
tr = 0.7~1ns
CJ - Junction capacitance (pF)
12
VC - Clamping voltage (V)
Time (ns)
Contact discharge current waveform per IEC61000-4-2
8/20μs waveform per IEC61000-4-5
Pulse waveform: tp = 8/20s
11
t
60ns
30ns
30
10
9
8
7
70
f = 1MHz
VAC = 50mV
65
60
55
50
45
40
35
30
25
6
20
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
VR - Reverse voltage (V)
IPP - Peak pulse current (A)
Clamping voltage vs. Peak pulse current
Capacitance vs. Reverse voltage
1000
% of Rated power
Peak pulse power (W)
100
100
80
60
40
20
10
0
1
10
100
Pulse time (s)
1000
25
50
75
100
125
o
TA - Ambient temperature ( C)
Non-repetitive peak pulse power vs. Pulse time
Will Semiconductor Ltd.
0
Power derating vs. Ambient temperature
4
Revision 2.5, 2021/09/24
150
ESD5Z5V
Typical characteristics (TA=25oC, unless otherwise noted)
10V/div
10V/div
v
v
20ns/div
ESD clamping
20ns/div
ESD clamping
(+8kV contact discharge per IEC61000-4-2)
(-8kV contact discharge per IEC61000-4-2)
TLP current (A)
20
16
12
8
Z0 = 50
4
tr = 2ns
tp = 100ns
0
-2
0
2
4
6
8
10
12
14
TLP voltage (V)
TLP Measurement
Will Semiconductor Ltd.
5
Revision 2.5, 2021/09/24
ESD5Z5V
PACKAGE OUTLINE DIMENSIONS
SOD-523
A1
E
b
D
E2
E1
A
TOP VIEW
SIDE VIEW
0.4
c
2
1.5
1
0.5
SIDE VIEW
Symbol
θ
RECOMMENDED LAND PATTERN(Unit:mm)
Dimensions in Millimeters
Min.
Typ.
Max.
A
0.51
-
0.77
A1
0.50
0.60
0.70
b
0.25
-
0.40
c
0.08
-
0.15
D
0.75
0.80
0.85
E
1.10
1.20
1.30
E1
1.50
1.60
1.70
E2
0.20 Ref.
θ
7︒C Ref.
Will Semiconductor Ltd.
6
Revision 2.5, 2021/09/24
ESD5Z5V
TAPE AND REEL INFORMATION
Reel Dimensions
RD
Reel Dimensions
Tape Dimensions
W
P1
Quadrant Assignments For PIN1 Orientation In Tape
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
RD
Reel Dimension
W
Overall width of the carrier tape
P1
Pitch between successive cavity centers
Pin1
Pin1 Quadrant
Will Semiconductor Ltd.
User Direction of Feed
7inch
13inch
1 8mm
12mm
16mm
2mm
4mm
8mm
Q1
Q2
Q3
7
Q4
Revision 2.5, 2021/09/24
