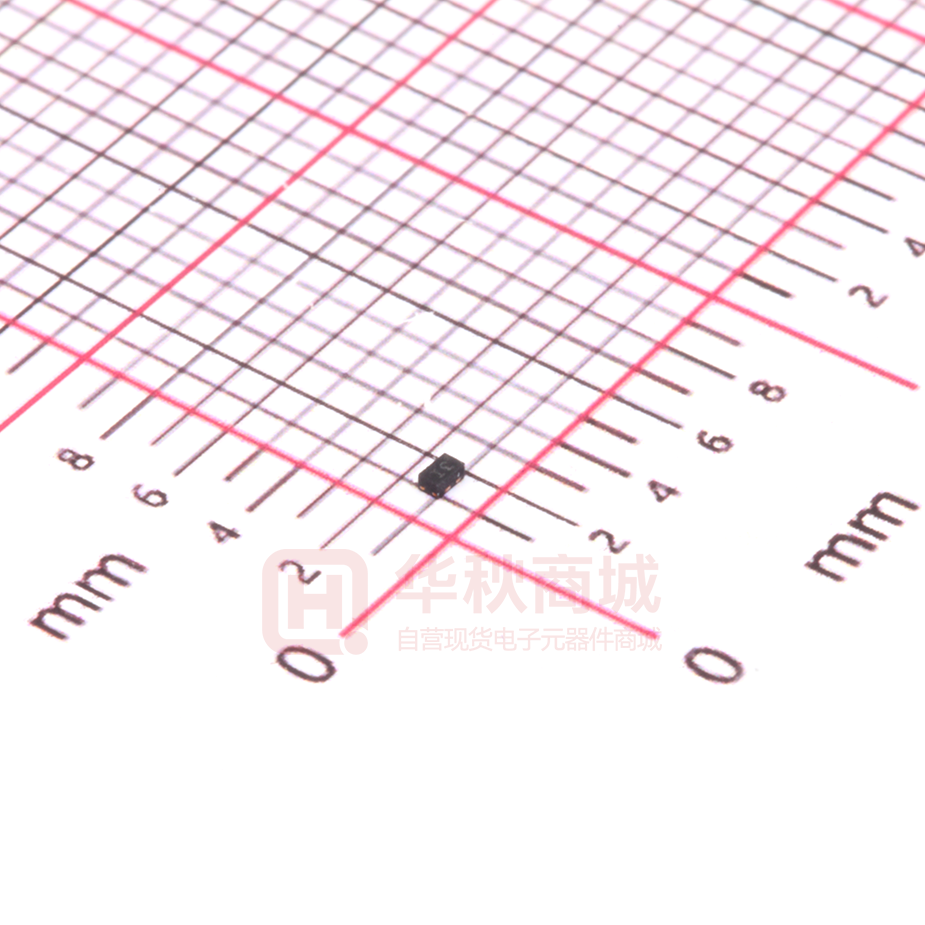

ESD5302N-3/TR

ESD5302N ESD5302N 2-Lines, Uni-directional, Ultra-low Capacitance http//:www.sh-willsemi.com Transient Voltage Suppressors Descriptions The ESD5302N is an ultra-low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data DFN1006-3L (Bottom View) and transmission lines from over-stress caused by ESD (Electrostatic Discharge). 2 The ESD5302N incorporates two pairs of ultra-low capacitance steering diodes plus a TVS diode. The ESD5302N may be used to provide ESD protection up to ±20kV (contact and air discharge) according to 3 IEC61000-4-2, and withstand peak pulse current up to 4A (8/20μs) according to IEC61000-4-5. The ESD5302N is available in DFN1006-3L package. Standard products are Pb-free and Halogen-free. 1 Circuit diagram Features  Stand-off voltage: 5V max.  Transient protection for each line according to 2 IEC61000-4-2 (ESD): ±20kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) 1 IEC61000-4-5 (surge): 4A (8/20μs)  Ultra-low capacitance: CJ = 0.4pF typ.  Ultra-low leakage current: IR
