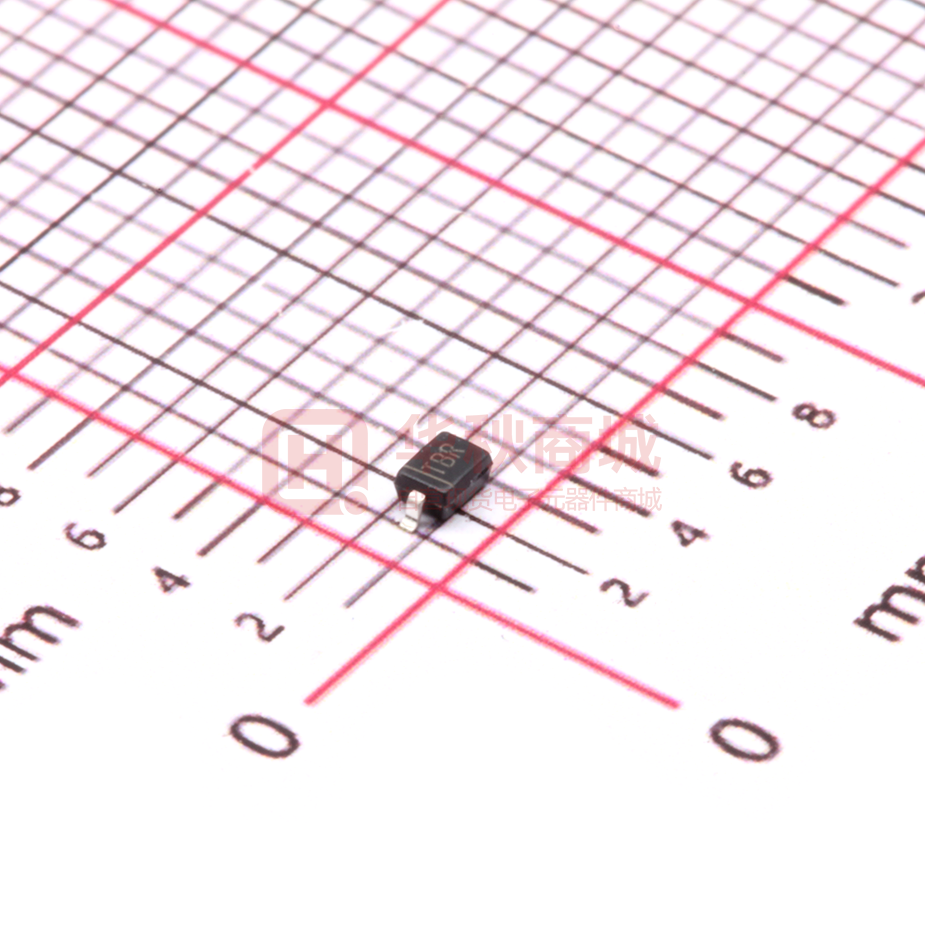

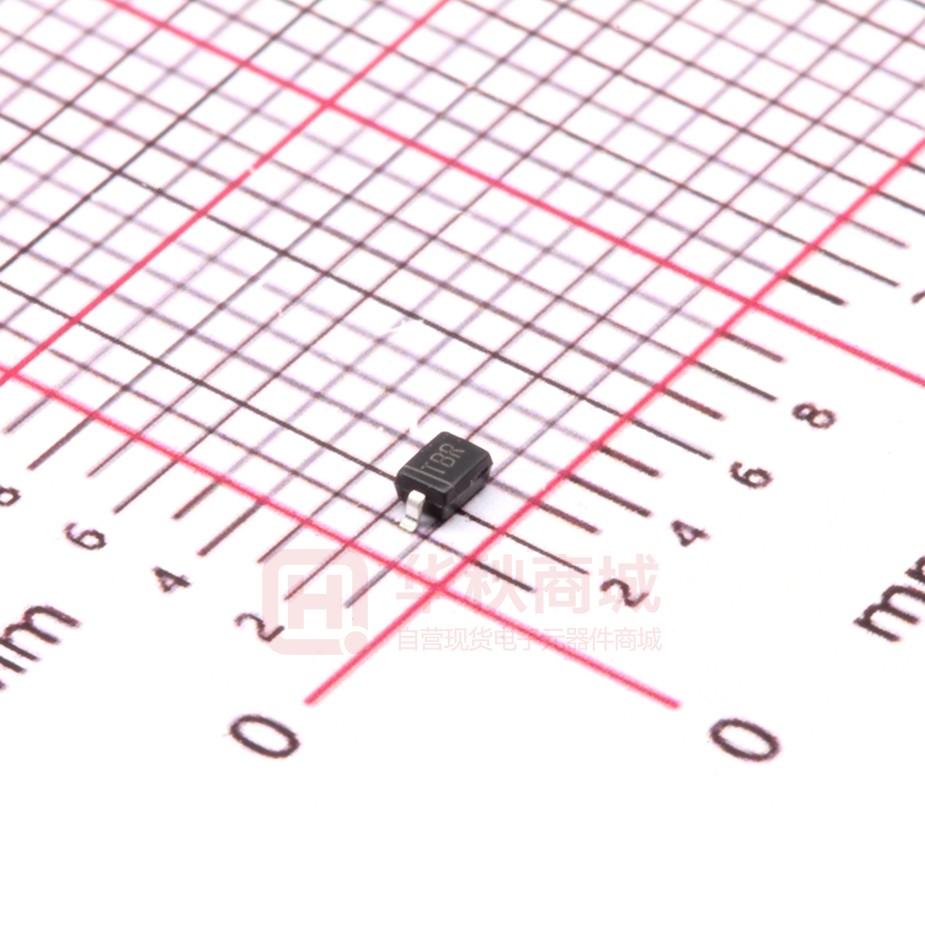

SPD9112W-2/TR

SPD9112W SPD9112W 1 Lines, Bi-directional, Low Capacitance http//:www.sh-willsemi.com Transient Voltage Suppressors Descriptions The SPD9112W is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress caused SOD-323 by Electrostatic Discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges. The SPD9112W incorporates low capacitance steering diodes that reduce the typical capacitance to 1.2pF per line. Pin1 Pin2 The SPD9112W may be used to provide ESD protection up to ±30kV (contact discharge) according to IEC61000-4-2, and withstand peak pulse current up to 12A (8/20μs) according to IEC61000-4-5. Circuit diagram The SPD9112W is available in SOD-323 package. Standard products are Pb-free and Halogen-free. TB * Features  Reverse stand-off voltage: 12V Max.  Transient protection for each line according to TB = Device code * = Month code ( A~Z) IEC61000-4-2 (ESD): ±30kV (contact discharge) IEC61000-4-4 (EFT): 40A - 5/50ns Marking (Top View) IEC61000-4-5 (surge): 12A (8/20μs).  Low capacitance: CJ = 1.2pF typ.  Ultra-low leakage current: IR
