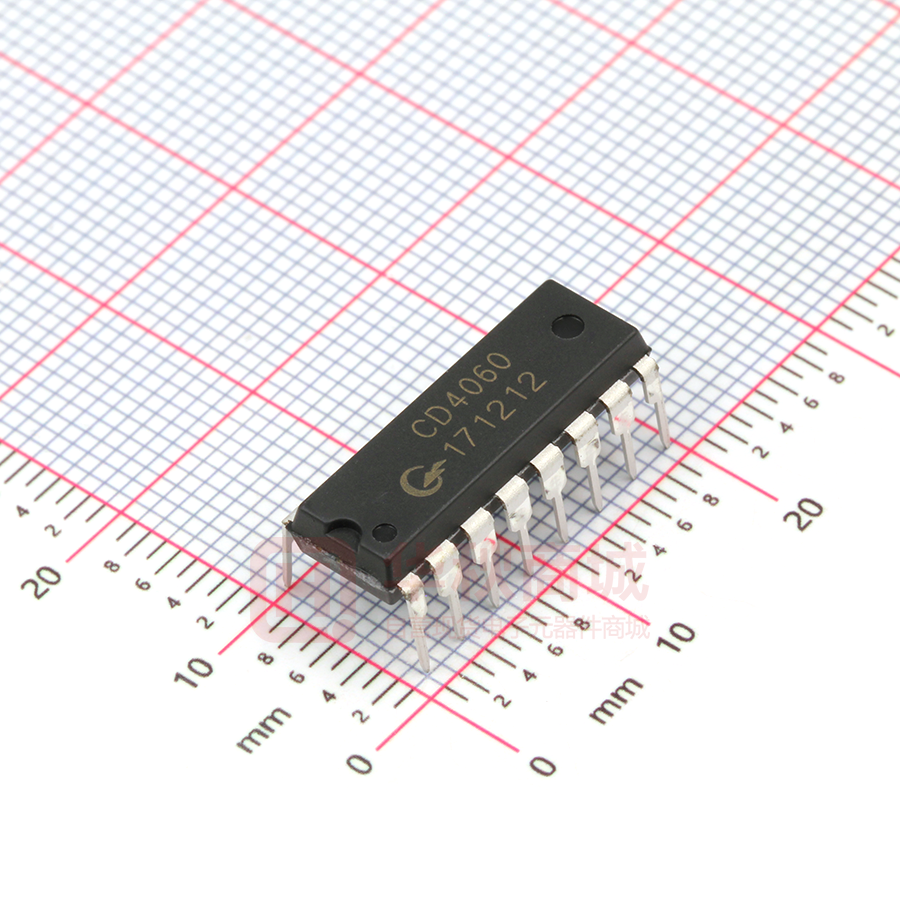

CD4060DA.TB

CD4060DA.TB

  • 厂商:

    I-CORE(中微爱芯)

  • 封装:

    DIP16_19X6.4MM

  • 描述:

    计数器/除法器 DIP-16 3V 15V

  • 数据手册
  • 价格&库存
CD4060DA.TB 数据手册
Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN or e CD4060 14-stage Ripple-carry Binary Counter/Divider and Oscillator Specification i-c Product Specification Revision History: Version Date 2019-06-A1 2019-06 Description New Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 1/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN 1、General Description CD4060 is a 14-stage ripple-carry binary counter/divider and oscillator with three oscillator terminals (RS, REXT and CEXT), ten buffered outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset input (MR). The oscillator configuration allows design of either RC or crystal oscillator circuits. The oscillator may be replaced by an external clock signal at input RS. The counter advances on the negative-going transition of RS. A HIGH level on MR resets the counter (Q3 to Q9 and Q11 to Q13=LOW), independent of other input conditions. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. i-c or e Features:  Wide supply voltage range from 3V to 15V  Tolerant of slow clock rise and fall times  Fully static operation  5V, 10V, and 15V parametric ratings  Standardized symmetrical output characteristics  Inputs and outputs are protected against electrostatic effects  Specified from -40℃ to +85℃  Packaging information: DIP16/SOP16/TSSOP16 Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 2/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN Ordering Information: Tube packing specifications: Packaging form Type number Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP16 CD4060 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack CD4060SA.TB SOP16 CD4060 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack CD4060TA.TB TSSOP16 CD4060 120 tube/box 19200 PCS/box 10 box/pack 192000 PCS/pack or 96 PCS/tube Reel packing specifications: Packaging Type number Marking code form Reel quantity Boxed reel quantity Packing quantity 5000 PCS/box 20000 PCS/pack 2500 PCS/box 40000 PCS/pack 5000 PCS/box 40000 PCS/pack SOP16(1) CD4060 CD4060SA.TR SOP16(2) CD4060 2500 PCS/reel i-c CD4060SA.TR 2500 PCS/reel CD4060TA.TR TSSOP16 Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm e CD4060DA.TB Notes CD4060 2500 PCS/reel Notes Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing:0.65mm Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 3/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN 2、Block Diagram And Pin Description 2.1、Block Diagram or e Figure 1. Functional diagram i-c Figure 2. Logic diagram 2.2、Pin Configurations Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 4/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN 2.3、Pin Description Description counter output counter output counter output counter output counter output counter output counter output ground (0V) external capacitor connection oscillator pin clock input/oscillator pin master reset counter output counter output counter output supply voltage e Pin Name Q11 Q12 Q13 Q5 Q4 Q6 Q3 VSS CEXT REXT RS MR Q8 Q7 Q9 VDD or Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 2.4、Function Table Input Output Q3 to Q9 and Q11 to Q13 i-c RS MR ↑ L no change ↓ L count X H L Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care; ↑=LOW-to-HIGH clock transition. Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 5/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to VSS (ground=0V), unless otherwise specified.) Unit V mA V ℃ mW mW ℃ ℃ or e Parameter Symbol Conditions Min. Max. supply voltage VDD -0.5 +18 DC input current IIK any one input ±10 input voltage VI all inputs -0.5 VDD+0.5 storage temperature Tstg -65 +150 total power Ptot 500 dissipation device dissipation P per output transistor 100 DIP 245 Soldering TL 10s temperature SOP 250 Note: [1] For DIP16 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP16 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP16 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. 3.2、Recommended Operating Conditions Parameter supply voltage ambient temperature Symbol VDD Conditions - Min. 3 Typ. - Max. 15 Unit V Tamb in free air -40 - +85 ℃ input pulse width tw 100 40 30 - - ns ns ns MHz MHz MHz ns ns ns i-c f=100kHz input pulse rise and fall time trIN, tfIN input pulse frequency fRS reset pulse width twR VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V external pulse source unlimited VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 120 60 40 - 3.5 8 12 - 6/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN Max. 5 10 20 0.05 0.05 0.05 1.5 3 4 - Unit uA uA uA mA mA mA mA mA mA mA V V V V V V V V V V V V i-c or e 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Tamb=25℃ Conditions (V) Parameter Symbol VO VIN VDD Min. Typ. 0, 5 5 0.04 supply current IDD 0, 10 10 0.04 0, 15 15 0.04 0.4 0, 5 5 0.51 1 LOW-level IOL 0.5 0, 10 10 1.3 2.6 output current 1.5 0, 15 15 3.4 6.8 4.6 0, 5 5 -0.51 -1 2.5 0, 5 5 -1.6 -3.2 HIGH-level IOH output current 9.5 0, 10 10 -1.3 -2.6 13.5 0, 15 15 -3.4 -6.8 0, 5 5 0 LOW-level 0, 10 10 0 VOL output voltage 0, 15 15 0 0, 5 5 4.95 5 HIGH-level 0, 10 10 9.95 10 VOH output voltage 0, 15 15 14.95 15 0.5, 4.5 5 LOW-level VIL 1, 9 10 input voltage 1.5, 13.5 15 0.5, 4.5 5 3.5 HIGH-level VIH 1, 9 10 7 input voltage 1.5, 13.5 15 11 input leakage 0, 15 15 ±10-5 II current ±0.1 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Tamb=-40℃ Tamb=+85℃ Conditions (V) Parameter Symbol VO VIN VDD Min. Max. Min. Max. 0, 5 5 5 150 supply current IDD 0, 10 10 10 300 0, 15 15 20 600 0.4 0, 5 5 0.61 0.42 LOW-level IOL 0.5 0, 10 10 1.5 1.1 output current 1.5 0, 15 15 4 2.8 4.6 0, 5 5 -0.61 -0.42 2.5 0, 5 5 -1.8 -1.3 HIGH-level IOH output current 9.5 0, 10 10 -1.5 -1.1 13.5 0, 15 15 -4 -2.8 Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 uA Unit uA uA uA mA mA mA mA mA mA mA 7/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 VOL HIGH-level output voltage VOH LOW-level input voltage VIL HIGH-level input voltage VIH input leakage current II 0.5, 4.5 1, 9 1.5, 13.5 0.5, 4.5 1, 9 1.5, 13.5 0, 5 0, 10 0, 15 0, 5 0, 10 0, 15 - 5 10 15 5 10 15 5 10 15 5 10 15 4.95 9.95 14.95 3.5 7 11 0.05 0.05 0.05 1.5 3 4 - 4.95 9.95 14.95 3.5 7 11 0.05 0.05 0.05 1.5 3 4 - V V V V V V V V V V V V - 0, 15 15 - ±0.1 - ±1 uA Max. 740 300 200 200 100 80 360 160 100 200 100 80 100 40 30 120 60 40 e LOW-level output voltage Number:CD4060-AX-LJ-D020EN or 3.3.3、AC Characteristics 1 (Tamb=25℃, VSS=0V, tr, tf=20ns, CL=50pF, RL=200kΩ, unless otherwise specified.) Parameter Symbol Conditions RS to Q3 out; see Figure 4 propagation delay time tPHL, tPLH Qn to Qn+1; see Figure 4 i-c MR to Qn; see Figure 4 VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V transition time tt see Figure 4 minimum width; f=100kHz; RS HIGH; pulse width tW input pulse rise and fall time trIN, tfIN - fmax input RS; see Figure 4 maximum clock frequency minimum width; MR HIGH; see Figure 4 input CI capacitance Note: tt is the same as tTLH and tTHL. any input Min. - Typ. 370 150 100 100 50 40 180 80 50 100 50 40 50 20 15 60 30 20 3.5 8 12 7 16 24 - Unit ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns MHz MHz MHz - 5 7.5 pF unlimited Address:Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.:214072 8/ 14 VER:2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4060-AX-LJ-D020EN 3.3.4、AC Characteristics 2 (RC Operation, Tamb=25℃, VSS=0V, tr, tf=20ns, CL=50pF, RL=200kΩ, unless otherwise specified.) Parameter Symbol Conditions variation of frequency (unit to unit) - CX=200pF RS=560kΩ RX=50kΩ variation of frequency with voltage change (same unit) - CX=200pF RS=560kΩ RX=50kΩ VDD=5V VDD=10V VDD=15V Min. - Typ. 23±10% 24±10% 25±10% Max. - Unit kHz kHz kHz 5V to 10V - 1.5 - kHz 10V to 15V - 0.5 - kHz MΩ MΩ MΩ uF uF uF kHz kHz mA mA mA mA mA mA i-c or e 20 CX=10uF, VDD=5V RX max CX=50uF, VDD=10V 20 CX=10uF, VDD=15V 10 1000 RX=500kΩ, VDD=5V CX max RX=300kΩ, VDD=10V 50 RX=300kΩ, VDD=15V 50 Maximum CX=15pF VDD=10V 530 650 810 oscillator RS=30kΩ VDD=15V 690 800 940 frequency RX=15kΩ 0.16 0.35 VO=0.4V, VDD=5V VO=0.5V, VDD=10V 0.42 0.8 IOL drive current at V =1.5V, V =15V 1 2 CEXT (for O DD oscillator -0.16 -0.35 VO=4.6V, VDD=5V design) IOH VO=9.5V, VDD=10V -0.42 -0.8 VO=13.5V, VDD=15V -1 -2 Note: RC oscillator applications are not recommended at supply voltages below 7V for RX
