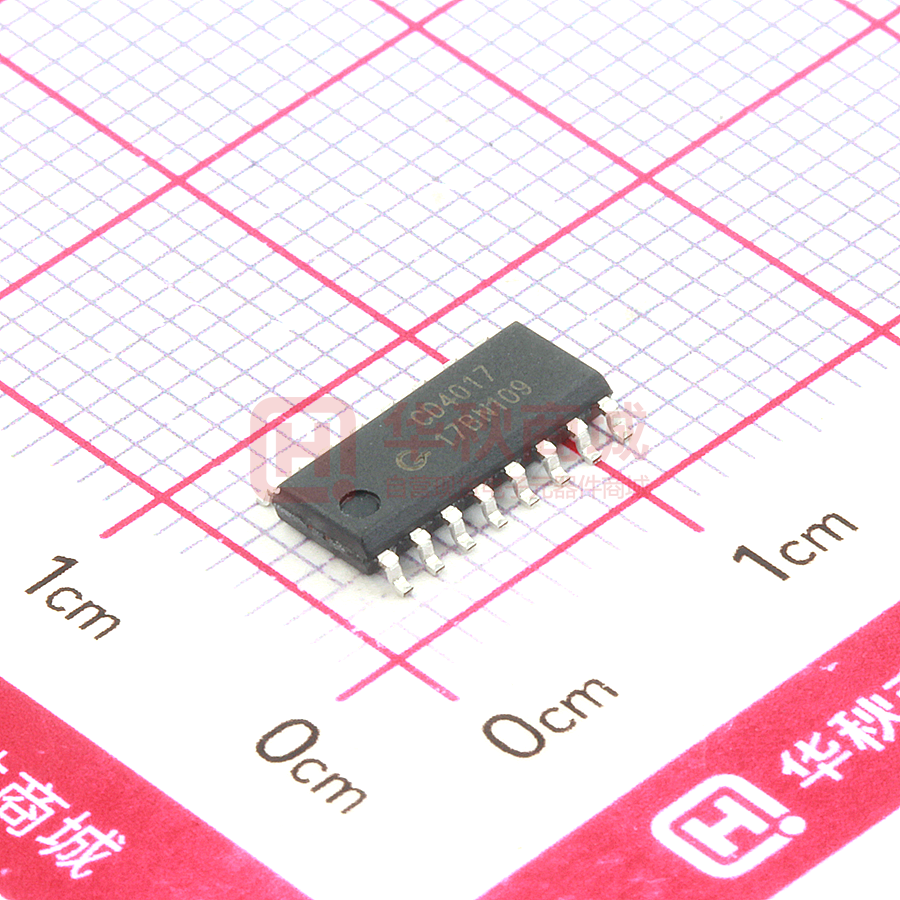

CD4017SA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN or e CD4017 5-stage Johnson Decade Counter Specification i-c Product Specification Revision History： Version Date 2019-07-A1 2019-07 Description New Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 1、General Description The CD4017 is a 5-stage Johnson decade counter with ten spike-free decoded active HIGH outputs (Q0 to — Q9), an active LOW carry output from the most significant flip-flop (Q5-9), active HIGH and active LOW — clock inputs (CP0, CP1) and an overriding asynchronous master reset input (MR). — The counter is advanced by either a LOW-to-HIGH transition at CP0 while CP 1 is LOW or a — HIGH-to-LOW transition at CP1 while CP0 is HIGH. — When cascading counters, the Q5-9 output, which is LOW while the counter is in states 5, 6, 7, 8, and 9, — can be used to drive the CP0 input of the next counter. A HIGH on MR resets the counter to zero (Q0=Q — 5-9=HIGH; Q1 to Q9=LOW) independent of the clock inputs (CP0, CP1). e Automatic counter code correction is provided by an internal circuit: following any illegal code the counter returns to a proper counting mode within 11 clock pulses. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. i-c or Features:  Wide supply voltage range from 3V to 15V  Automatic counter correction  Tolerant of slow clock rise and fall times  5V, 10V, and 15V parametric ratings  Standardized symmetrical output characteristics  Specified from -40℃ to +85℃  Packaging information: DIP16/SOP16/TSSOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN Ordering Information: Tube packing specifications: Packaging form Type number Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP16 CD4017 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack CD4017SA.TB SOP16 CD4017 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack CD4017TA.TB TSSOP16 CD4017 120 tube/box 19200 PCS/box 10 box/pack 192000 PCS/pack or 96 PCS/tube Reel packing specifications: Packaging Type number Marking code form Reel quantity Boxed reel quantity Packing quantity 5000 PCS/box 20000 PCS/pack 2500 PCS/box 40000 PCS/pack 5000 PCS/box 40000 PCS/pack SOP16(1) CD4017 CD4017SA.TR SOP16(2) CD4017 2500 PCS/reel i-c CD4017SA.TR 2500 PCS/reel CD4017TA.TR TSSOP16 Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm e CD4017DA.TB Notes CD4017 2500 PCS/reel Notes Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing:0.65mm Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 2、Block Diagram And Pin Description e 2.1、Block Diagram i-c or Figure 1. Logic symbol Figure 2. IEE logic symbol Figure 3. Functional diagram Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 4/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. rev:B3 Number:CD4017-AX-LJ-D005EN e Tab: 835-12 i-c or Figure 4. Logic diagram Figure 5. Timing diagram Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 5/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 2.2、Pin Configurations 2.3、Pin Description 12 Q5-9 Description decoded output decoded output decoded output decoded output decoded output decoded output decoded output ground (0V) decoded output decoded output decoded output e Pin Name Q5 Q1 Q0 Q2 Q6 Q7 Q3 VSS Q8 Q4 Q9 or Pin No. 1 2 3 4 5 6 7 8 9 10 11 — carry output (active LOW) — CP1 clock input (HIGH-to-LOW edge-triggered) 14 15 16 CP0 MR VDD clock input (LOW-to-HIGH edge-triggered) master reset input supply voltage i-c 13 2.4、Function Table Input Operation — MR CP0 CP1 H X X L H ↓ L ↑ L L L X L X H L H ↑ L ↓ L Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care; ↑=positive-going transition; ↓=negative-going transition. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 — Q0=Q5-9=H; Q1 to Q9=L counter advances counter advances no change no change no change no change 6/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to VSS (ground=0V), unless otherwise specified.) Unit V mA V ℃ mW mW ℃ or e Parameter Symbol Conditions Min. Max. supply voltage VDD -0.5 +18 DC input current IIK any one input ±10 input voltage VI all inputs -0.5 VDD+0.5 storage temperature Tstg -65 +150 total power Ptot 500 dissipation device dissipation P per output transistor 100 DIP 245 Soldering TL 10s temperature SOP 250 Note: [1] For DIP16 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP16 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP16 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. 3.2、Recommended Operating Conditions Parameter supply voltage ambient temperature Conditions - Min. 3 Typ. - Max. 15 Unit V Tamb in free air -40 - +85 ℃ VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V 200 90 60 - 2.5 5 5.5 - MHz MHz MHz ns ns ns ns ns ns ns ns ns ns ns ns fCL i-c clock input frequency Symbol VDD clock pulse width tw clock rise and fall time trCL, tfCL clock inhibit setup time ts reset pulse width tRW reset removal time trec Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 unlimited 230 100 70 260 110 60 400 280 150 - - 7/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN Max. 5 10 20 0.05 0.05 0.05 1.5 3 4 - Unit uA uA uA mA mA mA mA mA mA mA V V V V V V V V V V V V i-c or e 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Tamb=25℃ Conditions (V) Parameter Symbol VO VIN VDD Min. Typ. 0, 5 5 0.04 supply current IDD 0, 10 10 0.04 0, 15 15 0.04 0.4 0, 5 5 0.51 1 LOW-level IOL 0.5 0, 10 10 1.3 2.6 output current 1.5 0, 15 15 3.4 6.8 4.6 0, 5 5 -0.51 -1 2.5 0, 5 5 -1.6 -3.2 HIGH-level IOH output current 9.5 0, 10 10 -1.3 -2.6 13.5 0, 15 15 -3.4 -6.8 0, 5 5 0 LOW-level 0, 10 10 0 VOL output voltage 0, 15 15 0 0, 5 5 4.95 5 HIGH-level 0, 10 10 9.95 10 VOH output voltage 0, 15 15 14.95 15 0.5, 4.5 5 LOW-level VIL 1, 9 10 input voltage 1.5, 13.5 15 0.5, 4.5 5 3.5 HIGH-level VIH 1, 9 10 7 input voltage 1.5, 13.5 15 11 input leakage 0, 15 15 ±10-5 II current ±0.1 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Conditions (V) Tamb=-40℃ Tamb=+85℃ Parameter Symbol VO VIN VDD Min. Max. Min. Max. 0, 5 5 5 150 supply current IDD 0, 10 10 10 300 0, 15 15 20 600 0.4 0, 5 5 0.61 0.42 LOW-level IOL 0.5 0, 10 10 1.5 1.1 output current 1.5 0, 15 15 4 2.8 4.6 0, 5 5 -0.61 -0.42 2.5 0, 5 5 -1.8 -1.3 HIGH-level IOH output current 9.5 0, 10 10 -1.5 -1.1 13.5 0, 15 15 -4 -2.8 0, 5 5 0.05 0.05 LOW-level VOL output voltage 0, 10 10 0.05 0.05 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 uA Unit uA uA uA mA mA mA mA mA mA mA V V 8/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 HIGH-level output voltage VOH LOW-level input voltage VIL HIGH-level input voltage VIH input leakage current II Number:CD4017-AX-LJ-D005EN 0.5, 4.5 1, 9 1.5, 13.5 0.5, 4.5 1, 9 1.5, 13.5 0, 15 0, 5 0, 10 0, 15 - 15 5 10 15 5 10 15 5 10 15 4.95 9.95 14.95 3.5 7 11 0.05 1.5 3 4 - 4.95 9.95 14.95 3.5 7 11 0.05 1.5 3 4 - V V V V V V V V V V - 0, 15 15 - ±0.1 - ±1 uA Parameter e 3.3.3、AC Characteristics (Tamb=25℃, VSS=0V, tr, tf=20ns, CL=50pF, RL=200kΩ, unless otherwise specified.) Symbol Conditions — Min. - Typ. 325 135 85 300 125 80 265 115 85 100 50 40 100 45 30 2.5 5 5.5 - 5 10 11 115 50 35 200 140 75 230 100 70 400 280 150 Unit ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns MHz MHz MHz ns ns ns ns ns ns - 5 - pF or CP0, CP1 to Q0 to Q9; see Figure 7 VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V VDD=5V VDD=10V VDD=15V propagation delay time — tPHL, tPLH — CP0, CP1 to Q5-9; see Figure 7 MR to Q0 to Q9; see Figure 7 tt see Figure 7 i-c transition time pulse width tW see Figure 8 clock rise and fall time trCL, tfCL - maximum clock frequency fCL see Figure 8 setup time ts CP0 to CP1; see Figure 9 reset removal time trec MR input; see Figure 8 — input CI capacitance Note: tt is the same as tTLH and tTHL. any input Max. 650 270 170 600 250 160 530 230 170 200 100 80 200 90 60 unlimited Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 4、Testing Circuit or e 4.1、AC Testing Circuit Figure 6. Test circuit for switching times i-c Definitions for test circuit: DUT=Device Under Test. CL=Load capacitance including jig and probe capacitance. RT=Termination resistance should be equal to the output impedance Zo of the pulse generator. 4.2、AC Testing Waveforms — — Figure 7. Waveforms showing the propagation delays for CP0, CP1 to Qn, Q5-9 outputs and the output transition times Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 10/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. rev:B3 Number:CD4017-AX-LJ-D005EN or e Tab: 835-12 — Figure 8. Waveforms showing the minimum pulse width for CP0, CP1 and MR input; the maximum — — frequency for CP0 and CP1 input; the recovery time for MR and the MR input to Qn and Q5-9 output i-c propagation dela — — Figure 9. Waveforms showing hold times for CP0 to CP1 and CP1 to CP0 4.3、Measurement Points Supply voltage VDD 5V to 15V 4.4、Test Data Supply voltage VDD 5V to 15V Input Output VM 0.5×VDD VM 0.5×VDD Input VI VSS or VDD Load tr , tf ≤ 20ns Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 CL 50pF 11/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 5、Package Information i-c or e 5.1、DIP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 12/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN i-c or e 5.2、SOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 13/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN i-c or e 5.3、TSSOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 14/ 15 VER：2019-07-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4017-AX-LJ-D005EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Part name Lead and lead compo unds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Hexaval ent chromiu m compoun ds Polybro minated biphenyl s Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ The lead ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic sheet installed ○ ○ ○ e Lead frame ○ ○ ○ ○ ○ ○ ○ ○：Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard. ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements. or explanation 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； i-c This information is using to the reference only, the company is not responsible for any loss； The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 15/ 15 VER：2019-07-A1
