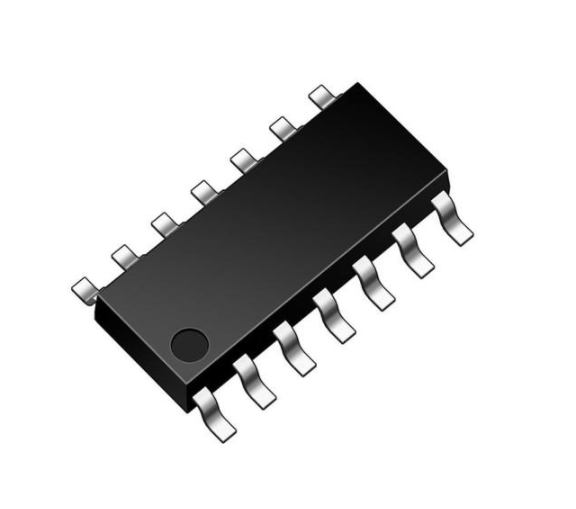

CD40106HSA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN or e CD40106H Hex Inverting Schmitt Trigger Specification i-c Product Specification Revision History： Version Date 2021-05-A1 2021-05 Description New Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 1、General Description i-c or e The CD40106H provides six inverting buffers. Each input has a Schmitt trigger circuit. The inverting buffer switches at different points for positive-going and negative-going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). The CD40106H may be used for enhanced noise immunity or to “square up” slowly changing waveforms. It operates over a recommended VDD power supply range of 3V to 20V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. Features:  Wide supply voltage range from 3V to 20V  Schmitt trigger input discrimination  Fully static operation  5V, 10V, and 15V parametric ratings  Standardized symmetrical output characteristics  Specified from -40℃ to +85℃  Packaging information: DIP14/SOP14/TSSOP14 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN Ordering Information: Tube packing specifications: Packaging form Type number Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity Notes DIP14 CD40106H 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack CD40106HSA.TB SOP14 CD40106H 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack CD40106HTA.TB TSSOP14 CD40106H e CD40106HDA.TB Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm 200 tube/box 18800 PCS/box 10 box/pack 188000 PCS/pack or 94 PCS/tube Reel packing specifications: Packaging Type number Marking code form Reel quantity Boxed reel quantity Packing quantity 5000 PCS/box 40000 PCS/pack 6000 PCS/box 48000 PCS/pack SOP14 CD40106H CD40106HTA.TR TSSOP14 CD40106H 3000 PCS/reel i-c CD40106HSA.TR 2500 PCS/reel Notes Dimensions of plastic enclosure: 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 2、Block Diagram And Pin Description 2.1、Block Diagram 1A 1Y 2 3 2A 2Y 4 5 3A 3Y 6 9 4A 4Y 8 11 5A 5Y 10 13 6A e 1 6Y 12 or Figure 1. Functional diagram A Y Figure 2. Logic diagram (one inverting buffer) 2.2、Pin Configurations 14 VDD 13 6A 2A 3 2Y 4 12 6Y 11 5A 3A 5 3Y 6 10 5Y 9 4A VSS 7 8 4Y i-c 1A 1 1Y 2 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 4/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 2.3、Pin Description Description data input data output data input data output data input data output ground (0V) data output data input data output data input data output data input supply voltage e Pin Name 1A 1Y 2A 2Y 3A 3Y VSS 4Y 4A 5Y 5A 6Y 6A VDD or Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2.4、Function Table Input nA L H Note: H=HIGH voltage level; L=LOW voltage level. Output nY H L i-c 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to VSS (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. Max. supply voltage VDD -0.5 +22 DC input current IIK any one input ±10 input voltage VI all inputs -0.5 VDD+0.5 storage temperature Tstg -65 +150 total power Ptot 500 dissipation device dissipation P per output transistor 100 DIP 245 Soldering TL 10s temperature SOP 250 Note: [1] For DIP14 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP14 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP14 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 Unit V mA V ℃ mW mW ℃ ℃ 5/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 3.2、Recommended Operating Conditions Parameter supply voltage ambient temperature Symbol VDD Conditions - Min. 3 Typ. - Max. 20 Unit V Tamb in free air -40 - +85 ℃ 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Symbol IDD LOW-level output current IOL Min. 0.51 1.3 3.4 -0.51 -1.6 -1.3 -3.4 4.95 9.95 14.95 Tamb=25℃ Typ. 0.02 0.02 0.02 0.04 1 2.6 6.8 -1 -3.2 -2.6 -6.8 0 0 0 5 10 15 Max. 1 2 4 20 0.05 0.05 0.05 - - ±10-5 ±0.1 or supply current Conditions (V) VO VIN VDD 0, 5 5 0, 10 10 0, 15 15 0, 20 20 0.4 0, 5 5 0.5 0, 10 10 1.5 0, 15 15 4.6 0, 5 5 2.5 0, 5 5 9.5 0, 10 10 13.5 0, 15 15 5 5 10 10 15 15 0 5 0 10 0 15 IOH LOW-level output voltage VOL HIGH-level output voltage VOH input leakage current II i-c HIGH-level output current Unit uA uA uA uA mA mA mA mA mA mA mA V V V V V V e Parameter - 0, 15 15 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 uA 6/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Symbol IDD LOW-level output current IOL HIGH-level output current IOH LOW-level output voltage VOL Tamb=-40℃ Min. Max. 1 2 4 20 0.61 1.5 4 -0.61 -1.8 -1.5 -4 0.05 0.05 0.05 4.95 9.95 14.95 - Tamb=+85℃ Min. Max. 30 60 120 600 0.42 1.1 2.8 -0.42 -1.3 -1.1 -2.8 0.05 0.05 0.05 4.95 9.95 14.95 - or supply current VO 0.4 0.5 1.5 4.6 2.5 9.5 13.5 - Conditions (V) VIN VDD 0, 5 5 0, 10 10 0, 15 15 0, 20 20 0, 5 5 0, 10 10 0, 15 15 0, 5 5 0, 5 5 0, 10 10 0, 15 15 5 5 10 10 15 15 0 5 0 10 0 15 HIGH-level output voltage VOH input leakage current II Unit uA uA uA uA mA mA mA mA mA mA mA V V V V V V e Parameter - 0, 15 15 - ±0.1 - ±1 uA 3.3.3、AC Characteristics (Tamb=25℃, VSS=0V, tr, tf=20ns, CL=50pF, RL=200kΩ, unless otherwise specified.) Symbol propagation delay time tPHL, tPLH transition time tTHL, tTLH input capacitance CI Conditions VDD=5V see Figure 4 VDD=10V VDD=15V VDD=5V see Figure 4 VDD=10V VDD=15V Min. - Typ. 140 70 60 100 50 40 Max. 280 140 120 200 100 80 Unit ns ns ns ns ns ns any input - 5 7.5 pF i-c Parameter Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 7/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 3.3.4、Transfer Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Symbol positive-going threshold voltage VT+ negative-going threshold voltage VT- hysteresis voltage VH VO - Note: See Figure 5 and Figure 6. 3.3.5、Transfer Characteristics 2 Conditions (V) VIN VDD 5 10 15 5 10 15 5 10 15 Min. 2.2 4.6 6.8 0.9 2.5 4 0.3 1.2 1.6 Tamb=25℃ Typ. 2.9 5.9 8.8 1.9 3.9 5.8 0.9 2.3 3.5 Max. 3.6 7.1 10.8 2.8 5.2 7.4 1.6 3.4 5 Unit V V V V V V V V V e Parameter (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground = 0V), unless otherwise specified.) Conditions (V) VIN VDD 5 10 15 5 10 15 5 10 15 Tamb=-40℃ Min. Max. 2.2 3.6 4.6 7.1 6.8 10.8 0.9 2.8 2.5 5.2 4 7.4 0.3 1.6 1.2 3.4 1.6 5 Tamb=+85℃ Min. Max. 2.2 3.6 4.6 7.1 6.8 10.8 0.9 2.8 2.5 5.2 4 7.4 0.3 1.6 1.2 3.4 1.6 5 or Parameter Symbol VT+ negative-going threshold voltage VT- hysteresis voltage VH i-c positive-going threshold voltage VO - Unit Note: See Figure 5 and Figure 6. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 8/ 14 VER：2021-05-A1 V V V V V V V V V Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 4、Testing Circuit 4.1、AC Testing Circuit VDD VI G VO DUT CL RT Figure 3. Test circuit for switching times 4.2、AC Testing Waveforms e Definitions for test circuit: DUT=Device Under Test. CL=Load capacitance including jig and probe capacitance. RT=Termination resistance should be equal to the output impedance Zo of the pulse generator. tf or tr VI 90% input 0V VM 10% tPHL VOH tPLH 90% VM i-c output 10% VOL tTHL tTLH Figure 4. Propagation delay and output transition time 4.3、Transfer Characteristics Waveforms VO VI VH VT- VT+ Figure 5. Transfer characteristic Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN VT+ VI VT- VH VO i-c or e Figure 6. Waveforms showing definition of VT+ and VT- (between limits at 30% and 70%) and VH Figure 7. Typical drain current as a function of input 4.4、Measurement Points Supply voltage VDD 5V to 15V Input Output VM 0.5×VDD VM 0.5×VDD 4.5、Test Data Supply voltage VDD 5V to 15V Input VI VSS or VDD Load tr , tf ≤ 20ns Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 CL 50pF 10/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 5、Package Information i-c or e 5.1、DIP14 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 11/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN i-c or e 5.2、SOP14 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 12/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN i-c or e 5.3、TSSOP14 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 13/ 14 VER：2021-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number: CD40106H-AX-LJ-D054EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Lead and lead compou nds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Lead frame ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ Chip ○ ○ ○ ○ The lead ○ ○ ○ Plastic sheet installed ○ ○ ○ Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Polybro minated biphenyl s e Part name Hexaval ent chromiu m compoun ds ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ or ○：Indicates that the content of hazardous substances or elements in the detection limit explanatio n of the following the SJ/T11363-2006 standard。 ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements。 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； i-c This information is using to the reference only, the company is not responsible for any loss； The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 14/ 14 VER：2021-05-A1
