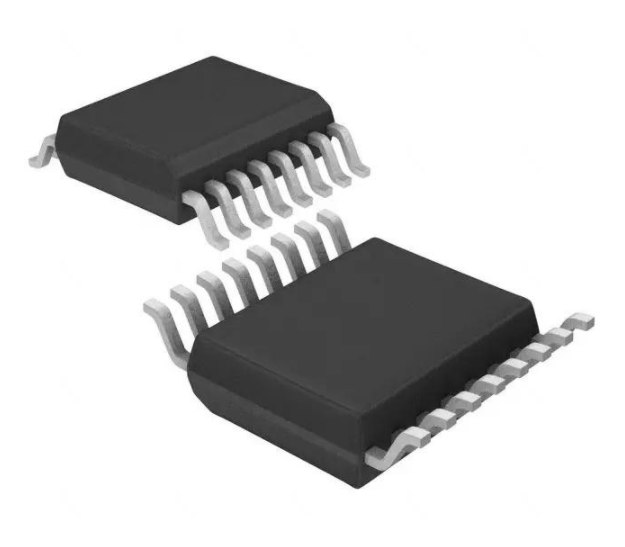

AIP74HC138SA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN or e AiP74HC/HCT138 3-to-8 Line Decoder/Demultiplexer; Inverting Specification i-c Product Specification Revision History： Version Date Description 2019-06-A1 2019-06 2021-11-A2 2021-11 New Modify Ordering Information; Modify ambient temperature to -40℃~+105℃ and add electrical characteristics of -40℃~+105℃ Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 1、General Description The AiP74HC/HCT138 decodes three binary weighted address inputs(A0, A1 and A2) to eight mutually — — — — exclusive outputs (Y0 to Y7). The device features three enable inputs (E1, E2 and E3). Every output will — — be HIGH unless E1 and E2 are LOW and E3 is HIGH. This multiple enable function allows easy parallel expansion to a 1-of-32(5 to 32 lines) decoder with just four AiP74HC/HCT138 ICs and one inverter. The AiP74HC/HCT138 can be used as an eight output demultiplexer by using one of the active LOW enable inputs as the data input and the remaining enable inputs as strobes. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. i-c or e Features:  Input levels: For AiP74HC138: CMOS level For AiP74HCT138: TTL level  Demultiplexing capability  Multiple input enable for easy expansion  Ideal for memory chip select decoding  Active LOW mutually exclusive outputs  Specified from -40℃ to +105℃  Packaging information: DIP16/SOP16/TSSOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN Ordering Information: Tube packing specifications: Packaging form Type number Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP16 74HC138 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack AiP74HCT138DA.TB DIP16 74HCT138 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack AiP74HC138SA.TB SOP16 74HC138 Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm e AiP74HC138DA.TB Notes 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack or 50 PCS/tube SOP16 74HCT138 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack AiP74HC138TA.TB TSSOP16(1) 74HC138 96 PCS/tube 200 tube/box 19200 PCS/box 10 box/pack 192000 PCS/pack AiP74HC138TA.TB TSSOP16(2) 74HC138 92 PCS/tube 100 tube/box 9200 PCS/box 10 box/pack 92000 PCS/pack AiP74HCT138TA.TB TSSOP16(1) 74HCT138 96 PCS/tube 200 tube/box 19200 PCS/box 10 box/pack 192000 PCS/pack AiP74HCT138TA.TB TSSOP16(2) 74HCT138 92 PCS/tube 100 tube/box 9200 PCS/box 10 box/pack 92000 PCS/pack i-c AiP74HCT138SA.TB Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Reel packing specifications: Packaging Type number Marking code form Number:AiP74HC/HCT138-AX-LJ-A013EN Reel quantity Boxed reel quantity Packing quantity 8000 PCS/box 64000 PCS/pack SOP16 74HC138 AiP74HCT138SA.TR SOP16 74HCT138 4000 PCS/reel 8000 PCS/box 64000 PCS/pack AiP74HC138TA.TR TSSOP16 74HC138 4000 PCS/reel 8000 PCS/box 64000 PCS/pack AiP74HCT138TA.TR TSSOP16 74HCT138 Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 10.0mm×3.9mm Pin spacing:1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing:0.65mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing:0.65mm e AiP74HC138SA.TR 4000 PCS/reel Notes 4000 PCS/reel 8000 PCS/box 64000 PCS/pack i-c or Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 4/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 2、Block Diagram And Pin Description 2.1、Block Diagram 1 A0 Y0 15 2 A1 Y1 14 3 A2 Y2 13 Y3 12 E1 Y4 11 E2 Y5 10 E3 Y6 9 Y7 7 4 5 6 A0 2 A1 3 A2 Y0 15 Y1 14 Y2 13 Y3 12 Y4 11 Y5 10 Y6 9 Y7 7 or 1 e Figure 1. Logic symbol 3-to-8 DECODER 4 E1 5 E2 6 E3 ENABLE EXITING i-c Figure 2. Functional diagram A2 Y7 Y6 A1 Y5 A0 Y4 E1 Y3 E2 Y2 E3 Y1 Y0 Figure 3. Logic diagram Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 5/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 2.2、Pin Configurations A0 1 16 VCC A1 2 15 Y0 A2 3 14 Y1 E1 4 13 Y2 E2 5 12 Y3 E3 6 11 Y4 Y7 7 10 Y5 2.3、Pin Description Pin Name 1 2 3 4 A0 A1 A2 5 6 7 8 9 E2 E3 Y6 Description address input address input address input enable input (active LOW) or Pin No. 9 e GND 8 — E1 — — Y7 GND — i-c Y6 enable input (active LOW) enable input (active HIGH) output (active LOW) ground (0 V) output (active LOW) 10 11 12 13 14 15 16 — Y5 — Y4 — Y3 — Y2 — Y1 — Y0 VCC output (active LOW) output (active LOW) output (active LOW) output (active LOW) output (active LOW) output (active LOW) supply voltage Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 6/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 2.4、Function Table Input — — E1 E2 E3 Output A2 A1 A0 — — — — — — — Y4 H H H H H H H L H H H Y3 H H H H H H L H H H H Y2 H H H H H L H H H H H Y1 H H H H L H H H H H H Y0 H H H L H H H H H H H e Y7 Y6 Y5 H X X X X X H H H X H X X X X H H H X X L X X X H H H L L H L L L H H H L L H L L H H H H L L H L H L H H H L L H L H H H H H L L H H L L H H H L L H H L H H H L L L H H H L H L H L L H H H H L H H Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care. — or 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to GND (ground=0V), unless otherwise specified.) Symbol VCC IIK IOK IO ICC IGND Ptot Tstg soldering temperature TL Conditions VI < -0.5V or VI > VCC+0.5V VO < -0.5V or VO > VCC+0.5V -0.5V < VO < VCC+0.5V DIP 10s SOP i-c Parameter supply voltage input clamping current output clamping current output current supply current ground current total power dissipation storage temperature Min. -0.5 -50 -65 Max. +7 ±20 ±20 ±25 50 500 +150 245 250 Unit V mA mA mA mA mA mW ℃ ℃ Note: [1] For DIP16 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP16 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP16 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 7/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 3.2、Recommended Operating Conditions Symbol supply voltage input voltage output voltage VCC VI VO input transition rise and fall rate Δt/ΔV ambient temperature Tamb supply voltage input voltage output voltage input transition rise and fall rate ambient temperature VCC VI VO Δt/ΔV Min. Typ. Max. Unit 2.0 0 0 -40 5.0 1.67 - 6.0 VCC VCC 625 139 83 +105 V V V ns/V ns/V ns/V ℃ 4.5 0 0 5.0 - 5.5 VCC VCC V V V VCC=4.5V - 1.67 139 ns/V - -40 - +105 ℃ or Tamb Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V AiP74HCT138 - e Parameter 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter VIH Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V IO=-20uA; VCC=2.0V IO=-20uA; VCC=4.5V VI=VIH or VIL IO=-20uA; VCC=6.0V IO=-4.0mA; VCC=4.5V IO=-5.2mA; VCC=6.0V IO=20uA; VCC=2.0V IO=20uA; VCC=4.5V VI=VIH or VIL IO=20uA; VCC=6.0V IO=4.0mA; VCC=4.5V IO=5.2mA; VCC=6.0V VI=VCC or GND; VCC=6.0V VI=VCC or GND; IO=0A; VCC=6.0V Min. Typ. Max. Unit 1.5 3.15 4.2 1.9 4.4 5.9 3.98 5.48 - 1.2 2.4 3.2 0.8 2.1 2.8 2.0 4.5 6.0 4.32 5.81 0 0 0 0.15 0.16 0.5 1.35 1.8 0.1 0.1 0.1 0.26 0.26 V V V V V V V V V V V V V V V V - - ±0.1 uA - - 8.0 uA - - 3.5 - pF i-c HIGH-level input voltage Symbol LOW-level input voltage VIL HIGH-level output voltage VOH LOW-level output voltage VOL input leakage current II supply current ICC input capacitance CI AiP74HCT138 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 8/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 LOW-level output voltage input leakage current supply current additional supply current input capacitance Number:AiP74HC/HCT138-AX-LJ-A013EN VIH VCC=4.5V to 5.5V 2.0 1.6 - V VIL VCC=4.5V to 5.5V - 1.2 0.8 V IO=-20uA; VCC=4.5V IO=-4.0mA; VCC=4.5V IO=20uA; VCC=4.5V VI=VIH or VIL IO=4.0mA; VCC=4.5V VI=VCC or GND; VCC=5.5V VI=VCC or GND; IO=0A; VCC=5.5V An inputs VI=VCC-2.1V; — IO=0A; other inputs En inputs at VCC or GND; VCC=4.5V to 5.5V E3 input 4.4 3.98 - 4.5 4.32 0 0.15 0.1 0.26 V V V V - - ±0.1 uA - - 8.0 uA - 150 540 - 125 450 - 100 360 - - 3.5 - pF VOH VOL II ICC ΔICC CI or 3.3.2、DC Characteristics 2 VI=VIH or VIL uA e HIGH-level input voltage LOW-level input voltage HIGH-level output voltage rev:B3 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V IO=-20uA; VCC=2.0V IO=-20uA; VCC=4.5V VI=VIH or VIL IO=-20uA; VCC=6.0V IO=-4.0mA; VCC=4.5V IO=-5.2mA; VCC=6.0V IO=20uA; VCC=2.0V IO=20uA; VCC=4.5V VI=VIH or VIL IO=20uA; VCC=6.0V IO=4.0mA; VCC=4.5V IO=5.2mA; VCC=6.0V VI=VCC or GND; VCC=6.0V VI=VCC or GND; IO=0A; VCC=6.0V AiP74HCT138 Min. Typ. Max. Unit 1.5 3.15 4.2 1.9 4.4 5.9 3.84 5.34 - - 0.5 1.35 1.8 0.1 0.1 0.1 0.33 0.33 V V V V V V V V V V V V V V V V - - ±1.0 uA - - 80 uA VIH VCC=4.5V to 5.5V 2.0 - - V VIL VCC=4.5V to 5.5V - - 0.8 V VIH LOW-level input voltage VIL i-c HIGH-level input voltage HIGH-level output voltage VOH LOW-level output voltage VOL input leakage current II supply current ICC HIGH-level input voltage LOW-level input voltage Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 HIGH-level output voltage LOW-level output voltage input leakage current supply current additional supply current rev:B3 VOH VOL II ICC ΔICC Number:AiP74HC/HCT138-AX-LJ-A013EN IO=-20uA; VCC=4.5V IO=-4.0mA; VCC=4.5V IO=20uA; VCC=4.5V VI=VIH or VIL IO=4.0mA; VCC=4.5V VI=VCC or GND; VCC=5.5V VI=VCC or GND; IO=0A; VCC=5.5V An inputs VI=VCC-2.1V; — IO=0A; other inputs En inputs at VCC or GND; VCC=4.5V to 5.5V E3 input VI=VIH or VIL 4.4 3.84 - - 0.1 0.33 V V V V - - ±1.0 uA - - 80 uA - - 675 - - 562.5 - - 450 uA e 3.3.3、DC Characteristics 3 (Tamb=-40℃ to +105℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V IO=-20uA; VCC=2.0V IO=-20uA; VCC=4.5V VI=VIH or VIL IO=-20uA; VCC=6.0V IO=-4.0mA; VCC=4.5V IO=-5.2mA; VCC=6.0V IO=20uA; VCC=2.0V IO=20uA; VCC=4.5V VI=VIH or VIL IO=20uA; VCC=6.0V IO=4.0mA; VCC=4.5V IO=5.2mA; VCC=6.0V VI=VCC or GND; VCC=6.0V VI=VCC or GND; IO=0A; VCC=6.0V AiP74HCT138 Min. Typ. Max. Unit 1.5 3.15 4.2 1.9 4.4 5.9 3.7 5.2 - - 0.5 1.35 1.8 0.1 0.1 0.1 0.4 0.4 V V V V V V V V V V V V V V V V - - ±1.0 uA - - 160 uA VIH VCC=4.5V to 5.5V 2.0 - - V VIL VCC=4.5V to 5.5V - - 0.8 V IO=-20uA; VCC=4.5V IO=-4.0mA; VCC=4.5V IO=20uA; VCC=4.5V VI=VIH or VIL IO=4.0mA; VCC=4.5V VI=VCC or GND; 4.4 3.7 - - 0.1 0.4 ±1.0 V V V V uA VIH LOW-level input voltage VIL HIGH-level output voltage VOH i-c or HIGH-level input voltage LOW-level output voltage VOL input leakage current II supply current ICC HIGH-level input voltage LOW-level input voltage HIGH-level output voltage VOH LOW-level output voltage VOL input leakage II VI=VIH or VIL Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 10/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 current supply current VCC=5.5V VI=VCC or GND; IO=0A; VCC=5.5V An inputs VI=VCC-2.1V; — IO=0A; other inputs En inputs at VCC or GND; VCC=4.5V to 5.5V E3 input - - 160 - - 735 - - 612.5 - - 490 Min. Typ. Max. Unit - 41 15 12 12 47 17 14 14 47 17 14 14 19 7 6 150 30 26 150 20 26 150 20 26 75 15 13 ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns - 67 - pF VCC=4.5V - 20 35 ns VCC=5.0V;CL=15pF - 17 - ns VCC=4.5V - 18 40 ns VCC=5.0V;CL=15pF - 19 - ns En to Yn VCC=4.5V tpd see Figure 6[1] propagation VCC=5.0V;CL=15pF delay [2] transition time tt see Figure 5 VCC=4.5V power CL=50pF; f=1MHz; dissipation CPD VI=GND to VCC–1.5V[3] capacitance Note: [1] tpd is the same as tPLH and tPHL. [2] tt is the same as tTHL and tTLH. - 19 40 ns - 19 - ns - 7 15 ns - 67 - pF additional supply current ICC Number:AiP74HC/HCT138-AX-LJ-A013EN ΔICC uA uA 3.3.4、AC Characteristics 1 (Tamb=25℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol e — An to Yn propagation delay tpd see Figure 5[1] tpd see Figure 5[1] En to Yn propagation delay tpd see Figure 6[1] transition time tt see Figure 5[2] — — i-c — or E3 to Yn propagation delay Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=5.0V;CL=15pF VCC=6.0V VCC=2.0V VCC=4.5V VCC=5.0V;CL=15pF VCC=6.0V VCC=2.0V VCC=4.5V VCC=5.0V;CL=15pF VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V power dissipation capacitance CPD CL=50pF; f=1MHz; VI=GND to VCC[3] AiP74HCT138 — An to Yn propagation delay tpd see Figure 5[1] tpd see Figure 5[1] — E3 to Yn propagation delay — — Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 11/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN [3] CPD is used to determine the dynamic power dissipation (PD in uW). PD=(CPD×VCC2×fi×N)+∑(CL×VCC2×fo) where: fi=input frequency in MHz; fo=output frequency in MHz; CL=output load capacitance in pF; VCC=supply voltage in V; N=number of inputs switching; ∑(CL×VCC2×fo)=sum of outputs. 3.3.5、AC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Symbol — An to Yn; propagation delay [1] tpd see Figure 5 tpd see Figure 5[1] En to Yn; propagation delay tpd see Figure 6[1] transition time tt see Figure 5[2] — — Min. Typ. Max. Unit - - 190 38 33 190 38 33 190 38 33 95 19 16 ns ns ns ns ns ns ns ns ns ns ns ns or E3 to Yn; propagation delay Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V AiP74HCT138 e Parameter — i-c — An to Yn; propagation delay tpd see Figure 5[1] VCC=4.5V - - 44 ns tpd see Figure 5[1] VCC=4.5V - - 50 ns VCC=4.5V - - 50 ns VCC=4.5V - - 19 ns — E3 to Yn; propagation delay — — En to Yn; tpd see Figure 6[1] propagation delay transition time tt see Figure 5[2] Note: [1] tpd is the same as tPLH and tPHL. [2] tt is the same as tTHL and tTLH. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 12/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 3.3.6、AC Characteristics 3 (Tamb=-40℃ to +105℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol — An to Yn; propagation delay [1] tpd see Figure 5 tpd see Figure 5[1] En to Yn; propagation delay tpd see Figure 6[1] transition time tt see Figure 5[2] — E3 to Yn; propagation delay — — Typ. Max. Unit - - 225 45 38 225 45 38 225 45 38 110 22 19 ns ns ns ns ns ns ns ns ns ns ns ns or An to Yn; propagation delay Min. e — Conditions AiP74HC138 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V AiP74HCT138 tpd see Figure 5[1] VCC=4.5V - - 53 ns tpd see Figure 5[1] VCC=4.5V - - 60 ns VCC=4.5V - - 60 ns VCC=4.5V - - 22 ns — E3 to Yn; propagation delay — — i-c En to Yn; tpd see Figure 6[1] propagation delay transition time tt see Figure 5[2] Note: [1] tpd is the same as tPLH and tPHL. [2] tt is the same as tTHL and tTLH. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 13/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 4、Testing Circuit 4.1、AC Testing Circuit VI tW 90% negative pulse VM VM 10% 0V VI tf tr tr tf 90% positive pulse VM 10% tW e 0V VM VCC VCC VI G VO RL S1 open or DUT CL RT Figure 4. Test circuit for measuring switching times i-c Definitions for test circuit: CL=load capacitance including jig and probe capacitance. RT=termination resistance should be equal to the output impedance Zo of the pulse generator. RL=Load resistance. S1=Test selection switch. 4.2、AC Testing Waveforms VCC An,E3 input VM GND tPHL tPLH VOH Yn output VM VOL tTHL tTLH — Figure 5. Propagation delay input (An) and enable input (E3) to output (Yn) — and transition time output (Yn) Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 14/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN VCC E1,E2 input VM GND tPHL tPLH VOH Yn output VM VOL tTHL — tTLH — — 4.3、Measurement Points e Figure 6. Propagation delay enable input (En) to output (Yn) and transition time output (Yn) Input VM 0.5×VCC 1.3V Type or AiP74HC138 AiP74HCT138 Output VM 0.5×VCC 1.3V 4.4、Test Data Type VI VCC 3.0V Load tr , tf 6.0ns 6.0ns CL 15pF, 50pF 15pF, 50pF S1 position RL 1kΩ 1kΩ tPLH, tPHL open open tPZH, tPHZ GND GND tPZL, tPLZ VCC VCC i-c AiP74HC138 AiP74HCT138 Input Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 15/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 5、Package Information i-c or e 5.1、DIP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 16/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN i-c or e 5.2、SOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 17/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN i-c or e 5.3、TSSOP16 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 18/ 19 VER：2021-11-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT138-AX-LJ-A013EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Part name Lead and lead compo unds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Hexaval ent chromiu m compoun ds Polybro minated biphenyl s Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ The lead ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic sheet installed ○ ○ ○ e Lead frame ○ ○ ○ ○ ○ ○ ○ ○：Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard. ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements. or explanation 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； i-c This information is using to the reference only, the company is not responsible for any loss； The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 19/ 19 VER：2021-11-A2
