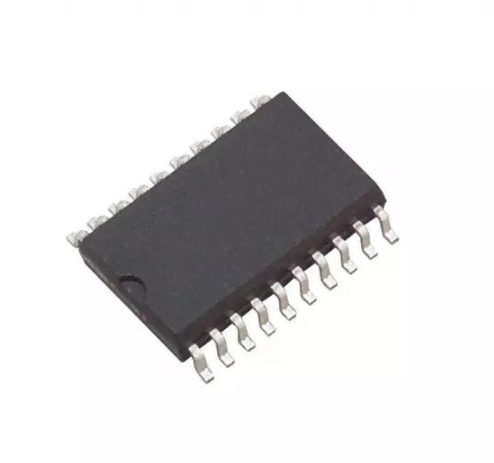

AIP74HC244SA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN or e AiP74HC/HCT244 Octal Buffer/Line Driver; 3-state Specification i-c Product Specification Revision History： Version Date 2019-06-A1 2019-06 Description New Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 1、General Description The AiP74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two — — 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling — four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. i-c or e Features:  Input levels: For AiP74HC244: CMOS level For AiP74HCT244: TTL level  Octal bus interface  Non-inverting 3-state outputs  Multiple package options  Specified from -40℃ to +85℃  Packaging information: DIP20/SOP20/TSSOP20 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN Ordering Information: Tube packing specifications: Packaging form Type number Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP20 74HC244 18 PCS/tube 40 tube/box 720 PCS/box 10 box/pack 7200 PCS/pack AiP74HCT244DA.TB DIP20 74HCT244 18 PCS/tube 40 tube/box 720 PCS/box 10 box/pack 7200 PCS/pack AiP74HC244SA.TB SOP20 74HC244 80 tube/box 2800 PCS/box 10 box/pack 28000 PCS/pack or 35 PCS/tube SOP20 74HCT244 35 PCS/tube 80 tube/box 2800 PCS/box 10 box/pack 28000 PCS/pack AiP74HC244TA.TB TSSOP20 74HC244 70 PCS/tube 200 tube/box 14000 PCS/box 10 box/pack 140000 PCS/pack 70 PCS/tube 200 tube/box 14000 PCS/box 10 box/pack 140000 PCS/pack i-c AiP74HCT244SA.TB AiP74HCT244TA.TB TSSOP20 74HCT244 Reel packing specifications: Packaging Marking Type number form code Dimensions of plastic enclosure: 26.3mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 26.3mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 12.8mm×7.5mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 12.8mm×7.5mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 6.5mm×4.4mm Pin spacing: 0.65mm Dimensions of plastic enclosure: 6.5mm×4.4mm Pin spacing: 0.65mm e AiP74HC244DA.TB Notes Reel quantity AiP74HC244SA.TR SOP20 74HC244 1000PCS/reel AiP74HCT244SA.TR SOP20 74HCT244 1000PCS/reel AiP74HC244TA.TR TSSOP20 74HC244 2500PCS/reel AiP74HCT244TA.TR TSSOP20 74HCT244 2500PCS/reel Note: If the physical information is inconsistent with product. Boxed reel quantity Packing quantity 1000PCS/box 8000PCS/pack Notes Dimensions of plastic enclosure: 12.8mm×7.5mm Pin spacing:1.27mm Dimensions of plastic 1000PCS/box 8000PCS/pack enclosure: 12.8mm×7.5mm Pin spacing:1.27mm Dimensions of plastic 5000PCS/box 40000PCS/pack enclosure: 6.5mm×4.4mm Pin spacing:0.65mm Dimensions of plastic 5000PCS/box 40000PCS/pack enclosure: 6.5mm×4.4mm Pin spacing:0.65mm the ordering information, please refer to the actual Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 2、Block Diagram And Pin Description 2.1、Block Diagram i-c or e Figure 1. Logic symbol Figure 2. IEC logic symbol Figure 3. Functional diagram Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 4/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 2.2、Pin Configurations 2.3、Pin Description Pin No. Pin Name — Description 1OE output enable input (active LOW) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1A0 2Y0 1A1 2Y1 1A2 2Y2 1A3 2Y3 GND 2A3 1Y3 2A2 1Y2 2A1 1Y1 2A0 1Y0 19 2OE output enable input (active LOW) 20 VCC supply voltage e 1 i-c or data input bus output data input bus output data input bus output data input bus output ground (0V) data input bus output data input bus output data input bus output data input bus output — 2.4、Function Table Input — nOE nAn Output nYn L L L L H H H X Z Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care; Z=high-impedance OFF-state. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 5/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to GND(ground=0V), unless otherwise specified.) Unit V mA mA mA mA mA ℃ or e Parameter Symbol Conditions Min. Max. supply voltage VCC -0.5 +7.0 input clamping IIK VI < -0.5V or VI > VCC+0.5V ±20 current output clamping IOK VO < -0.5V or VO > VCC+0.5V ±20 current output current IO -0.5V < VO < VCC+0.5V ±35 supply current ICC 70 ground current IGND -70 storage Tstg -65 +150 temperature total power 500 Ptot dissipation DIP 245 Soldering 10s TL temperature SOP 250 Note: [1] For DIP20 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP20 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP20 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. mW ℃ ℃ 3.2、Recommended Operating Conditions Symbol supply voltage input voltage output voltage VCC VI VO input transition rise and fall rate Δt/ΔV ambient temperature Tamb Conditions AiP74HC244 VCC=2.0V VCC=4.5V VCC=6.0V i-c Parameter supply voltage input voltage output voltage input transition rise and fall rate ambient temperature VCC VI VO - AiP74HCT244 - Min. Typ. Max. Unit 2.0 0 0 - 5.0 1.67 - 6.0 VCC VCC 625 139 83 V V V ns/V ns/V ns/V -40 - +85 ℃ 4.5 0 0 5.0 - 5.5 VCC VCC V V V Δt/ΔV VCC=4.5V - 1.67 139 ns/V Tamb - -40 - +85 ℃ Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 6/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN Max. Unit 0.5 1.35 1.8 0.1 0.1 0.1 0.26 0.26 V V V V V V V V V V V V V V V V ±0.1 uA ±0.5 uA 8.0 uA - pF - V 0.8 V 0.1 0.26 V V V V ±0.1 uA ±0.5 uA 8.0 uA 252 uA - pF i-c or e 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. Typ. AiP74HC244 VCC=2.0V 1.5 1.2 HIGH-level VCC=4.5V 3.15 2.4 VIH input voltage VCC=6.0V 4.2 3.2 VCC=2.0V 0.8 LOW-level VIL VCC=4.5V 2.1 input voltage VCC=6.0V 2.8 IO=-20uA; VCC=2.0V 1.9 2.0 IO=-20uA; VCC=4.5V 4.4 4.5 HIGH-level VI = VIH or VIL IO=-20uA; VCC=6.0V 5.9 6.0 VOH output voltage IO=-6.0mA; VCC=4.5V 3.98 4.32 IO=-7.8mA; VCC=6.0V 5.48 5.81 IO=20uA; VCC=2.0V 0 IO=20uA; VCC=4.5V 0 LOW-level VI = VIH or VIL IO=20uA; VCC=6.0V 0 VOL output voltage IO=6.0mA; VCC=4.5V 0.15 IO=7.8mA; VCC=6.0V 0.16 input leakage VI=VCC or GND; II current VCC=6.0V OFF-state VI=VIH or VIL; VCC=6.0V; IOZ output current VO=VCC or GND supply current ICC VI=VCC or GND; IO=0A; VCC=6.0V input CI 3.5 capacitance AiP74HCT244 HIGH-level VIH VCC=4.5V to 5.5V 2.0 1.6 input voltage LOW-level VIL VCC=4.5V to 5.5V 1.2 input voltage IO=-20uA 4.4 4.5 HIGH-level VI = VIH or VIL; VOH output voltage VCC=4.5V IO=-6.0mA 3.98 4.32 I =20uA 0 LOW-level VI = VIH or VIL; O VOL output voltage VCC=4.5V IO=6.0mA 0.16 input leakage VI=VCC or GND; II current VCC=5.5V OFF-state VI=VIH or VIL; VCC=5.5V; IOZ output current VO=VCC or GND supply current ICC VI=VCC or GND; IO=0A; VCC=5.5V per input pin; VI=VCC-2.1V; additional other inputs at VCC or GND; 70 ΔICC supply current VCC=4.5V to 5.5V; IO=0A input CI 3.5 capacitance Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 7/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Symbol Min. Typ. Max. Unit 1.5 3.15 4.2 1.9 4.4 5.9 3.84 5.34 - - 0.5 1.35 1.8 0.1 0.1 0.1 0.33 0.33 V V V V V V V V V V V V V V V V - - ±1.0 uA - - ±5.0 uA ICC Conditions AiP74HC244 VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V IO=-20uA; VCC=2.0V IO=-20uA; VCC=4.5V VI = VIH or VIL IO=-20uA; VCC=6.0V IO=-6.0mA; VCC=4.5V IO=-7.8mA; VCC=6.0V IO=20uA; VCC=2.0V IO=20uA; VCC=4.5V VI = VIH or VIL IO=20uA; VCC=6.0V IO=6.0mA; VCC=4.5V IO=7.8mA; VCC=6.0V VI=VCC or GND; VCC=6.0V VI=VIH or VIL; VCC=6.0V; VO=VCC or GND VI=VCC or GND; IO=0A; VCC=6.0V - - 80 uA CI - - - - pF VIH LOW-level input voltage VIL HIGH-level output voltage VOH LOW-level output voltage VOL or HIGH-level input voltage e Parameter II IOZ AiP74HCT244 i-c input leakage current OFF-state output current supply current input capacitance HIGH-level input voltage LOW-level input voltage HIGH-level output voltage LOW-level output voltage input leakage current OFF-state output current supply current VIH VCC=4.5V to 5.5V 2.0 - - V VIL VCC=4.5V to 5.5V - - 0.8 V 4.4 3.84 - - 0.1 0.33 V V V V - - ±1.0 uA - - ±5.0 uA - - 80 uA - - 315 uA - - - pF VOH VOL II IOZ ICC additional supply current ΔICC input capacitance CI IO=-20uA IO=-6.0mA IO=20uA VI = VIH or VIL; VCC=4.5V IO=6.0mA VI=VCC or GND; VCC=5.5V VI=VIH or VIL; VCC=5.5V; VO=VCC or GND VI=VCC or GND; IO=0A; VCC=5.5V per input pin; VI=VCC-2.1V; other inputs at VCC or GND; VCC=4.5V to 5.5V; IO=0A VI = VIH or VIL; VCC=4.5V - Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 8/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 3.3.3、AC Characteristics 1 (Tamb=25℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter nAn to nYn propagation delay Symbol tpd see Figure 5 ten see Figure 6 nOE to nYn disable time tdis see Figure 6 transition time tt see Figure 5 power dissipation capacitance CPD nAn to nYn propagation delay tpd nOE to nYn enable time ten — nOE to nYn enable time — Typ. Max. Unit - 30 11 9 9 36 13 10 39 14 11 14 5 4 110 22 19 150 30 26 150 30 26 60 12 10 ns ns ns ns ns ns ns ns ns ns ns ns ns - 35 - pF VCC=4.5V - 13 22 ns VCC=5.0V; CL=15pF - 11 - ns - 15 30 ns - 15 25 ns - 5 12 ns - 35 - pF per buffer; VI=GND to VCC or — Min. e — Conditions AiP74HC244 VCC=2.0V VCC=4.5V VCC=5.0V; CL=15pF VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V AiP74HCT244 see Figure 5 VCC=4.5V; see Figure 6 i-c nOE to nYn tdis VCC=4.5V; see Figure 6 disable time transition time tt VCC=4.5V; see Figure 5 power dissipation CPD per buffer; VI=GND to VCC-1.5V capacitance Note: [1] tpd is the same as tPLH and tPHL. [2] ten is the same as tPZL and tPZH. [3] tdis is the same as tPLZ and tPHZ. [4] tt is the same as tTHL and tTLH. [5] CPD is used to determine the dynamic power dissipation (PD in uW). PD=CPD×VCC2×fi×N+∑(CL×VCC2×fo) where: fi=input frequency in MHz; fo=output frequency in MHz; CL=output load capacitance in pF; VCC=supply voltage in V; N=number of inputs switching; ∑(CL×VCC2×fo)=sum of outputs. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 3.3.4、AC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter nAn to nYn propagation delay Symbol tpd see Figure 5 ten see Figure 6 nOE to nYn disable time tdis see Figure 6 transition time tt see Figure 5 power dissipation capacitance CPD nAn to nYn propagation delay tpd nOE to nYn enable time ten — nOE to nYn enable time — Typ. Max. Unit - - 145 28 24 190 38 33 190 38 33 75 15 13 ns ns ns ns ns ns ns ns ns ns ns ns ns - - - pF VCC=4.5V - - 22 ns VCC=5.0V; CL=15pF - - - ns - - 30 ns - - 25 ns - - 12 ns - - - pF per buffer; VI=GND to VCC or — Min. e — Conditions AiP74HC244 VCC=2.0V VCC=4.5V VCC=5.0V; CL=15pF VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V VCC=2.0V VCC=4.5V VCC=6.0V AiP74HCT244 see Figure 5 VCC=4.5V; see Figure 6 i-c nOE to nYn tdis VCC=4.5V; see Figure 6 disable time transition time tt VCC=4.5V; see Figure 5 power dissipation CPD per buffer; VI=GND to VCC-1.5V capacitance Note: [1] tpd is the same as tPLH and tPHL. [2] ten is the same as tPZL and tPZH. [3] tdis is the same as tPLZ and tPHZ. [4] tt is the same as tTHL and tTLH. [5] CPD is used to determine the dynamic power dissipation (PD in uW). PD=CPD×VCC2×fi×N+∑(CL×VCC2×fo) where: fi=input frequency in MHz; fo=output frequency in MHz; CL=output load capacitance in pF; VCC=supply voltage in V; N=number of inputs switching; ∑(CL×VCC2×fo)=sum of outputs. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 10/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 4、Testing Circuit or e 4.1、AC Testing Circuit Figure 4. Test circuit for measuring switching times i-c Definitions for test circuit: RL=Load resistance. CL=Load capacitance including jig and probe capacitance. RT=Termination resistance should be equal to the output impedance Zo of the pulse generator. S1=Test selection switch. 4.2、AC Testing Waveforms Figure 5. Input (nAn) to output (nYn) propagation delays and output transition times Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 11/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN e Tab: 835-12 Figure 6. 3-state enable and disable times or 4.3、Measurement Points Input Type Output VM 0.5×VCC 1.3V AiP74HC244 AiP74HCT244 VM 0.5×VCC 1.3V VX 0.1×VCC 0.1×VCC VY 0.9×VCC 0.9×VCC 4.4、Test Data Input i-c Type Load AiP74HC244 AiP74HCT244 VI tr , tf CL RL VCC 3V 6ns 6ns 15pF, 50pF 15pF, 50pF 1kΩ 1kΩ Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 S1 position tPHL, tPZH, tPZL, tPLH tPHZ tPLZ open open GND GND VCC VCC 12/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 5、Package Information i-c or e 5.1、DIP20 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 13/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN i-c or e 5.2、SOP20 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 14/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN i-c or e 5.3、TSSOP20 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 15/ 16 VER：2019-06-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74HC/HCT244-AX-LJ-A020EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Part name Lead and lead compou nds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Hexaval ent chromiu m compoun ds Polybro minated biphenyl s Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ The lead ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic sheet installed ○ ○ ○ e Lead frame ○ ○ ○ ○ ○ ○ ○ ○：Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard。 ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements。 or explanation 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； This information is using to the reference only, the company is not responsible for any loss； i-c The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 16/ 16 VER：2019-06-A1
