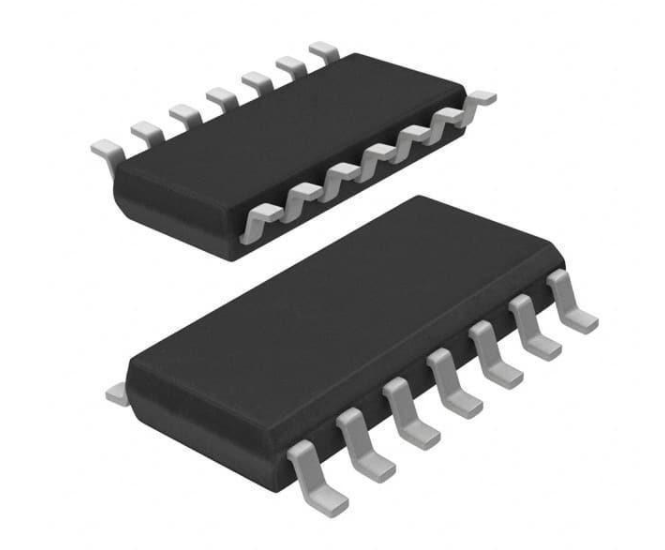

CD4081SA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN or e CD4081 Quad 2-input And Gate Specification i-c Product Specification Revision History： Version Date 2019-05-A1 2019-05 Description New Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 1、General Description The CD4081 is a quad 2-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. Type number CD4081DA.TB Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP14 CD4081 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack SOP14 CD4081 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack 94 PCS/tube 200 tube/box 18800 PCS/box 10 box/pack 188000 PCS/pack Packaging form i-c CD4081SA.TB or Ordering Information: Tube packing specifications: e Features:  Wide supply voltage range from 3V to 15V  Fully static operation  5V, 10V, and 15V parametric ratings  Standardized symmetrical output characteristics  Inputs and outputs are protected against electrostatic effects  Specified from -40℃ to +85℃  Packaging information: DIP14/SOP14/TSSOP14 CD4081TA.TB TSSOP14 CD4081 Reel packing specifications: Packaging Type number Marking code form Reel quantity Boxed reel quantity Packing quantity 5000 PCS/box 40000 PCS/pack 6000 PCS/box 48000 PCS/pack CD4081SA.TR SOP14 CD4081 2500 PCS/reel CD4081TA.TR TSSOP14 CD4081 3000 PCS/reel Notes Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Notes Dimensions of plastic enclosure: 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 2、Block Diagram And Pin Description 2.1、Block Diagram or e Figure 1. Functional diagram Figure 2. Logic diagram (one gate) i-c 2.2、Pin Configurations Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 2.3、Pin Description Description data input data input data output data output data input data input ground (0V) data input data input data output data output data input data input supply voltage e Pin Name 1A 1B 1Y 2Y 2A 2B VSS 3A 3B 3Y 4Y 4A 4B VDD or Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2.4、Function Table Input i-c nA nB L L L H H L H H Note: H=HIGH voltage level; L=LOW voltage level. Output nY L L L H 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to VSS (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. Max. supply voltage VDD -0.5 +18 DC input current IIK any one input ±10 input voltage VI all inputs -0.5 VDD+0.5 storage temperature Tstg -65 +150 total power Ptot 500 dissipation device dissipation P per output transistor 100 DIP 245 Soldering TL 10s temperature SOP 250 Note: [1] For DIP14 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP14 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP14 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 Unit V mA V ℃ mW mW ℃ ℃ 4/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 3.2、Recommended Operating Conditions Parameter supply voltage ambient temperature Symbol VDD Conditions - Min. 3 Typ. - Max. 15 Unit V Tamb in free air -40 - +85 ℃ Max. 0.25 0.5 1 0.05 0.05 0.05 1.5 3 4 - Unit uA uA uA mA mA mA mA mA mA mA V V V V V V V V V V V V i-c or e 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Tamb=25℃ Conditions (V) Parameter Symbol VO VIN VDD Min. Typ. 0, 5 5 0.01 supply current IDD 0, 10 10 0.01 0, 15 15 0.01 0.4 0, 5 5 0.51 1 LOW-level 0.5 0, 10 10 1.3 2.6 IOL output current 1.5 0, 15 15 3.4 6.8 4.6 0, 5 5 -0.51 -1 2.5 0, 5 5 -1.6 -3.2 HIGH-level IOH output current 9.5 0, 10 10 -1.3 -2.6 13.5 0, 15 15 -3.4 -6.8 0, 5 5 0 LOW-level 0, 10 10 0 VOL output voltage 0, 15 15 0 0, 5 5 4.95 5 HIGH-level 0, 10 10 9.95 10 VOH output voltage 0, 15 15 14.95 15 0.5 5 LOW-level 1 10 VIL input voltage 1.5 15 0.5, 4.5 5 3.5 HIGH-level 1, 9 10 7 VIH input voltage 1.5, 13.5 15 11 input leakage II 0, 15 15 ±10-5 current Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 ±0.1 uA 5/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN Unit uA uA uA mA mA mA mA mA mA mA V V V V V V V V V V V V i-c or e 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +85℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Tamb=-40℃ Tamb=+85℃ Conditions (V) Parameter Symbol VO VIN VDD Min. Max. Min. Max. 0, 5 5 0.25 7.5 supply current IDD 0, 10 10 0.5 15 0, 15 15 1 30 0.4 0, 5 5 0.61 0.42 LOW-level IOL 0.5 0, 10 10 1.5 1.1 output current 1.5 0, 15 15 4 2.8 4.6 0, 5 5 -0.61 -0.42 2.5 0, 5 5 -1.8 -1.3 HIGH-level IOH output current 9.5 0, 10 10 -1.5 -1.1 13.5 0, 15 15 -4 -2.8 0, 5 5 0.05 0.05 LOW-level VOL 0, 10 10 0.05 0.05 output voltage 0, 15 15 0.05 0.05 0, 5 5 4.95 4.95 HIGH-level 0, 10 10 9.95 9.95 VOH output voltage 0, 15 15 14.95 14.95 0.5 5 1.5 1.5 LOW-level VIL 1 10 3 3 input voltage 1.5 15 4 4 0.5, 4.5 5 3.5 3.5 HIGH-level 1, 9 10 7 7 VIH input voltage 1.5, 13.5 15 11 11 input leakage II 0, 15 15 ±0.1 ±1 current uA 3.3.3、AC Characteristics (Tamb=25℃, VSS=0V, tr, tf=20ns, CL=50pF, RL=200kΩ, unless otherwise specified.) Parameter Symbol propagation delay time tPHL, tPLH transition time tTHL, tTLH input capacitance CI Conditions VDD=5V see Figure 4 VDD=10V VDD=15V VDD=5V see Figure 4 VDD=10V VDD=15V Min. - Typ. 125 60 45 100 50 40 Max. 250 120 90 200 100 80 Unit ns ns ns ns ns ns any input - 5 7.5 pF Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 6/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 4、Testing Circuit 4.1、AC Testing Circuit Figure 3. Test circuit for switching times i-c or 4.2、AC Testing Waveforms e Definitions for test circuit: DUT=Device Under Test. CL=Load capacitance including jig and probe capacitance. RT=Termination resistance should be equal to the output impedance Zo of the pulse generator. Figure 4. Input to output propagation delay and output transition times 4.3、Measurement Points Supply voltage VDD 5V to 15V 4.4、Test Data Supply voltage VDD 5V to 15V Input Output VM 0.5×VDD VM 0.5×VDD Input VI VSS or VDD Load tr , tf ≤ 20ns Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 CL 50pF 7/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 5、Package Information i-c or e 5.1、DIP14 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 8/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN i-c or e 5.2、SOP14 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN i-c or e 5.3、TSSOP14 Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 10/ 11 VER：2019-05-A1 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4081-AX-LJ-D016EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Part name Lead and lead compo unds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Hexaval ent chromiu m compoun ds Polybro minated biphenyl s Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ The lead ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic sheet installed ○ ○ ○ e Lead frame ○ ○ ○ ○ ○ ○ ○ ○：Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard. ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements. or explanation 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； This information is using to the reference only, the company is not responsible for any loss； i-c The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 11/ 11 VER：2019-05-A1
