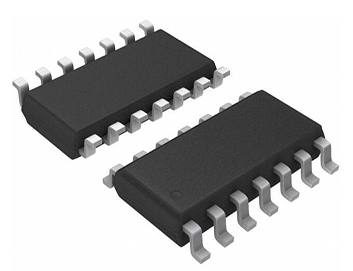

CD4066SA.TB

Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4066-AX-LJ-D012EN or e CD4066 Quad Bilateral Switches Specification i-c Product Specification Revision History： Version Date 2019-06-A1 2021-07-A2 2019-06 2021-07 Description New Modify Ordering Information Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 14 VER：2021-07-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4066-AX-LJ-D012EN 1、General Description Type number or Ordering Information: Tube packing specifications: e The CD4066 provides four single-pole, single-throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. The CD4066 is pin compatible with the CD4016 but exhibits a much lower ON resistance. In addition the ON resistance is relatively constant over the full input signal range. Features:  Wide supply voltage range from 3V to 9V  Fully static operation  5V and 9V parametric ratings  Standardized symmetrical output characteristics  Inputs and outputs are protected against electrostatic effects  Specified from -40℃ to +85℃  Packaging information: DIP14/SOP14/TSSOP14 Packaging form Marking code Tube quantity Boxed tube quantity Boxed quantity Packing box number Packing quantity DIP14 CD4066 25 PCS/tube 40 tube/box 1000 PCS/box 10 box/pack 10000 PCS/pack CD4066SA.TB SOP14 CD4066 50 PCS/tube 200 tube/box 10000 PCS/box 5 box/pack 50000 PCS/pack TSSOP14 CD4066 94 PCS/tube 200 tube/box 18800 PCS/box 10 box/pack 188000 PCS/pack i-c CD4066DA.TB CD4066TA.TB Reel packing specifications: Packaging Type number Marking code form Reel quantity Boxed reel quantity Packing quantity Notes Dimensions of plastic enclosure: 19.0mm×6.4mm Pin spacing: 2.54mm Dimensions of plastic enclosure: 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic enclosure: 5.0mm×4.4mm Pin spacing: 0.65mm Notes Dimensions of plastic enclosure: CD4066SA.TR SOP14 CD4066 8.7mm×3.9mm Pin spacing: 1.27mm Dimensions of plastic 3000 6000 48000 enclosure: CD4066TA.TR TSSOP14 CD4066 PCS/reel PCS/box PCS/pack 5.0mm×4.4mm Pin spacing: 0.65mm Note: If the physical information is inconsistent with the ordering information, please refer to the actual product. 4000 PCS/reel 8000 PCS/box Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 64000 PCS/pack 2/ 14 VER：2021-07-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4066-AX-LJ-D012EN 2、Block Diagram And Pin Description e 2.1、Block Diagram i-c or Figure 1. Functional diagram Figure 2. Logic diagram (one switch) 2.2、Pin Configurations Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 14 VER：2021-07-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4066-AX-LJ-D012EN 2.3、Pin Description Description independent input or output independent input or output independent input or output independent input or output enable input (active HIGH) enable input (active HIGH) ground (0V) independent input or output independent input or output independent input or output independent input or output enable input (active HIGH) enable input (active HIGH) supply voltage e Pin Name 1Y 1Z 2Z 2Y 2E 3E VSS 3Y 3Z 4Z 4Y 4E 1E VDD or Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2.4、Function Table Input nE H L Note: H=HIGH voltage level; L=LOW voltage level. Switch ON OFF i-c 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to VSS (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. Max. supply voltage VDD -0.5 +12 input voltage VI -0.5 VDD+0.5 input clamping IIK VIVDD+0.5V ±10 current input/output current II/O ±10 storage temperature Tstg -65 +150 total power Ptot 500 dissipation device dissipation P per output transistor 100 DIP 245 Soldering TL 10s temperature SOP 250 Note: [1] For DIP14 packages: above 70℃ the value of Ptot derates linearly with 12mW/K. [2] For SOP14 packages: above 70℃ the value of Ptot derates linearly with 8mW/K. [3] For (T)SSOP14 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K. Address：Building B4,NO.777,Jianzhu Road,Binhu Distrct,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 Unit V V mA mA ℃ mW mW ℃ ℃ 4/ 14 VER：2021-07-A2 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:CD4066-AX-LJ-D012EN 3.2、Recommended Operating Conditions (Tamb=25℃; RL=10kΩ; CL=50pF; nE=VDD; Vis=VDD=5V.) Parameter supply voltage ambient temperature input voltage Disable output time （High level→turn off） Disable output time （Low level→turn off） Enable output time Conditions in free air - Min. 3 -40 0 Typ. 5 - Max. 9 +85 VDD Unit V ℃ V tPHZ nE to nZ or nE to nY - 80 160 ns tPLZ nE to nZ or nE to nY - 80 160 ns tPZH, tPZL - - 45 90 ns CI - - - 7.5 pF e （turn off→high/low level） input capacitance Symbol VDD Tamb VI or 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=25℃, voltages are referenced to VSS (ground=0V), unless otherwise specified.) Symbol Conditions (V) supply current IDD VI=VDD or VSS, IO=0A HIGH-level input voltage VIH |IO|
