AiP74HC/HCT4053
Triple 2-channel Analog
Multiplexer/Demultiplexer
Specification
i-c
Product
Specification Revision History：
Version
Date
2019-12-A1
2021-10-A2
2019-12
2021-10
Description
New
Modify Ordering Information
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
1/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
1、 General Description
The AiP74HC/HCT4053 is a triple single-pole double-throw analog switch (3×SPDT) suitable for use in
analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input
(Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable
—
—
input (E) is common to all switches. When E is HIGH, the switches are turned off. Inputs include clamp
diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
or
e
Features:
Wide analog input voltage range from -5 V to +5 V
Wide supply voltage range
AiP74HC4053: from 3V to 9V
AiP74HCT4053: from 4.5V to 5.5V
Low ON resistance:
– 80 Ω (typical) at VCC - VEE = 4.5 V
– 70 Ω (typical) at VCC - VEE = 6.0 V
– 60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical “break before make” built-in
Specified from -40℃ to +85℃
Packaging information: DIP16/SOP16/TSSOP16
i-c
Applications:
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
2/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
Ordering Information:
Tube packing specifications:
Packaging
form
Type number
Marking
code
Tube
quantity
Boxed
tube
quantity
Boxed
quantity
Packing
box
number
Packing
quantity
DIP16
74HC4053
25
PCS/tube
40
tube/box
1000
PCS/box
10
box/pack
10000
PCS/pack
AiP74HCT4053DA.TB
DIP16
74HCT4053
25
PCS/tube
40
tube/box
1000
PCS/box
10
box/pack
10000
PCS/pack
AiP74HC4053SA.TB
SOP16
74HC4053
50
PCS/tube
200
tube/box
10000
PCS/box
5
box/pack
50000
PCS/pack
AiP74HCT4053SA.TB
SOP16
74HCT4053
50
PCS/tube
200
tube/box
10000
PCS/box
5
box/pack
50000
PCS/pack
Dimensions of
plastic enclosure:
19.0mm×6.4mm
Pin spacing:
2.54mm
Dimensions of
plastic enclosure:
19.0mm×6.4mm
Pin spacing:
2.54mm
Dimensions of
plastic enclosure:
10.0mm×3.9mm
Pin spacing:
1.27mm
Dimensions of
plastic enclosure:
10.0mm×3.9mm
Pin spacing:
1.27mm
Dimensions of
plastic enclosure:
5.0mm×4.4mm
Pin spacing:
0.65mm
Dimensions of
plastic enclosure:
5.0mm×4.4mm
Pin spacing:
0.65mm
i-c
or
e
AiP74HC4053DA.TB
Notes
AiP74HC4053TA.TB
TSSOP16
74HC4053
96
PCS/tube
200
tube/box
19200
PCS/box
10
box/pack
192000
PCS/pack
AiP74HCT4053TA.TB
TSSOP16
74HCT4053
96
PCS/tube
200
tube/box
19200
PCS/box
10
box/pack
192000
PCS/pack
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
3/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Reel packing specifications:
Packaging
Type number
Marking code
form
Reel
quantity
Number:AiP74HC/HCT4053-AX-LJ-E009EN
Boxed reel
quantity
Packing
quantity
SOP16
74HC4053
4000
PCS/reel
8000
PCS/box
64000
PCS/pack
AiP74HCT4053SA.TR
SOP16
74HCT4053
4000
PCS/reel
8000
PCS/box
64000
PCS/pack
AiP74HC4053TA.TR
TSSOP16
74HC4053
5000
PCS/reel
10000
PCS/box
80000
PCS/pack
AiP74HCT4053TA.TR
TSSOP16
74HCT4053
5000
PCS/reel
10000
PCS/box
80000
PCS/pack
Dimensions of plastic
enclosure:
10.0mm×3.9mm
Pin spacing:1.27mm
Dimensions of plastic
enclosure:
10.0mm×3.9mm
Pin spacing:1.27mm
Dimensions of plastic
enclosure:
5.0mm×4.4mm
Pin spacing:0.65mm
Dimensions of plastic
enclosure:
5.0mm×4.4mm
Pin spacing:0.65mm
or
e
AiP74HC4053SA.TR
Notes
i-c
Note: If the physical information is inconsistent with the ordering information, please refer to the actual
product.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
4/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
2、Block Diagram And Pin Description
2.1、Block Diagram
i-c
or
e
Figure 1. Logic symbol
Figure 2. IEC logic symbol
Figure 3. Schematic diagram (one switch)
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
5/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
or
e
Tab: 835-12
i-c
Figure 4. Functional diagram
2.2、Pin Configurations
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
6/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
2.3、Pin Description
Pin No.
1
2
3
4
5
Pin Name
2Y1
2Y0
3Y1
3Z
3Y0
Description
independent input or output
independent input or output
independent input or output
common output or input
independent input or output
6
E
enable input (active LOW)
7
8
9
10
11
12
13
14
15
16
VEE
GND
S3
S2
S1
1Y0
1Y1
1Z
2Z
VCC
supply voltage
ground supply voltage
select input
select input
select input
independent input or output
independent input or output
common output or input
common output or input
supply voltage
or
e
—
2.4、Function Table
Input
—
E
Sn
i-c
L
L
L
H
H
X
Note: H=HIGH voltage level; L=LOW voltage level; X=don’t care.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
Channel ON
nY0 to nZ
nY1 to nZ
switches off
7/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
3、Electrical Parameter
3.1、Absolute Maximum Ratings
(Voltages are referenced to GND (ground=0V), unless otherwise specified.)
Symbol
VCC
IIK
ISK
ISW
IEE
ICC
IGND
Tstg
Ptot
P
Soldering temperature
TL
Conditions
- [1]
VI < -0.5 V or VI > VCC + 0.5 V
VSW < -0.5 V or VSW > VCC + 0.5 V
-0.5 V < VSW < VCC + 0.5 V
[2]
per switch
DIP
10s
SOP
Min.
-0.5
-65
-
Max.
+11.0
±20
±20
±25
±20
50
-50
+150
500
100
Unit
V
mA
mA
mA
mA
mA
mA
℃
mW
mW
℃
℃
e
Parameter
supply voltage
input clamping current
switch clamping current
switch current
supply current
supply current
ground current
storage temperature
total power dissipation
power dissipation
245
250
i-c
or
Note:
[1] To avoid drawing VCC current out of terminal nZ, when switch current flows into terminals nYn, the
voltage drop across the bidirectional switch must not exceed 0.4V. If the switch current flows into
terminal nZ, no VCC current will flow out of terminals nYn, and in this case there is no limit for the
voltage drop across the switch, but the voltages at nYn and nZ may not exceed VCC or VEE.
[2] For DIP16 packages: above 70℃ the value of Ptot derates linearly with 12mW/K.
For SOP16 packages: above 70℃ the value of Ptot derates linearly with 8mW/K.
For (T)SSOP16 packages: above 60℃ the value of Ptot derates linearly with 5.5mW/K.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
8/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
3.2、Recommended Operating Conditions
Symbol
supply voltage
VCC
input voltage
VI
switch voltage
Min.
Typ.
Max.
Unit
3.0
3.0
5.0
5.0
9.0
9.0
V
V
-
0
-
VCC
VSW
-
VEE
-
VCC
V
V
ambient temperature
Tamb
input transition rise and fall rate
Δt/ΔV
in free air
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
-40
-
1.67
-
+85
139
83
31
℃
ns/V
ns/V
ns/V
AiP74HCT4053
VCC - GND
VCC - VEE
4.5
3.0
5.0
5.0
5.5
9.0
V
V
supply voltage
VCC
input voltage
switch voltage
VI
-
0
-
VCC
VSW
-
VEE
-
VCC
V
V
Tamb
in free air
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
-40
-
1.67
-
+85
139
-
℃
ns/V
ns/V
ns/V
or
ambient temperature
Conditions
AiP74HC4053
VCC - GND
VCC - VEE
e
Parameter
input transition rise and fall rate
Δt/ΔV
3.3、Electrical Characteristics
3.3.1、DC Characteristics 1
i-c
(Tamb=25℃, voltages are referenced to GND (ground=0V), unless otherwise specified.)
Parameter
ON resistance (peak)
ON resistance (rail)
Symbol
RON(peak)
RON(rail)
Conditions
VCC = 4.5 V;
VEE = 0 V
Vis = VCC to VEE; VCC = 6.0 V;
ISW = 1000 uA
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
Vis = VEE;
VCC = 6.0 V;
ISW = 1000 uA
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
Vis = VCC;
ISW = 1000 uA
VCC = 6.0 V;
VEE = 0 V
Min.
Typ.
Max.
Unit
-
100
180
Ω
-
90
160
Ω
-
70
130
Ω
-
80
140
Ω
-
70
120
Ω
-
60
105
Ω
-
90
160
Ω
-
80
140
Ω
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
9/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
ON resistance
mismatch
between channels
rev:B3
ΔRON
HIGH-level input
voltage
VIH
LOW-level input
voltage
VIL
II
Vis = VCC to VEE
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 6.0 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
AiP74HC4053
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
-
65
120
Ω
-
9
-
Ω
-
8
-
Ω
-
6
-
Ω
3.15
4.2
6.3
-
2.4
3.2
4.7
2.1
2.8
4.3
1.35
1.8
2.7
V
V
V
V
V
V
VEE = 0 V;
VI = VCC or GND
-
-
±0.1
uA
VCC = 6.0 V
or
input leakage
current
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
Tab: 835-12
OFF-state
leakage current
IS(ON)
-
-
±0.2
uA
-
-
±0.1
uA
-
-
±0.1
uA
-
-
±0.1
uA
-
-
8.0
uA
-
-
16.0
uA
-
-
3.5
-
pF
independent pins nYn
-
5
-
pF
common pins nZ
-
8
-
pF
VCC= 9.0 V;
per channel
VEE= 0 V;
VI= VIH or VIL;
|VSW| = VCC - VEE; all channels
see Figure 7
VI= VIH or VIL;
|VSW| = VCC-VEE;VCC= 9.0 V;
VEE= 0 V; see Figure 8
VEE = 0 V;
VCC = 6.0 V
VI = VCC or GND;
Vis = VEE or VCC;
VCC = 9.0 V
Vos = VCC or VEE
i-c
ON-state
leakage current
IS(OFF)
VCC = 9.0 V
supply current
ICC
input capacitance
CI
switch capacitance
CSW
AiP74HCT4053
HIGH-level input
voltage
LOW-level input
voltage
input leakage
current
VIH
VCC = 4.5 V to 5.5 V
2.0
1.6
-
V
VIL
VCC = 4.5 V to 5.5 V
-
1.2
0.8
V
II
VI = VCC or GND;
VCC = 5.5 V; VEE= 0 V
-
-
±0.1
uA
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
10/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
OFF-state
leakage current
ON-state
leakage current
supply current
rev:B3
IS(OFF)
IS(ON)
ICC
ΔICC
input capacitance
CI
VCC= 9.0 V;
per channel
VEE= 0 V;
VI= VIH or VIL;
|VSW| = VCC - VEE; all channels
see Figure 7
VCC= 9.0 V; VEE= 0 V;
VI= VIH or VIL; |VSW| = VCC-VEE;
see Figure 8
VI = VCC or GND;
Vis = VEE or VCC;
Vos = VCC or VEE;
-
-
±0.1
uA
-
-
±0.1
uA
-
-
±0.1
uA
VCC = 5.5V;
VEE = 0 V
-
-
8.0
uA
VCC = 4.5V;
VEE = -4.5V
-
-
16.0
uA
per input; VI = VCC-2.1V;
other inputs at VCC or GND;
VCC = 4.5 V to 5.5 V; VEE = 0 V
-
50
180
uA
-
-
3.5
-
pF
independent pins nYn
-
5
-
pF
common pins nZ
-
8
-
pF
or
additional supply
current
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
Tab: 835-12
switch capacitance
CSW
Note:
[1] VI= VIH or VIL; for test circuit see Figure 5.
[2] Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input.
[3] Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output.
i-c
3.3.2、DC Characteristics 2
(Tamb = -40℃~85℃, voltages are reference to GND (ground=0V), unless otherwise specified, unless
otherwise specified.)
Parameter
Symbol
Conditions
Min.
Typ.
Max.
VCC = 4.5 V;
225
VEE = 0 V
Vis = VCC to VEE; VCC = 6.0 V;
ON resistance (peak)
RON(peak)
200
ISW = 1000 uA
VEE = 0 V
VCC = 4.5 V;
165
VEE = -4.5 V
VCC = 4.5 V;
175
VEE = 0 V
Vis = VEE;
VCC = 6.0 V;
150
ISW = 1000 uA
VEE = 0 V
ON resistance (rail)
RON(rail)
VCC = 4.5 V;
130
VEE = -4.5 V
Vis = VCC;
VCC = 4.5 V;
200
ISW = 1000 uA
VEE = 0 V
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
Unit
Ω
Ω
Ω
Ω
Ω
Ω
Ω
11/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
ON resistance
mismatch
between channels
rev:B3
ΔRON
VIH
LOW-level input
voltage
VIL
VCC = 6.0 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 6.0 V;
Vis = VCC to VEE
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
AiP74HC4053
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
VCC = 4.5 V
VCC = 6.0 V
VCC = 9.0 V
-
-
175
Ω
-
-
150
Ω
-
-
-
Ω
-
-
-
Ω
-
-
-
Ω
3.15
4.2
6.3
-
-
1.35
1.8
2.7
V
V
V
V
V
V
or
HIGH-level input
voltage
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
Tab: 835-12
input leakage
current
IS(OFF)
-
-
±1.0
uA
VCC = 9.0 V
-
-
±2.0
uA
-
-
±1.0
uA
-
-
±1.0
uA
-
-
±1.0
uA
-
-
80.0
uA
-
-
160.0
uA
-
-
-
-
pF
independent pins nYn
-
-
-
pF
common pins nZ
-
-
-
pF
VCC= 9.0 V;
per channel
VEE= 0 V;
VI= VIH or VIL;
|VSW| = VCC - VEE; all channels
see Figure 7
VI= VIH or VIL;
|VSW| = VCC-VEE;VCC= 9.0 V;
VEE= 0 V; see Figure 8
VEE = 0 V;
VCC = 6.0 V
VI = VCC or GND;
Vis = VEE or VCC;
VCC = 9.0 V
Vos = VCC or VEE
i-c
OFF-state
leakage current
II
VCC = 6.0 V
VEE = 0 V;
VI = VCC or GND
ON-state
leakage current
supply current
IS(ON)
ICC
input capacitance
CI
switch capacitance
CSW
AiP74HCT4053
HIGH-level input
voltage
LOW-level input
voltage
VIH
VCC = 4.5 V to 5.5 V
2.0
-
-
V
VIL
VCC = 4.5 V to 5.5 V
-
-
0.8
V
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
12/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
input leakage
current
OFF-state
leakage current
ON-state
leakage current
supply current
II
IS(OFF)
IS(ON)
ICC
ΔICC
Number:AiP74HC/HCT4053-AX-LJ-E009EN
VI = VCC or GND;
VCC = 5.5 V; VEE = 0 V
VCC= 9.0 V;
per channel
VEE= 0 V;
VI= VIH or VIL;
|VSW| = VCC - VEE; all channels
see Figure 7
VCC= 9.0 V; VEE= 0 V;
VI= VIH or VIL; |VSW| = VCC-VEE;
see Figure 8
-
-
±1.0
uA
-
-
±1.0
uA
-
-
±1.0
uA
-
-
±1.0
uA
VCC = 5.5V;
VEE = 0 V
-
-
80.0
uA
VCC = 4.5V;
VEE = -4.5V
-
-
160
uA
per input; VI = VCC - 2.1V;
other inputs at VCC or GND;
VCC = 4.5 V to 5.5 V; VEE = 0 V
-
-
225
uA
-
-
-
-
pF
independent pins nYn
-
-
-
pF
common pins nZ
-
-
-
pF
Typ.
Max.
Unit
5
12
ns
4
10
ns
4
8
ns
20
44
ns
17
-
ns
16
37
ns
VI = VCC or GND;
Vis = VEE or VCC;
Vos = VCC or VEE
or
additional supply
current
rev:B3
e
Tab: 835-12
input capacitance
CI
switch capacitance
CSW
i-c
Note:
[1] VI= VIH or VIL; for test circuit see Figure 5.
[2] Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input.
[3] Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output.
3.3.3、AC Characteristics 1
(Tamb=25℃, GND = 0 V; tr= tf= 6 ns; CL= 50 pF; unless otherwise specified.)
Parameter
Symbol
Conditions
Min.
AiP74HC4053
VCC = 4.5 V;
VEE = 0 V
Vis to Vos;
propagation
VCC = 6.0 V;
tpd
RL = ∞ Ω;
delay
VEE = 0 V
[1]
see Figure 9
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
—
VCC = 5.0 V;
E to Vos;
turn-on time
ton
VEE = 0 V;
RL = ∞ Ω;
[2]
C
=
15
pF
L
see Figure 10
VCC = 6.0 V;
VEE = 0 V
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
13/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 6.0 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 6.0 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 6.0 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
-
15
31
ns
-
25
44
ns
-
21
-
ns
-
20
37
ns
-
15
31
ns
-
21
42
ns
e
Sn to Vos;
RL = ∞ Ω;
see Figure 10[2]
Number:AiP74HC/HCT4053-AX-LJ-E009EN
—
E to Vos;
18
-
ns
-
17
36
ns
-
15
29
ns
-
20
42
ns
-
17
-
ns
-
16
36
ns
-
15
29
ns
-
36
-
pF
-
5
12
ns
-
4
8
ns
-
27
48
ns
-
23
-
ns
-
16
34
ns
or
RL= 1 kΩ;
see Figure 10[3]
-
turn-off time
toff
i-c
Sn to Vos;
RL = 1 kΩ;
see Figure 10[3]
power
dissipation
capacitance
propagation
delay
turn-on time
CPD
tpd
ton
per switch;VI = GND to VCC[4]
AiP74HCT4053
VCC = 4.5 V;
Vis to Vos;
VEE = 0 V
RL = ∞ Ω;
VCC = 4.5 V;
see Figure 9[1]
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
—
E to Vos;
VCC = 5.0 V;
RL = ∞ Ω;
VEE = 0 V;
see Figure 10[2]
CL = 15 pF
VCC = 4.5 V;
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
14/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Sn to Vos;
RL = ∞ Ω;
see Figure 10[2]
—
E to Vos;
toff
-
25
48
ns
-
21
-
ns
-
16
34
ns
-
24
44
ns
-
20
-
ns
-
15
31
ns
-
22
44
ns
or
turn-off time
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 5.0 V;
VEE = 0 V;
CL = 15 pF
VCC = 4.5 V;
VEE = -4.5 V
e
RL = 1 kΩ;
see Figure 10[3]
Number:AiP74HC/HCT4053-AX-LJ-E009EN
Sn to Vos;
RL = 1 kΩ;
see Figure 10[3]
-
19
-
ns
-
15
31
ns
-
pF
i-c
power
dissipation
CPD
per switch;VI = GND to VCC-1.5V[4]
36
capacitance
Note:
[1] tpd is the same as tPHL and tPLH.
[2] ton is the same as tPZH and tPZL.
[3] toff is the same as tPHZ and tPLZ.
[4] CPD is used to determine the dynamic power dissipation (PD in uW).
PD = CPD × VCC2 × fi × N + Σ{(CL+ CSW) × VCC2× fO} where:
fi = input frequency in MHz;
fO = output frequency in MHz;
N = number of inputs switching;
Σ{(CL+ CSW) × VCC2 ×fO} = sum of outputs;
CL = output load capacitance in pF;
CSW = switch capacitance in pF;
VCC = supply voltage in V.
[5] For test circuit see Figure 11.
[6] Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input.
[7] Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
15/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
3.3.4、AC Characteristics 2
(Tamb= -40℃~+85℃; GND = 0 V; tr = tf = 6 ns; CL = 50 pF; unless otherwise specified.)
Conditions
AiP74HC4053
VCC = 4.5 V;
VEE = 0 V
Vis to Vos;
VCC = 6.0 V;
RL= ∞ Ω;
VEE = 0 V
see Figure 9[1]
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
—
E to Vos;
VCC = 6.0 V;
RL= ∞ Ω;
VEE = 0 V
see Figure 10[2]
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
Sn to Vos;
VCC = 6.0 V;
RL= ∞ Ω;
VEE = 0 V
see Figure 10[2]
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
—
E to Vos;
VCC = 6.0 V;
RL = 1 kΩ;
VEE = 0 V
see Figure 10[3]
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
Sn to Vos;
VCC = 6.0 V;
RL = 1 kΩ;
VEE = 0 V
see Figure 10[3]
VCC = 4.5 V;
VEE = -4.5 V
Min.
Typ.
Max.
Unit
-
-
15
ns
-
-
13
ns
-
-
10
ns
-
-
55
ns
CPD
per switch;VI = GND to VCC[4]
propagation
delay
tpd
turn-on time
ton
AiP74HCT4053
VCC = 4.5 V;
Vis to Vos;
VEE = 0 V
RL = ∞ Ω;
VCC = 4.5 V;
see Figure 9[1]
VEE = -4.5 V
—
VCC = 4.5 V;
E to V ;
propagation
delay
tpd
ton
-
-
47
ns
-
-
39
ns
-
-
55
ns
-
-
47
ns
-
-
39
ns
-
-
53
ns
-
-
45
ns
-
-
36
ns
-
-
53
ns
-
-
45
ns
-
-
36
ns
-
-
-
pF
-
-
15
ns
-
-
10
ns
-
-
60
ns
i-c
or
turn-on time
Symbol
e
Parameter
turn-off time
power
dissipation
capacitance
toff
os
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
16/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
RL = ∞ Ω;
see Figure 10[2]
Sn to Vos;
RL = ∞ Ω;
see Figure 10[2]
—
E to Vos;
RL = 1 kΩ;
see Figure 10[3]
turn-off time
toff
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
VCC = 4.5 V;
VEE = 0 V
VCC = 4.5 V;
VEE = -4.5 V
-
-
43
ns
-
-
60
ns
-
-
43
ns
-
-
55
ns
-
-
39
ns
-
-
55
ns
e
Sn to Vos;
RL = 1 kΩ;
see Figure 10[3]
Number:AiP74HC/HCT4053-AX-LJ-E009EN
-
-
ns
-
pF
i-c
or
power
dissipation
CPD
per switch;VI = GND to VCC-1.5V[4]
capacitance
Note:
[1] tpd is the same as tPHL and tPLH.
[2] ton is the same as tPZH and tPZL.
[3] toff is the same as tPHZ and tPLZ.
[4] CPD is used to determine the dynamic power dissipation (PD in uW).
PD = CPD × VCC2× fi × N + Σ{(CL+ CSW) × VCC2× fO} where:
fi = input frequency in MHz;
fO = output frequency in MHz;
N = number of inputs switching;
Σ{(CL+ CSW) × VCC2 ×fO} = sum of outputs;
CL = output load capacitance in pF;
CSW = switch capacitance in pF;
VCC = supply voltage in V.
[5] For test circuit see Figure 11.
[6] Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input.
[7] Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output.
39
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
17/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
3.3.5、AC Characteristics 3
(Tamb= 25℃; GND = 0V; CL=50pF; recommended conditions and typical values.)
sine-wave
distortion
Symbol
dsin
αiso
crosstalk
Xtalk
Min.
Typ.
Max.
Unit
-
0.04
-
%
-
0.02
-
%
-
0.12
-
%
-
0.06
-
%
-
-50
-
dB
i-c
or
isolation
(OFF-state)
Conditions
Vis = 4.0 V (p-p);
VCC = 2.25 V;
fi = 1 kHz;
VEE = -2.25 V
RL = 10 kΩ;
Vis = 8.0 V (p-p);
see Figure 12
VCC = 4.5 V;
VEE = -4.5 V
Vis = 4.0 V (p-p);
VCC = 2.25 V;
fi = 10 kHz;
VEE = -2.25 V
RL = 10 kΩ;
Vis = 8.0 V (p-p);
see Figure 12
VCC = 4.5 V;
VEE = -4.5 V
VCC = 2.25 V; [1]
RL= 600 Ω;
VEE = -2.25 V
fi= 1 MHz;
VCC = 4.5 V; [1]
see Figure 13
VEE = -4.5 V
VCC = 2.25 V; [1]
between two
switches/multiplexers; VEE = -2.25 V
RL= 600 Ω;fi= 1 MHz; VCC = 4.5 V; [1]
see Figure 14
VEE = -4.5 V
peak-to-peak value;
VCC = 4.5 V;
between control and
VEE = 0 V
any switch;
RL= 600 Ω; fi= 1MHz;
e
Parameter
crosstalk
voltage
Vct
f(-3dB)
-50
-
dB
-
-60
-
dB
-
-60
-
dB
-
110
-
mV
-
220
-
mV
-
160
-
MHz
-
170
-
MHz
—
E or Sn square wave
between VCC and
GND; tr= tf= 6 ns;
see Figure 15
-3dB
frequency
response
-
RL = 50 Ω;
see Figure 16
VCC = 4.5 V;
VEE = -4.5 V
VCC = 2.25 V;
VEE = -2.25 V
VCC = 4.5 V;
VEE = -4.5 V
[2]
[2]
Note：
[1] Adjust input voltage Vis to 0 dBm level (0 dBm = 1 mW into 600 Ω).
[2] Adjust input voltage Vis to 0 dBm level at Vos for 1 MHz (0 dBm = 1 mW into 50 Ω).
[3] Vis is the input voltage at a nYn or nZ terminal, whichever is assigned as an input.
[4] Vos is the output voltage at a nYn or nZ terminal, whichever is assigned as an output.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
18/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
4、Testing Circuit
e
4.1、DC Testing Circuit 1
i-c
or
Vis = 0V to (VCC -VEE)
RON = VSW/ISW
Figure 5. Test circuit for measuring RON
Vis = 0V to (VCC -VEE)
(1)VCC = 4.5V
(2)VCC = 6V
(3)VCC = 9V
Figure 6. Typical RON as a function of input voltage Vis
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
19/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
4.2、DC Testing Circuit 2
or
e
Vis= VCC and Vos= VEE.
Vis= VEE and Vos= VCC.
Figure 7. Test circuit for measuring OFF-state current
i-c
Vis= VCC and Vos= open-circuit.
Vis= VEE and Vos= open-circuit.
Figure 8. Test circuit for measuring ON-state current
4.3、AC Testing Waveforms
Figure 9. Input (Vis) to output (Vos) propagation delays
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
20/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
Tab: 835-12
or
For AiP74HC4053: VM = 0.5 ×VCC.
For AiP74HCT4053: VM = 1.3 V.
Figure 10. Turn-on and turn-off times
i-c
4.4、AC Testing Circuit 1
Figure 11. Test circuit for measuring switching times
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
21/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
Definitions for test circuit:
RT = termination resistance should be equal to the output impedance ZO of the pulse generator.
CL = load capacitance including jig and probe capacitance.
RL = load resistance.
S1 = Test selection switch.
4.5、Test Data
Input
VI
Vis
tPHL,tPLH
[2]
tPZH, tPHZ
[2]
tPZL, tPLZ
[2]
tr, tf
[1]
CL
RL
S1 position
at fmax
other
pulse
< 2ns
6ns
50pF
1kΩ
open
VCC
< 2ns
6ns
50pF
1kΩ
VEE
< 2ns
6ns
50pF
1kΩ
VCC
VEE
Note:
e
Test
Load
[1] tr = tf= 6 ns; when measuring fmax, there is no constraint to tr and tf with 50 % duty factor.
or
[2] VI values:
For AiP74HC4053: VI = VCC.
For AiP74HCT4053: VI = 3V.
i-c
4.6、AC Testing Circuit 2
Figure 12. Test circuit for measuring sine-wave distortion
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
22/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
VCC = 4.5 V; GND = 0 V; VEE = -4.5 V; RL = 600 Ω; RS = 1 kΩ.
i-c
or
a. Test circuit
b. Isolation (OFF-state) as a function of frequency
Figure 13. Test circuit for measuring isolation (OFF-state)
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
23/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
or
e
Tab: 835-12
i-c
Figure 14. Test circuit for measuring crosstalk between control input and any switch
Figure 15. Test circuit for measuring crosstalk between control input and any switch
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
24/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
e
VCC = 4.5 V; GND = 0 V; VEE = -4.5 V; RL = 50 Ω; RS = 1 kΩ
i-c
or
a. Test circuit
b. Typical frequency response
Figure 16. Test circuit for frequency response
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
25/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
5、Package Information
i-c
or
e
5.1、DIP16
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
26/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
i-c
or
e

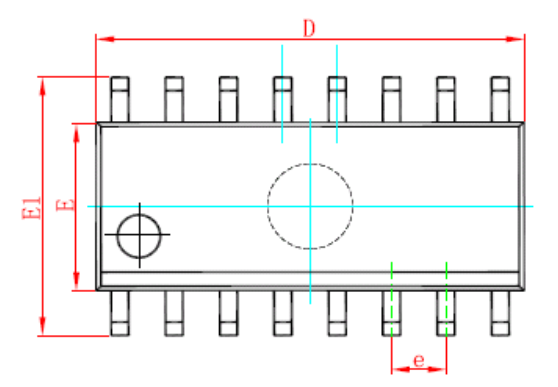

5.2、SOP16
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
27/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
i-c
or
e
5.3、TSSOP16
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
28/ 29
VER：2021-10-A2
Wuxi I-CORE Electronics Co., Ltd.
Tab: 835-12
rev:B3
Number:AiP74HC/HCT4053-AX-LJ-E009EN
6、Statements And Notes
6.1、The name and content of Hazardous substances or Elements in the product
Hazardous substances or Elements
Part name
Mercur
y and
mercur
lead
y
compo compo
unds
unds
Lead
and
Cadm
ium
and
cadmi
um
comp
ounds
Hexaval
ent
chromiu
m
compoun
ds
Polybro
minated
biphenyl
s
Polybro
minate
d
biphen
yl
ethers
Dibutyl
phthala
te
Butylbe
nzyl
phthala
te
Di-2-et
hylhex
yl
phthala
te
Diisobu
tyl
phthala
te
○
○
○
○
○
○
○
○
○
○
Plastic resin
○
○
○
○
○
○
○
○
○
○
Chip
○
○
○
○
○
○
○
○
○
○
The lead
○
○
○
○
○
○
○
○
○
○
Plastic sheet
installed
○
○
○
○
○
○
○
○
○
○
e
Lead frame
or
○：Indicates that the content of hazardous substances or elements in the detection limit
explanation
of
the following the SJ/T11363-2006 standard.
×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006
Standard limit requirements.
6.2、Notion
Recommended carefully reading this information before the use of this product；
i-c
The information in this document are subject to change without notice；
This information is using to the reference only, the company is not responsible for any loss；
The company is not responsible for the any infringement of the third party patents or other rights of
the responsibility.
Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province
http://www.i-core. cn
P.C.：214072
29/ 29
VER：2021-10-A2
