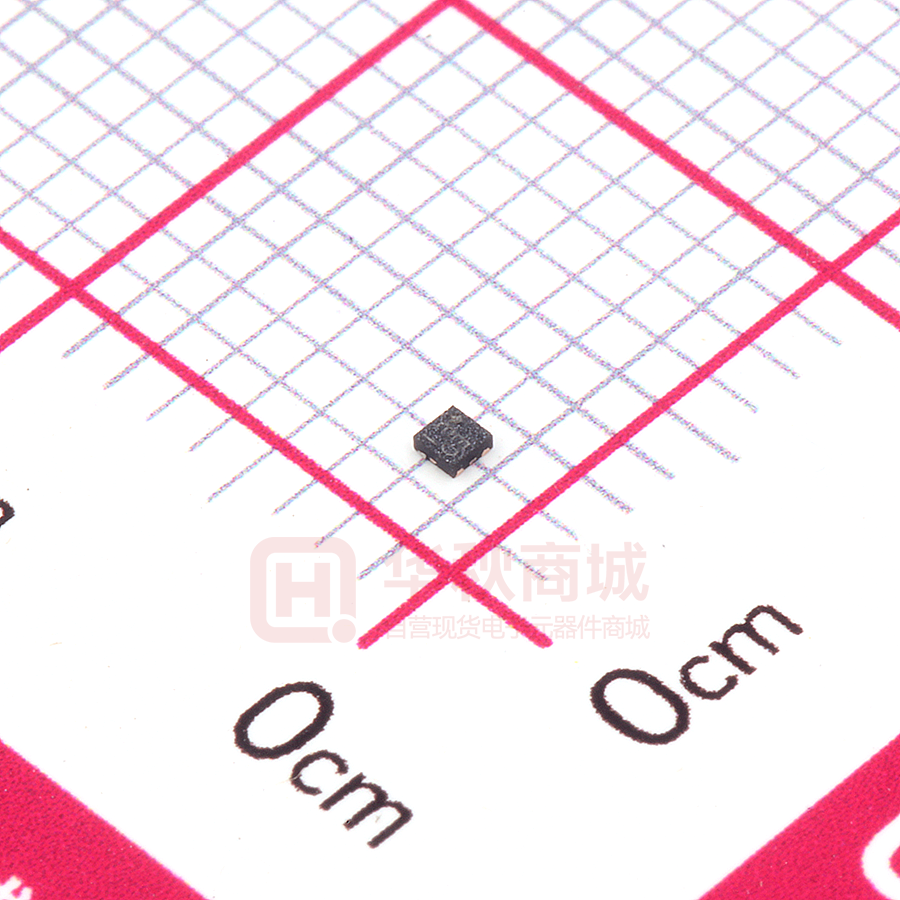

WL2820D WL2820D Low noise, High PSRR, High speed, CMOS LDO https://www.omnivision-group.com/ Descriptions The WL2820D series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with DFN1X1-4L high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2820D has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2820D regulators are available in standard Pin Configuration (Top View) DFN1x1-4L Package. Standard products are Pb-free and Halogen-free. Features  Input voltage : 2.2V~5.5V  Output range : 1.0V~3.8V  Output current : 300mA E: Package Code  PSRR : 70dB @ 217Hz * : Voltage Code  Dropout voltage : 250mV @ IOUT=300mA  Quiescent current : 42μA Typ.  Shut-down current : < 1μA  Discharge Resistance : 100Ω  Recommend capacitor : 1uF Y : Year Code W: Week Code For detail marking information, please see page 8. Marking Applications  MP3/MP4 Players  Cellphones, radiophone, digital cameras  Bluetooth, wireless handsets  Others portable electronics device Will Semiconductor Ltd. Order Information For detail order information, please see page 8. 1 Dec, 2021 – Rev 2.1 WL2820D Typical Application Pin Description DFN1X1-4L PIN Symbol 1 VOUT Output 2 GND Ground 3 EN Enable (Active high) 4 VIN Input EP Description GND level, this pin must connect to GND. Block Diagram Will Semiconductor Ltd. 2 Dec, 2021 – Rev 2.1 WL2820D Absolute Maximum Ratings Parameter Value Power Dissipation, PD@TA=25℃ 400 VIN Range -0.3～6.5 V VEN Range -0.3～VIN V VOUT Range -0.3～VIN V IOUT Internally Limited Lead Temperature Range 260 o Storage Temperature Range -55 ~ 150 o Operating Junction Temperature Range 150 o Moisture Sensitivity Level Level-1 ESD Ratings Unit mW C C C HBM 8000 V MM 400 V Recommend Operating Ratings Parameter Value Operating Supply voltage 2.2～5.5 Operating Temperature Range -40～85 Thermal Resistance, RθJA 250 Will Semiconductor Ltd. 3 Unit V C o C/W o Dec, 2021 – Rev 2.1 WL2820D Electronics Characteristics (Ta=25oC, VIN=VOUT+1V, CIN=COUT=1uF, unless otherwise noted) Parameter Symbol Condition VOUT ≤1.5V, VIN=2.7V, IOUT=1mA Output Voltage VOUT VOUT>1.5V, IOUT=1mA Current Limit Dropout Voltage ILIM VDROP VEN=VIN Min. 0.97 VOUT 0.98 VOUT Typ. VOUT VOUT Max. Unit 1.03 VOUT 1.02 V VOUT 300 mA VOUT=3.3V, IOUT=300mA 220 330 VOUT=3.0V, IOUT=300mA 240 360 VOUT=2.8V, IOUT=300mA 250 375 VOUT=2.5V, IOUT=300mA 280 420 VOUT=1.8V, IOUT=300mA 400 600 VOUT≤1.5V, IOUT=300mA Vin-min=2.2V 0.01 0.1 %/V mV Line Regulation △VLINE VIN=2.7~5.5V, IOUT=1mA Load Regulation △VLoad VOUT=2.8V , IOUT=1~300mA 10 30 mV Quiescent Current IQ VOUT=2.8V, IOUT=0 42 70 μA Short Current ISHORT VEN=VIN, VOUT Short to GND with 1Ω 80 Shut-down Current ISHDN VEN=0V 1.0 VIN=(VOUT+1V)DC+0.5VP-P Power Supply Rejection Rate PSRR mA μA 70 F=217Hz ,Iout=10mA dB VIN=(VOUT+1V)DC+0.5VP-P 60 F=10KHz, Iout=10mA EN logic high voltage VENH VIN=5.5V, IOUT=1mA EN logic low voltage VENL VIN=5.5V, VOUT=0V 0.4 V EN Input Current IEN VEN= 0 to 5.5V 1.0 μA Output Noise Voltage eNO 10Hz to 100KHz, COUT=1μF Thermal shutdown threshold TSD Thermal shutdown hysteresis Auto-discharge Nch Tr. ON Resistance Will Semiconductor Ltd. △ TSD RLOW VIN=4.0V，VCE=0V 4 1.2 V 55 μVRMS C 165 o 30 o 100 C Ω Dec, 2021 – Rev 2.1 WL2820D Typical characteristics (Ta=25oC, VIN=3.8V, VOUT = 2.8V CIN=COUT=1uF, unless otherwise noted) Quiescent current vs. Supply voltage Quiescent current vs. Supply voltage 3.0 1.5 2.5 0.9 0.6 VOUT=1.2V IOUT=1mA IOUT=200mA 0.3 0.0 0 1 2 3 4 Output Voltage(V) Output Voltage(V) 1.2 2.0 1.5 1.0 0.0 5 VOUT=2.8V IOUT=1mA IOUT=200mA 0.5 0 1 2 3 4 5 Input Voltage(V) Input Voltage(V) Output voltage vs. Supply voltage Output voltage vs. Supply voltage Output voltage vs. Output current Will Semiconductor Ltd. Output voltage vs. Output current 5 Dec, 2021 – Rev 2.1 WL2820D Output Voltage vs. Temperature Output Voltage vs. Temperature Dropout Voltage vs. Output Current Will Semiconductor Ltd. PSRR 6 Dec, 2021 – Rev 2.1 WL2820D Soft Start form EN Soft Start form EN EN Shutdown EN Shutdown Load Step Load Step Line Step Will Semiconductor Ltd. Line Step 7 Dec, 2021 – Rev 2.1 WL2820D ORDER INFORMATION Ordering No. Vout (V) Package Operating Temperature WL2820D105-4/TR 1.05 DFN1x1-4L -40~+85°C WL2820D11-4/TR 1.1 DFN1x1-4L -40~+85°C WL2820D12-4/TR 1.2 DFN1x1-4L -40~+85°C WL2820D15-4/TR 1.5 DFN1x1-4L -40~+85°C WL2820D18-4/TR 1.8 DFN1x1-4L -40~+85°C WL2820D21-4/TR 2.1 DFN1x1-4L -40~+85°C WL2820D22-4/TR 2.2 DFN1x1-4L -40~+85°C WL2820D25-4/TR 2.5 DFN1x1-4L -40~+85°C WL2820D27-4/TR 2.7 DFN1x1-4L -40~+85°C WL2820D28-4/TR 2.8 DFN1x1-4L -40~+85°C WL2820D285-4/TR 2.85 DFN1x1-4L -40~+85°C WL2820D30-4/TR 3.0 DFN1x1-4L -40~+85°C WL2820D33-4/TR 3.3 DFN1x1-4L -40~+85°C WL2820D38-4/TR 3.8 DFN1x1-4L -40~+85°C Marking Shipping EC Tape and Reel, YW 10000 ED Tape and Reel, YW 10000 EE Tape and Reel, YW 10000 EG Tape and Reel, YW 10000 EH Tape and Reel, YW 10000 EX Tape and Reel, YW 10000 EJ Tape and Reel, YW 10000 EK Tape and Reel, YW 10000 EY Tape and Reel, YW 10000 EL Tape and Reel, YW 10000 EV Tape and Reel, YW 10000 EM Tape and Reel, YW 10000 EN Tape and Reel, YW 10000 EQ Tape and Reel, YW 10000 Marking: E* = Device Code Y = Year W = Week Will Semiconductor Ltd. 8 Dec, 2021 – Rev 2.1 WL2820D PACKAGE OUTLINE DIMENSIONS DFN1x1-4L D Ⅰ 1. b k D 2. L E E1 1 Ⅰ e TOP VIEW 0.180 BOTTOM VIEW A 0.375 0.260 Ⅲ 1. 1.200 A3 A1 0 40 0. 5 23 0. 2. 0.065 0. 40 0 Ⅲ (x2) SIDE VIEW 0.910 RECOMMENDED LAND PATTERN(Unit:mm) Symbol Dimensions in Millimeters Min. Typ. Max. A 0.32 0.37 0.40 A1 - - 0.05 A3 0.13 Ref. b 0.17 0.22 0.28 L 0.20 0.25 0.30 D 0.95 1.00 1.05 E 0.95 1.00 1.05 D1 0.43 0.48 0.53 E1 0.43 0.48 0.53 K 0.15 - - e Will Semiconductor Ltd. · 0.65BSC 9 Dec, 2021 – Rev 2.1 WL2820D TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions Tape Dimensions W P1 Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 RD Reel Dimension W Overall width of the carrier tape P1 Pitch between successive cavity centers Pin1 Pin1 Quadrant Will Semiconductor Ltd. User Direction of Feed 7inch 13inch 1 8mm 12mm 16mm 2mm 4mm 8mm Q1 Q2 Q3 10 Q4 Dec, 2021 – Rev 2.1
