WL2810D25-4/TR

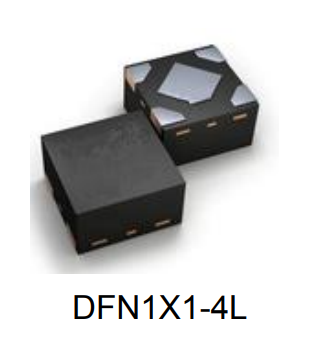

WL2810 WL2810 Low noise, High PSRR, High speed, CMOS LDO Http://www.sh-willsemi.com Descriptions The WL2810 series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and SOT-353 DFN1X1-4L notebook computers, and other portable devices. The WL2810 has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2810 regulators are available in standard SOT-353 package and DFN1x1-4L Package. Standard products are Pb-free and Halogen-free. Pin Configuration (Top View) Features  Input voltage : 2.2V~5.5V  Output range : 1.0V~3.3V  Output current : 300mA  PSRR : 70dB @ 217Hz  Dropout voltage : 250mV @ IOUT=300mA  Quiescent current : 42μA Typ.  Shut-down current : < 1μA  Recommend capacitor : 1uF B*M B : Package Code D: Package Code * : Voltage Code * : Voltage Code M: Month(A~Z) Y : Year Code W: Week Code For detail marking information, please see page 10. Applications  MP3/MP4 Players  Cellphones, radiophone, digital cameras  Bluetooth, wireless handsets  Others portable electronics device Marking Order Information For detail order information, please see page 10. Will Semiconductor Ltd. 1 Aug, 2017 – Rev 1.9 WL2810 Typical Application Pin Description SOT-353 PIN Symbol Description 1 VIN Input 2 GND Ground 3 EN Enable (Active high) 4 NC Not connected 5 VOUT Output DFN1X1-4L PIN Symbol 1 VOUT Output 2 GND Ground 3 EN Enable (Active high) 4 VIN Input EP Description GND level, this pin must connect to GND. Block Diagram Will Semiconductor Ltd. 2 Aug, 2017 – Rev 1.9 WL2810 Absolute Maximum Ratings Parameter Value Power Dissipation, PD@TA=25℃ 400 VIN Range -0.3～6.5 V VEN Range -0.3～VIN V VOUT Range -0.3～VIN V IOUT 400 Lead Temperature Range 260 o Storage Temperature Range -55 ~ 150 o Operating Junction Temperature Range 150 o ESD Ratings Unit mW mA C C C HBM 8000 V MM 400 V Recommend Operating Ratings Parameter Value Operating Supply voltage 2.2～5.5 Operating Temperature Range -40～85 Thermal Resistance, RθJA (SOT-353) 250 o Thermal Resistance, RθJA (DFN1x1-4L) 250 o Will Semiconductor Ltd. 3 Unit V C o C/W C/W Aug, 2017 – Rev 1.9 WL2810 Electronics Characteristics (Ta=25oC, VIN=VOUT+1V, CIN=COUT=1uF, unless otherwise noted) Parameter Symbol Condition VOUT ≤1.5V, VIN=2.7V, IOUT=1mA Output Voltage VOUT VOUT>1.5V, IOUT=1mA Current Limit Dropout Voltage ILIM VDROP VEN=VIN Min. 0.97 VOUT 0.98 VOUT Typ. VOUT VOUT Max. Unit 1.03 VOUT 1.02 V VOUT 300 mA VOUT=3.3V, IOUT=300mA 220 330 VOUT=3.0V, IOUT=300mA 240 360 VOUT=2.8V, IOUT=300mA 250 375 VOUT=2.5V, IOUT=300mA 280 420 VOUT=1.8V, IOUT=300mA 400 600 VOUT≤1.5V, IOUT=300mA Vin-min=2.2V 0.01 0.1 %/V mV Line Regulation △VLINE VIN=2.7~5.5V, IOUT=1mA Load Regulation △VLoad VOUT=2.8V , IOUT=1~300mA 10 30 mV Quiescent Current IQ VOUT=2.8V, IOUT=0 42 70 μA Short Current ISHORT VEN=VIN, VOUT Short to GND with 1Ω 80 Shut-down Current ISHDN VEN=0V 1.0 VIN=(VOUT+1V)DC+0.5VP-P Power Supply Rejection Rate PSRR mA μA 70 F=217Hz ,Iout=10mA dB VIN=(VOUT+1V)DC+0.5VP-P 60 F=10KHz, Iout=10mA EN logic high voltage VENH VIN=5.5V, IOUT=1mA EN logic low voltage VENL VIN=5.5V, VOUT=0V 0.4 V EN Input Current IEN VEN= 0 to 5.5V 1.0 μA Output Noise Voltage eNO 10Hz to 100KHz, COUT=1μF Thermal shutdown threshold TSD Thermal shutdown hysteresis Will Semiconductor Ltd. △ TSD 4 1.2 V 55 μVRMS C 165 o 30 o C Aug, 2017 – Rev 1.9 WL2810 Typical characteristics (Ta=25oC, VIN=3.8V, VOUT = 2.8V CIN=COUT=1uF, unless otherwise noted) Quiescent current vs. Supply voltage Quiescent current vs. Supply voltage Output voltage vs. Supply voltage Output voltage vs. Supply voltage Output voltage vs. Output current Will Semiconductor Ltd. Output voltage vs. Output current 5 Aug, 2017 – Rev 1.9 WL2810 Output Voltage vs. Temperature Output Voltage vs. Temperature Dropout Voltage vs. Output Current Will Semiconductor Ltd. PSRR 6 Aug, 2017 – Rev 1.9 WL2810 Soft Start form EN Soft Start form EN EN Shutdown EN Shutdown Load Step Load Step Line Step Will Semiconductor Ltd. Line Step 7 Aug, 2017 – Rev 1.9 WL2810 PACKAGE OUTLINE DIMENSIONS SOT-353 D θ e L1 E E1 L e1 C b 0.2 SIDE VIEW A A2 A1 TOP VIEW SIDE VIEW Dimensions in Millimeters Symbol Min. Typ. Max. A 0.85 - 1.10 A1 0.00 - 0.10 A2 0.80 0.90 1.00 b 0.15 0.25 0.35 c 0.08 - 0.15 D 2.00 2.10 2.20 E 1.15 1.25 1.35 E1 2.15 2.30 2.45 e 0.65 Typ. e1 1.20 1.30 L 1.40 0.50 Ref. L1 0.26 0.36 0.46 θ 0︒ - 8︒ Recommend PCB Layout (Unit: mm) 0.65 0.80 0.40 Notes: 1.94 This recommended land pattern is for reference purposes only. Please consult your manufacturing group to ensure your PCB design guidelines are met. 1.30 Will Semiconductor Ltd. 8 Aug, 2017 – Rev 1.9 WL2810 TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions Tape Dimensions W P1 Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 User Direction of Feed RD Reel Dimension 7inch 13inch W Overall width of the carrier tape 8mm 12mm P1 Pitch between successive cavity centers 2mm 4mm 8mm Pin1 Pin1 Quadrant Q1 Q2 Q3 Will Semiconductor Ltd. 9 Q4 Aug, 2017 – Rev 1.9 WL2810 Packaging Information DFN1x1-4L Dimensions In Millimeters Symbol Min. Typ. Max. A 0.34 0.37 0.40 A1 0.00 0.02 0.105 A3 0.10 REF b 0.17 0.22 0.27 D 0.95 1.00 1.05 E 0.95 1.00 1.05 D2 0.43 0.48 0.53 E2 0.43 0.48 0.53 L 0.20 0.25 0.30 e 0.60 0.65 0.70 K 0.15 - - Will Semiconductor Ltd. 10 Aug, 2017 – Rev 1.9 WL2810 TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions Tape Dimensions W P1 Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 RD Reel Dimension W Overall width of the carrier tape P1 Pitch between successive cavity centers Pin1 Pin1 Quadrant Will Semiconductor Ltd. User Direction of Feed 7inch 13inch 1 8mm 12mm 16mm 2mm 4mm 8mm Q1 Q2 Q3 11 Q4 Aug, 2017 – Rev 1.9 WL2810 ORDER INFORMATION Ordering No. Vout (V) Package Operating Temperature Marking WL2810B12-5/TR 1.2 SOT-353 -40~+85°C BEM WL2810B15-5/TR 1.5 SOT-353 -40~+85°C BGM WL2810B18-5/TR 1.8 SOT-353 -40~+85°C BHM WL2810B28-5/TR 2.8 SOT-353 -40~+85°C BLM WL2810B30-5/TR 3.0 SOT-353 -40~+85°C BMM WL2810B33-5/TR 3.3 SOT-353 -40~+85°C BNM WL2810D10-4/TR 1.0 DFN1x1-4L -40~+85°C WL2810D105-4/TR 1.05 DFN1x1-4L -40~+85°C WL2810D12-4/TR 1.2 DFN1x1-4L -40~+85°C WL2810D13-4/TR 1.3 DFN1x1-4L -40~+85°C WL2810D15-4/TR 1.5 DFN1x1-4L -40~+85°C WL2810D18-4/TR 1.8 DFN1x1-4L -40~+85°C WL2810D25-4/TR 2.5 DFN1x1-4L -40~+85°C WL2810D28-4/TR 2.8 DFN1x1-4L -40~+85°C WL2810D30-4/TR 3.0 DFN1x1-4L -40~+85°C WL2810D33-4/TR 3.3 DFN1x1-4L -40~+85°C Shipping Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 DB Tape and Reel, YW 10000 DC Tape and Reel, YW 10000 DE Tape and Reel, YW 10000 DF Tape and Reel, YW 10000 DG Tape and Reel, YW 10000 DH Tape and Reel, YW 10000 DK Tape and Reel, YW 10000 DL Tape and Reel, YW 10000 DM Tape and Reel, YW 10000 DN Tape and Reel, YW 10000 Marking: B* = Device Code D* = Device Code M = Month Y = Year W = Week Will Semiconductor Ltd. 12 Aug, 2017 – Rev 1.9
