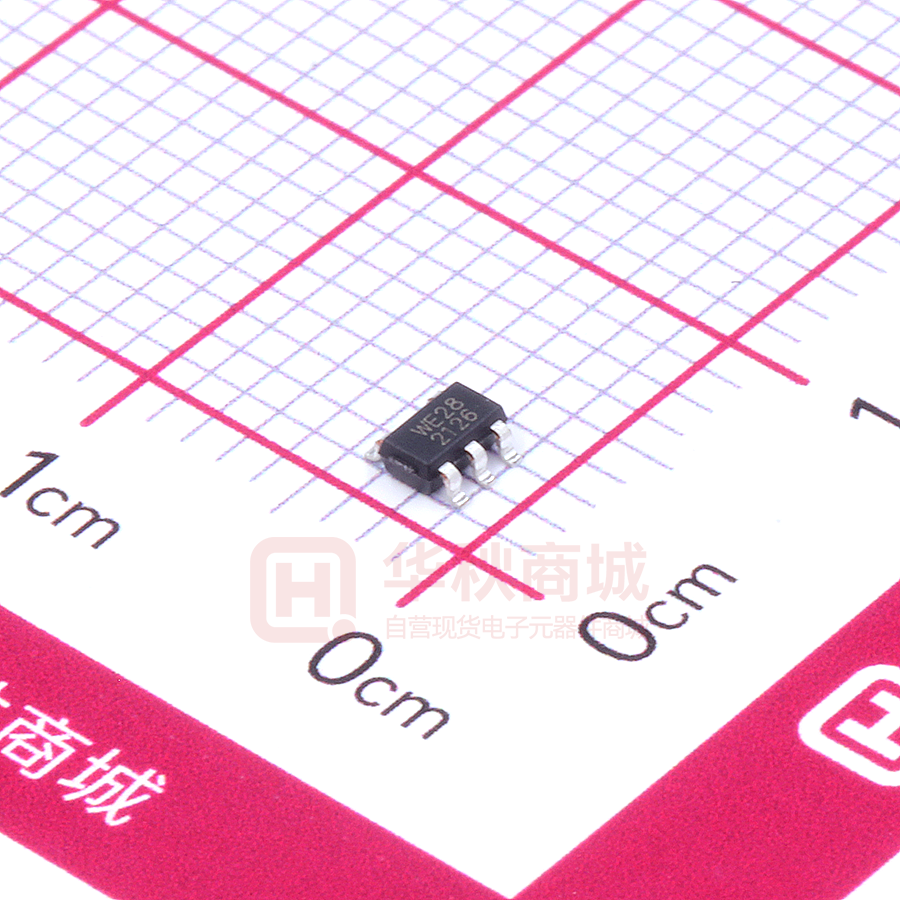

WL2801E28-5/TR

WL2801E WL2801E Low noise, High PSRR, High speed, CMOS LDO Http://www.willsemi.com Descriptions The WL2801E series is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates SOT-23-5L as a short circuit protection and an output current limiter at the output pin. The WL2801E regulators are available in standard SOT-23-5L packages. Standard products are Pb-free and Halogen-free. Features  Input voltage : 2.7V~5.5V  Output range : 1.2V~3.3V  Output current : 200mA (@Vout2V)( Typ.)   PSRR : 75dB @ 217Hz  Dropout voltage : 170mV @ IOUT=200mA  Quiescent current : 70μA Typ.  Shut-down current : < 0.1μA  Recommend capacitor : 1uF **** **** Applications  MP3/MP4 Players  Cellphones, radiophone, digital cameras  Bluetooth, wireless handsets  Others portable electronics device For detail marking information, please see page 10. Marking Order Information For detail order information, please see page 10. Will Semiconductor Ltd. 1 Feb, 2019 – Rev.3.5 WL2801E Typical Application VIN 1uF ON 1 Pin Description 5 2 3 VOUT 1uF 4 PIN Symbol Description 1 VIN Input 2 GND Ground 3 EN Enable (Active high) 4 NC Not connected 5 VOUT Output OFF Block Diagram Will Semiconductor Ltd. 2 Feb, 2019 – Rev.3.5 WL2801E Absolute Maximum Ratings Parameter Value Unit Power Dissipation Internal limited VIN Range -0.3～6.5 V VEN Range -0.3～VIN V VOUT Range -0.3～VIN V Lead Temperature Range 260 o Storage Temperature Range -55 ~ 150 o Operating Junction Temperature Range 150 o mW C C C Recommend Operating Ratings Parameter Value Unit Operating Supply voltage 2.7～5.5 Operating Temperature Range -40～85 V C o Thermal Resistance, RθJA 250 oC/W Theta-JC 70 o Theta-JA 250 o C/W C/W Electronics Characteristics (Ta=25oC, VIN=VOUT+1V, CIN=COUT=1uF, unless otherwise noted) Parameter Symbol Condition VOUT
