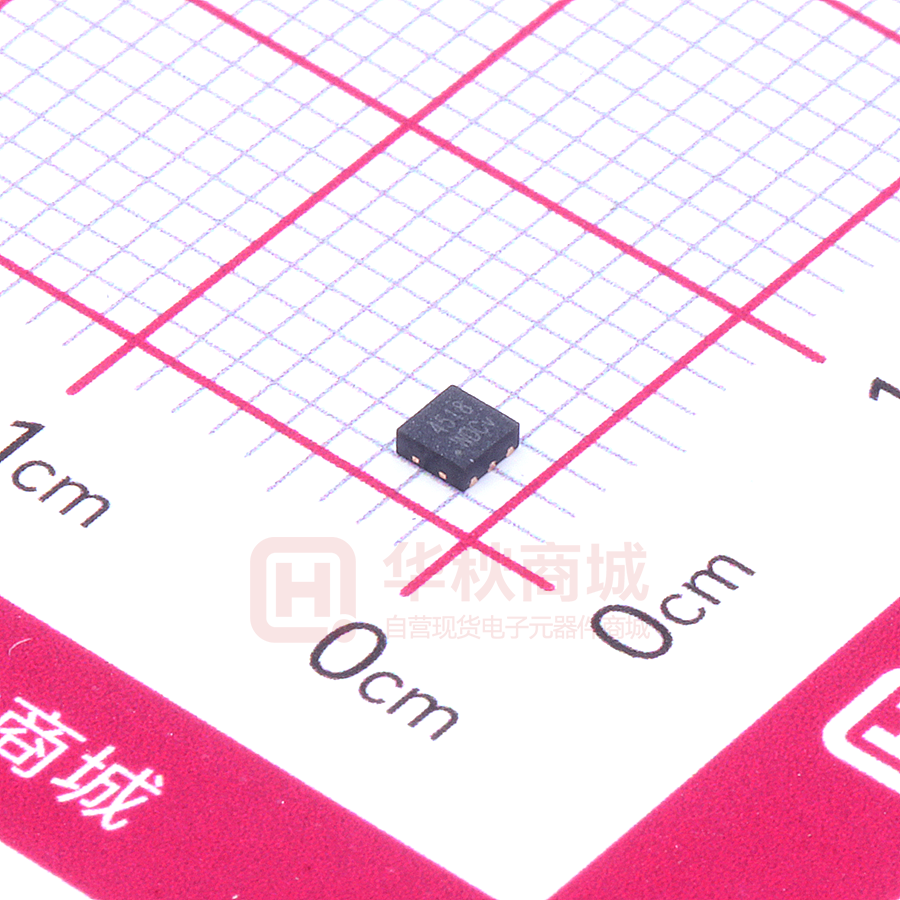

WS4518D-6/TR

WS4518D WS4518D 300mA, Single Li-ion Battery Charger www.sh-willsemi.com Descriptions The WS4518D is a complete constant-current / constant voltage linear charger for single cell Lithium-Ion batteries. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit DFN2X2-6L the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at PROG 1 GND 2 VCC 3 6 TEMP WS4518D 5 CHRGb Expose Pad 4 BAT GND 4.2V, and the charge current can be programmed externally with a single resistor. The WS4518D automatically terminates the charge cycle when the charge current drops to 3/10 the programmed value after the final float voltage is reached. Pin configuration (Top view) When the input supply (wall adapter or USB supply) is removed, the WS4518D automatically enters a low current state, dropping the battery drain current to less 4518 than 0.5uA. The WS4518D can be put into shutdown WDYW mode, reducing supply current to 40uA (Typ.). The WS4518D is available in a small package with DFN2X2-6L. Standard product is Pb-Free. 4518 WD = Device Code = Package Code Features Y = Year  Programmable Charge Current Up to 300mA W = Week  Over-Temperature Protection  Under Voltage Lockout Protection  Automatic Recharge Threshold 4.05V(Typ.)  Charge Status Output Pin  2.9V Trickle Charge Threshold  Soft-Start Limits Inrush Current Marking Order information Device Package Shipping WS4518D-6/TR DFN2X2-6L 3000/Reel&Tape Applications  Wireless phone  MP3/MP4 Player  Bluetooth device Will Semiconductor Ltd. 1 Apr, 2016 - Rev. 1.3 WS4518D Typical applications VCC 10uF 3 VCC TEMP R1 6 R2 LED WS4518D R3 5 BAT CHRGb PROG 4 Li-Lon 10uF BAT 1 NTC RPROG GND 2 Typical applications W/T LED indicate VCC 10uF 3 VCC TEMP 6 WS4518D uP R3 5 BAT CHRGb PROG GND 4 Li-Lon 10uF BAT 1 RPROG 2 Typical applications W/T microprocessor detect Will Semiconductor Ltd. 2 Apr, 2016 - Rev. 1.3 WS4518D Pin descriptions Pin Number Pin Name Function Charge current setting, charge current monitor and shutdown pin. The 1 PROG charging current is given by I BAT = (1/RPROG)*1000. The chip will be shutdown when PROG pin floating 2 GND Ground 3 VCC Power Supply 4 BAT 5 CHRGb Charge Current Output. Provides charge current to the battery and regulates the final float voltage to 4.2V. Open-Drain Charge Status Output. When the battery is charging, the CHRGb pin is pulled low. When the charge cycle is completed or VCC is removed, the CHRGb is forced high impedance. 6 TEMP Expose Pad GND Battery Temperature Sense Pin. When the battery temperature is too high or too low, the charging current will be terminated. This pin must be connected to GND, and punch to the main GND to facilitate heat dissipation. Block Diagram VCC 165°C 1X TA TDIE 1000X 5uA BAT 80%Vcc C4 MA R1 TEMP C5 45%Vcc VA CA SHDNb R2 REF 1.2V C1 1V R3 R4 0.3V CHRGb C2 To BAT 2.9V R5 1uA Vcc C3 PROG GND Will Semiconductor Ltd. 3 Apr, 2016 - Rev. 1.3 WS4518D Absolute Maximum ratings Parameter Symbol Rating Unit Supply Voltage VCC -0.3~8 V PROG Voltage VPROG -0.3~VCC V VBAT -0.3~8 V CHRGb Voltage VCHRGb -0.3~VCC V BAT Pin Current IBAT 600 mA Power Dissipation – Note1 Pd 0.5 W Power Dissipation – Note2 Pd 0.3 W 150 o -45~85 o -65~125 o 260 o BAT Voltage Junction Temperature Operation Temperature Storage Temperature Tj Top Tsg Lead Temperature (Soldering 10s) C C C C Thermal resistance characteristics Symbol Parameter Max. RJA1 Thermal Resistance, Junction to Ambient – Note1 RJA2 Thermal Resistance, Junction to Ambient – Note2 Unit 125 O C/W 165 O C/W Note1: Surface mounted on FR4 Board using 1 in sq pad size, 2oz Cu. Note2: Surface mounted on FR4 board using the minimum recommended pad size, 2oz Cu. Will Semiconductor Ltd. 4 Apr, 2016 - Rev. 1.3 WS4518D o Electronics Characteristics (VCC=5V, Ta=25 C, unless otherwise noted) Symbol Parameter Condition Min. ISPLYCHRG IBATCHRG Charge Mode Supply Current Charge Mode Battery Current Typ. Max. Unit RPROG=10kΩ 250 2000 uA RPROG=20kΩ 200 2000 uA RPROG=10kΩ 90 100 110 mA RPROG=20kΩ 44 49 54 mA RPROG=33.3kΩ 25 28.5 32 mA RPROG=10kΩ 0.93 1.00 1.07 V RPROG=20kΩ 0.93 1.00 1.07 V 136 500 uA VPROGCHRG PROG Pin Voltage ISPLYSTBY Standby Mode Supply Current Charge Terminated IBATSTBY Standby Mode Battery Current Charge Terminated 0 -2.5 -6 uA ISPLYASD Shutdown Mode Supply Current VCC
