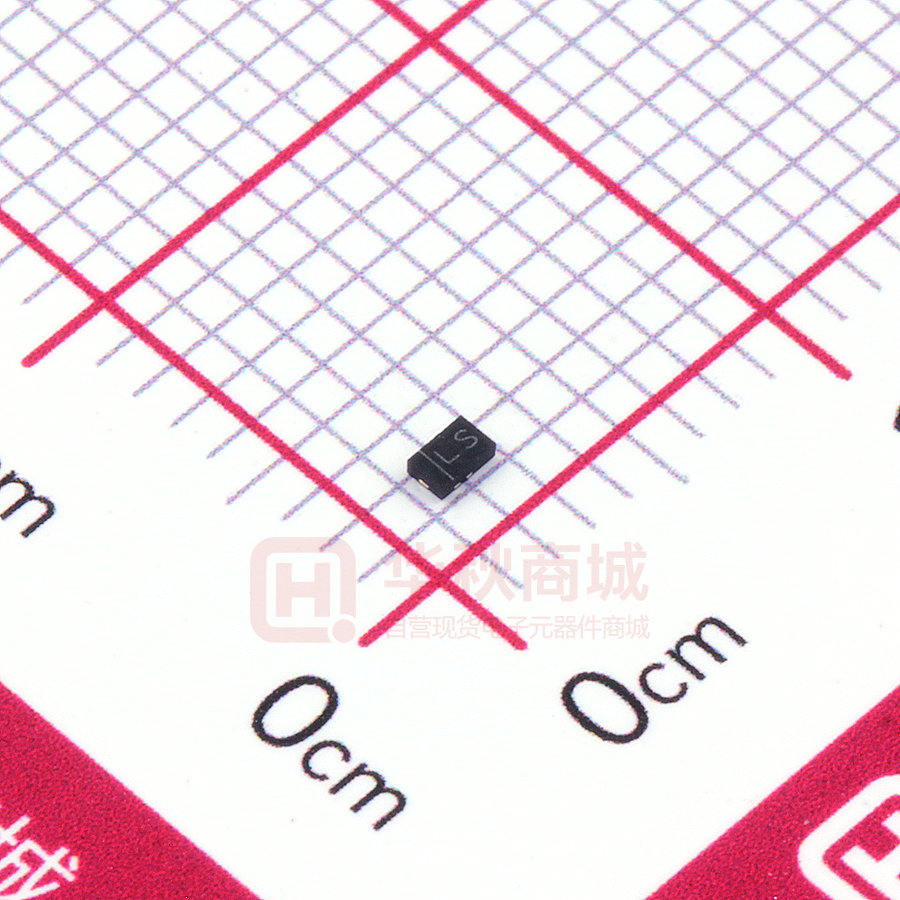

ESD56201D15-2/TR

ESD56201DXX ESD56201DXX 1-Line, Uni-directional, Transient Voltage Suppressor www.omnivision-group.com Descriptions The ESD56201DXX is a transient voltage suppressor designed to protect power interfaces. It is suitable to replace multiple discrete components in portable electronics. The ESD56201DXX is specifically designed to protect power lines. The ESD56201DXX is available in DFN1610-2L package. DFN1610-2L (Bottom View) Standard products are Pb-free and Halogen-free. Features Pin1 ⚫ Reverse stand-off voltage: 4.85V ~ 24V ⚫ Surge protection according to IEC61000-4-5 see Table 4 ⚫ Pin2 Circuit diagram ESD protection according to IEC61000-4-2 ±30kV (contact and air discharge) ⚫ Low clamping voltage ⚫ Solid-state silicon technology Pin1 Applications ⚫ Power supply protection ⚫ Power management x* Pin2 X= Device code (H I J K L S N M) * = Month code (A~Z) Marking (Top View) Order information Table 1. Device Package Shipping Marking ESD56201D04-2/TR DFN1610-2L 10000/Tape&Reel H* ESD56201D05-2/TR DFN1610-2L 10000/Tape&Reel I* ESD56201D10-2/TR DFN1610-2L 10000/Tape&Reel J* ESD56201D12-2/TR DFN1610-2L 10000/Tape&Reel K* ESD56201D15-2/TR DFN1610-2L 10000/Tape&Reel L* ESD56201D18-2/TR DFN1610-2L 10000/Tape&Reel S* ESD56201D20-2/TR DFN1610-2L 10000/Tape&Reel N* ESD56201D24-2/TR DFN1610-2L 10000/Tape&Reel M* Will Semiconductor Ltd. 1 Revision 2.0, 2022/04/24 ESD56201DXX Absolute maximum ratings Table 2. Parameter Peak pulse power (tp = 8/20μs) ESD according to IEC61000-4-2 air discharge Symbol Rating Unit Ppk 1600 W ±30 VESD ESD according to IEC61000-4-2 contact discharge ±30 kV TJ 125 oC Operating temperature TOP -40~85 oC Lead temperature TL 260 oC TSTG -55~150 oC Junction temperature Storage temperature Electrical characteristics (TA = 25oC, unless otherwise noted) I IPP VF Forward voltage VRWM Reverse stand-off voltage IF Forward current IR Reverse leakage current VFC Forward clamping voltage VBR Reverse breakdown voltage IPP Peak pulse current VCL Clamping voltage IPP Peak pulse current VFC VF IBR IR VRWM VBR VCL V IF IPP Definitions of electrical characteristics Will Semiconductor Ltd. 2 Revision 2.0, 2022/04/24 ESD56201DXX Electrical characteristics (TA = 25oC, unless otherwise noted) Table 3. Reverse Stand-off Voltage Type number Breakdown voltage VBR(V) IBR = 1mA VRWM (V) Junction Reverse leakage current IRM(μA) at VRWM Forward voltage capacitance VF(V) IF = 20mA F = 1MHz, VR=0V (pF) Max. Min. Typ. Max. Type. Max. Min. Max. Typ. Max. ESD56201D04 4.85 5.2 5.7 6.2 - 5.0 0.45 1.25 1100 1300 ESD56201D05 5.0 6.6 7.1 7.6 - 2.0 0.45 1.25 1050 1250 ESD56201D10 10.0 10.7 11.3 12.3 - 0.1 0.45 1.25 545 650 ESD56201D12 12.0 12.7 13.7 14.6 - 0.1 0.45 1.25 425 510 ESD56201D15 15.0 16.0 17.5 19.0 - 0.1 0.45 1.25 325 350 ESD56201D18 18.0 19.2 21.1 23.0 - 0.1 0.45 1.25 270 300 ESD56201D20 20.0 21.4 23.2 25.0 - 0.1 0.45 1.25 250 275 ESD56201D24 24.0 25.6 27.5 30.0 - 0.1 0.45 1.25 210 250 Table 4. Rated peak pulse current IPP （A）1)2) Clamping voltage VCL(V) at IPP（A）1)2) Type number Max. Typ. Max. ESD56201D04 120 10.5 12.0 ESD56201D05 100 11.0 13.0 ESD56201D10 86 17.5 20.0 ESD56201D12 75 19.5 22.0 ESD56201D15 60 27.0 30.0 ESD56201D18 50 32.0 35.0 ESD56201D20 45 35.0 38.0 ESD56201D24 40 39.0 42.0 Notes: 1) Non-repetitive current pulse, according to IEC61000-4-5. (8/20μs current waveform) 2) Measured from pin 1 to pin 2. Will Semiconductor Ltd. 3 Revision 2.0, 2022/04/24 ESD56201DXX 100 90 Front time: T1= 1.25  T = 8μs 100 90 Current (%) Time to half-value: T2= 20μs 50 T2 10 T 5 10 T1 15 Time (μs) 20 25 tr = 0.7~1ns 2400 Pulse waveform: tp = 8/20s ESD56201D24 Time (ns) Contact discharge current waveform per IEC61000-4-2 8/20μs waveform per IEC61000-4-5 40 t 60ns 30ns 30 ESD56201D20 35 ESD56201D18 30 ESD56201D15 25 ESD56201D12 20 ESD56201D10 15 ESD56201D05 IR -Leakage current (nA) 10 0 0 VC - Clamping voltage (V) Peak pulse current (%) Typical characteristics (TA = 25oC, unless otherwise noted) 2000 ESD56201D04 1600 1200 800 ESD56201D05 400 10 ESD56201D04 5 0 25 50 75 100 0 125 IPP - Peak pulse current (A) -20 0 20 40 60 80 o TA - Ambient temperature ( C) Clamping voltage vs. Peak pulse current Will Semiconductor Ltd. -40 Leakage current vs. Ambient temperature 4 Revision 2.0, 2022/04/24 PACKAGE OUTLINE DIMENSIONS DFN1610-2L L h b E D e TOP VIEW h BOTTOM VIEW I A3 A1 A 1. 2. I NA SIDE VIEW Dimensions in Millimeters Symbol Min. Typ. Max. A 0.45 0.50 0.55 A1 - 0.02 0.05 A3 0.15 Ref. b 0.75 0.80 0.85 L 0.35 0.40 0.45 D 1.55 1.60 1.65 E 0.95 1.00 1.05 e 1.10 BSC h 0.20 Ref. Recommend PCB Layout (Unit: mm) 0.600 0.625 Notes: 1.000 This recommended land pattern is for reference purposes only. Please consult your manufacturing group to ensure your PCB design guidelines are met. 1.225 1.850 Will Semiconductor Ltd. 5 Revision 2.0, 2022/04/24 TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions W Tape Dimensions P1 Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 RD Reel Dimension W Overall width of the carrier tape P1 Pitch between successive cavity centers Pin1 Pin1 Quadrant Will Semiconductor Ltd. User Direction of Feed 7inch 13inch 1 8mm 12mm 16mm 2mm 4mm 8mm Q1 Q2 Q3 6 Q4 Revision 2.0, 2022/04/24
