ESD56131W
ESD56131W
1-Line, Bi-directional, Transient Voltage Suppressor
www.omnivision-group.com
Descriptions
The ESD56131W is a Bi-directional TVS (Transient Voltage
Suppressor). It is specifically designed to protect sensitive
electronic components which are connected to power lines
from over-stress caused by ESD (Electrostatic Discharge),
EFT (Electrical Fast Transients) and Lightning.
The ESD56131W may be used to provide ESD protection up
to
±30kV
(contact
and
air
discharge)
according
SOD-323F (Bottom View)
to
IEC61000-4-2, and with high surge capability used to protect
USB voltage bus pin according to IEC61000-4-5.

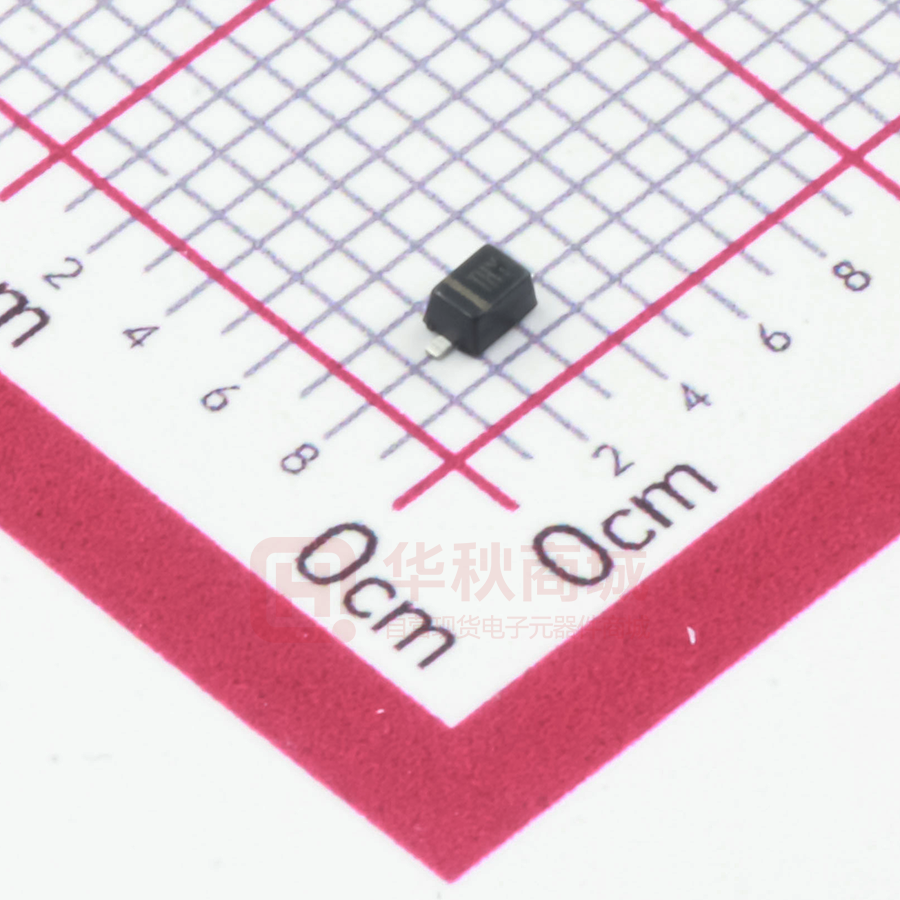

The ESD56131W is available in SOD-323F package.
Pin1
Pin2
Standard products are Pb-free and Halogen-free.
Circuit diagram
Features
⚫
Reverse stand-off voltage: ±4.6V
⚫
Transient protection according to
IEC61000-4-2 (ESD): ±30kV (contact and air discharge)
Pin1
IEC61000-4-4 (EFT): 80A (5/50ns)
TH
*
Pin2
IEC61000-4-5 (surge): 100A (8/20μs)
⚫
Capacitance: CJ = 250pF typ.
⚫
Low clamping voltage
⚫
Solid-state silicon technology
TH = Device code
*
Marking (Top View)
Applications
⚫
Power supply protection
⚫
Power management
= Month code
Order information
Device
Package
Shipping
ESD56131W-2/TR SOD-323F 3000/Tape&Reel
Will Semiconductor Ltd.
1
Revision 1.2, 2022/04/24
ESD56131W
Absolute maximum ratings
Parameter
Symbol
Rating
Unit
Peak pulse power (tp=8/20μs)
Ppk
1400
W
Peak pulse current (tp = 8/20μs)
IPP
100
A
ESD according to IEC61000-4-2 air discharge
VESD
ESD according to IEC61000-4-2 contact discharge
±30
kV
±30
TJ
125
oC
Operating temperature
TOP
-40~85
oC
Lead temperature
TL
260
oC
TSTG
-55~150
oC
Junction temperature
Storage temperature
Electrical characteristics (TA = 25oC, unless otherwise noted)
I
VRWM Reverse stand-off voltage
IR
Reverse leakage current
VCL
Clamping voltage
IPP
Peak pulse current
IPP
IHOLD
VHOLD
VCL VTRIG
VRWM
ITRIG
IR
IR
ITRIG
VRWM VTRIG
VHOLD
VCL
V
IHOLD
VTRIG Reverse trigger voltage
ITRIG
Reverse trigger current
VHOLD Reverse holding voltage
IHOLD Reverse holding current
IPP
Definitions of electrical characteristics
Will Semiconductor Ltd.
2
Revision 1.2, 2022/04/24
ESD56131W
Electrical characteristics (TA = 25oC, unless otherwise noted)
Parameter
Symbol
Reverse maximum working voltage
VRWM
Reverse leakage current
Reverse breakdown voltage
Reverse holding voltage
Clamping voltage 1)
Clamping voltage 2)
Junction capacitance
IR
VBR
VHOLD
VCL
VCL
CJ
Condition
Min.
Typ.
VRWM = 4.6V
Max.
Unit
±4.6
V
1
μA
IBR = 1mA
4.8
V
IHOLD = 50mA
4.8
V
VESD = 8kV
8.0
V
IPP = 1A, tp = 8/20μs
6
V
IPP = 50A, tp = 8/20μs
10
V
IPP = 100A, tp = 8/20μs
14
V
300
pF
VR = 0V, f = 1MHz
250
Notes:
1)
Contact discharge mode, according to IEC61000-4-2.
2)
Non-repetitive current pulse, according to IEC61000-4-5.
Will Semiconductor Ltd.
3
Revision 1.2, 2022/04/24
ESD56131W
Time to half-value: T2= 20s
50
T2
10
10
0
0
Time (s)
tr = 0.7~1ns
8/20μs waveform per IEC61000-4-5
Time (ns)
Contact discharge current waveform per IEC61000-4-2
CJ - Junction capacitance (pF)
14
Pulse waveform: tp = 8/20μs
12
pin2 to pin1
10
pin1 to pin2
8
t
60ns
30ns
20
T
T1
VC - Clamping voltage (V)
100
90
Front time: T1= 1.25 T = 8s
100
90
Current (%)
Peak pulse current (%)
Typical characteristics (TA = 25oC, unless otherwise noted)
6
270
f = 1MHz
VAC = 50mV
260
250
240
230
220
210
200
190
180
170
4
0
20
40
60
80
160
-5
100
-4
-3
-2
-1
0
1
2
3
IPP - Peak pulse current (A)
VR - Reverse voltage (V)
Clamping voltage vs. Peak pulse current
Capacitance vs. Reverse voltage
4
5
10V/div
10V/div
20ns/div
20ns/div
ESD clamping
ESD clamping
(+8kV contact discharge per IEC61000-4-2)
(-8kV contact discharge per IEC61000-4-2)
Will Semiconductor Ltd.
4
Revision 1.2, 2022/04/24
PACKAGE OUTLINE DIMENSIONS
SOD-323F
D
E
b
D1
TOP VIEW
SIDE VIEW
1.40
0.80
0.80
A
0.80
c
2.20
SIDE VIEW
Symbol
RECOMMEND LAND PATTERN(unit:mm)
Dimensions in Millimeters
Min.
Typ.
Max.
A
0.60
-
1.10
c
0.08
0.13
0.18
b
0.25
-
0.40
D1
1.60
1.70
1.80
E
1.15
1.25
1.35
D
2.30
2.50
2.80
Will Semiconductor Ltd.
5
Revision 1.2, 2022/04/24
TAPE AND REEL INFORMATION
Reel Dimensions
RD
Reel Dimensions
W
Tape Dimensions
P1
Quadrant Assignments For PIN1 Orientation In Tape
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
RD
Reel Dimension
W
Overall width of the carrier tape
P1
Pitch between successive cavity centers
Pin1
Pin1 Quadrant
Will Semiconductor Ltd.
User Direction of Feed
7inch
13inch
1 8mm
12mm
16mm
2mm
4mm
8mm
Q1
Q2
Q3
6
Q4
Revision 1.2, 2022/04/24
