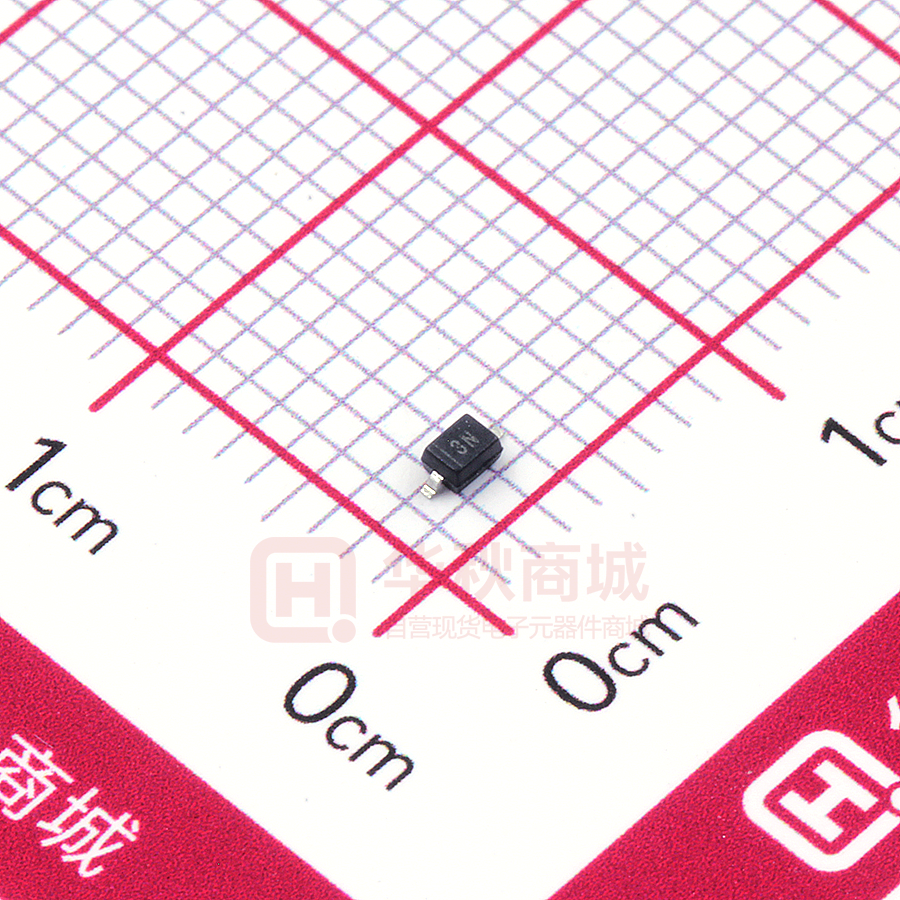

MM3Z5V1-2/TR

MM3Z5V1-2/TR

  • 厂商:

    WILLSEMI(韦尔)

  • 封装:

    SOD323

  • 描述:

    500mW,SOD-323齐纳二极管

  • 数据手册
  • 价格&库存
MM3Z5V1-2/TR 数据手册
MM3Z5V1 MM3Z5V1 http//:www.sh-willsemi.com 500mW, SOD-323 Zener Diode Features  Power Dissipation :500mW  Package :SOD-323  Zener voltage :5.1V  Zener current :5mA  Tolerance :±5%  Reveres leakage :See characteristics  ESD Rating :±15KV  Peak power :300W  Pb-Free SOD-323 Pin configuration (Top view) 3* Mechanical Characteristics  Case : SOD-323 Molded Plastic  Polarity : Cathode Band  Weight : 0.01 grams (approx.)   SOD-323 o Soldering temperature : 260 C per 10 second. Storage temperature o : -55 C o to +150 C Mobile phone  GPS  MID  Portable Media Player  Set-Top BOX  HD Player Will Semiconductor Ltd. = Device code * = Month code (A~Z) Marking Applications  3 Order information 1 Device Package Shipping MM3Z5V1-2/TR SOD-323 3000/Tape&Reel Revision 1.2, 2014/10/16 MM3Z5V1 Absolute maximum ratings Parameter Symbol Rating Unit Forward voltage VF 0.9 V Power dissipation PD 500 Thermal resistance, Junction−to−Ambient RθJA 340 Storage temperature TSTG −55 to +150 mW o C/W o C Electrical characteristics (TA = 25 oC, unless otherwise noted) Zener Impedance (VZ) @IZT = 5mA Device MM3Z5V1 Min. (V) Typ. (V) Max. (V) 4.85 5.10 5.36 Will Semiconductor Ltd. Dynamic resistance ZZK (Ω) @ ZZT (Ω) @ IZK = 1mA IZT = 5mA 480 50 2 Reverse leakage Junction current capacitance IR (μA) VR (V) C (pF) 0.1 1 110 Revision 1.2, 2014/10/16 MM3Z5V1 o Typical characteristics (TA = 25 C, unless otherwise noted) Zener current vs. Zener voltage Zener current vs. Zener impedance Zener voltage vs. Temperature Leakage current vs. Reverse voltage Power derating vs. Temperature Will Semiconductor Ltd. Peak surge power vs. Pulse width 3 Revision 1.2, 2014/10/16 MM3Z5V1 Package outline dimensions SOD-323 Symbol Dimensions in millimeters Dimensions in Inches Min. Max. Min. Max. A 0.800 1.000 0.031 0.039 A1 0.000 0.100 0.000 0.004 A2 0.800 0.900 0.031 0.035 b 0.250 0.350 0.010 0.014 c 0.080 0.150 0.003 0.006 D 1.200 1.400 0.047 0.055 E 1.600 1.800 0.063 0.071 E1 2.500 2.700 0.098 0.106 0.475 REF L 0.019 REF L1 0.250 0.400 0.010 0.016 θ 0° 8° 0° 8° Recommend land pattern (Unit: mm) Note: This land pattern is for your reference only. Actual pad layouts may vary depending on application. Will Semiconductor Ltd. 4 Revision 1.2, 2014/10/16 MM3Z5V1 Tape and reel specification SOD-323 Dimensions in millimeter Pkg type A B C d E F P0 P P1 W SOD-323 1.46 2.90 1.25 Ø 1.50 1.75 3.50 4.00 4.00 2.00 8.00 (Tolerance) ±0.05 ±0.05 ±0.05 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 +0.3/-0.1 Will Semiconductor Ltd. 5 Revision 1.2, 2014/10/16
