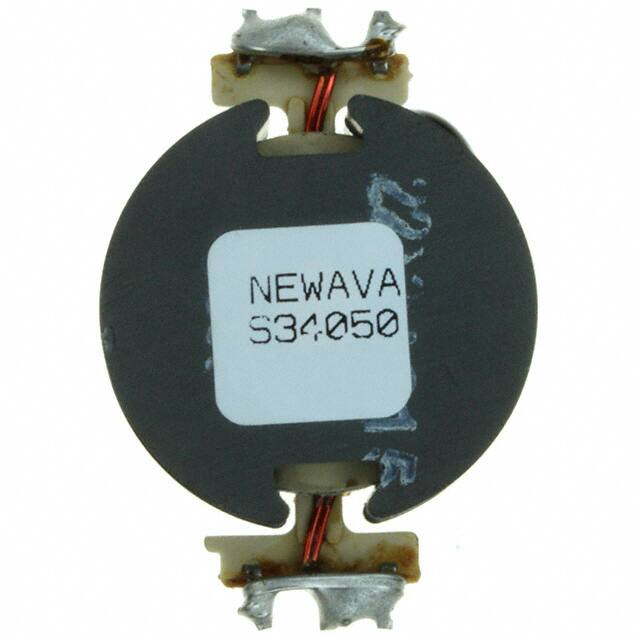

22 x 13 LM1575X, LM1577X Inductor
1000 uHy 0.90 ADC
Inductor designed for use with National Semiconductor Regulators:
LM1575-XX / LM2575-XX
LM1577-XX / LM2577-XX
1.287 Max
0.14 Typ
NEWAVA
S34050
YYWW
1
2
3
6
5
4
0.89 Max
0.55 Max
ELECTRICAL SPECS:
1: INDUCTANCE: @ 10 kHz, 0.1 Vrms
(1 thru 3 to 4 thru 6) = 900 - 1100 uHy
0.15 Min
0.99
+/- 0.02
2: DCRs:
(1 thru 3 to 4 thru 6) = 0.250 Ohms Max.
3: Temp Class - 130 C
4,5,6
Jumper Terminals
on PC board
4: HIPOT: 250 VDC
Winding to core (2 Sec., 5 mA Max)
2/20/03
A
REV.
+
-
Specifications at room temperature of 25 C.
1,2,3
Jumper Terminals
on PC board
.XXX
-
KAM
DATE
ECN
BY
TOLERANCES ON
ANGLE
.XX
+
+
- -
Production Release
DESCRIPTION
Newava Tech.
Watertown, SD 57201
1000 uHy Inductor
0.90 ADC
605-886-0264
DATE
DRAWN:
SCALE
MODEL
DRAWING NO.
REV.
CHECKED: APPROVED: - KAM NEXT ASSY:
THIS PRINT MUST NOT BE COPIED IN WHOLE OR IN PART
OR USED DETRIMENTALLY TO OUR INTEREST
SHEET 1 OF 1
S34050
A
