SD3114-4R7-R

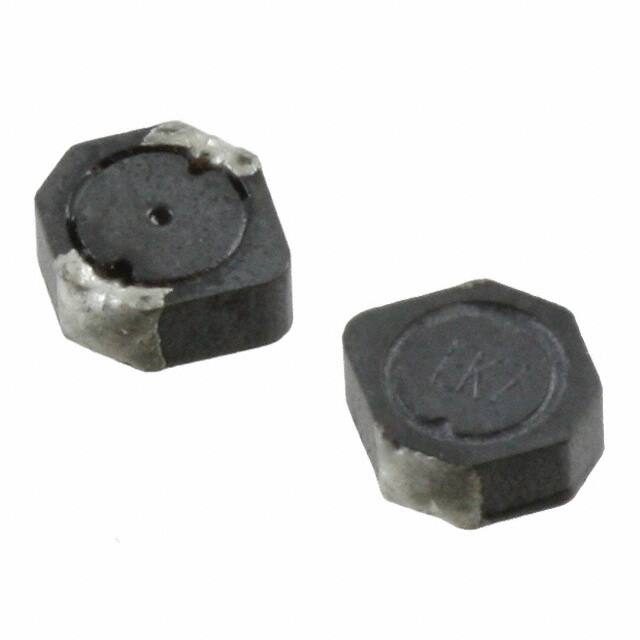

Technical Data 4128 Effective August 2017 Supersedes March 2007 SD3114 Low profile metalized shielded drum core power inductors Applications • • • • • • • SMD Device Environmental data • Product features • • • • • 3.1 mm x 3.1 mm x 1.4 mm shielded drum core Ferrite core material Inductance range from 1.0 uH to 330 uH Current range from 2.59 A to 0.106 A Frequency range up to 4 MHz Mobile phones, Digital cameras Media players Small LCD displays LED driver and LED flash circuits Hard disk drives LCD Backlighting • • Storage temperature range (component): -40 °C to +125 °C Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise) Solder reflow temperature: J-STD-020 (latest revision) compliant Pb HF FREE HALOGEN SD3114 Low profile metalized shielded drum core power inductors Technical Data 4128 Effective August 2017 Product specifications Part Number SD3114-1R0-R SD3114-1R5-R SD3114-2R2-R SD3114-3R3-R SD3114-4R7-R SD3114-6R8-R SD3114-8R2-R SD3114-100-R SD3114-150-R SD3114-220-R SD3114-330-R SD3114-470-R SD3114-680-R SD3114-820-R SD3114-101-R SD3114-151-R SD3114-221-R SD3114-331-R Rated Inductance (µH) 1.0 1.5 2.2 3.3 4.7 6.8 8.2 10.0 15.0 22.0 33.0 47.0 68.0 82.0 100.0 150.0 220.0 330.0 OCL (1) (µH) Part Marking Designator A B C D E F G H I J K L M N O P Q R 1.16+/-30% 1.44+/-30% 2.12+/-30% 3.36+/-30% 4.90+/-30% 6.72+/-30% 8.10+/-30% 10.4+/-30% 14.9+/-20% 22.5+/-20% 33.1+/-20% 47.5+/-20% 68.6+/-20% 81.8+/-20% 101.1+/-20% 149.0+/-20% 220.9+/-20% 329.5+/-20% (1) Open Circuit Inductance Test Parameters: 100 kHz, 0.1Vrms, 0.0 Adc. (2) Irms: DC current for an approximate DT of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating conditions verified in the end application. Irms (2) (A) Isat (3) (A) 1.60 1.39 1.17 0.95 0.77 0.71 0.68 0.57 0.48 0.43 0.35 0.280 0.239 0.227 0.213 0.172 0.140 0.113 2.35 2.11 1.74 1.38 1.14 0.98 0.89 0.78 0.66 0.53 0.44 0.37 0.305 0.280 0.252 0.207 0.170 0.139 DCR (Ω) typ. @ +20 °C 0.058 0.077 0.110 0.167 0.251 0.296 0.329 0.458 0.650 0.821 1.23 1.86 2.62 2.91 3.30 5.07 7.67 11.78 K-factor (4) 98 79 67 54 45 37 34 30 25 21 17 14 12 11 10 8 6 5 (3) Isat Amperes peak for approximately 30% rolloff (@ +20 °C) (4) K-factor: Used to determine B p-p for core loss (see graph). B p-p = K*L*∆I, B p-p(mT), K: (K factor from table), L: (Inductance in uH), ∆(Peak to peak ripple current in Amps). Dimensions- mm BOTTOM VIEW TOP VIEW RECOMMENDED PCB LAYOUT 2.40 Pin #1 indicator 3.1 max. 1.40 Marking 3.7 max XX X 0.70 3.1 max. 1.2 typical SCHEMATI C 1 SIDE VIEW 1.4 max 2 Part Marking: 3 Digit Marking: (1st digit: Indicates inductance value per letter in Part Marking Designator); (2nd digit: Bi-weekly production date code); (3rd digit: Last digit of the year produced). Do not route traces or vias underneath the inductor Packaging information- mm Parts packaged on 13" Diameter reel, 4,100 parts per reel. 1.2 Dia min. 1.5 Dia. +0.1/-0.0 2.00 ¡À 1.75 A Bo 1 B1 10.25 5.50 2 3.2 3.2 A A1 Ao 8.0 A o = 3.9 mm A 1 = 0.93 mm Bo = 3.60 mm B1 = 1.25 mm K o = 1.60 mm 2 www.eaton.com/electronics Direction of feed 12.0 +/-0.3 SD3114 Low profile metalized shielded drum core power inductors Technical Data 4128 Effective August 2017 Temperature rise vs total loss loss Temp. Rise (° C) 90 80 70 60 50 40 30 20 10 0 0 0. 05 0. 1 0. 15 0. 2 0. 25 0. 3 0. 35 0. 4 0. 45 Total Loss (W) Core loss vs Bp-p 10 1 MH z 1 50 0kH z 3 00 k H z 20 0kH z 0 .1 C ore Lo ss (W) 10 0kH z 5 0kH z 0 .01 0.0 01 0 .00 01 0 .000 01 0.0 000 01 1 10 10 0 10 0 0 B p-p (mT ) Inductance characteristics OCL vs. Isat 120% 110% 100% 90% % of L initial 80% 70% -40°C 60% 50% 25°C 40% 30% 85°C 20% 10% 0% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 110% 120% 130% www.eaton.com/electronics 3 SD3114 Low profile metalized shielded drum core power inductors Technical Data 4128 Effective August 2017 Solder Reflow Profile TP tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL 25°C Preheat A T smax t TC -5°C Table 1 - Standard SnPb Solder (Tc) Volume mm3 220°C 220°C Table 2 - Lead (Pb) Free Solder (T c) Tsmin ts Package Thickness 2.5mm Time 25°C to Peak Volume mm3 2000 260°C 245°C 245°C Time Reference JDEC J-STD-020 Profile Feature Preheat and Soak • Temperature min. (Tsmin) • Temperature max. (Tsmax) • Time (Tsmin to Tsmax) (ts) Average ramp up rate Tsmax to Tp Liquidous temperature (TL) Time at liquidous (tL) Peak package body temperature (TP)* Time (tp)** within 5 °C of the specified classification temperature (Tc) Average ramp-down rate (Tp to Tsmax) Time 25°C to Peak Temperature Standard SnPb Solder 100°C Lead (Pb) Free Solder 150°C 150°C 200°C 60-120 Seconds 60-120 Seconds 3°C/ Second Max. 3°C/ Second Max. 183°C 60-150 Seconds 217°C 60-150 Seconds Table 1 Table 2 20 Seconds** 30 Seconds** 6°C/ Second Max. 6°C/ Second Max. 6 Minutes Max. 8 Minutes Max. * Tolerance for peak profile temperature (Tp) is defined as a supplier minimum and a user maximum. ** Tolerance for time at peak profile temperature (tp) is defined as a supplier minimum and a user maximum. Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Compan . Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant inju y to the user. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Eaton Electronics Division 1000 Eaton Boulevard Cleveland, OH 44122 United States www.eaton.com/electronics © 2017 Eaton All Rights Reserved Printed in USA Publication No. 4128 August 2017 Eaton is a registered trademark. All other trademarks are property of their respective owners.
