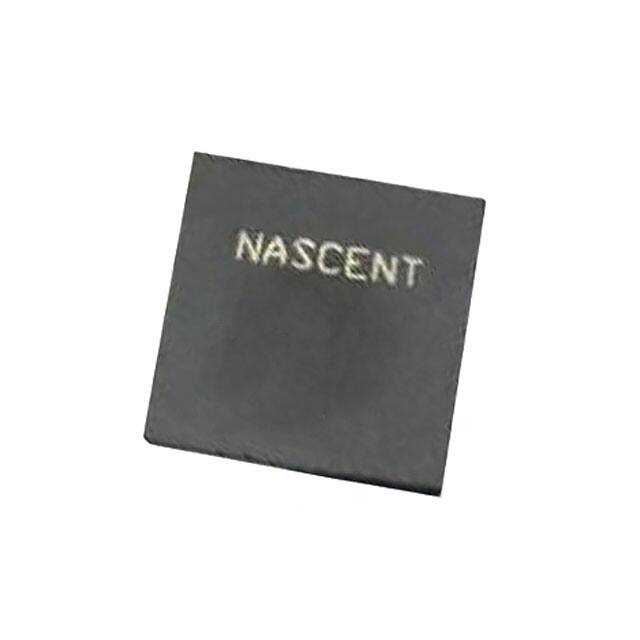

85081-F0

LTCC High Temperature Inductors 0.40x0.40 inch size Higher Isat Series NASCENTechnology, Inc. has developed a series of high temperature, RoHS compliant inductors using low temperature co-fired ceramic (LTCC) ferrite usable to 300°C that feature low profile, rugged packaging, and self shielding characteristics. See individual data sheets for part dimensions. Electrical Parameters at 25 °C unless otherwise noted Part No. No Load Inductance† µH 100 mA Inductance µH 100 mA Tolerance Nominal DC Resistance ohms Rated Current†† mA 85081 10.7 10.7 20% 0.28 85082 52 52 20% 1.4 85083 91 91 20% 2.75 † Tolerance for no load inductance is ±25 % †† Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C) * Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance. Thickness varies by part; the range is 0.032-0.100 in [0.8-2.54 mm] Saturation Current* mA 950 350 290 Common termination options (please add option to the end of the part number when inquiring): -A0 Thick film AgPt with side terminations, solderable, compliant to MIL-PRF-123D Appendix B -C0 Thick film Au, Au wirebonding -D0 Au over Ni, solderable, compliant to MIL-PRF-123D Appendix B -D1 Au over Ni, Al wirebonding -F0 Thick film AgPt without side terminations, solderable, compliant to MIL-PRF-123D Appendix B For additional information, contact: Daryl Schofield, General Manager Phone : 605-882-8513, Fax : 605-884-2450, E-mail : dschofield@nascentechnology.com NASCENTechnology Manufacturing, Inc. 1404 9th Ave. SW, Watertown, SD 57201 www.nascentechnology.com This product is protected under US Patent #6054914, #6198374 and other international patents. Specifications subject to change without notice. 06/18
