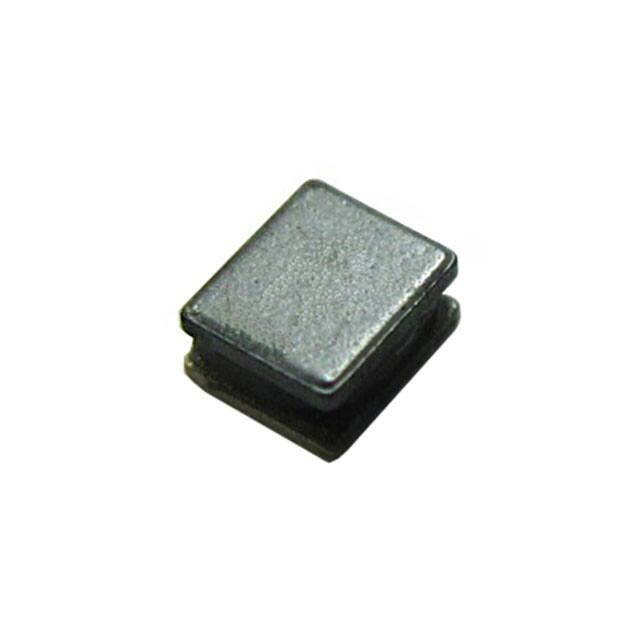

BWVH002520122R2MH1

Sealed Power Inductors – BWVH Series BWVH Series BWVH series, an automatic assembly constructed power inductor, is shielded with magnetic resin and suitable for portable DC-DC converter applications. Features Applications         RoHS, Halogen Free and REACH Compliance Shielded with magnetic resin Low profile, miniature package size and wide inductance range. Low DCR and high rated current. Smart phone DSC Tablet PC and other portable devices DC/DC converters Product Identification Shape and Dimensions Recommended Pattern Figure 1 Figure 2 Recommended Pattern Dimensions in mm TYPE FIG BWVH00201610_H1 1 BWVH00252010_H1 BWVH00252012_H1 A B C D H I J 2.0±0.25 1.6±0.25 1.02 Max 0.6 1.8 0.8 0.8 1 2.5±0.25 2.0±0.25 1.00 Max 0.8 2.2 0.85 0.8 2 2.5±0.25 2.0±0.25 1.2±0.05 0.8 2.2 0.85 0.8 Sealed Power Inductors – BWVH Series Shape and Dimensions Recommended Pattern Figure 3 Dimensions in mm TYPE FIG A B C D H I J BWVH00252012 3 2.5±0.25 2.0±0.25 1.2±0.05 0.8 2.2 0.85 0.8 TYPE FIG A B C D H I J BWVH00595610 4 5.9±0.20 5.6±0.20 1.00 Max 1.4 5.8 1.5 3.2 Figure 4 Dimensions in mm Sealed Power Inductors - BWVH Series – LVS201610 Series Electrical Characteristics Inductance Tolerance (uH) (±%) BWVH00201610R24□H1 0.24 20, 30 BWVH00201610R33□H1 0.33 BWVH00201610R47□H1 Test RDC Isat (mA) Irms (mA) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.048 3700(3300) 2500(2100) 20, 30 1 0.048 3400(3000) 2500(2100) 0.47 20, 30 1 0.072 2900(2600) 2100(1800) BWVH00201610R56□H1 0.56 20, 30 1 0.072 2700(2400) 2100(1800) BWVH00201610R68□H1 0.68 20, 30 1 0.092 2500(2200) 1800(1500) BWVH002016101R0□H1 1.0 20, 30 1 0.110 2200(2000) 1500(1200) BWVH002016102R2□H1 2.2 20, 30 1 0.205 1400(1200) 1150(970) BWVH002016103R3□H1 3.3 20, 30 1 0.380 1050(940) 900(800) BWVH002016104R7□H1 4.7 20, 30 1 0.520 900(800) 800(680) BWVH00201610100□H1 10 20, 30 1 1.100 620(550) 450(380) Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 11 80 3R3 10 70 9 100 60 8 △ T( ℃ ) 7 L(uH) 2R2 100 6 5 4R7 4 3R3 3 1R0 R68 R24 R47 4R7 50 40 30 20 2R2 2 1R0 1 10 R68 R47 R24 0 0 0 0.5 1 1.5 2 2.5 3 3.5 DC Current(A) 4 4.5 5 5.5 0 0.5 1 1.5 2 2.5 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3 3.5 4 Sealed Power Inductors - BWVH Series – LVS201610 Series Electrical Characteristics Inductance Tolerance (uH) (±%) BWVH00252010R24□H1 0.24 20, 30 BWVH00252010R47□H1 0.47 BWVH00252010R68□H1 Test RDC Isat (mA) Irms (mA) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.030 4700(4200) 3600(3000) 20, 30 1 0.043 3300(3000) 2700(2300) 0.68 20, 30 1 0.062 2800(2500) 2300(1900) BWVH002520101R0□H1 1.0 20, 30 1 0.080 2300(2100) 1900(1600) BWVH002520102R2□H1 2.2 20, 30 1 0.135 1600(1400) 1400(1100) BWVH002520104R7□H1 4.7 20, 30 1 0.330 1000(900) 850(720) BWVH00252010100□H1 10 20, 30 1 0.670 720(640) 580(490) Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 5.5 70 1R0 5.0 4.5 2R2 R24 R47 4R7 4.0 50 △ T(℃ ) 3.5 L(uH) 4R7 60 3.0 2.5 2.0 40 30 2R2 20 1.5 1R0 1.0 10 R47 0.5 R24 0 0.0 0 0.5 1 1.5 2 2.5 3 3.5 DC Current(A) 4 4.5 5 5.5 6 0 0.5 1 1.5 2 2.5 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3.5 4 4.5 5 Sealed Power Inductors - BWVH Series – LVS201610 Series Electrical Characteristics Inductance Tolerance (uH) (±%) BWVH00252012R47□H1 0.47 20, 30 BWVH00252012R68□H1 0.68 BWVH002520121R0□H1 Test RDC Isat (mA) Irms (mA) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.031 4100(3700) 3100(2600) 20, 30 1 0.031 3100(2900) 3100(2600) 1.0 20, 30 1 0.049 3200(3000) 3000(2500) BWVH002520121R5□H1 1.5 20, 30 1 0.088 2300(2100) 2200(1800) BWVH002520122R2□H1 2.2 20, 30 1 0.099 2200(2000) 2000(1700) BWVH002520123R3□H1 3.3 20, 30 1 0.190 1400(1200) 1200(1000) BWVH002520124R7□H1 4.7 20, 30 1 0.235 1300(1100) 1100(930) BWVH00252012100□H1 10 20, 30 1 0.510 920(820) 800(680) Part Number Frequency (MHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 10.0 80 9.0 70 1R0 8.0 100 R47 60 220 4R7 6.0 △ T( ℃ ) L(uH) 7.0 5.0 4.0 4R7 3.0 3R3 1R5 40 30 20 2R2 2.0 2R2 3R3 50 1R5 1R0 1.0 10 R47 0.0 0 0 0.5 1 1.5 2 2.5 3 DC Current(A) 3.5 4 4.5 5 0 0.5 1 1.5 2 2.5 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3.5 4 4.5 5 Sealed Power Inductors - BWVH Series – LVS201610 Series Electrical Characteristics Inductance Tolerance (uH) (±%) BWVH00252012R24□00 0.24 20, 30 BWVH00252012R33□00 0.33 BWVH00252012R47□00 Test RDC Isat (mA) Irms (mA) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.021 4700(4200) 3800(3200) E 20, 30 1 0.027 4200(3700) 3000(2500) G 0.47 20, 30 1 0.027 3600(3400) 3000(2500) J BWVH00252012R50□00 0.50 20, 30 1 0.027 3600(3400) 3000(2500) D BWVH00252012R68□00 0.68 20, 30 1 0.036 2900(2600) 2800(2300) H BWVH002520121R0□00 1.0 20, 30 1 0.037 2700(2450) 2600(2200) A BWVH002520121R5□00 1.5 20, 30 1 0.075 2200(1900) 1900(1600) I BWVH002520122R2□00 2.2 20, 30 1 0.080 1900(1800) 1800(1500) B BWVH002520124R7□00 4.7 20, 30 1 0.195 1200(1000) 1100(930) C BWVH00252012100□00 10 20, 30 1 0.400 900(800) 800(680) F BWVH00252012330□00 33 20, 30 1 1.550 430(380) 380(340) L BWVH00252012470□00 47 20, 30 1 1.700 390(350) 340(300) K Part Number Frequency (MHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 11 80 10 2R2 70 100 9 8 1R0 △ T(℃ ) 7 L(uH) R24 60 100 6 5 4 R68 R50 1R5 4R7 4R7 3 50 40 30 20 2 2R2 1R5 1R0 1 R68 10 R50 R24 0 0 0 0.5 1 1.5 2 2.5 3 3.5 DC Current(A) 4 4.5 5 5.5 6 0 0.5 1 1.5 2 2.5 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3.5 4 4.5 5 Sealed Power Inductors - BWVH Series – LVS201610 Series Electrical Characteristics Inductance Tolerance (uH) (±%) BWVH005956101R5□00 1.5 20, 30 BWVH005956102R2□00 2.2 BWVH005956103R3□00 Test RDC Isat (mA) Irms (mA) (Ω) ±30% Typ. (Max) Typ. (Max) 100 0.086 2400(2100) 2100(1900) 1R5 20, 30 100 0.110 2200(1900) 1900(1700) 2R2 3.3 20, 30 100 0.135 1800(1600) 1700(1500) 3R3 BWVH005956104R7□00 4.7 20, 30 100 0.165 1500(1300) 1500(1300) 4R7 BWVH005956106R8□00 6.8 20, 30 100 0.210 1400(1200) 1400(1200) 6R8 BWVH00595610100□00 10 20, 30 100 0.270 1100(1000) 1100(1000) 100 BWVH00595610150□00 15 20, 30 100 0.375 800(720) 800(720) 150 BWVH00595610220□00 22 20, 30 100 0.580 690(620) 690(620) 220 Part Number Frequency (kHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 10% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP 4285A+Agilent HP 42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP 4285A+Agilent HP 42841A Test Instruments：HP4285A Material/Impedance Analyzer Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking Sealed Power Inductors - BWVH Series Packaging Specifications Tape Dimensions Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E F W P P0 P2 A B C D E PCS / Reel BWVH00201610 1.9 2.2 1.15 1.55 1.75 3.5 8 4 4 2 180 60 13 14.4 8.4 2000 BWVH00252010 2.4 2.7 1.15 1.55 1.75 3.5 8 4 4 2 180 60 13 14.4 8.4 2000 BWVH00252012 2.4 2.7 1.35 1.55 1.75 3.5 8 4 4 2 180 60 13 14.4 8.4 2000 BWVH00595610 5.9 6.2 1.20 1.55 1.75 7.5 16 12 4 2 330 100 13 - 16 2000
