MHW1807SG4R0K

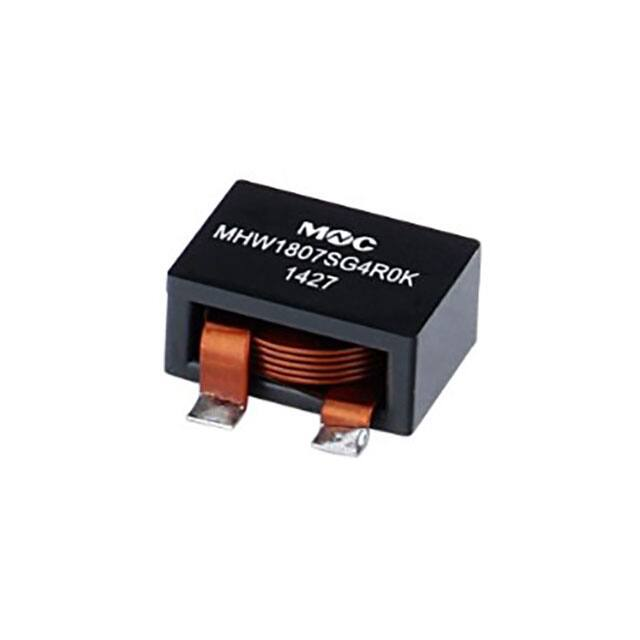

东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. Product Specification for Approval WE ARE PLEASED IN SUBMITTING OUR SAMPLES WITH SPECIFICATION TO YOU FOR APPROVAL. CUSTOMER : DESCRIPTION : PLANAR INDUCTOR MNC P/N : MHW1807SG4R0K VERSION : A0 CUSTOMER P/N : ISSUED DATE : PHOTO OF PRODUCT : WEIGHT : 8.8g : CHINA MADE IN : 2020/6/9 APPROVED BY MNC PREPARED BY CHECKED BY APPROVED BY Fanny Renbo Zhu Zhiliang Gong APPROVED BY CUSTOMER SIGNATURE OR STAMP 1. PLEASE SEND BACK US A COPY OF THE SPECIFICATION WITH YOUR STAMP OR SIGNATURE ONCE THE SAMPLES APPROVED. 2. IT WILL BE DEEMED THE SAMPLES TO BE APPROVED IF NO FEEDBACK. 东莞铭普光磁股份有限公司 TEL: +86-769-86921000 Add：Shipai Town, Dongguan City,Guangdong Province,China FAX: +86-769-81701563 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. HISTORY FOR REVISED SPECIFICATION Part No. MHW1807SG4R0K INDEX 1. INDEX--------------------------------------------------------------------------------------------------------------------------1 2. CHANGE RECORD------------------------------------------------------------------------------------------------------1 3. MECHANICAL-----------------------------------------------------------------------------------------------------2 4. SCHEMATIC-------------------------------------------------------------------------------------------------------------------------------------3 5. PACKING--------------------------------------------------------------------------------------------------------------------------------------4 6. MATERIAL LIST-------------------------------------------------------------------------------------------------------5 7. RECOMMENDED SOLDERING PROFILE-------------------------------------------------------------------------6 CHANGE RECORD DESCRIPTION (Content or Reason For Change) REV. A0 Initial release DATE REVISOR 2020/6/9 Fanny -----------------------------------------------------------------------www.mnc-tek.com 1/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW1807SG4R0K A. MECHANICAL: （UNITS: mm） YY WW Week Year 1.Unless otherwise specifed all tolerances are: ±0.25mm 2.All pin length don't include tin icicles DIM A B C D E F G H I J K MILLIMETERS 19.00 Max 18.20±0.40 20.30±1.00 13.00±0.40 9.00±0.50 3.50±0.30 2.00±0.50 1.30±0.50 1.50±0.50 2.50±0.50 8.5 Max -----------------------------------------------------------------------www.mnc-tek.com 2/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW1807SG4R0K B. SCHEMATIC : C. ELECTRICAL SPECIFICATION @25℃ SPECIFICATION ITEM TEST CONDITION TEST EQUIPMENT L：1-2 4.0uH±10% 100KHz,1V WK3260B OR EQU. Isat:1-2 18A （L drop 30%MAX） 100KHz,1V AT 25 ℃ WK3260B+3265B Irms:1-2 18A 100KHz,1V AT 25 ℃ WK3260B+3265B DC RESISTANCE: 1-2 3.0mΩ Max 25℃ TH2512B OR EQU. Hi pot :Coil to core 300VDC 1mA,60S TH9201S OR EQU OPERATING TEMPERATURE RANGE -40℃ to 125℃(Including self temperature rise) STORAGE TEMPERATURE RANGE -40℃ to 125℃ -----------------------------------------------------------------------www.mnc-tek.com 3/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW1807SG4R0K 1. PACKING: a. PACKAGING AS BELOW (ONLY FOR REFERENCE): 33 0 13 Carrier tape Cover tape Put the reel into the carton one reel b. Q'TY: c. LABEL: 250pcs/reel 5 reel/carton 1250 pcs/carton REMARK: ABOVE PACKING IS FOR YOUR REFERENCE ONLY, WHICH MIGHT BE CHANGED WITHOUT NOTICE. -----------------------------------------------------------------------www.mnc-tek.com 4/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. MATERIAL LIST Part No. MHW1807SG4R0K BOM MATERIAL LIST NO. 1 ITEM CORE MATERIAL RATING JIANUO N/A ------ DMEGC N/A 220℃ WELL ASCENT ELECTRONIC (GANZHOU) CO LTD E318511 @*xEI/AIW 220℃ ZHUHAI SUNTEK WIRE CO., LTD. E234867 C1100 ------ MINGSCHIN N/A C1100 ------ TIANQI N/A 6911 G2 150℃ MIANYANG WELLS N/A 2089 150℃ DONGGUANG CHENGGE INSULATION MATERIALS CO., LTD N/A Mn-Zn SFT-EI/AIWJ 3 4 WIRE UL ------ HN72512VG 2 SUPPLIER OF MATERIAL HN72512VG TERMIAL EPOXY HN72512VG HN72512VG -----------------------------------------------------------------------www.mnc-tek.com 5/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. RECOMMENDED SOLDERING PROFILE Part No. MHW1807SG4R0K 1. RECOMMENDED REFLOW SOLDERING PROFILE: TL = 217℃ Tp = 245℃ ts=60-120s Ts max=200℃Ts min=150℃ tl=60-150s tp=20-40s T25℃ to peak=8min max Ramp up rate=3℃/s max Ramp down rate=6℃/s max *RoHS Compliant *Solder Paste SAC 305 Sn 96.5/Ag 3.0/Cu 0.5 *Silkscreen thickness: 0.15mm Min 2. MOISTURE SENSITIVE LEVEL: 2.1. Level: 1 2.2. Shelf Life: Unlimited 2.3. Storage Condition: ≦30℃/85% RH -----------------------------------------------------------------------www.mnc-tek.com 6/6 FORM-MT-0135REV.04
