MHW2014SG120K

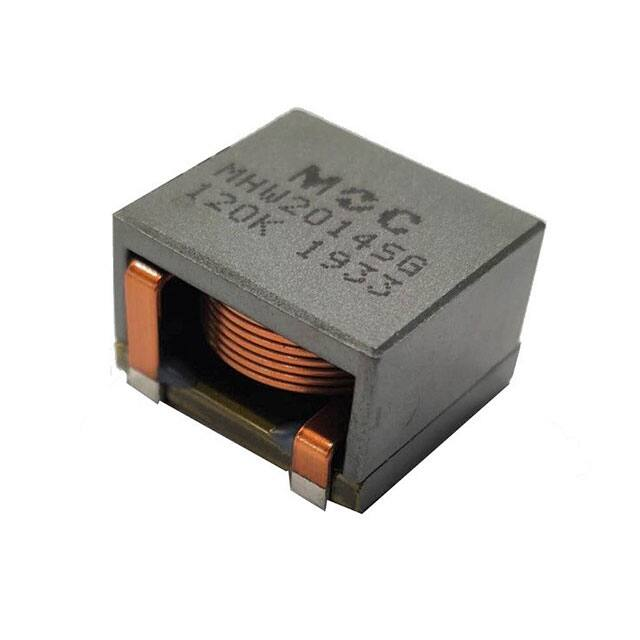

东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. Product Specification for Approval WE ARE PLEASED IN SUBMITTING OUR SAMPLES WITH SPECIFICATION TO YOU FOR APPROVAL. CUSTOMER : DESCRIPTION : POWER INDUCTOR MNC P/N : MHW2014SG120K VERSION : A0 CUSTOMER P/N : ISSUED DATE : PHOTO OF PRODUCT : WEIGHT : 24.7g : CHINA MADE IN : 2020/6/9 APPROVED BY MNC PREPARED BY CHECKED BY APPROVED BY Fanny Renbo Zhu Zhiliang Gong APPROVED BY CUSTOMER SIGNATURE OR STAMP 1. PLEASE SEND BACK US A COPY OF THE SPECIFICATION WITH YOUR STAMP OR SIGNATURE ONCE THE SAMPLES APPROVED. 2. IT WILL BE DEEMED THE SAMPLES TO BE APPROVED IF NO FEEDBACK. 东莞铭普光磁股份有限公司 TEL: +86-769-86921000 Add：Shipai Town, Dongguan City,Guangdong Province,China FAX: +86-769-81701563 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. HISTORY FOR REVISED SPECIFICATION Part No. MHW2014SG120K INDEX 1. INDEX--------------------------------------------------------------------------------------------------------------------------1 2. CHANGE RECORD------------------------------------------------------------------------------------------------------1 3. MECHANICAL-----------------------------------------------------------------------------------------------------2 4. SCHEMATIC-------------------------------------------------------------------------------------------------------------------------------------3 5. PACKING--------------------------------------------------------------------------------------------------------------------------------------4 6. MATERIAL LIST-------------------------------------------------------------------------------------------------------5 7. RECOMMENDED SOLDERING PROFILE-------------------------------------------------------------------------6 CHANGE RECORD DESCRIPTION (Content or Reason For Change) REV. A0 Initial release DATE REVISOR 2020/6/9 Fanny -----------------------------------------------------------------------www.mnc-tek.com 1/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2014SG120K A. MECHANICAL: （UNITS: mm） YY WW Week Year 1.Unless otherwise specifed all tolerances are: ±0.25mm 2.All pin length don't include tin icicles DIM A B C D E F G H MILLIMETERS 22.00Max 22.30Max 14.10±0.40 2.80±0.30 6.00±0.50 14.40±0.50 5.50±0.30 5.50±0.30 -----------------------------------------------------------------------www.mnc-tek.com 2/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2014SG120K B. SCHEMATIC : C. ELECTRICAL SPECIFICATION @25℃ ITEM SPECIFICATION TEST CONDITION TEST EQUIPMENT L：1-2 12.0uH±10% 100KHz,1V WK3260B OR EQU. Isat1:1-2 22A （L drop 20%MAX） 100KHz,1V AT 25 ℃ Isat2:1-2 16.8A（L drop 20%MAX） 100KHz,1V AT 100 ℃ WK3260B+3265B Irms:1-2 12.0A 100KHz,1V AT 25 ℃ WK3260B+3265B DC RESISTANCE: 1-2 5.0mΩ Max 25℃ TH2512B OR EQU. HI-POT: WDG-Core 200VDC 2mA,2S TH9201S OR EQU WK3260B+3265B OPERATING TEMPERATURE RANGE -40℃ to 125℃(Including self temperature rise) STORAGE TEMPERATURE RANGE -40℃ to 125℃ -----------------------------------------------------------------------www.mnc-tek.com 3/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. SPECIFICATION Part No. MHW2014SG120K 1. PACKING: a. PACKAGING AS BELOW (ONLY FOR REFERENCE): 33 0 13 Carrier tape Cover tape Put the reel into the carton one reel b. Q'TY: c. LABEL: 70pcs/reel 5 reel/carton 350 pcs/carton REMARK: ABOVE PACKING IS FOR YOUR REFERENCE ONLY, WHICH MIGHT BE CHANGED WITHOUT NOTICE. -----------------------------------------------------------------------www.mnc-tek.com 4/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. MATERIAL LIST Part No. MHW2014SG120K BOM MATERIAL LIST NO. 1 2 3 4 ITEM MATERIAL RATING Mn-Zn DMR96 ------ DMEGC N/A Mn-Zn JNP96 ------ JIANUO N/A PF 180℃ JINGJIANG YAHUA PRESSURE SENSITIVE GLUE CO LTD E165111 92 180℃ 3M COMPANY ELECTRICAL MARKETS DIV (EMD) E17385 C1100 ------ SHENZHEN MINGSCHIN INDUSTRIAL MATERIAL CO., LTD. N/A C1100 ------ DONGGUAN CITY SHIPAI JINGHE METALS TRADE SHOP N/A 6911 G2 ------ MIANYANG WELLS N/A 220℃ WELL ASCENT ELECTRONIC (GANZHOU) CO LTD E318511 220℃ ZHUHAI SUNTEK WIRE CO., LTD. E234867 180℃ ELANTAS ELECTRICAL INSULATION ELANTAS PDG INC E87039 180℃ JOHN C DOLPH CO E317427 TAPE PIN EPOXY SFT-EI/AIWJ Flat Wire HN72512VG EI/AIW HN72512VG V1630FS 6 UL CORE HN72512VG 5 SUPPLIER OF MATERIAL VARNISH HN72512VG BC-346A -----------------------------------------------------------------------www.mnc-tek.com 5/6 FORM-MT-0135REV.04 东莞铭普光磁股份有限公司 Dongguan Mentech Optical & Magnetic Co., Ltd. RECOMMENDED SOLDERING PROFILE Part No. MHW2014SG120K 1. RECOMMENDED REFLOW SOLDERING PROFILE: TL = 217℃ Tp = 245℃ ts=60-120s Ts max=200℃ Ts min=150℃ tl=60-150s tp=20-40s T25℃ to peak=8min max Ramp up rate=3℃/s max Ramp down rate=6℃/s max *RoHS Compliant *Solder Paste SAC 305 Sn 96.5/Ag 3.0/Cu 0.5 *Silkscreen thickness: 0.15mm Min 2. MOISTURE SENSITIVE LEVEL: 2.1. Level: 1 2.2. Shelf Life: Unlimited 2.3. Storage Condition: ≦30℃/85% RH -----------------------------------------------------------------------www.mnc-tek.com 6/6 FORM-MT-0135REV.04
