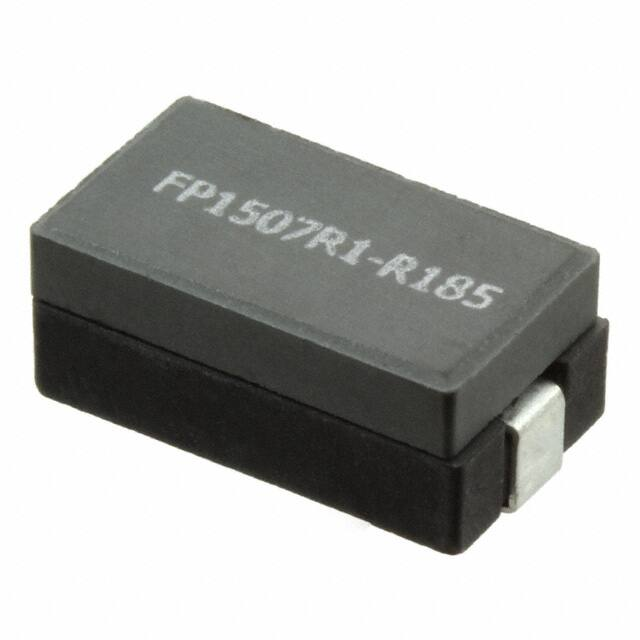

FP1507R1-R185-R

Technical Data 10391 Effective September 2017 Supersedes April 2015 FP1507R High current power inductors Applications • Compatible with Picor® Cool-Power® ZVS Buck and Buck-Boost Regulator Families Environmental Data Product features • Magnetically shielded • 15.1 x 8.5 mm footprint surface mount package in a 6.7 mm height • Ferrite core material • Storage temperature range (component): -55 °C to +125 °C • Operating temperature range: -55 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: • J-STD-020 (latest revision) compliant HALOGEN Pb HF FREE Picor® and Cool-Power® are trademarks of Vicor Corporation. FP1507R High current power inductors  Technical Data 10391 Effective September 2017 Product Specifications Part Number5 OCL1 (nH) ±10% FLL2 (nH) minimum Irms3 (A) Isat4 (A) DCR (mΩ) @ +20 °C ±10% FP1507R1-R185-R 185 163 45 40 0.52 1. Open Circuit Inductance (OCL) Test Parameters: 1.0 MHz, 0.1 Vrms, 0.0 Adc, +25 °C 2. Full Load Inductance (FLL) Test Parameters: 1.0 MHz, 0.1 Vrms, Isat, +25 °C 3. Irms: DC current for an approximate temperature rise of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating conditions verified in the end application. 4. Isat: Peak current for approximately 2% rolloff @ +25 °C 5. Part Number Definition: FP1507Rx-Ryyy-R FP1507R = Product code and size x= DCR indicator Ryyy= yyy= inductance value in μH, R= decimal point -R suffix = RoHS compliant Note: Hipot: 250Vdc minimum for 2 seconds, 1.0mA, conductor to core Dimensions (mm) 6.7 max 2.8 ±0.3 14.6 ±0.5 Recommended Pad Layout Schematic 3.2 8.5 max 3.0 2.5 ±0.10 8.6 15.0 Part marking: FP1507Rx (x=DCR indicator), –Ryyy= (inductance value in uH, R=decimal point) wwllyy= date code, R=revision level Tolerances are ±0.25 unless stated otherwise Soldering surfaces to be coplanar within 0.1 millimeters DCR measured from point “a” to point “b” Do not route traces or vias underneath the inductor. Packaging information (mm) Supplied in tape and reel packaging, 600 parts per 13” diameter reel User direction of feed 2 www.eaton.com/electronics FP1507R High current power inductors Technical Data 10391 Effective September 2017  Inductance characteristics FP1507R1-R185-R 110% 100% 90% % of OCL -40°C +25°C 80% 70% +125°C 60% 50% 40% 30% 0 10 20 0 3 40 50 60 70 80 90 100 Idc(A) www.eaton.com/elx 3 FP1507R High current power inductors  Technical Data 10391 Effective September 2017 Solder reflow profile TP TC -5°C tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL Preheat A T smax t Table 1 - Standard SnPb Solder (Tc) Package Thickness Volume mm3
