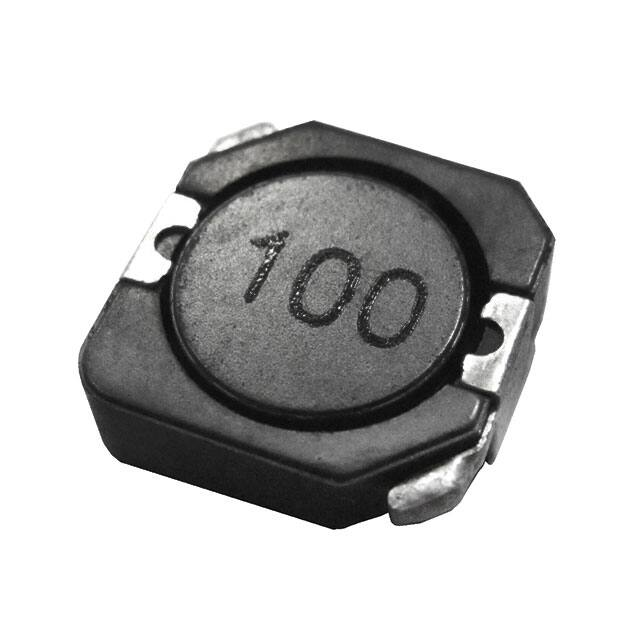

BPSC00101140101M00

SMD Shielded Power Inductors - BPSC Series BPSC Series Features Applications  RoHS, Halogen Free and REACH Compliance  AP Routers  Magnetic shielded  Various package size and wide inductance range     STBs LCD TVs and monitors Game consoles LED lightings  DC/DC converters Product Identification Shape and Dimensions Recommended Pattern BPSC030316/030320 Dimension in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00030316 BPSC00303020 +0 3.2 +0 3.2 B +0 3.2 +0 3.2 C D +0 1.55 +0 2.0 E F G A B C D +0 3.3 2.1 1.0 1.3 1.7 1.3 4.3 +0 3.3 2.1 1.0 1.3 1.7 1.3 4.3 4.5 4.5 Shape and Dimensions Recommended Pattern BPSC00040412 Dimension in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00040412 +0 4 B +0 4 C +0 1.2 D +0 5.2 E F G A B C D 4.4 2.8 1.1 1.4 2.4 1.5 5.2 SMD Shielded Power Inductors - BPSC Series Shape and Dimensions Recommended Pattern BPSC00040418 Dimensions in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00040418 +0 4 B C +0 D +0 4 1.8 5.2 E +0 4.4Typ F +0 1.4 Shape and Dimensions G A B C D 1.1Typ 1.4 2.4 1.5 5.2 Recommended Pattern BPSC00404030 Dimension in mm Shape and Dimensions Recommended Pattern TYPE BPSC00404030 A B C D E F A B C D 4+0 4+0 3+0 4.4 2.8 1.1 1.4 2.4 1.5 5.2 SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) Irms (H) (±%) Frequency (Ω)Max Max(Typ.) (A)Typ. BPSC00030316R47□00 0.47 30 100 kHz,1 V 0.04 2.00(2.80) BPSC000303161R5□00 1.5 30 100 kHz,1 V 0.063 1.40(1.80) 2 BF BPSC000303161R8□00 1.8 30 100 kHz,1 V 0.075 1.30(1.70) 1.8 BI BPSC000303162R2□00 2.2 30 100 kHz,1 V 0.094 1.20(1.60) 1.6 CC BPSC000303162R7□00 2.7 30 100 kHz,1 V 0.106 1.10(1.40) 1.4 CH BPSC000303163R3□00 3.3 30 100 kHz,1 V 0.125 0.95(1.20) 1.24 DD BPSC000303163R9□00 3.9 30 100 kHz,1 V 0.138 0.92(1.10) 1.12 DJ BPSC000303164R1□00 4.1 20,30 100 kHz,1 V 0.169 0.80(1.00) 1 EA BPSC000303164R7□00 4.7 20,30 100 kHz,1 V 0.169 0.80(1.00) 1 EH BPSC000303165R6□00 5.6 20,30 100 kHz,1 V 0.188 0.76(0.95) 0.98 FG BPSC000303166R8□00 6.8 20,30 100 kHz,1 V 0.213 0.71(0.88) 0.92 GI BPSC000303168R2□00 8.2 20,30 100 kHz,1 V 0.281 0.64(0.80) 0.8 IC BPSC00030316100□00 10 20,30 100 kHz,1 V 0.294 0.57(0.72) 0.76 KA BPSC00030316120□00 12 20,30 100 kHz,1 V 0.394 0.52(0.65) 0.64 QA Part Number Marking AO Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) Irms (H) (±%) Frequency (Ω)Max Max(Typ.) (A)Typ. BPSC000303202R2□LD 2.2 20,30 100 kHz,1V 0.041 0.85(1.10) 2.3 CC BPSC000303203R3□LD 3.3 20,30 100 kHz,1V 0.054 0.75(0.95) 2.1 DD BPSC000303204R7□LD 4.7 20,30 100 kHz,1V 0.078 0.63(0.78) 1.65 EH BPSC000303206R8□LD 6.8 20,30 100 kHz,1V 0.106 0.52(0.65) 1.32 GI BPSC00030320100□LD 10 20,30 100 kHz,1V 0.18 0.43(0.53) 1 KA BPSC00030320150□LD 15 20,30 100 kHz,1V 0.22 0.35(0.45) 0.8 MA BPSC00030320220□LD 22 20,30 100 kHz,1V 0.32 0.30(0.36) 0.68 LA BPSC00030320330□LD 33 20,30 100 kHz,1V 0.46 0.24(0.31) 0.56 NA BPSC00030320390□LD 39 20,30 100 kHz,1V 0.6 0.21(0.28) BPSC00030320470□LD 47 20,30 100 kHz,1V 0.66 0.19(0.24) Part Number Marking PA 0.48 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. OA SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) Irms (H) (±%) Frequency (Ω)Max Max(Typ.) (A)Typ. BPSC000303201R5□HP 1.5 30 100kHz,1V 0.05 1.90(2.40) 2.2 BF BPSC000303201R7□HP 1.7 20,30 100kHz,1V 0.05 1.85(2.40) 2.2 BH BPSC000303202R2□HP 2.2 20,30 100kHz,1V 0.06 1.60(2.30) 1.9 CC BPSC000303203R3□HP 3.3 20,30 100kHz,1V 0.097 1.45(1.80) 1.55 DD BPSC000303204R7□HP 4.7 20,30 100kHz,1V 0.14 1.00(1.50) 1.2 EH BPSC000303206R3□HP 6.3 20,30 100kHz,1V 0.18 0.96(1.30) 1.15 GD BPSC000303206R8□HP 6.8 20,30 100kHz,1V 0.195 0.95(1.20) 1.1 GI BPSC00030320100□HP 10 20,30 100kHz,1V 0.285 0.85(1.00) 0.9 KA BPSC00030320150□HP 15 20,30 100kHz,1V 0.41 0.67(0.83) 0.64 MA BPSC00030320220□HP 22 20,30 100kHz,1V 0.65 0.50(0.67) 0.6 LA Part Number Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Rated Irms Inductance Tolerance Test RDC (H) (±%) Frequency (Ω)Max BPSC000404122R7□00 2.7 30 100 kHz,1 V 0.078 0.53 1.82 2R7 BPSC000404124R7□00 4.7 20,30 100 kHz,1 V 0.123 0.4 1.38 4R7 BPSC000404126R8□00 6.8 30 100 kHz,1 V 0.18 0.34 1.05 6R8 BPSC000404128R2□00 8.2 30 100 kHz,1 V 0.204 0.32 0.93 8R2 BPSC00040412100□00 10 20,30 100 kHz,1 V 0.24 0.28 0.9 100 BPSC00040412120□00 12 20,30 100 kHz,1 V 0.276 0.25 0.81 120 BPSC00040412150□00 15 20,30 100 kHz,1 V 0.372 0.23 0.68 150 BPSC00040412180□00 18 20,30 100 kHz,1 V 0.468 0.21 0.58 180 BPSC00040412220□00 22 20,30 100 kHz,1 V 0.54 0.19 0.53 220 BPSC00040412270□00 27 20,30 100 kHz,1 V 0.726 0.17 0.48 270 BPSC00040412330□00 33 20,30 100 kHz,1 V 0.822 0.15 0.41 330 BPSC00040412390□00 39 20,30 100 kHz,1 V 0.942 0.14 0.4 390 Part Number Current (A) Marking (A)Typ. Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated current：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Rated Irms Inductance Tolerance Test RDC (H) (±%) Frequency (Ω)Max BPSC00040412R60□HP 0.6 30 100 kHz,1 V 0.059 2.9 1.8 R60 BPSC000404121R2□HP 1.2 30 100 kHz,1 V 0.082 2 1.7 1R2 BPSC000404121R5□HP 1.5 30 100 kHz,1 V 0.104 1.85 1.45 1R5 BPSC000404122R2□HP 2.2 30 100 kHz,1 V 0.143 1.6 1.15 2R2 BPSC000404123R3□HP 3.3 30 100 kHz,1 V 0.182 1.25 0.95 3R3 BPSC000404124R7□HP 4.7 30 100 kHz,1 V 0.2 1.2 0.9 4R7 BPSC000404126R8□HP 6.8 30 100 kHz,1 V 0.377 0.85 0.7 6R8 BPSC00040412100□HP 10 20,30 100 kHz,1 V 0.413 0.8 0.6 100 BPSC00040412120□HP 12 20,30 100 kHz,1 V 0.585 0.64 0.48 120 BPSC00040412150□HP 15 20,30 100 kHz,1 V 0.653 0.58 0.45 150 BPSC00040412180□HP 18 20,30 100 kHz,1 V 0.888 0.52 0.4 180 BPSC00040412220□HP 22 20,30 100 kHz,1 V 0.925 0.53 0.33 220 Part Number Current (A) Marking (A)Typ. Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated current：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Rated Inductance Tolerance Test RDC (H) (±%) Frequency (Ω)Max BPSC000404181R0□S1 1.0 30 100kHz,0.1V 0.04 1.6 1R0 BPSC000404181R5□S1 1.5 30 100kHz,0.1V 0.052 1.55 1R5 BPSC000404182R2□S1 2.2 30 100kHz,0.1V 0.072 1.2 2R2 BPSC000404183R3□S1 3.3 30 100kHz,0.1V 0.085 1.1 3R3 BPSC000404184R7□S1 4.7 20,30 100kHz,0.1V 0.105 0.9 4R7 BPSC000404185R6□S1 5.6 30 100kHz,0.1V 0.135 0.8 5R6 BPSC000404186R8□S1 6.8 20,30 100kHz,0.1V 0.17 0.73 6R8 BPSC000404188R2□S1 8.2 20,30 100kHz,0.1V 0.21 0.55 8R2 BPSC00040418100□S1 10 20,30 100kHz,0.1V 0.21 0.55 100 BPSC00040418150□S1 15 30 100kHz,0.1V 0.295 0.45 150 BPSC00040418220□S1 22 20,30 100kHz,0.1V 0.43 0.4 220 BPSC00040418330□S1 33 30 100kHz,0.1V 0.675 0.32 330 BPSC00040418101□S1 100 30 100kHz,0.1V 2.75 0.13 101 Part Number Current Marking (A) Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current : DC current that will cause L drop approximately 35% over its nominal value or DC current cause the temperature rising  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： approximately 40℃,whichever is lower. L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated current：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Rated Irms Inductance Tolerance Test RDC (H) (±%) Frequency (Ω)Max BPSC000404301R0□00 1.0 30 100 kHz,1 V 0.045 2.8 2.5 1R0 BPSC000404303R3□00 3.3 30 100 kHz,1 V 0.0721 2 1.85 3R3 BPSC000404304R7□00 4.7 30 100 kHz,1 V 0.0883 1.65 1.62 4R7 BPSC000404306R8□00 6.8 30 100 kHz,1 V 0.119 1.24 1.32 6R8 BPSC00040430100□00 10 30 100 kHz,1 V 0.145 1.05 1.18 100 BPSC00040430150□00 15 30 100 kHz,1 V 0.213 0.9 1.02 150 BPSC00040430220□00 22 30 100 kHz,1 V 0.335 0.76 0.74 220 BPSC00040430330□00 33 30 100 kHz,1 V 0.481 0.58 0.63 330 BPSC00040430470□00 47 20,30 100 kHz,1 V 0.599 0.48 0.56 470 Part Number Current (A) Marking (A)Typ. Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated current：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Electrical Characteristics Rated Irms Inductance Tolerance Test RDC (H) (±%) Frequency (Ω)Max BPSC00040430100□LD 10 30 100 kHz,1 V 0.095 0.5 1.52 100 BPSC00040430120□LD 12 30 100 kHz,1 V 0.1 0.45 1.48 120 BPSC00040430150□LD 15 30 100 kHz,1 V 0.115 0.4 1.44 150 BPSC00040430180□LD 18 30 100 kHz,1 V 0.125 0.35 1.37 180 BPSC00040430220□LD 22 30 100 kHz,1 V 0.145 0.33 1.28 220 BPSC00040430270□LD 27 30 100 kHz,1 V 0.175 0.29 1.18 270 BPSC00040430330□LD 33 30 100 kHz,1 V 0.215 0.28 1.15 330 BPSC00040430390□LD 39 30 100 kHz,1 V 0.225 0.25 1 390 BPSC00040430470□LD 47 30 100 kHz,1 V 0.305 0.23 0.81 470 BPSC00040430560□LD 56 30 100 kHz,1 V 0.325 0.2 0.76 560 BPSC00040430680□LD 68 30 100 kHz,1 V 0.47 0.185 0.6 680 BPSC00040430820□LD 82 30 100 kHz,1 V 0.54 0.172 0.58 820 BPSC00040430101□LD 100 30 100 kHz,1 V 0.61 0.16 0.52 101 BPSC00040430121□LD 120 30 100 kHz,1 V 0.755 0.136 0.5 121 BPSC00040430151□LD 150 30 100 kHz,1 V 0.88 0.124 0.48 151 BPSC00040430181□LD 180 30 100 kHz,1 V 1.13 0.119 0.42 181 BPSC00040430221□LD 220 30 100 kHz,1 V 1.27 0.116 0.36 221 Part Number Current (A) Marking (A)Typ. Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated current：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL BPSC00030316 3.35 3.35 1.7 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 BPSC00030320 3.5 3.5 2.1 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 BPSC00040412 4.2 4.2 1.5 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 BPSC00040418 4.1 4.1 2.0 1.5 1.75 12 8 4 2 178 60 13 13.2 1000 BPSC00040430 4.2 4.2 3.2 1.55 1.75 12 8 4 2 178 60 13 13.2 500 SMD Shielded Power Inductors - BPSC Series BPSC Series Features Applications  RoHS, Halogen Free and REACH Compliance  AP Routers  Magnetic shielded  Various package size and wide inductance range     STBs LCD TVs and monitors Game consoles LED lightings  DC/DC converters Product Identification Shape and Dimensions Recommended Pattern BPSC00040418 Dimensions in mm Shape and Dimensions Recommended Pattern TYPE BPSC00404018 A B C D E A B C D 4+0 4+0 1.8+0 5.2 +0 1.0 4.6 1.6 1.4 4.6 Shape and Dimensions Recommended Pattern BPSC00050520~050540 Dimension in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00050520 4.7±0.3 B 4.7±0.3 BPSC00050530 4.7±0.3 4.7±0.3 BPSC00050540 4.7±0.3 4.7±0.3 C +0 2.0 +0 3.0 4+0 D E A B C +0 1.5 1.9 1.5 5.3 +0 6.9 1.5 1.9 1.5 5.3 6.9+0 1.5 1.9 1.5 5.3 6.9 SMD Shielded Power Inductors - BPSC Series Shape and Dimensions Recommended Pattern BPSC00060620~070740 Dimension in mm Shape and Dimensions Recommended Pattern TYPE A B C +0 D E A B C +0 BPSC00060620 5.7±0.3 5.7±0.3 2.0 8.2 2.0 2.15 2.0 6.3 BPSC00060630 5.7±0.3 5.7±0.3 3.0+0 8.2+0 2.0 2.15 2.0 6.3 6.7±0.3 +0 +0 2.0 2.65 2.0 7.3 +0 2.0 2.65 2.0 7.3 BPSC00070730 BPSC00070740 6.7±0.3 +0 7 +0 7 3.0 +0 4 9.5 9.5 SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000404181R0□S0 1.0 30 100 kHz,0.1 V 0.04 1.35(1.70) 1R0 BPSC000404181R5□S0 1.5 30 100 kHz,0.1 V 0.052 1.25(1.60) 1R5 BPSC000404182R2□S0 2.2 30 100 kHz,0.1 V 0.072 1.00(1.30) 2R2 BPSC000404183R3□S0 3.3 20,30 100 kHz,0.1 V 0.085 0.88(1.10) 3R3 BPSC000404183R6□S0 3.6 30 100 kHz,0.1 V 0.09 0.74(0.93) 3R6 BPSC000404184R7□S0 4.7 20,30 100 kHz,0.1 V 0.105 0.72(0.90) 4R7 BPSC000404186R8□S0 6.8 20,30 100 kHz,0.1 V 0.17 0.61(0.74) 6R8 BPSC00040418100□S0 10 20,30 100 kHz,0.1 V 0.21 0.55(0.60) 100 BPSC00040418150□S0 15 20,30 100 kHz,0.1 V 0.295 0.45(0.52) 150 BPSC00040418220□S0 22 20,30 100 kHz,0.1 V 0.43 0.32(0.40) 220 BPSC00040418270□S0 27 30 100 kHz,0.1 V 0.62 0.30(0.37) 270 BPSC00040418330□S0 33 30 100 kHz,0.1 V 0.675 0.26(0.32) 330 BPSC00040418680□S0 68 30 100 kHz,0.1 V 1.7 0.16(0.21) 680 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000505201R0□S0 1 30 7.96 MHz,1 V 0.045 1.72(2.50) 1R0 BPSC00050520R5□S0 1.5 30 7.96 MHz,1 V 0.06 1.50(1.80) 1R5 BPSC000505201R8□S0 1.8 30 7.96 MHz,1 V 0.07 1.35(1.70) 1R8 BPSC000505202R2□S0 2.2 20,30 7.96 MHz,1 V 0.075 1.30(1.60) 2R2 BPSC000505202R7□S0 2.7 30 7.96 MHz,1 V 0.105 1.20(1.50) 2R7 BPSC000505203R3□S0 3.3 20,30 7.96 MHz,1 V 0.11 1.04(1.30) 3R3 BPSC000505203R9□S0 3.9 30 7.96 MHz,1 V 0.155 0.88(1.20) 3R9 BPSC000505204R7□S0 4.7 30 7.96 MHz,1 V 0.162 0.84(1.10) 4R7 BPSC000505205R6□S0 5.6 30 7.96 MHz,1 V 0.17 0.80(1.00) 5R6 BPSC000505206R3□S0 6.3 30 7.96 MHz,1 V 0.18 0.78(0.95) 6R3 BPSC000505206R8□S0 6.8 20,30 7.96 MHz,1 V 0.2 0.76(0.85) 6R8 BPSC000505208R2□S0 8.2 30 7.96 MHz,1 V 0.245 0.68(0.80) 8R2 BPSC00050520100□S0 10 20,30 100 kHz,1 V 0.28 0.61(0.75) 100 BPSC00050520120□S0 12 30 100 kHz,1 V 0.32 0.56(0.70) 120 BPSC00050520150□S0 15 30 100 kHz,1 V 0.36 0.50(0.65) 150 BPSC00050520180□S0 18 30 100 kHz,1 V 0.4 0.48(0.60) 180 BPSC00050520220□S0 22 20,30 100 kHz,1 V 0.48 0.41(0.55) 220 BPSC00050520270□S0 27 30 100 kHz,1 V 0.57 0.35(0.50) 270 BPSC00050520330□S0 33 30 100 kHz,1 V 0.694 0.32(0.45) 330 BPSC00050520390□S0 39 30 100 kHz,1 V 0.8 0.30(0.40) 390 BPSC00050520470□S0 47 30 100 kHz,1 V 0.95 0.28(0.38) 470 BPSC00050520560□S0 56 30 100 kHz,1 V 1.08 0.26(0.35) 560 BPSC00050520680□S0 68 30 100 kHz,1 V 1.3 0.24(0.34) 680 BPSC00050520101□S0 100 30 100 kHz,1 V 2 0.20(0.30) 101 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000505301R2□S0 1.2 30 100 kHz,1 V 0.0236 2.56(4.10) 1R2 BPSC000505301R8□S0 1.8 30 100 kHz,1 V 0.035 2.20(3.20) 1R8 BPSC000505302R0□S0 2.0 30 100 kHz,1 V 0.030 2.10(3.00) 2R0 BPSC000505302R2□S0 2.2 20,30 100 kHz,1 V 0.0313 2.04(2.90) 2R2 BPSC000505302R7□S0 2.7 30 100 kHz,1 V 0.0433 1.60(2.80) 2R7 BPSC000505303R3□S0 3.3 30 100 kHz,1 V 0.0492 1.57(2.30) 3R3 BPSC000505303R9□S0 3.9 30 100 kHz,1 V 0.0648 1.44(2.10) 3R9 BPSC000505304R7□S0 4.7 20,30 100 kHz,1 V 0.072 1.32(2.00) 4R7 BPSC000505305R6□S0 5.6 30 100 kHz,1 V 0.1009 1.17(1.70) 5R6 BPSC000505306R8□S0 6.8 20,30 100 kHz,1 V 0.1089 1.12(1.60) 6R8 BPSC000505308R2□S0 8.2 30 100 kHz,1 V 0.1175 1.04(1.50) 8R2 BPSC00050530100□S0 10 30 100 kHz,1 V 0.1283 1.00(1.30) 100 BPSC00050530120□S0 12 20,30 100 kHz,1 V 0.1316 0.84(1.10) 120 BPSC00050530150□S0 15 30 100 kHz,1 V 0.149 0.76(1.00) 150 BPSC00050530180□S0 18 30 100 kHz,1 V 0.166 0.72(0.99) 180 BPSC00050530220□S0 22 20,30 100 kHz,1 V 0.235 0.70(0.93) 220 BPSC00050530270□S0 27 30 100 kHz,1 V 0.261 0.58(0.83) 270 BPSC00050530330□S0 33 20,30 100 kHz,1 V 0.3313 0.56(0.64) 330 BPSC00050530390□S0 39 20,30 100 kHz,1 V 0.3837 0.50(0.70) 390 BPSC00050530470□S0 47 30 100 kHz,1 V 0.587 0.48(0.61) 470 BPSC00050530560□S0 56 30 100 kHz,1 V 0.6245 0.41(0.54) 560 BPSC00050530680□S0 68 30 100 kHz,1 V 0.699 0.35(0.49) 680 BPSC00050530820□S0 82 30 100 kHz,1 V 0.9148 0.32(0.49) 820 BPSC00050530101□S0 100 20,30 100 kHz,1 V 1.02 0.29(0.45) 101 BPSC00050530121□S0 120 30 100 kHz,1 V 1.27 0.27(0.40) 121 BPSC00050530151□S0 150 30 100 kHz,1 V 1.35 0.24(0.34) 151 BPSC00050530181□S0 180 30 100 kHz,1 V 1.54 0.22(0.32) 181 BPSC00050530221□S0 220 30 100 kHz,1 V 2 0.20(0.29) 221 BPSC00050530331□S0 330 20,30 100 kHz,1 V 3.4 0.19(0.24) 331 BPSC00050530391□S0 390 20,30 100 kHz,1 V 3.56 0.18(0.22) 391 BPSC00050530681□S0 680 20,30 100 kHz,1 V 5.2 0.10(0.17) 681 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)    Isat for Inductance drop 35% from its value with current RDC test method: place testing device to the 2 solder ends of wounding and test the value. Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) Irms (H) (±%) Frequency (Ω)Max Max(Typ.) (A)Typ. BPSC000505402R2□S0 2.2 30 100 kHz,1V 0.033 3.5(4.6) 4.3 2R2 BPSC000505403R3□S0 3.3 30 100 kHz,1V 0.039 2.7(3.4) 3.6 3R3 BPSC000505404R7□S0 4.7 20,30 100 kHz,1V 0.053 2.4(3.0) 3 4R7 BPSC000505406R8□S0 6.8 20,30 100 kHz,1V 0.06 2.0(2.6) 2.8 6R8 BPSC00050540100□S0 10 20,30 100 kHz,1V 0.15 1.5(2.0) 1.6 100 BPSC00050540150□S0 15 20,30 100 kHz,1V 0.21 1.2(1.6) 1.35 150 BPSC00050540220□S0 22 20,30 100 kHz,1V 0.27 1.0(1.4) 1 220 Part Number Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Irms for a 40℃ temperature rise from 25℃ ambient.  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Irms：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000606201R0□S0 1.0 30 10 kHz,1 V 0.038 1.00(3.50) 1R0 BPSC000606201R5□S0 1.5 30 10 kHz,1 V 0.038 2.50(3.00) 1R5 BPSC000606202R0□S0 2.0 30 10 kHz,1 V 0.045 2.10(2.60) 2R0 BPSC000606202R2□S0 2.2 30 10 kHz,1 V 0.048 2.00(2.50) 2R2 BPSC000606203R3□S0 3.3 30 10 kHz,1 V 0.056 1.70(2.00) 3R3 BPSC000606204R1□S0 4.1 30 10 kHz,1 V 0.057 1.55(1.90) 4R1 BPSC000606204R7□S0 4.7 20,30 10 kHz,1 V 0.076 1.35(1.70) 4R7 BPSC000606205R4□S0 5.4 30 10 kHz,1 V 0.076 1.20(1.50) 5R4 BPSC000606206R2□S0 6.2 30 10 kHz,1 V 0.096 1.10(1.40) 6R2 BPSC000606206R8□S0 6.8 30 10 kHz,1 V 0.1 1.00(1.30) 6R8 BPSC000606208R9□S0 8.9 30 10 kHz,1 V 0.116 0.95(1.25) 8R9 BPSC00060620100□S0 10 20,30 10 kHz,1 V 0.124 0.90(1.20) 100 BPSC00060620120□S0 12 30 10 kHz,1 V 0.153 0.90(1.00) 120 BPSC00060620150□S0 15 20,30 10 kHz,1 V 0.196 0.80(0.91) 150 BPSC00060620180□S0 18 30 10 kHz,1 V 0.21 0.75(0.90) 180 BPSC00060620220□S0 22 20,30 10 kHz,1 V 0.29 0.65(0.80) 220 BPSC00060620270□S0 27 30 10 kHz,1 V 0.33 0.60(0.70) 270 BPSC00060620330□S0 33 20,30 10 kHz,1 V 0.386 0.55(0.65) 330 BPSC00060620390□S0 39 30 10 KHz,1 V 0.52 0.48(0.60) 390 BPSC00060620470□S0 47 20,30 10 kHz,1 V 0.595 0.44(0.51) 470 BPSC00060620560□S0 56 30 10 kHz,1 V 0.665 0.40(0.50) 560 BPSC00060620680□S0 68 30 10 kHz,1 V 0.84 0.33(0.43) 680 BPSC00060620820□S0 82 30 10 kHz,1 V 0.978 0.30(0.41) 820 BPSC00060620101□S0 100 20,30 10 kHz,1 V 1.2 0.25(0.36) 101 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000606301R0□S0 1.0 30 10 kHz,1 V 0.015 3.50(4.20) 1R0 BPSC000606301R5□S0 1.5 30 10 kHz,1 V 0.015 2.80(3.70) 1R5 BPSC000606302R2□S0 2.2 30 10 kHz,1 V 0.018 2.40(3.10) 2R2 BPSC000606302R5□S0 2.5 30 10 kHz,1 V 0.022 2.30(2.70) 2R5 BPSC000606302R6□S0 2.6 30 10 kHz,1 V 0.022 2.20(2.60) 2R6 BPSC000606302R7□S0 2.7 30 10 kHz,1 V 0.024 2.20(2.60) 2R7 BPSC000606303R0□S0 3.0 30 10 kHz,1 V 0.024 2.20(2.50) 3R0 BPSC000606303R3□S0 3.3 30 10 kHz,1 V 0.027 2.10(2.50) 3R3 BPSC000606304R2□S0 4.2 30 10 kHz,1 V 0.031 2.00(2.20) 4R2 BPSC000606304R3□S0 4.3 30 10 kHz,1 V 0.041 1.80(2.10) 4R3 BPSC000606304R7□S0 4.7 20,30 10 kHz,1 V 0.038 1.60(2.00) 4R7 BPSC000606305R0□S0 5.0 30 10 kHz,1 V 0.038 1.50(1.90) 5R0 BPSC000606305R3□S0 5.3 20,30 10 kHz,1 V 0.038 1.50(1.90) 5R3 BPSC000606306R2□S0 6.2 20,30 10 kHz,1 V 0.045 1.20(1.80) 6R2 BPSC000606306R8□S0 6.8 20,30 10 kHz,1 V 0.05 1.20(1.60) 6R8 BPSC000606308R2□S0 8.2 20,30 10 kHz,1 V 0.053 1.00(1.50) 8R2 BPSC00060630100□S0 10 20,30 10 kHz,1 V 0.065 0.95(1.40) 100 BPSC00060630120□S0 12 20,30 10 kHz,1 V 0.076 0.90(1.30) 120 BPSC00060630150□S0 15 20,30 10 kHz,1 V 0.103 0.85(1.10) 150 BPSC00060630180□S0 18 30 10 kHz,1 V 0.11 0.80(1.00) 180 BPSC00060630220□S0 22 20,30 10 kHz,1 V 0.122 0.75(0.92) 220 BPSC00060630270□S0 27 30 10 kHz,1 V 0.175 0.65(0.82) 270 BPSC00060630330□S0 33 30 10 kHz,1 V 0.189 0.60(0.75) 330 BPSC00060630390□S0 39 30 10 kHz,1 V 0.212 0.55(0.70) 390 BPSC00060630470□S0 47 20,30 10 kHz,1 V 0.25 0.50(0.62) 470 BPSC00060630560□S0 56 30 10 kHz,1 V 0.305 0.48(0.59) 560 BPSC00060630680□S0 68 30 10 kHz,1 V 0.355 0.42(0.52) 680 BPSC00060630820□S0 82 30 10 kHz,1 V 0.463 0.39(0.46) 820 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC00060630101□S0 100 20,30 10 kHz,1 V 0.52 0.35(0.42) 101 BPSC00060630181□S0 180 30 10 kHz,1 V 1.05 0.21(0.31) 181 BPSC00060630221□S0 220 30 10 kHz,1 V 1.2 0.20(0.30) 221 BPSC00060630331□S0 330 20,30 10 kHz,1 V 1.7 0.15(0.24) 331 BPSC00060630391□S0 390 30 10 kHz,1 V 1.8 0.13(0.22) 391 BPSC00060630471□S0 470 20,30 10 kHz,1 V 2.5 0.11(0.21) 471 BPSC00060630561□S0 560 20,30 10 kHz,1 V 3.2 0.10(0.17) 561 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N=+40% -20%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000707301R0□S0 1.0 30 10 kHz,1 V 0.024 3.50(5.30) 1R0 BPSC000707301R5□S0 1.5 30 10 kHz,1 V 0.0195 3.40(4.50) 1R5 BPSC000707302R2□S0 2.2 20,30 10 kHz,1 V 0.035 3.00(3.40) 2R2 BPSC000707303R0□S0 3 30 10 kHz,1 V 0.024 2.60(3.20) 3R0 BPSC000707303R3□S0 3.3 30 10 kHz,1 V 0.025 2.50(3.10) 3R3 BPSC000707303R9□S0 3.9 30 10 kHz,1 V 0.027 2.30(2.90) 3R9 BPSC000707304R7□S0 4.7 20,30 10 kHz,1 V 0.031 1.92(2.40) 4R7 BPSC000707305R0□S0 5.0 30 10 kHz,1 V 0.031 1.74(2.40) 5R0 BPSC000707306R0□S0 6.0 30 10 kHz,1 V 0.035 1.70(2.25) 6R0 BPSC000707306R2□S0 6.2 20,30 10 kHz,1 V 0.051 1.40(2.20) 6R2 BPSC000707306R8□S0 6.8 20,30 10 kHz,1 V 0.05 1.30(2.15) 6R8 BPSC000707307R3□S0 7.3 30 10 kHz,1 V 0.054 1.25(2.10) 7R3 BPSC000707308R6□S0 8.6 30 10 kHz,1 V 0.058 1.20(1.85) 8R6 BPSC00070730100□S0 10 20,30 10 kHz,1 V 0.065 1.15(1.70) 100 BPSC00070730120□S0 12 20,30 10 kHz,1 V 0.07 1.14(1.50) 120 BPSC00070730150□S0 15 20,30 10 kHz,1 V 0.084 1.12(1.40) 150 BPSC00070730180□S0 18 30 10 kHz,1 V 0.095 1.02(1.32) 180 BPSC00070730220□S0 22 30 10 kHz,1 V 0.128 0.87(1.20) 220 BPSC00070730270□S0 27 30 10 kHz,1 V 0.142 0.82(1.05) 270 BPSC00070730330□S0 33 30 10 kHz,1 V 0.165 0.80(0.97) 330 BPSC00070730390□S0 39 30 10 kHz,1 V 0.21 0.79(0.90) 390 BPSC00070730470□S0 47 20,30 10 kHz,1 V 0.238 0.70(0.80) 470 BPSC00070730560□S0 56 30 10 kHz,1 V 0.277 0.60(0.73) 560 BPSC00070730680□S0 68 30 10 kHz,1 V 0.304 0.55(0.65) 680 BPSC00070730820□S0 82 30 10 kHz,1 V 0.39 0.48(0.60) 820 BPSC00070730101□S0 100 30 10 kHz,1 V 0.535 0.43(0.54) 101 BPSC00070730121□S0 120 20,30 10 kHz,1 V 0.6 0.36(0.45) 121 BPSC00070730221□S0 220 20,30 10 kHz,1 V 1.3 0.27(0.34) 221 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω)Max Max(Typ.) BPSC000707402R2□S0 2.2 30 10 kHz,0.1 V 0.018 3.80(4.70) 2R2 BPSC000707402R7□S0 2.7 30 10 kHz,0.1 V 0.02 3.20(4.00) 2R7 BPSC000707403R3□S0 3.3 20,30 10 kHz,0.1 V 0.023 3.00(3.80) 3R3 BPSC000707404R7□S0 4.7 20,30 10 kHz,0.1 V 0.025 2.70(3.40) 4R7 BPSC000707405R0□S0 5 20,30 10 kHz,0.1 V 0.026 2.50(3.10) 5R0 BPSC000707405R6□S0 5.6 30 10 kHz,0.1 V 0.027 2.30(3.00) 5R6 BPSC000707406R2□S0 6.2 20,30 10 kHz,0.1 V 0.027 1.80(2.80) 6R2 BPSC000707406R8□S0 6.8 30 10 kHz,0.1 V 0.032 1.70(2.70) 6R8 BPSC000707407R4□S0 7.4 30 10 kHz,0.1 V 0.032 1.70(2.50) 7R4 BPSC000707408R7□S0 8.7 30 10 kHz,0.1 V 0.034 1.70(2.40) 8R7 BPSC00070740100□S0 10 20,30 10 kHz,0.1 V 0.041 1.60(2.20) 100 BPSC00070740120□S0 12 30 10 kHz,0.1 V 0.053 1.50(1.90) 120 BPSC00070740150□S0 15 20,30 10 kHz,0.1 V 0.057 1.40(1.80) 150 BPSC00070740180□S0 18 30 10 kHz,0.1 V 0.092 1.25(1.60) 180 BPSC00070740220□S0 22 20,30 10 kHz,0.1 V 0.096 1.10(1.50) 220 BPSC00070740270□S0 27 30 10 kHz,0.1 V 0.109 0.90(1.20) 270 BPSC00070740330□S0 33 20,30 10 kHz,0.1 V 0.124 0.85(1.10) 330 BPSC00070740390□S0 39 20,30 10 kHz,0.1 V 0.138 0.80(1.10) 390 BPSC00070740470□S0 47 20,30 10 kHz,0.1 V 0.15 0.70(1.00) 470 BPSC00070740560□S0 56 30 10 kHz,0.1 V 0.202 0.65(0.90) 560 BPSC00070740680□S0 68 20,30 10 kHz,0.1 V 0.234 0.60(0.80) 680 BPSC00070740820□S0 82 30 10 kHz,0.1 V 0.324 0.55(0.70) 820 BPSC00070740101□S0 100 20,30 10 kHz,0.1 V 0.358 0.50(0.65) 101 BPSC00070740561□S0 560 30 10 kHz,0.1 V 1.8 0.20(0.25) 561 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  RDC test method: place testing device to the 2 solder ends of wounding and test the value.  Measure Equipment： L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors - BPSC Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL BPSC00404018 4.1 4.1 2.0 1.5 1.75 12 8 4 2 178 60 13 13.2 1000 BPSC00050520 5.3 5.3 2.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 BPSC00050530 5.3 5.3 3.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 BPSC00050540 5.35 5.35 4.1 1.55 1.75 12 8 4 2 330 100 13 13.4 1000 BPSC00060620 6.2 6.2 2.2 1.55 1.75 16 12 4 2 330 100 13 13.4 1500 BPSC00060630 6.2 6.2 3.1 1.55 1.75 16 12 4 2 330 100 13 17.4 1500 BPSC00070730 7.25 7.25 3.35 1.55 1.75 16 12 4 2 330 100 13 17.4 1500 BPSC00070740 7.1 7.1 4.1 1.55 1.75 16 12 4 2 330 100 13 17.4 1000 SMD Shielded Power Inductors – BPSC Series BPSC Series Features Applications  RoHS, Halogen Free and REACH Compliance  AP Routers  Magnetic shielded  Various package size and wide inductance range     STBs LCD TVs and monitors Game consoles LED lightings  DC/DC converters Product Identification Shape and Dimensions Recommended Pattern BPSC00070734/070745 Dimension in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00070734 BPSC00070745 B 7.3±0.2 C 7.3±0.2 7.3±0.2 D A B C +0 1.8 8.4 4.4 2.2 +0 1.8 8.4 4.4 2.2 3.4 7.3±0.2 4.5 Shape and Dimensions Recommended Pattern BPSC00101131/101140/101151 Dimensions in mm TYPE BPSC00101131 BPSC00101140 BPSC00101151 A B +0 10.3 +0 10.3 +0 10.3 C +0 10.5 +0 10.5 +0 10.5 +0 3.1 +0 4 +0 5.1 D 1.2 1.2 1.2 E 7.7 7.7 7.7 F 3.0 3.0 3.0 G A B C +0 1.6 7.3 3.2 +0 1.6 7.3 3.2 +0 1.6 7.3 3.2 13.5 13.5 13.5 SMD Shielded Power Inductors – BPSC Series Shape and Dimensions Recommended Pattern BPSC00131345/131360/131380 Dimensions in mm Shape and Dimensions Recommended Pattern TYPE A BPSC00131345 BPSC00131360 BPSC00131380 B +0 12.5 +0 12.5 +0 12.5 C +0 12.5 +0 12.5 +0 12.5 +0 4.5 D E A B C 5 7.6 13 7 5.4 +0 5 7.6 13 7 5.4 +0 5 7.6 13 7 5.4 6 8 SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω) Max (A) Max BPSC000707341R5□00 1.5 20 1 kHz,1 V 0.03 4 1R5 BPSC000707342R2□00 2.2 20 1 kHz,1 V 0.03 4 2R2 BPSC000707343R3□00 3.3 20 1 kHz,1 V 0.04 3.7 3R3 BPSC000707346R8□00 6.8 20 1 kHz,1 V 0.06 2 6R8 BPSC00070734100□00 10 20 1 kHz,1 V 0.072 1.68 100 BPSC00070734120□00 12 20 1 kHz,1 V 0.098 1.52 120 BPSC00070734150□00 15 20 1 kHz,1 V 0.13 1.33 150 BPSC00070734180□00 18 20 1 kHz,1 V 0.14 1.2 180 BPSC00070734220□00 22 20 1 kHz,1 V 0.19 1.07 220 BPSC00070734270□00 27 20 1 kHz,1 V 0.21 0.96 270 BPSC00070734330□00 33 20 1 kHz,1 V 0.24 0.91 330 BPSC00070734390□00 39 20 1 kHz,1 V 0.32 0.77 390 BPSC00070734470□00 47 20 1 kHz,1 V 0.36 0.76 470 BPSC00070734560□00 56 20 1 kHz,1 V 0.47 0.68 560 BPSC00070734680□00 68 20 1 kHz,1 V 0.52 0.61 680 BPSC00070734820□00 82 20 1 kHz,1 V 0.69 0.57 820 BPSC00070734101□00 100 20 1 kHz,1 V 0.79 0.5 101 BPSC00070734121□00 120 20 1 kHz,1 V 0.89 0.49 121 BPSC00070734151□00 150 20 1 kHz,1 V 1.27 0.43 151 BPSC00070734181□00 180 20 1 kHz,1 V 1.45 0.39 181 BPSC00070734221□00 220 20 1 kHz,1 V 1.65 0.35 221 BPSC00070734271□00 270 20 1 kHz,1 V 2.31 0.32 271 BPSC00070734331□00 330 20 1 kHz,1 V 2.62 0.28 331 BPSC00070734391□00 390 20 1 kHz,1 V 2.94 0.26 391 BPSC00070734471□00 470 20 1 kHz,1 V 4.18 0.24 471 BPSC00070734561□00 560 20 1 kHz,1 V 4.67 0.22 561 BPSC00070734681□00 680 20 1 kHz,1 V 5.73 0.19 681 BPSC00070734821□00 820 20 1 kHz,1 V 6.54 0.18 821 BPSC00070734102□00 1000 20 1 kHz,1 V 9.44 0.16 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω) Max (A) Max BPSC000707451R5□00 1.5 20 1 kHz,1 V 0.02 5 1R5 BPSC000707452R2□00 1.8 20 1 kHz,1 V 0.025 4 1R8 BPSC000707452R2□00 2.2 20,30 1 kHz,1 V 0.025 3.5 2R2 BPSC000707452R7□00 2.7 20,30 1 kHz,1 V 0.03 3.5 2R7 BPSC000707453R3□00 3.3 20,30 1 kHz,1 V 0.035 3.5 3R3 BPSC000707453R6□00 3.6 20,30 1 kHz,1 V 0.035 3.2 3R6 BPSC000707454R7□00 4.7 20,30 1 kHz,1 V 0.035 3 4R7 BPSC000707456R8□00 6.8 20 1 kHz,1 V 0.045 2.5 6R8 BPSC00070745100□00 10 20 1 kHz,1 V 0.049 1.84 100 BPSC00070745120□00 12 20 1 kHz,1 V 0.058 1.71 120 BPSC00070745150□00 15 20 1 kHz,1 V 0.081 1.47 150 BPSC00070745180□00 18 20 1 kHz,1 V 0.091 1.31 180 BPSC00070745220□00 22 20 1 kHz,1 V 0.11 1.23 220 BPSC00070745270□00 27 20 1 kHz,1 V 0.15 1.12 270 BPSC00070745330□00 33 20 1 kHz,1 V 0.17 0.96 330 BPSC00070745390□00 39 20 1 kHz,1 V 0.23 0.91 390 BPSC00070745470□00 47 20 1 kHz,1 V 0.26 0.88 470 BPSC00070745560□00 56 20 1 kHz,1 V 0.35 0.75 560 BPSC00070745680□00 68 20 1 kHz,1 V 0.38 0.69 680 BPSC00070745820□00 82 20 1 kHz,1 V 0.43 0.61 820 BPSC00070745101□00 100 20 1 kHz,1 V 0.61 0.6 101 BPSC00070745121□00 120 20 1 kHz,1 V 0.66 0.52 121 BPSC00070745151□00 150 20 1 kHz,1 V 0.88 0.46 151 BPSC00070745181□00 180 20 1 kHz,1 V 0.98 0.42 181 BPSC00070745221□00 220 10,20 1 kHz,1 V 1.17 0.36 221 BPSC00070745271□00 270 10,20 1 kHz,1 V 1.64 0.34 271 BPSC00070745331□00 330 10,20 1 kHz,1 V 1.86 0.32 331 BPSC00070745391□00 390 10,20 1 kHz,1 V 2.85 0.29 391 BPSC00070745471□00 470 10,20 1 kHz,1 V 3.01 0.26 471 BPSC00070745561□00 560 10,20 1 kHz,1 V 3.62 0.23 561 BPSC00070745681□00 680 10,20 1 kHz,1 V 4.63 0.22 681 BPSC00070745821□00 820 10,20 1 kHz,1 V 5.2 0.2 821 BPSC00070745102□00 1000 10,20 1 kHz,1 V 6 0.18 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: K=±10% , M=±20% , T=±30%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat (H) (±%) Frequency (Ω) Max (A) Max BPSC001011314R7□00 4.7 30 100 kHz,1 V 0.03 4.65 4R7 BPSC001011316R8□00 6.8 30 100 kHz,1 V 0.035 3.84 6R8 BPSC00101131100□00 10 20,30 100 kHz,1 V 0.059 3.18 100 BPSC00101131150□00 15 20,30 100 kHz,1 V 0.091 2.6 150 BPSC00101131330□00 33 20,30 100 kHz,1 V 0.202 1.74 330 BPSC00101131470□00 47 20,30 100 kHz,1 V 0.299 1.43 470 BPSC00101131560□00 56 20,30 100 kHz,1 V 0.325 0.9 560 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω) Max Max(Typ.) BPSC001011401R5□00 1.5 30,+40-20 100 kHz,1 V 0.0088 8.5(10.5) 1R5 BPSC001011402R2□00 2.2 30 100 kHz,1 V 0.012 8.0(10.5) 2R2 BPSC001011402R5□00 2.5 30 100 kHz,1 V 0.012 7.5(9.5) 2R5 BPSC001011403R3□00 3.3 30 100 kHz,1 V 0.015 7.0(8.7) 3R3 BPSC001011403R8□00 3.8 30 100 kHz,1 V 0.015 6.8(8.5) 3R8 BPSC001011404R7□00 4.7 20,30 100 kHz,1 V 0.02 5.8(7.3) 4R7 BPSC001011405R2□00 5.2 20,30 100 kHz,1 V 0.024 5.8(7.3) 5R2 BPSC001011405R6□00 5.6 20,30 100 kHz,1 V 0.027 5.0(6.5) 5R6 BPSC001011406R8□00 6.8 20,30 100 kHz,1 V 0.031 5.0(6.5) 6R8 BPSC001011407R0□00 7 20,30 100 kHz,1 V 0.031 4.8(5.9) 7R0 BPSC001011408R2□00 8.2 20,30 100 kHz,1 V 0.036 4.5(5.8) 8R2 BPSC00101140100□00 10 20,30 100 kHz,1 V 0.04 4.0(5.0) 100 BPSC00101140150□00 15 20,30 100 kHz,1 V 0.055 3.4(4.3) 150 BPSC00101140180□00 18 20,30 100 kHz,1 V 0.075 2.9(3.6) 180 BPSC00101140220□00 22 20,30 100 kHz,1 V 0.08 2.6(3.3) 220 BPSC00101140270□00 27 20,30 100 kHz,1 V 0.096 2.4(3.0) 270 BPSC00101140330□00 33 20,30 100 kHz,1 V 0.098 2.3(2.9) 330 BPSC00101140390□00 39 20,30 100 kHz,1 V 0.12 2.1(2.7) 390 BPSC00101140470□00 47 20,30 100 kHz,1 V 0.144 1.8(2.5) 470 BPSC00101140560□00 56 20,30 100 kHz,1 V 0.175 1.6(2.1) 560 BPSC00101140680□00 68 20,30 100 kHz,1 V 0.204 1.4(1.9) 680 BPSC00101140820□00 82 20,30 100 kHz,1 V 0.25 1.3(1.7) 820 BPSC00101140101□00 100 20,30 100 kHz,1 V 0.304 1.0(1.6) 101 BPSC00101140151□00 150 20,30 100 kHz,1 V 0.506 0.96(1.3) 151 BPSC00101140221□00 220 20,30 100 kHz,1 V 0.69 0.8(1.0) 221 BPSC00101140331□00 330 20,30 100 kHz,1 V 1.09 0.68(0.86) 331 BPSC00101140471□00 470 20,30 100 kHz,1 V 1.6 0.6(0.75) 471 BPSC00101140561□00 560 20,30 100 kHz,1 V 1.68 0.5(0.68) 561 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N=+40% -20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω) Max Max(Typ.) BPSC00101151R80□00 0.8 30 100 kHz,1 V 0.0062 10.8(13.5) R80 BPSC001011511R5□00 1.5 30 100 kHz,1 V 0.0081 10.3(12.9) 1R5 BPSC001011512R2□00 2.2 30 100 kHz,1 V 0.011 9.2(11) 2R2 BPSC001011513R3□00 3.3 30 100 kHz,1 V 0.012 7.2(9.0) 3R3 BPSC001011514R7□00 4.7 20,30 100 kHz,1 V 0.014 5.6(7.8) 4R7 BPSC001011516R8□00 6.8 20,30 100 kHz,1 V 0.024 5.1(6.4) 6R8 BPSC001011518R2□00 8.2 20,30 100 kHz,1 V 0.027 4.7(5.9) 8R2 BPSC00101151100□00 10 20,30 100 kHz,1 V 0.028 4.4(5.6) 100 BPSC00101151120□00 12 20,30 100 kHz,1 V 0.036 3.4(5.8) 120 BPSC00101151150□00 15 20,30 100 kHz,1 V 0.041 3.2(4.5) 150 BPSC00101151180□00 18 20,30 100 kHz,1 V 0.046 3.0(3.8) 180 BPSC00101151220□00 22 20,30 100 kHz,1 V 0.061 2.8(3.6) 220 BPSC00101151270□00 27 20,30 100 kHz,1 V 0.069 2.1(3.2) 270 BPSC00101151330□00 33 20,30 100 kHz,1 V 0.084 2.0(2.9) 330 BPSC00101151390□00 39 20,30 100 kHz,1 V 0.106 1.9(2.6) 390 BPSC00101151470□00 47 20,30 100 kHz,1 V 0.13 1.7(2.3) 470 BPSC00101151560□00 56 20,30 100 kHz,1 V 0.149 1.6(2.2) 560 BPSC00101151680□00 68 20,30 100 kHz,1 V 0.201 1.5(2.0) 680 BPSC00101151820□00 82 20,30 100 kHz,1 V 0.227 1.3(1.8) 820 BPSC00101151101□00 100 20,30 100 kHz,1 V 0.253 1.2(1.7) 101 BPSC00101151121□00 120 20,30 100 kHz,1 V 0.303 1.1(1.5) 121 BPSC00101151151□00 150 20,30 100 kHz,1 V 0.42 1.0(1.3) 151 BPSC00101151181□00 180 20,30 100 kHz,1 V 0.45 0.9(1.2) 181 BPSC00101151221□00 220 20,30 100 kHz,1 V 0.54 0.8(1.1) 221 BPSC00101151271□00 270 20,30 100 kHz,1 V 0.672 0.75(0.99) 271 BPSC00101151331□00 330 20,30 100 kHz,1 V 0.812 0.74(0.92) 331 BPSC00101151391□00 390 20,30 100 kHz,1 V 0.953 0.62(0.83) 391 BPSC00101151471□00 470 20,30 100 kHz,1 V 1.29 0.6(0.77) 471 BPSC00101151561□00 560 20,30 100 kHz,1 V 1.43 0.47(0.71) 561 BPSC00101151681□00 680 20,30 100 kHz,1 V 1.6 0.46(0.65) 681 BPSC00101151821□00 820 20,30 100 kHz,1 V 1.77 0.42(0.57) 821 BPSC00101151102□00 1000 20,30 100 kHz,1 V 2.2 0.40(0.54) 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω) Max Max(Typ.) BPSC001313453R3□00 3.3 30 100 kHz,1 V 0.015 8.8(11.1) 3R3 BPSC001313453R9□00 3.9 30 100 kHz,1 V 0.016 8.0(10.1) 3R9 BPSC001313454R7□00 4.7 20,30 100 kHz,1 V 0.018 7.9(9.9) 4R7 BPSC001313456R8□00 6.8 20,30 100 kHz,1 V 0.023 6.5(8.3) 6R8 BPSC00131345100□00 10 20,30 100 kHz,1 V 0.035 5.2(6.6) 100 BPSC00131345120□00 12 20,30 100 kHz,1 V 0.038 4.8(6.2) 120 BPSC00131345150□00 15 20,30 100 kHz,1 V 0.05 4.1(5.4) 150 BPSC00131345180□00 18 20,30 100 kHz,1 V 0.057 4.0(5.1) 180 BPSC00131345220□00 22 20,30 100 kHz,1 V 0.066 3.5(4.4) 220 BPSC00131345270□00 27 20,30 100 kHz,1 V 0.08 3.1(3.9) 270 BPSC00131345330□00 33 20,30 100 kHz,1 V 0.097 2.7(3.5) 330 BPSC00131345390□00 39 20,30 100 kHz,1 V 0.132 2.1(3.2) 390 BPSC00131345470□00 47 20,30 100 kHz,1 V 0.15 1.9(2.9) 470 BPSC00131345560□00 56 20,30 100 kHz,1 V 0.19 1.8(2.6) 560 BPSC00131345680□00 68 20,30 100 kHz,1 V 0.22 1.5(2.5) 680 BPSC00131345820□00 82 20,30 100 kHz,1 V 0.26 1.3(2.3) 820 BPSC00131345101□00 100 20,30 100 kHz,1 V 0.308 1.2(2.0) 101 BPSC00131345121□00 120 20,30 100 kHz,1 V 0.38 1.1(1.8) 121 BPSC00131345151□00 150 20,30 100 kHz,1 V 0.53 0.95(1.6) 151 BPSC00131345181□00 180 20,30 100 kHz,1 V 0.62 0.85(1.4) 181 BPSC00131345221□00 220 20,30 100 kHz,1 V 0.7 0.8(1.3) 221 BPSC00131345271□00 270 20,30 100 kHz,1 V 0.876 0.6(1.1) 271 BPSC00131345331□00 330 20,30 100 kHz,1 V 0.99 0.5(1.0) 331 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω) Max Max(Typ.) BPSC001313603R3□00 3.3 30 1 kHz,1 V 0.015 8.0(11) 3R3 BPSC001313604R7□00 4.7 20,30 1 kHz,1 V 0.018 7.6(9.2) 4R7 BPSC001313606R4□00 6.4 20,30 1 kHz,1 V 0.018 6.4(8.1) 6R4 BPSC001313608R2□00 8.2 20,30 1 kHz,1 V 0.02 5.8(7.4) 8R2 BPSC00131360100□00 10 20,30 1 kHz,1 V 0.025 5.3(6.8) 100 BPSC00131360120□00 12 20,30 1 kHz,1 V 0.027 5.3(6.8) 120 BPSC00131360150□00 15 20,30 1 kHz,1 V 0.03 4.0(5.2) 150 BPSC00131360180□00 18 20,30 1 kHz,1 V 0.034 3.8(4.9) 180 BPSC00131360220□00 22 20,30 1 kHz,1 V 0.036 3.6(4.8) 220 BPSC00131360270□00 27 20,30 1 kHz,1 V 0.051 3.2(4.1) 270 BPSC00131360330□00 33 20,30 1 kHz,1 V 0.057 2.9(3.7) 330 BPSC00131360390□00 39 20,30 1 kHz,1 V 0.068 2.7(3.5) 390 BPSC00131360470□00 47 20,30 1 kHz,1 V 0.084 2.4(3.1) 470 BPSC00131360560□00 56 20,30 1 kHz,1 V 0.1 2.1(2.7) 560 BPSC00131360680□00 68 20,30 1 kHz,1 V 0.12 2.0(2.6) 680 BPSC00131360820□00 82 20,30 1 kHz,1 V 0.14 1.8(2.3) 820 BPSC00131360101□00 100 20,30 1 kHz,1 V 0.16 1.6(2.1) 101 BPSC00131360121□00 120 20,30 1 kHz,1 V 0.18 1.5(1.9) 121 BPSC00131360151□00 150 20,30 1 kHz,1 V 0.23 1.3(1.7) 151 BPSC00131360181□00 180 20,30 1 kHz,1 V 0.29 1.2(1.6) 181 BPSC00131360221□00 220 20,30 1 kHz,1 V 0.32 1.0(1.4) 221 BPSC00131360271□00 270 20,30 1 kHz,1 V 0.38 0.90(1.2) 271 BPSC00131360331□00 330 20,30 1 kHz,1 V 0.48 0.75(1.1) 331 BPSC00131360391□00 390 20,30 1 kHz,1 V 0.6 0.70(1.0) 391 BPSC00131360471□00 470 20,30 1 kHz,1 V 0.7 0.65(0.99) 471 BPSC00131360561□00 560 20,30 1 kHz,1 V 0.86 0.60(0.91) 561 BPSC00131360681□00 680 20,30 1 kHz,1 V 1.1 0.55(0.82) 681 BPSC00131360821□00 820 20,30 1 kHz,1 V 1.34 0.50(0.71) 821 BPSC00131360102□00 1000 20,30 1 kHz,1 V 1.53 0.45(0.64) 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance Test RDC Isat(A) (H) (±%) Frequency (Ω) Max Max(Typ.) BPSC001313801R5□00 1.5 30 100 kHz,1 V 0.0074 21.6(28.0) 1R5 BPSC001313802R2□00 2.2 30,+40-20 100 kHz,1 V 0.0089 17.6(24.0) 2R2 BPSC001313802R4□00 2.4 30,+40-20 100 kHz,1 V 0.0089 17.6(24.0) 2R4 BPSC001313803R3□00 3.3 30,+40-20 100 kHz,1 V 0.0099 14.6(19.4) 3R3 BPSC001313803R5□00 3.5 30,+40-20 100 kHz,1 V 0.0123 13.8(17.4) 3R5 BPSC001313804R7□00 4.7 20,30 100 kHz,1 V 0.0158 12.3(15.4) 4R7 BPSC001313806R1□00 6.1 20,30,+40-20 100 kHz,1 V 0.0176 10.9(13.8) 6R1 BPSC001313806R8□00 6.8 20,30 100 kHz,1 V 0.018 10.8(13.7) 6R8 BPSC001313807R6□00 7.6 20,30 100 kHz,1 V 0.02 10.0(12.6) 7R6 BPSC00131380100□00 10 20,30 1 kHz,1 V 0.022 8.9(11.2) 100 BPSC00131380120□00 12 20,30 1 kHz,1 V 0.03 7.4(9.4) 120 BPSC00131380150□00 15 20,30 1 kHz,1 V 0.034 7.1(9.0) 150 BPSC00131380180□00 18 20,30 1 kHz,1 V 0.0392 6.5(8.2) 180 BPSC00131380220□00 22 20,30 1 kHz,1 V 0.048 5.8(7.5) 220 BPSC00131380270□00 27 20,30 1 kHz,1 V 0.052 5.3(6.7) 270 BPSC00131380330□00 33 20,30 1 kHz,1 V 0.0648 4.8(6.1) 330 BPSC00131380390□00 39 20,30 1 kHz,1 V 0.065 3.9(5.6) 390 BPSC00131380470□00 47 20,30 1 kHz,1 V 0.1 3.6(5.2) 470 BPSC00131380560□00 56 20,30 1 kHz,1 V 0.11 3.4(4.8) 560 BPSC00131380680□00 68 20,30 1 kHz,1 V 0.12 2.8(4.1) 680 BPSC00131380820□00 82 20,30 1 kHz,1 V 0.16 2.7(4.0) 820 BPSC00131380101□00 100 20,30 1 kHz,1 V 0.17 2.5(3.5) 101 BPSC00131380121□00 120 20,30 1 kHz,1 V 0.19 2.2(3.2) 121 BPSC00131380151□00 150 20,30 1 kHz,1 V 0.25 2.0(2.9) 151 BPSC00131380181□00 180 20,30 1 kHz,1 V 0.31 1.8(2.6) 181 BPSC00131380221□00 220 20,30 1 kHz,1 V 0.35 1.7(2.4) 221 BPSC00131380271□00 270 20,30 1 kHz,1 V 0.43 1.5(2.2) 271 BPSC00131380331□00 330 20,30 1 kHz,1 V 0.51 1.2(2.0) 331 BPSC00131380391□00 390 20,30 1 kHz,1 V 0.6 1.1(1.6) 391 BPSC00131380471□00 470 20,30 1 kHz,1 V 0.71 0.99(1.6) 471 BPSC00131380561□00 560 20,30 1 kHz,1 V 0.88 0.95(1.4) 561 BPSC00131380681□00 680 20,30 1 kHz,1 V 1.04 0.84(1.2) 681 BPSC00131380821□00 820 20,30 1 kHz,1 V 1.36 0.77(1.1) 821 BPSC00131380102□00 1000 20,30 1 kHz,1 V 1.66 0.73(1.0) 102 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N=+40% -20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 35% from its value with current  Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Isat：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors - BPSC Series Curves of BPSC Series Test Instruments：HP4294 Impedance / Material Analyzer BPSC00070734 BPSC00070745 BPSC00101140 BPSC00131345 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series BPSC00131360 BPSC00131380 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - BPSC Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL BPSC00070734 7.6 7.6 3.6 1.55 1.75 16 12 4 2 330 100 13 16.0 1600 BPSC00070745 7.6 7.6 5.0 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 BPSC00101131 10.6 10.75 4.2 1.55 1.75 24 16 4 2 300 100 13 24.4 1000 BPSC00101140 10.6 10.75 4.2 1.5 1.75 24 16 4 2 330 100 13 24.4 1000 BPSC00101151 10.6 10.6 5.0 1.5 1.75 24 16 4 2 330 100 13 24.4 500 BPSC00131345 13.0 12.8 5.1 1.55 1.75 24 16 4 2 330 100 13 24.4 500 BPSC00131360 12.6 12.6 6.7 1.55 1.75 24 16 4 2 330 100 13 24.4 600 BPSC00131380 12.6 12.6 8.7 1.55 1.75 24 16 4 2 330 100 13 24.4 500 SMD Shielded Power Inductors - BPSC Series BPSC Series Features Applications  RoHS, Halogen Free and REACH Compliance  Magnetic shielded  Various package size and wide inductance range     AP Routers STBs LCD TVs and monitors Game consoles  LED lightings  DC/DC converters Product Identification Shapes and Dimensions Recommended Pattern Dimension in mm Dimension in mm TYPE BPSC00080845 A +0 8.3 B +0 8.3 C +0 4.5 D E TYPE A B C D 2.5 6.3 BPSC00080845 10.1 6.1 2.0 2.8 SMD Shielded Power Inductors – BPSC Series Electrical Characteristics Inductance Tolerance (H) (±%) BPSC000808453R3□00 3.3 20 BPSC000808454R7□00 4.7 BPSC000808456R8□00 Test RDC Rated Current (mΩ) Max (A) 100 19 5.7 3R3 20 100 22 5.6 4R7 6.8 20 100 25 4.4 6R8 BPSC00080845100□00 10 20 100 36 4.0 100 BPSC00080845150□00 15 20 100 53 2.9 150 BPSC00080845220□00 22 20 100 75 2.4 220 BPSC00080845470□00 47 20 100 150 1.8 470 BPSC00080845680□00 68 20 100 240 1.5 680 BPSC00080845101□00 100 20 100 353 1.1 101 Part Number Frequency (kHz) Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Measure Equipment： L：HP4284A 100kHz/1V RDC：Chroma 16502 Rated current：HP4284+42841A Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Marking SMD Shielded Power Inductors – BPSC Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE BPSC00080845 A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL 8.4 9.9 4.8 1.55 1.75 24 12 4 2 330 100 13 24.4 1000
