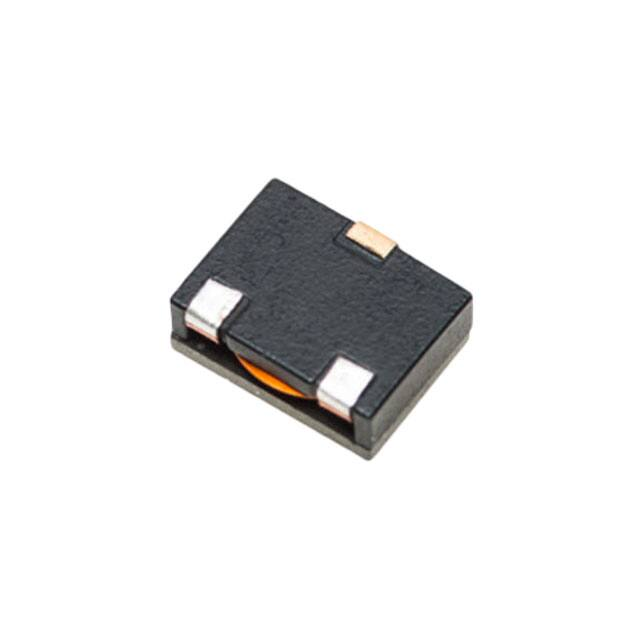

HCV1206-3R0-R

Technical Data 10354 Effective October 2017 Supersedes April 2015 HCV1206 High current power inductors Applications • Compatible with Picor® Cool-Power® ZVS Buckand Buck-Boost Regulator Families (Picor part number series PI37xx and PI35xx) Environmental data Product features • Flat-wire construction • Low DCR, high efficiency • Secure 3 terminal mounting • 12.7 mm x 10.15 mm footprint surface mount package in a 5.1 mm height • Ferrite core material • Storage temperature range (component): -55 °C to +125 °C • Operating temperature range: -55 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant HALOGEN Pb HF FREE Picor® and Cool-Power® are trademarks of Vicor Corporation. HCV1206 High current power inductors  Technical Data 10354 Effective October 2017 Product Specifications Part Number4 OCL1 (μH) ±10% Irms2 (A) Isat3 (A) DCR (mΩ) @ +20 °C ±10% HCV1206-R42-R 0.42 16 42 3.15 HCV1206-R48-R 0.48 16 37 3.15 HCV1206-R90-R 0.90 14 28 4.6 HCV1206-1R0-R 1.0 14 24.5 4.6 HCV1206-1R5-R 1.5 12 21 6.0 HCV1206-2R0-R 2.0 12 16 6.0 HCV1206-3R0-R 3.0 11 13 7.4 1. Open Circuit Inductance (OCL) Test Parameters: 100 kHz, 0.1 Vrms, 0.0 Adc, +25 °C 2. Irms: DC current for an approximate temperature rise of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed +125 °C under worst case operating conditions verified in the end application. 3. Isat : Peak current for approximately 5% rolloff @ +25 °C 4. Part Number Definition: HCV1206-xxx-R HCV1206 = Product code and size xxx=Inductance value in μH, -R suffix = RoHS compliant Dimensions- mm Recommended Pad Layout Part marking: HCV1206–xxx, xxx=inductance value in μH, R=decimal point, wwllyy= date code, R=revision level Soldering surfaces to be coplanar within 0.1 millimeters Pin 3 is for mounting stability. No connection. Do not route traces or vias underneath the inductor. Packaging information- mm Supplied in tape and reel packaging, 550 parts per 13” diameter reel 2 www.eaton.com/electronics Schematic HCV1206 High current power inductors Technical Data 10354 Effective October 2017  Inductance characteristics HCV1206-R42-R HCV1206-R48-R 110% 110% 100% 100% -55°C 90% % of OCL % of OCL 90% 80% 70% +25°C 60% 50% 30% 0 10 20 +25°C 60% +125°C 40% 30% 40 30 70% 50% +125°C 40% -55°C 80% 50 60 70 0 10 30 20 Idc dc (A) HCV1206-1R0-R 110% 110% 100% 100% % of OCL 80% +25°C +125°C 60% 80% 50% 40% 30% 5 10 15 20 Idc dc (A) 25 30 35 40 +125°C 60% 40% 30% +25°C 70% 50% 0 -55°C 90% -55°C 90% 70% 60 Idc (A) HCV1206-R90-R % of OCL 50 40 20% 0 5 10 15 20 25 30 35 40 Idc (A) www.eaton.com/electronics 3 HCV1206 High current power inductors  Technical Data 10354 Effective October 2017 Inductance characteristics HCV1206-2R0-R HCV1206-1R5-R 110% 110% 100% 100% -55°C 80% +25°C +125°C 70% 60% 70% +125°C +25°C 60% 50% 40% 40% 30% 0 5 10 15 20 25 30 35 Idc (A) 110% 100% -55°C 90% 80% 70% +125°C 60% 50% +25°C 40% 30% 0 2 4 6 8 10 12 14 16 18 20 22 24 Idc (A) www.eaton.com/electronics 0 2 4 6 8 10 12 14 16 18 20 22 24 Idc (A) HCV1206-3R0-R % of OCL 80% 50% 30% 4 -55°C 90% % of OCL % of OCL 90% HVC1206 High current power inductors  Technical Data 10354 Effective October 2017 Solder reflow profile TP TC -5°C tP Max. Ramp Up Rate = 3°C/s Max. Ramp Down Rate = 6°C/s Temperature TL Preheat A T smax t Table 1 - Standard SnPb Solder (Tc) Package Thickness Volume mm3
