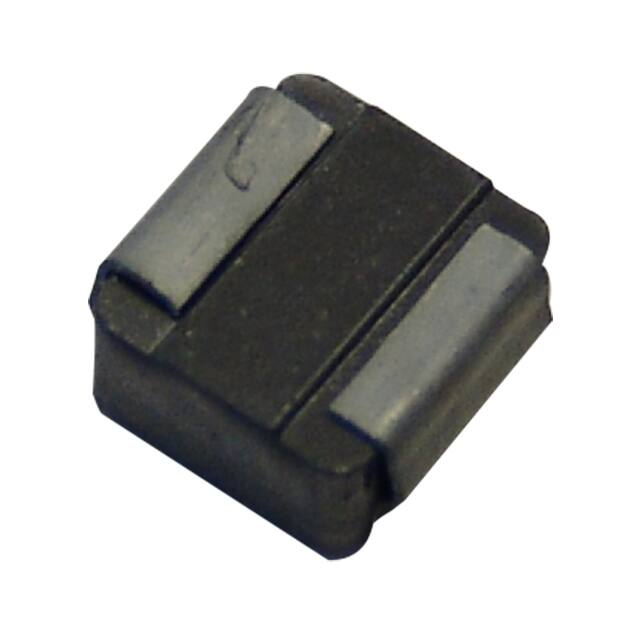

MND-07CZI4R7M-XB-RU

■ Application Laptop, desktop and server applications High current power supplies Battery powered devices PMIC ■ Features RoHS compliant & halogen free Low resistance and high current rating Magnetic core made by high performance magnetic metal powder ■ Product Identification ① MND ② ③ ④ ⑤ - 07CZ I R22 M - XB ① Product Code ② Dimensions ③ Inductance: R22 = 0.22 μH ④ Inductance Tolerance: M = ±20% ⑤ Series Type: XB Type Note: Please refer to the “Product Dimension” for detail dimensions. M AG .LAYER S MND-07CZISERIES-XB ■ Electrical Performance Inductance Heat rating Saturation Rdc(mΩ) Part number current (Idc)1 current (Isat)2 ±20%@0A (μH) Typ. Max. DC amps (A) DC amps (A) MND-07CZIR22M-XB 0.22 1.4 1.7 29.5 50 MND-07CZIR30M-XB 0.3 1.75 1.92 27.6 41 MND-07CZIR36M-XB 0.36 2.4 2.7 24 39 MND-07CZIR60M-XB 0.6 3 3.3 23 36 MND-07CZI1R0M-XB 1 4.55 5 21.8 28 MND-07CZI1R5M-XB 1.5 7.6 8.36 15 23.5 MND-07CZI2R7M-XB 2.7 15.7 17.3 11.4 12.8 MND-07CZI3R3M-XB 33 3.3 19 5 19.5 21 45 21.45 10 12 3 12.3 MND-07CZI4R7M-XB 4.7 25.2 27.72 9 12 MND-07CZI6R8M-XB 6.8 38.7 42.57 6.8 10.7 MND-07CZI8R2M-XB 8.2 44.3 48.73 5.9 10.2 MND-07CZI100M-XB 10 57 62.7 5.3 7 M AG .LAYER S MND-07CZISERIES-XB ■ Note Test frequency: 100KHz, 0.25V. Test instruments: Inductance/saturation current: Keysight 4285A or equivalent. Rdc: ADEX AX1152D or equivalent. Notes: The heat rating current (Idc) will cause temperature rise approximate 40°C. The saturation current (Isat) will cause initial inductance drop approximate 30%. All test data is referenced at 25°C ambient. Operating temperature range -55°C to +125°C. The part temperature (ambient + temp rise) should not exceed 125°C under the worst condition. 6. The temperature of component is affected by application conditions, e.g. circuit design, copper thickness of PCB and cooling conditions, the actual component temperature should be tested in the end application. 1. 2. 3. 4. 5. M AG .LAYER S MND-07CZISERIES-XB ■ Electrical Characteristics M AG .LAYER S MND-07CZISERIES-XB M AG .LAYER S MND-07CZISERIES-XB ■ Product Dimension Code: XXX = R22 = 0.22 μH Dimension Part number MND-07CZISERIES-XB A B C D E 7.2 ± 0.5 7.5 ± 0.5 3.0 Max 5.0 ± 0.3 1.5 ± 0.3 Unit: mm M AG .LAYER S MND-07CZISERIES-XB ■ Recommended PCB Layout Type A B C 07CZ 6.9 3.7 7.3 Unit: mm Safety precaution 1. Do not make any through holes and copper pattern in the dotted line area. Except a copper pattern to the electrode. 2. Don’t design/mount any components in contact with this product. This power choke coil itself does not have any protective function in abnormal condition such as overload, short circuit, open conditions and etc, it shall be confirmed as the end product that there is no risk of smoking, fire, dielectric withstand voltage, insulation resistance and etc. in abnormal conditions to provide protective devices and/or protection circuit in the end product. M AG .LAYER S MND-07CZISERIES-XB ■ Packaging Peel-off force TOP COVER TAPE 165° TO 180° BASE TAPE The peel off force of cover tape is 10 to 70 grams in the arrow direction. Dimensions F A B C D Type A B C D E F 330mm 330±2 100±1 20±0.5 13±1.0 16.4 +2.0/-0 21.4±2 Unit: mm E TYPE MND SIZE 07CZ A B W P1 K 8.2±0.1 7.9±0.1 16.0±0.3 12±0.1 3.4±0.1 P0 P2 D E T 4.0±0.1 2.0±0.1 1.5+0.1 1.75±0.1 0.35±0.05 Unit: mm M AG .LAY ER S MND-07CZISERIES-XB Taping quantity Series 07CZ PCS/Reel 1000 Carton box Middle packaging: 2 reels/box External packaging: 5 boxes/carton M AG .LAY ER S MND-07CZISERIES-XB
